StarTech.com Audio & Charge USB-C Docking Station 60W

One cable, full desk: the StarTech.com Audio & Charge turns your laptop into a workstation with 60W charging over a single USB-C connection.

USB Type-C™ to 3.5mm Headphone Adapter | Audio & Charge | 60W PD

This USB C audio adapter with 60W power delivery lets you convert the USB-C™ port of your device into a 3.5mm audio jack, while allowing you to charge your laptop, tablet or smartphone at the same time.

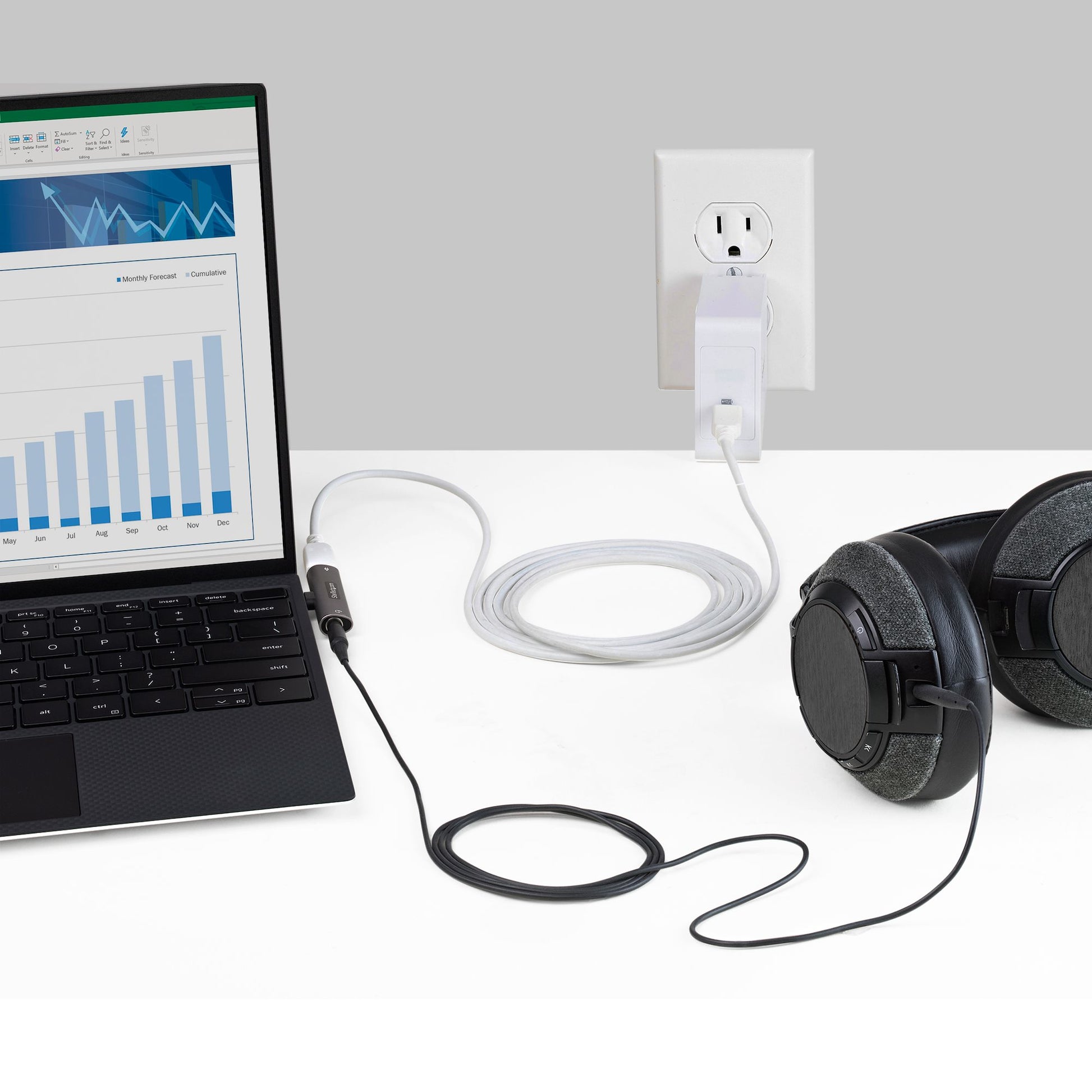

Listen & Charge Simultaneously

Make calls or listen to music with this USB audio and charging adapter. The 2 in 1 USB-C adapter with headphone jack and charging port allows you to continue to use your legacy headsets, speakers or microphones with your USB Type-C™ devices, while simultaneously charging your device through Power Delivery pass through with Type C power adapter connected. The adapter also supports Quick Charge (QC 2.0) and BC 1.2 charging.

Sleek and Portable Design

The USB Type C to aux adapter features a cable-less, dongle design with a convenient side-port layout to reduce cable clutter, making it perfect for professionals at their workstation or on-the-go. Constructed of high-quality materials, the portable adapter provides a reliable and affordable audio solution for your USB-C devices that do not have a 3.5mm input.

Wide Compatibility

This USB C to headphone jack is universally compatible enabling you to use your existing wired headset with your USB Type-C or Thunderbolt 3 device, including the MacBook Pro, iPad Pro, Samsung Galaxy and Note.

CDP235APDM is backed by a StarTech.com 3-year warranty, and free lifetime technical support.

Specifications

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
DC-in jack	No
USB Power Delivery (USB PD)	Yes
USB Power Delivery revision	3.0
USB Power Delivery up to	60 W
Performance
Product colour	Silver
Card reader integrated	No
Housing material	Metal
Hub interfaces	3.5mm, USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Technical details
Harmonized System (HS) code	84719000
Compliance certificates	CE, RoHS
Products per master (outer) case	250 pc(s)
Master (outer) case width	216 mm
Master (outer) case length	324 mm
Master (outer) case height	190 mm
Power
Wireless charging	No
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64
Mac operating systems supported	Mac OS X 13.0 Ventura
Other operating systems supported	Android
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 85%
Weight & dimensions
Weight	8 g
Width	22.5 mm
Depth	49.9 mm
Height	9 mm
Package width	59 mm
Package depth	88 mm
Package height	14 mm
Packaging data
Quantity per pack	1 pc(s)
Other features
Chipset	BCC2102, SB09-214082-CD011-A1.05
