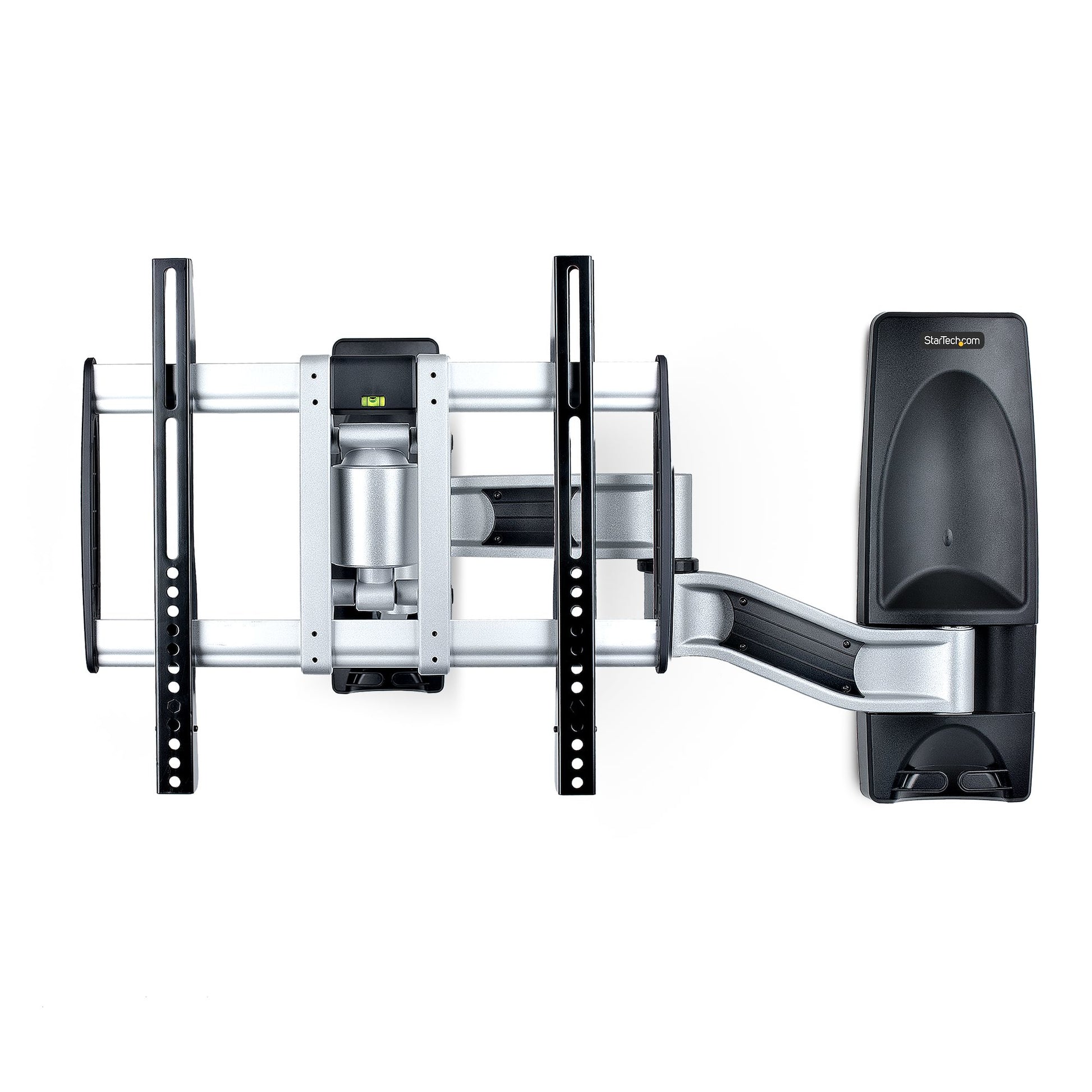

StarTech.com Articulating TV Wall Mount, VESA Wall Mount, Supports 26 to 65

Position your screen exactly where you need it with the StarTech.com Articulating TV Wall Mount — VESA fit and load ratings are below.

Mount a flat or curved 400x400 VESA display to a wall in both residential and commercial environments

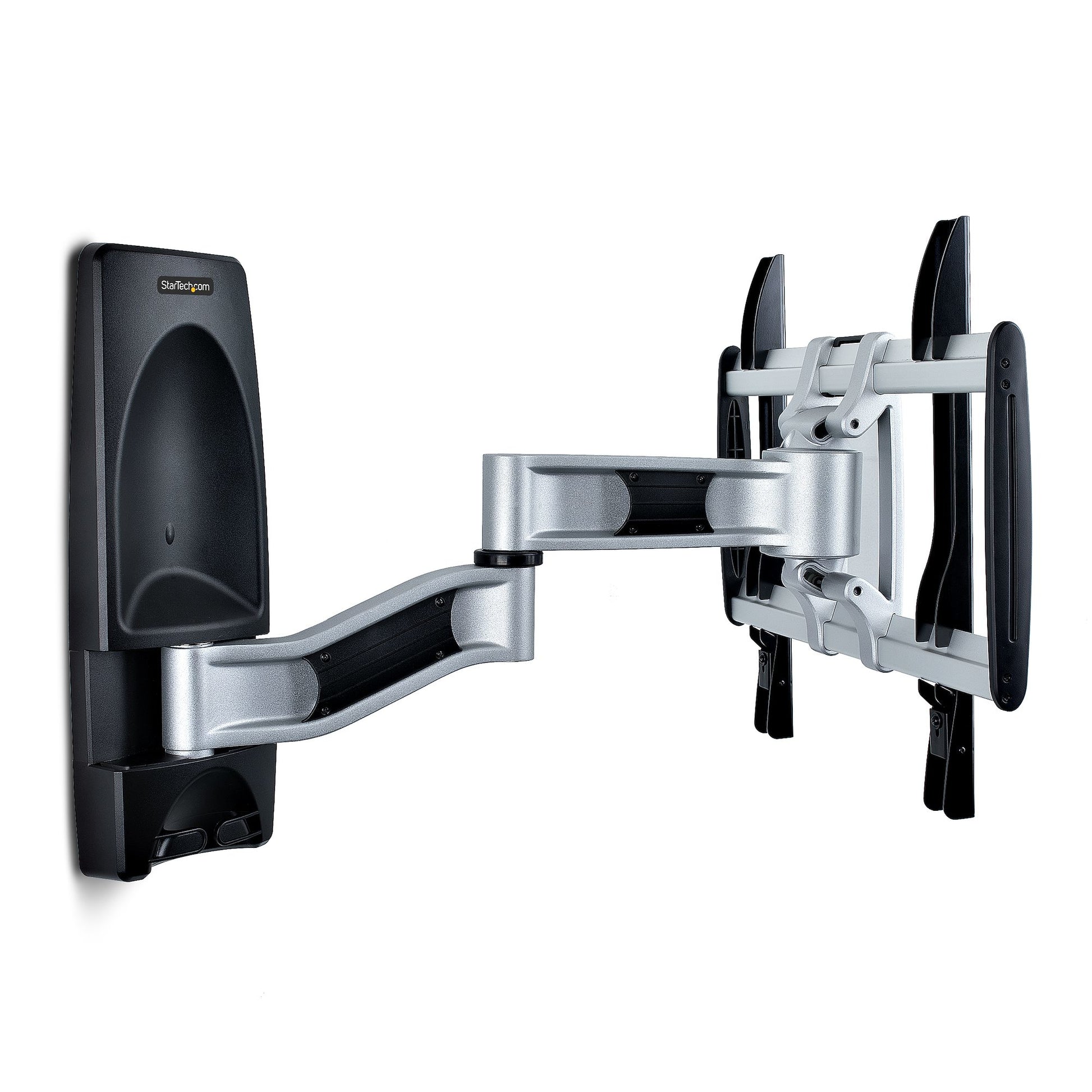

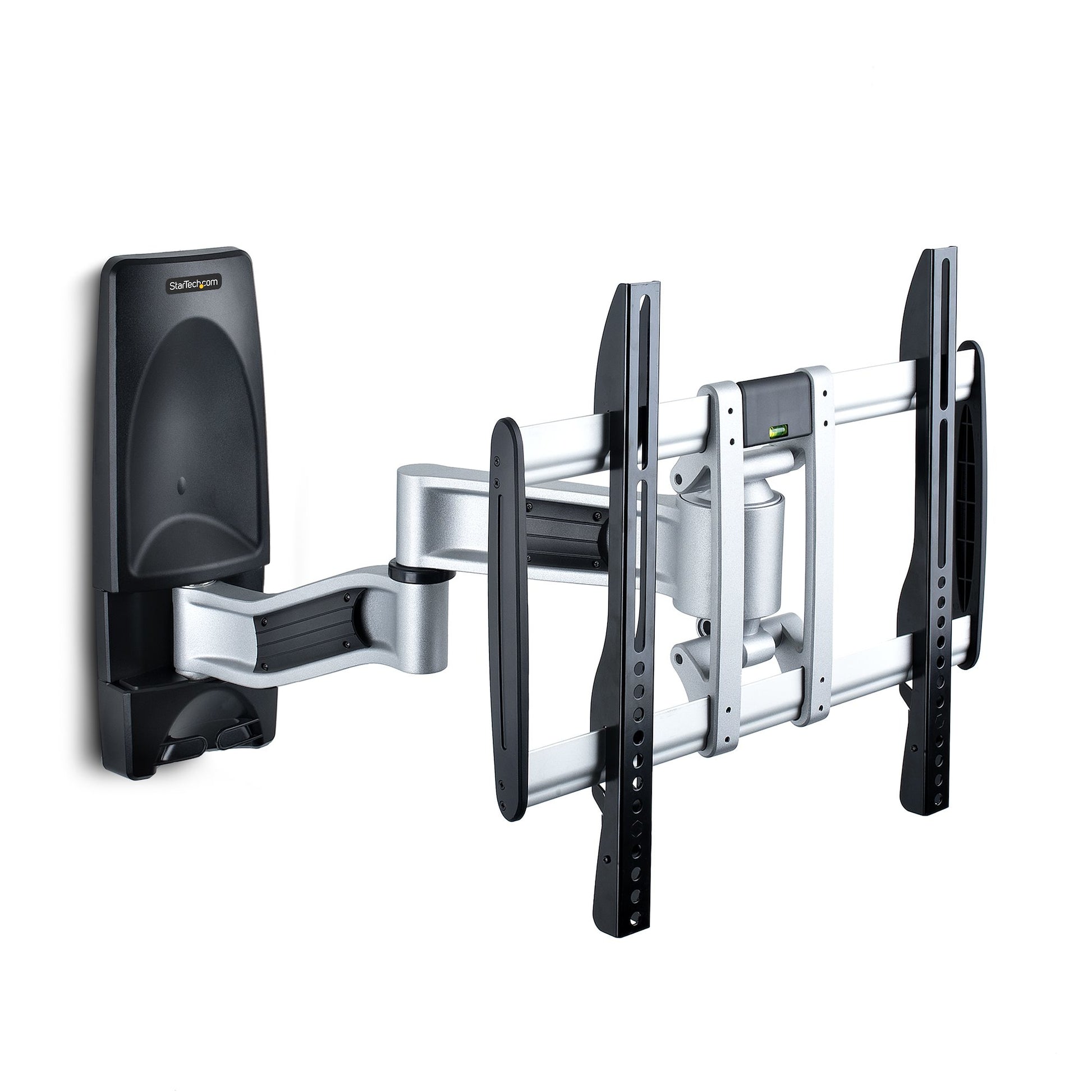

This VESA TV Wall Mount supports TV displays from 26" to 65" and up to 99.2 lb (45kg). Robust steel and aluminum frame for a long-lasting TV installation. The arm assembly provides smooth motion and retracts towards the wall for low-profile configurations. In addition, the articulating TV wall mount features an array of adjustments for an ideal viewing angle and supports VESA patterns from 200x200 to 400 x400.

Versatile TV Mounting

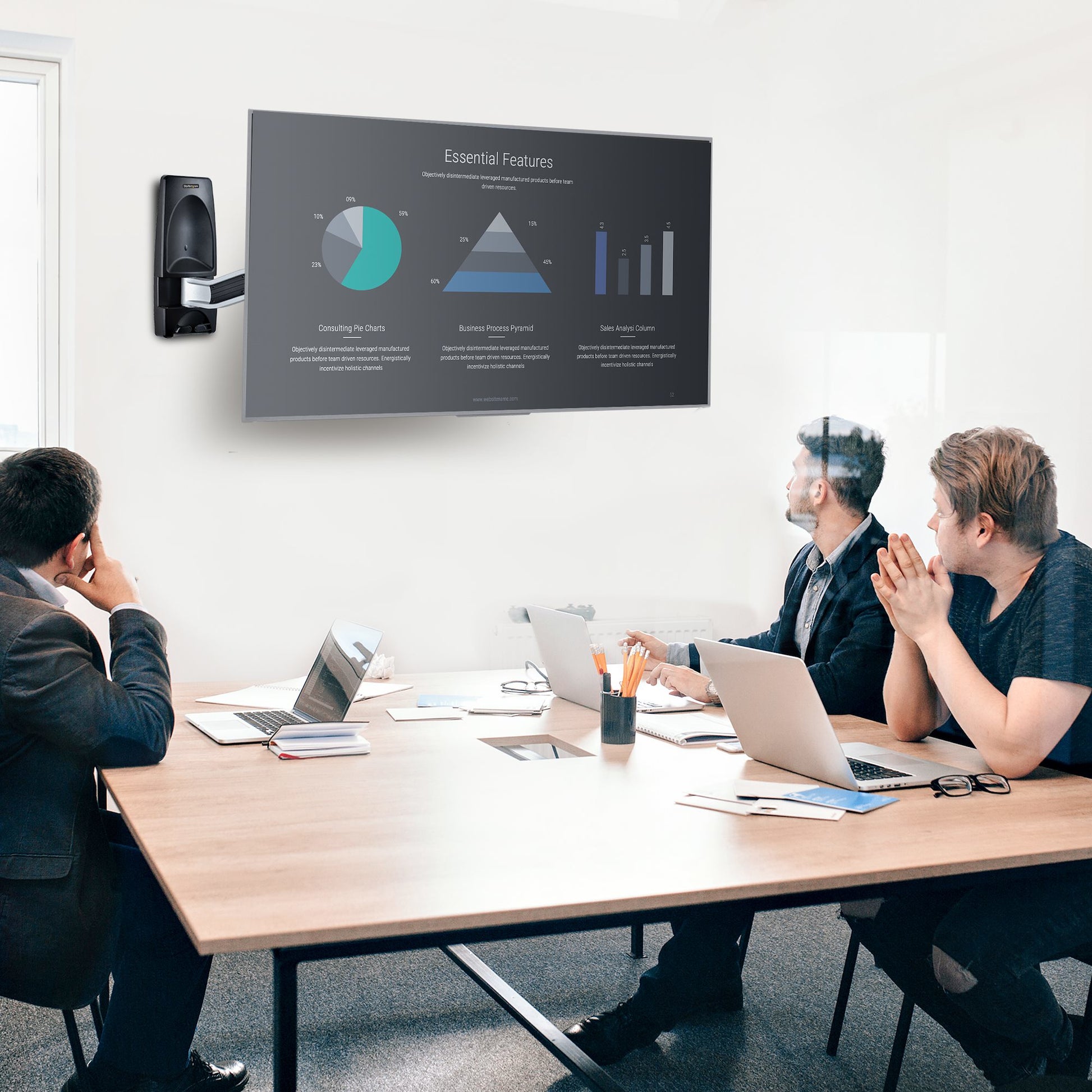

Securely mount a flat or compatible curved-screen TV or digital signage for visitors, clients, and employees to view. This TV wall mount is ideal for lobbies, boardrooms, and manufacturing facilities.

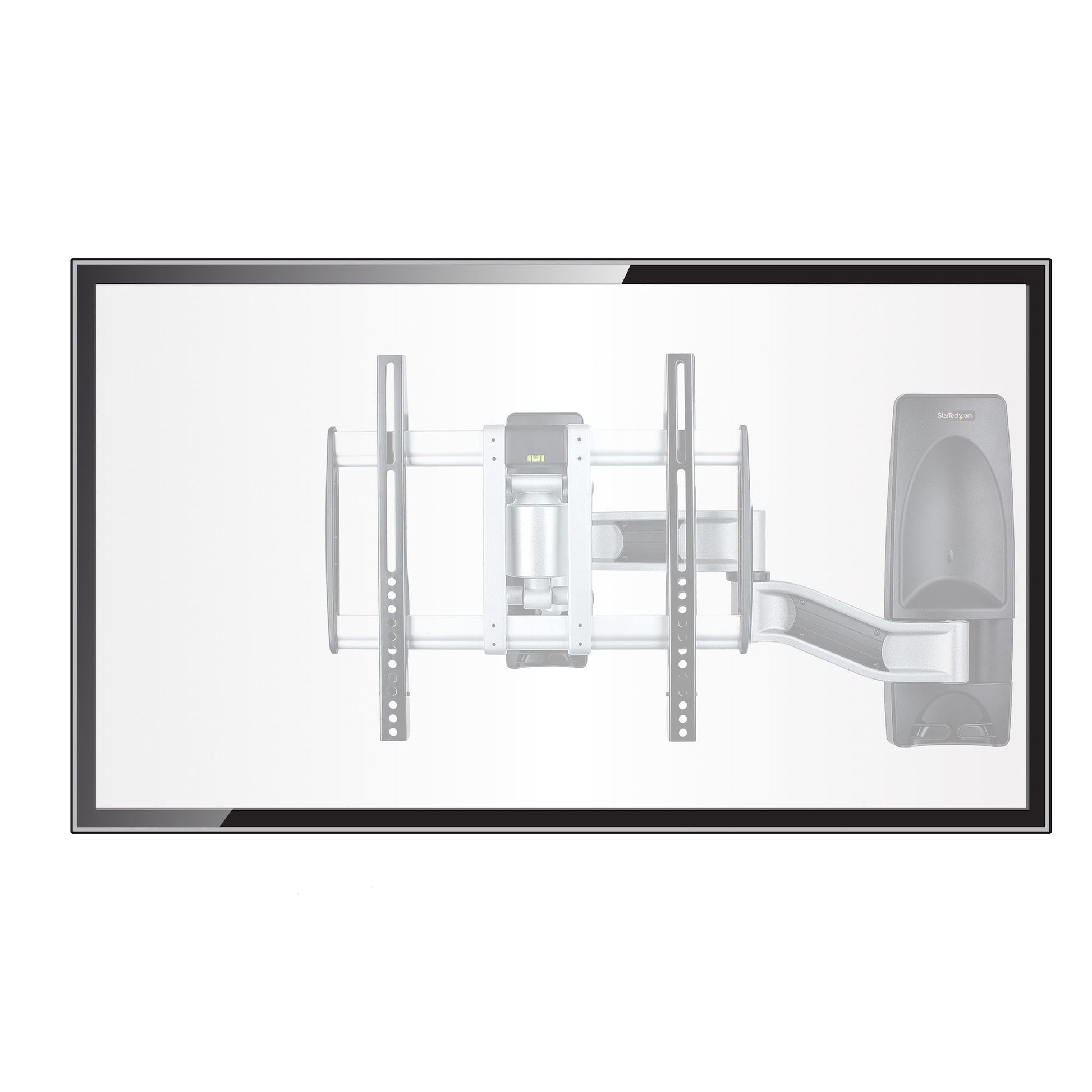

The lateral range of 3.1ft (95.6cm) is ideal for corner mounting, and the jointed arm folds on itself, creating a slim profile from the wall of just 4.1in (10.5cm) for limited-space installations.

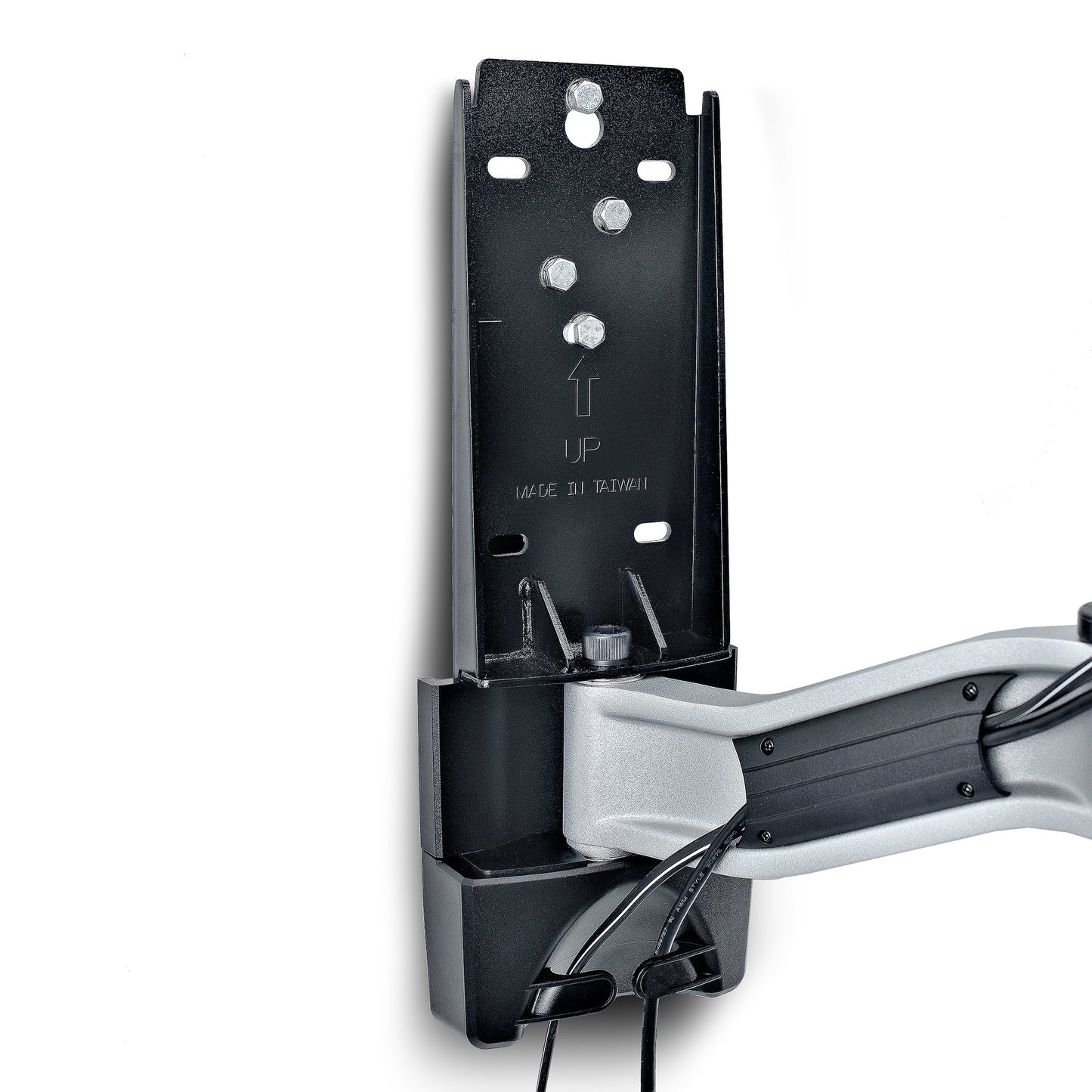

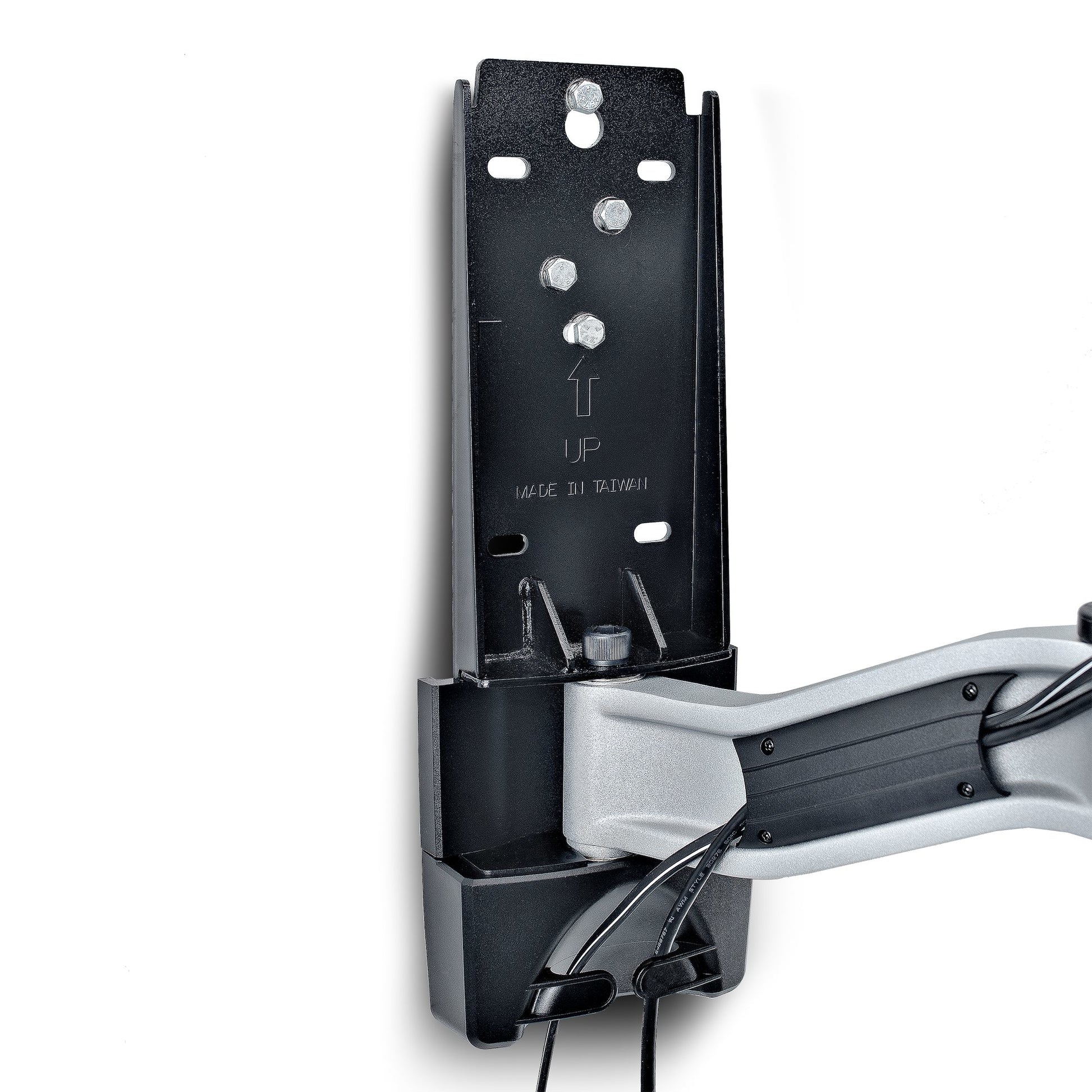

Mount the articulating TV wall mount to a single wood stud or a concrete wall using the included keyhole-style mounting plate for quick and hassle-free installation. In addition, M4/5/6/8 screws of various lengths, matching washers, and spacers enhance the TV mounting compatibility.

Supported VESA mounting patterns: 200x200, 200x300, 200x400, 300x200, 300x300, 400x200, 400x300, and 400x400.

Smooth Motion and Tidy Installation

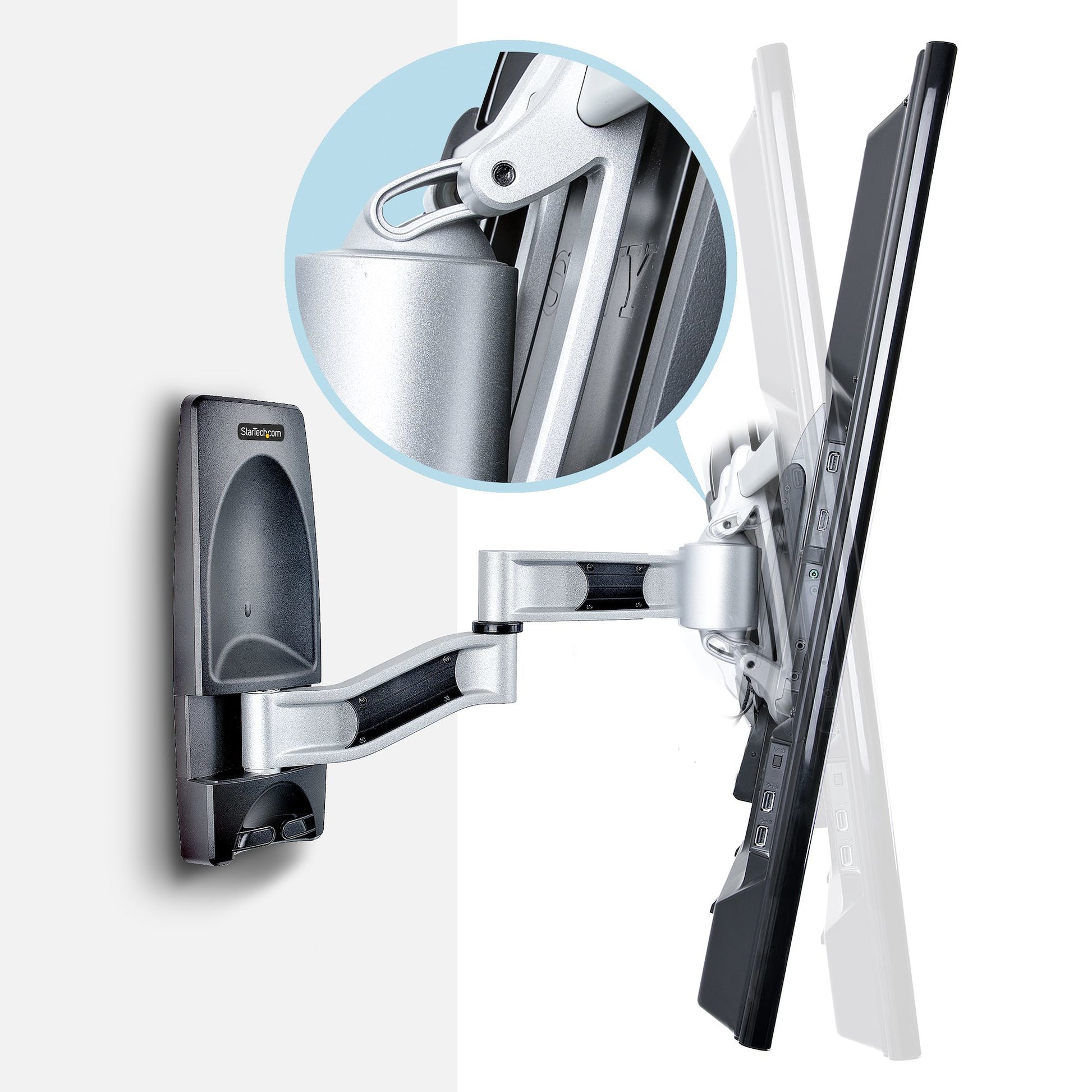

Customize the viewing experience and comfort with these adjustment capabilities. The TV mount can rotate +90/-90 degrees at the wall mount assembly plate, as well as at both pivot points, while the VESA vertical bracket can be tilted +15/-15 degrees.

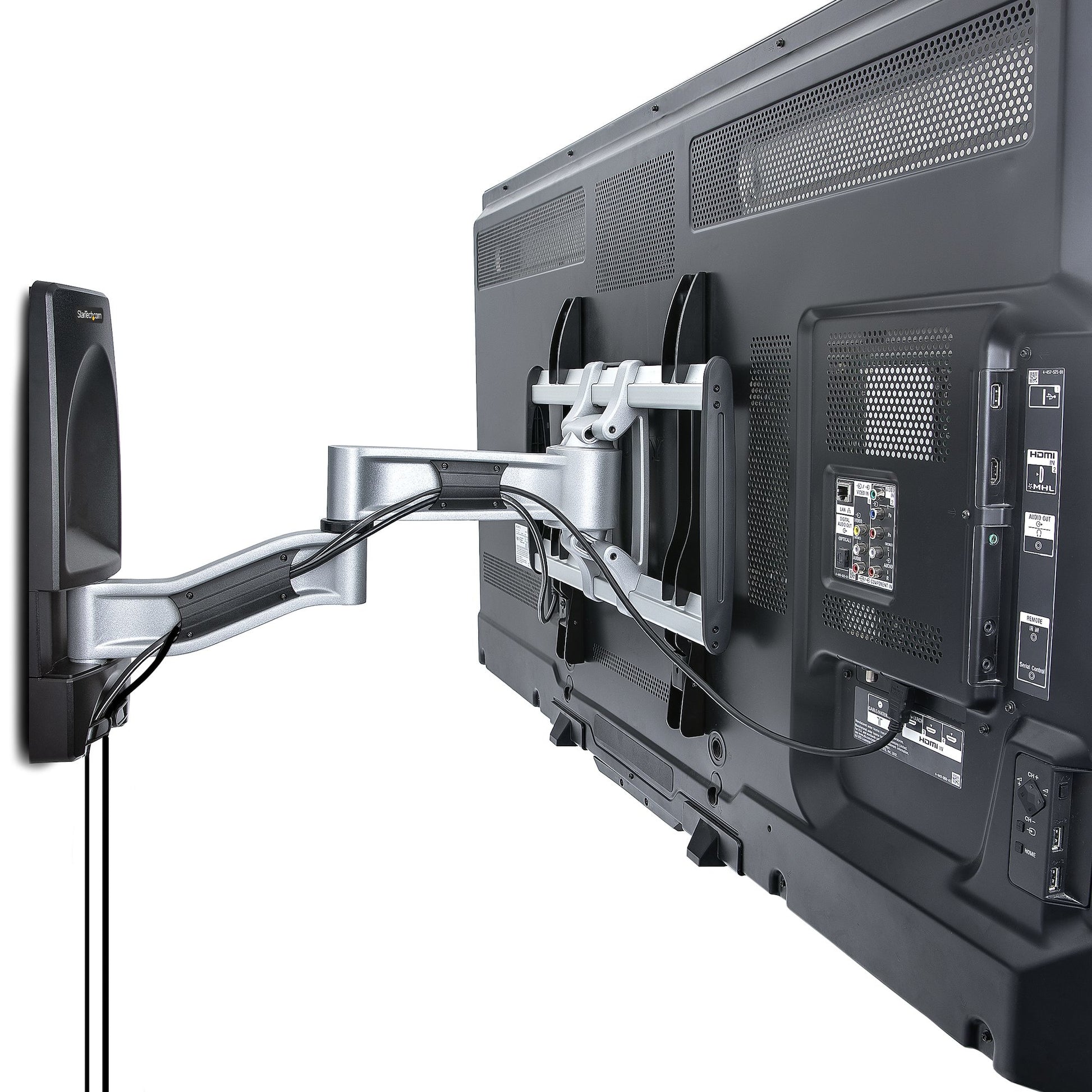

The arm assembly extends up to 22.1in (56.2cm) from the wall to accommodate different viewing positions, including corner mounting. Built-in cable management and a wall mount cover for an organized and visually appealing installation.

This TAA corner TV mount is backed for five years, including free lifetime 24/5 multi-lingual technical assistance.

Specifications

Mounting
Mounting type	Wall
Minimum screen size	66 cm (26")
Panel mounting interface	200 x 100,200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,400 x 200,400 x 400,400 x 300
Minimum VESA mount	200 x 100 mm
Maximum VESA mount	400 x 400 mm
Maximum screen size	165.1 cm (65")
Maximum weight capacity	45 kg
Ergonomics
Height adjustment	No
Tilt angle range	-15 - 15°
Swivel angle	180°
Angle of rotation	90°
Distance to the wall (min)	10.5 cm
Distance to the wall (max)	56.2 cm
Rotating	Yes
Tilt adjustment	Yes
Swivelling	Yes
Technical details
Product colour	Black, Silver
Packaging content
Screws included	Yes
Anchors included	Yes
Number of anchors included	8
Number of washers included	4
Number of screws	38
Wrench included	Yes
Wrench type	Hexagonal wrench
Manual	Yes
Weight & dimensions
Width	500 mm
Height	105 mm
Weight	7.8 kg
Depth (max)	45 cm
Packaging data
Package width	609 mm
Package depth	468 mm
Package height	150 mm
Package weight	9.2 kg
Logistics data
Master (outer) case width	470 mm
Master (outer) case length	610 mm
Master (outer) case height	133 mm
Products per master (outer) case	1 pc(s)
