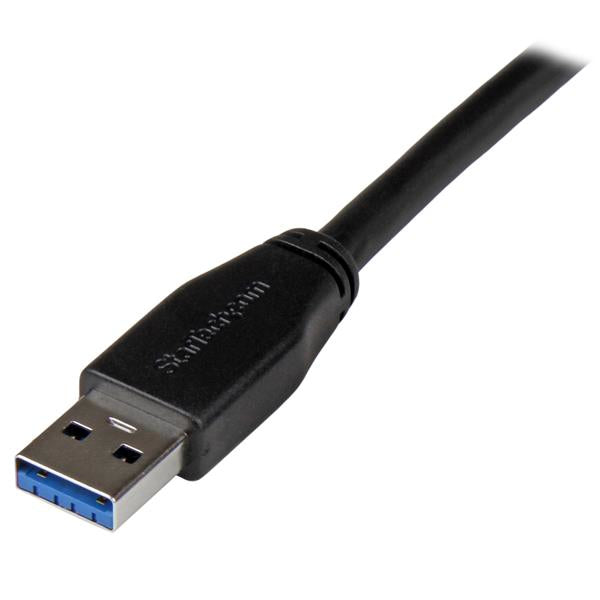

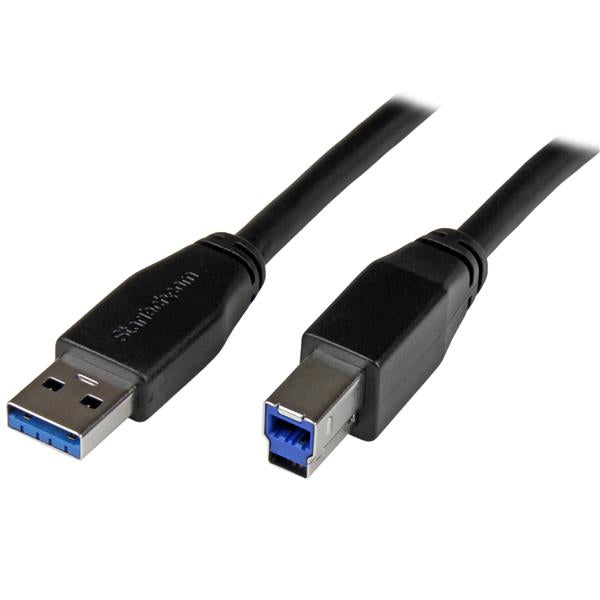

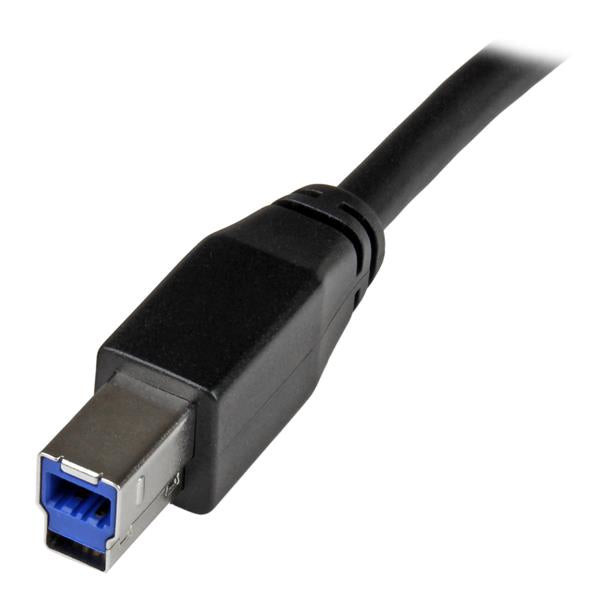

StarTech.com Active USB 3.0 (5Gbps) USB-A to USB-B Cable - M/M - 10m (30ft) - TAA

Make the connection with the StarTech.com Active — length and connector details are in the spec table.

Connect USB 3.2 Gen1 devices up to 10m away, with no signal loss

You don’t need to be limited by a standard-sized USB cable. This active USB 3.2 Gen 1 (5 Gbps) cable, better known as a USB 3.2 Gen 1 cable, lets you position your USB Type-B peripherals where you need them, up to 10 meters away from your computer.

Now, you can locate USB devices such as portable hard drives and external video capture devices to make better use of your workspace. This 10-meter (30-foot) cable has a built-in equalizing chip that delivers a reliable connection, with no signal loss, beyond the 3-meter limit of standard USB 3.2 Gen 1 cables.

The USB3SAB10M is backed by StarTech.com’s 2-year warranty for guaranteed reliability.

Specifications

Features
Connector gender	Male/Male
Cable shielding	Aluminum mylar foil
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Plug and Play	Yes
AWG wire size	28/24
USB version	USB 3.2 Gen 1 (3.1 Gen 1)
Connector 1	USB A
Connector 2	USB B
Cable length	10 m
Connector contacts plating	Nickel
Maximum data transfer rate	5000 Mbit/s
Product colour	Black
Connector 1 gender	Male
Connector 2 gender	Male
Cable jacket material	Polyvinyl chloride (PVC)
Weight	512 g
Quantity per pack	1 pc(s)
Weight & dimensions
Package width	192 mm
Package depth	182 mm
Package height	77 mm
Package weight	650 g
Technical details
Harmonized System (HS) code	84733080
Compliance certificates	RoHS
Logistics data
Products per master (outer) case	15 pc(s)
Master (outer) case width	684 mm
Master (outer) case length	286 mm
Master (outer) case height	218 mm

Downloads

• Datasheet (PDF)
