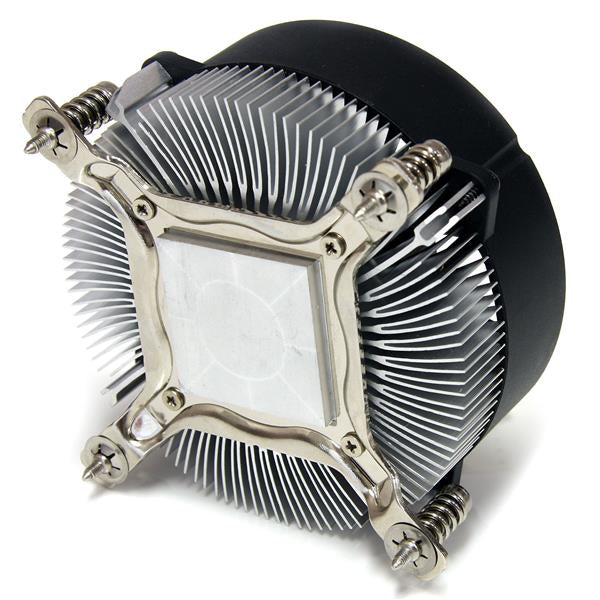

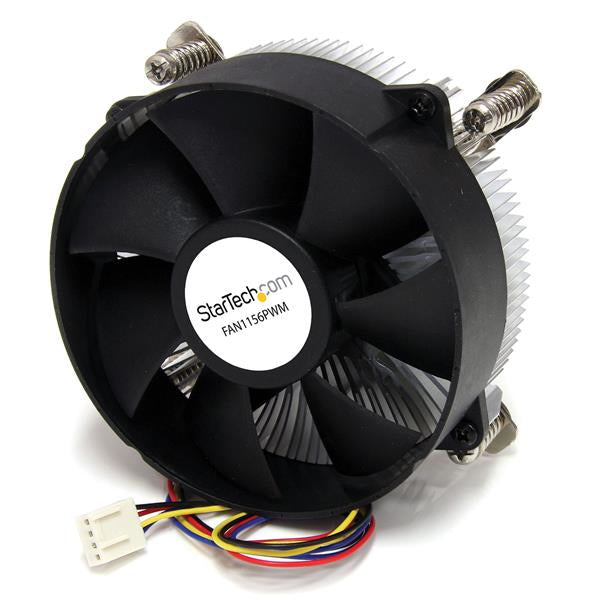

StarTech.com 95mm CPU Cooler Fan with Heatsink for Socket Cooling

Keep temperatures in check with the StarTech.com 95mm CPU Cooler Fan — fitment and noise details are in the spec table.

Add a Variable Speed PWM-Controlled CPU Cooler to an LGA1156/1155 System

The FAN1156PWM CPU Cooler with PWM fan delivers reliable, efficient cooling for Intel® Core™ i3, i5, and i7 CPUs in Socket LGA1156 / 1155 / 1150 / 1151 / 1200 systems.

Pulse Width Modulation (PWM) technology enables the motherboard to automatically adjust fan speed based on system demand. This ensures quieter operation and reduced power consumption during idle periods, while providing maximum cooling performance under heavy workloads.

Specifications

Performance
Suitable location	Processor
Type	Cooler
Operating temperature (T-T)	-10 - 70 °C
Supported processor sockets	LGA 1156 (Socket H)
Mean time between failures (MTBF)	40000 h
Design
Product colour	Black
Technical details
Airflow	65.61 CFM
Power
Voltage	12 V
Rated current	0.35 A
Operational conditions
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 65%
Weight & dimensions
Package depth	102 mm
Package width	102 mm
Package height	87 mm
Package weight	313 g
Weight	272 g
Other features
Rotational speed	3000 RPM
Dimensions (WxDxH)	95 x 95 x 55 mm
Harmonized System (HS) code	84733080
Logistics data
Products per master (outer) case	30 pc(s)
Master (outer) case width	326 mm
Master (outer) case length	526 mm
Master (outer) case height	218 mm
