StarTech.com 8U 19" Vertical Wall Mount Server Rack Cabinet - Low Profile (15")
StarTech.com 8U 19" Vertical Wall Mount Server Rack Cabinet - Low Profile (15")
Regular price
£376.46 GBP
Regular price
Sale price
£376.46 GBP
Taxes included.
Quantity
Couldn't load pickup availability
Build a tidy install with the StarTech.com 8U 19" Vertical Wall — dimensions and mounting details are in the spec table.

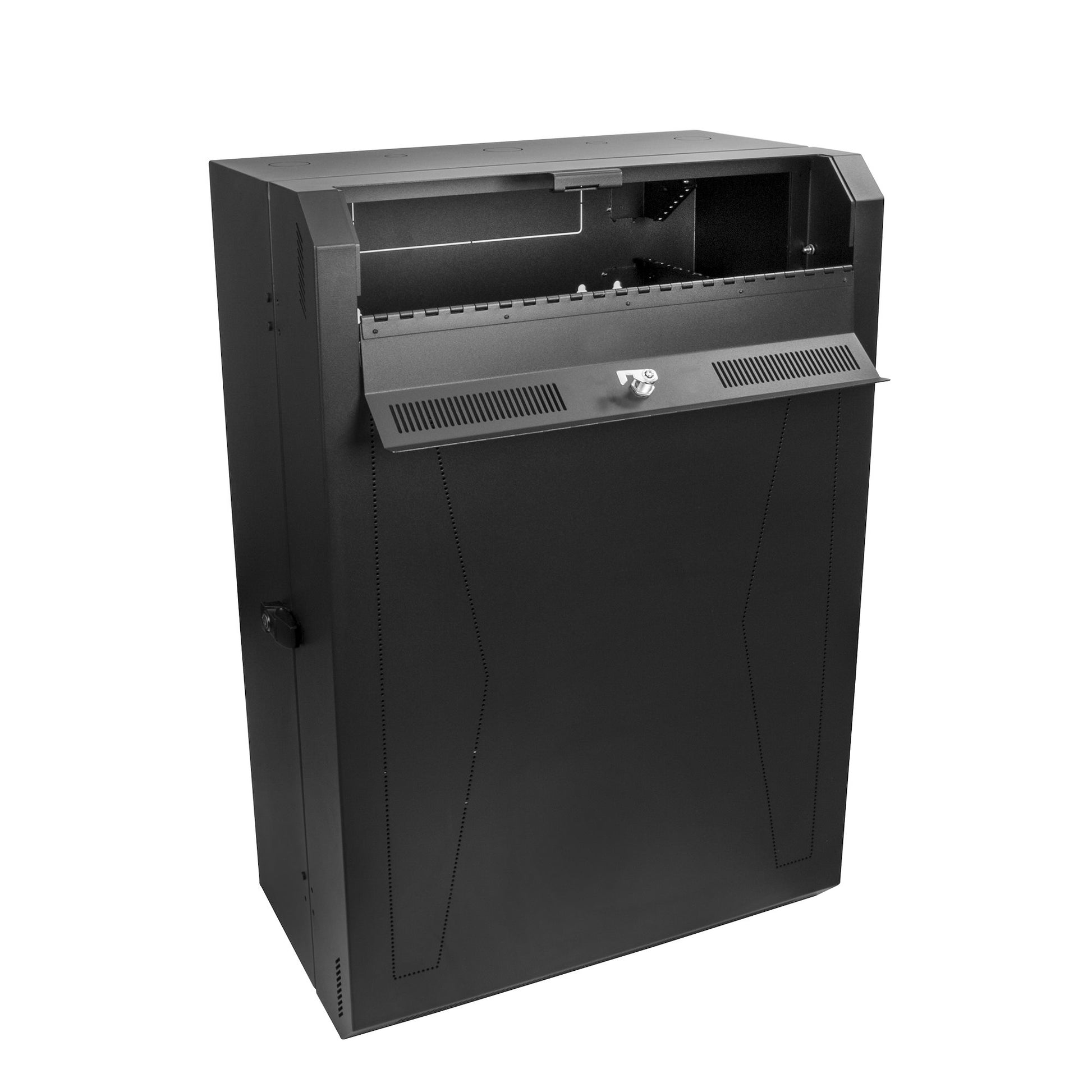

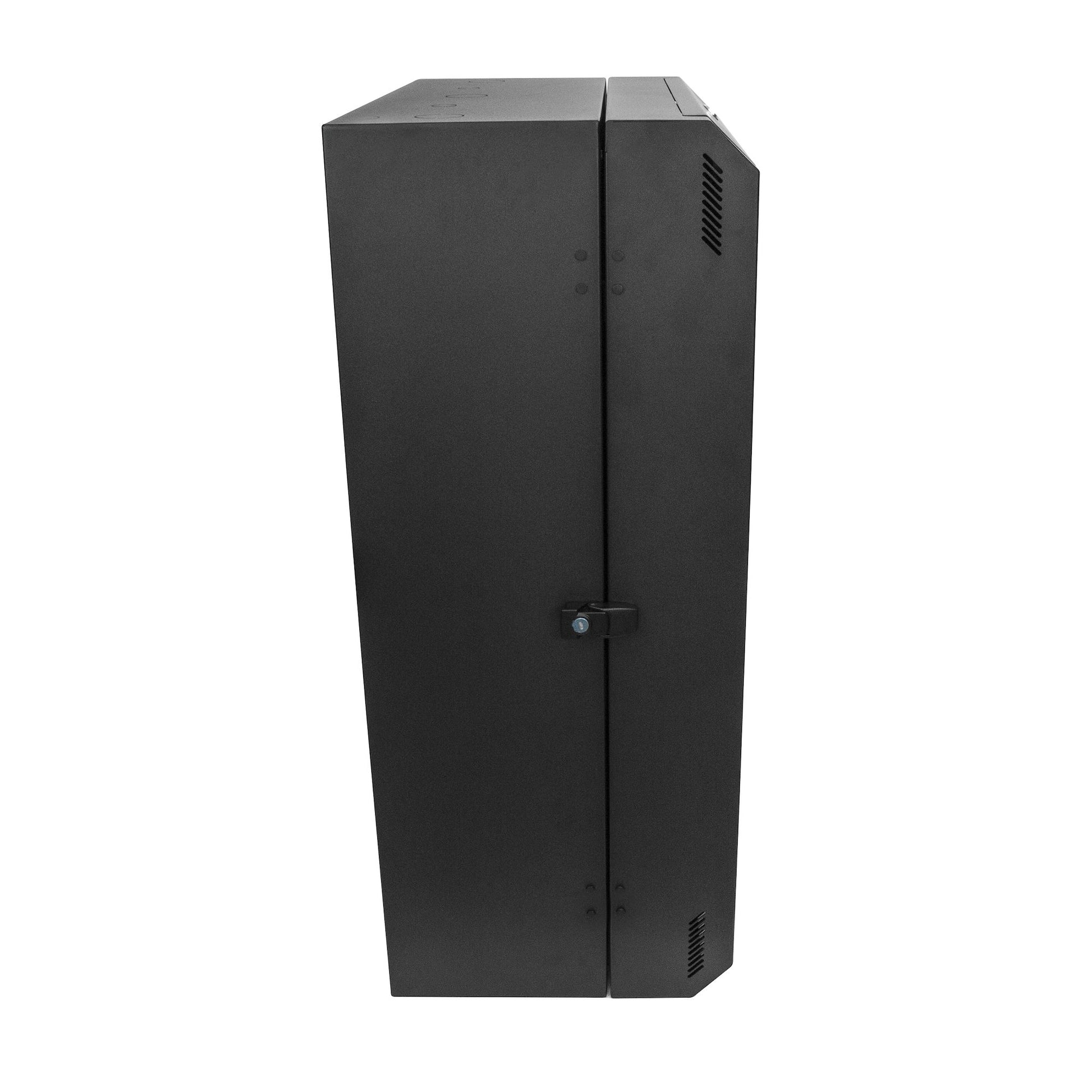

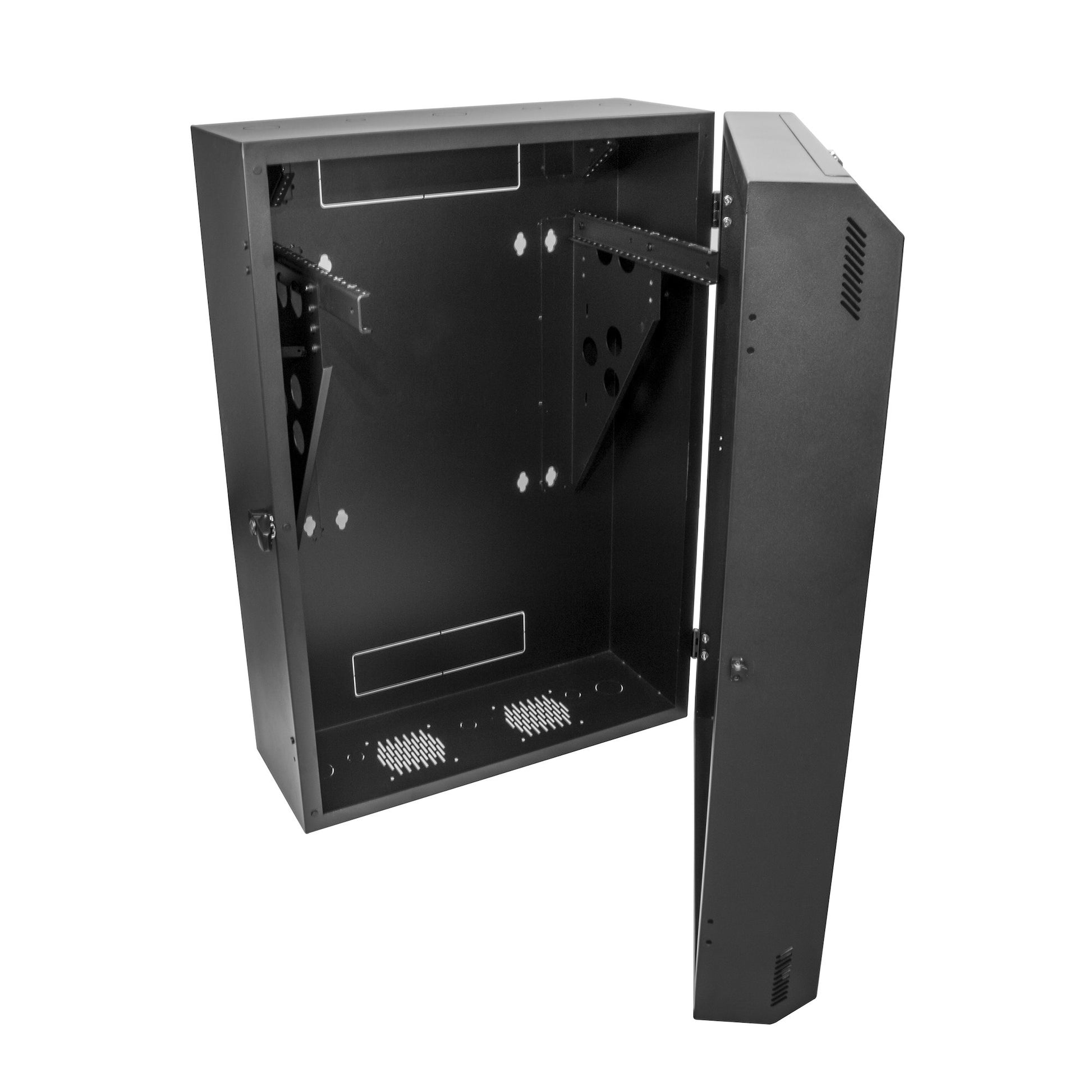

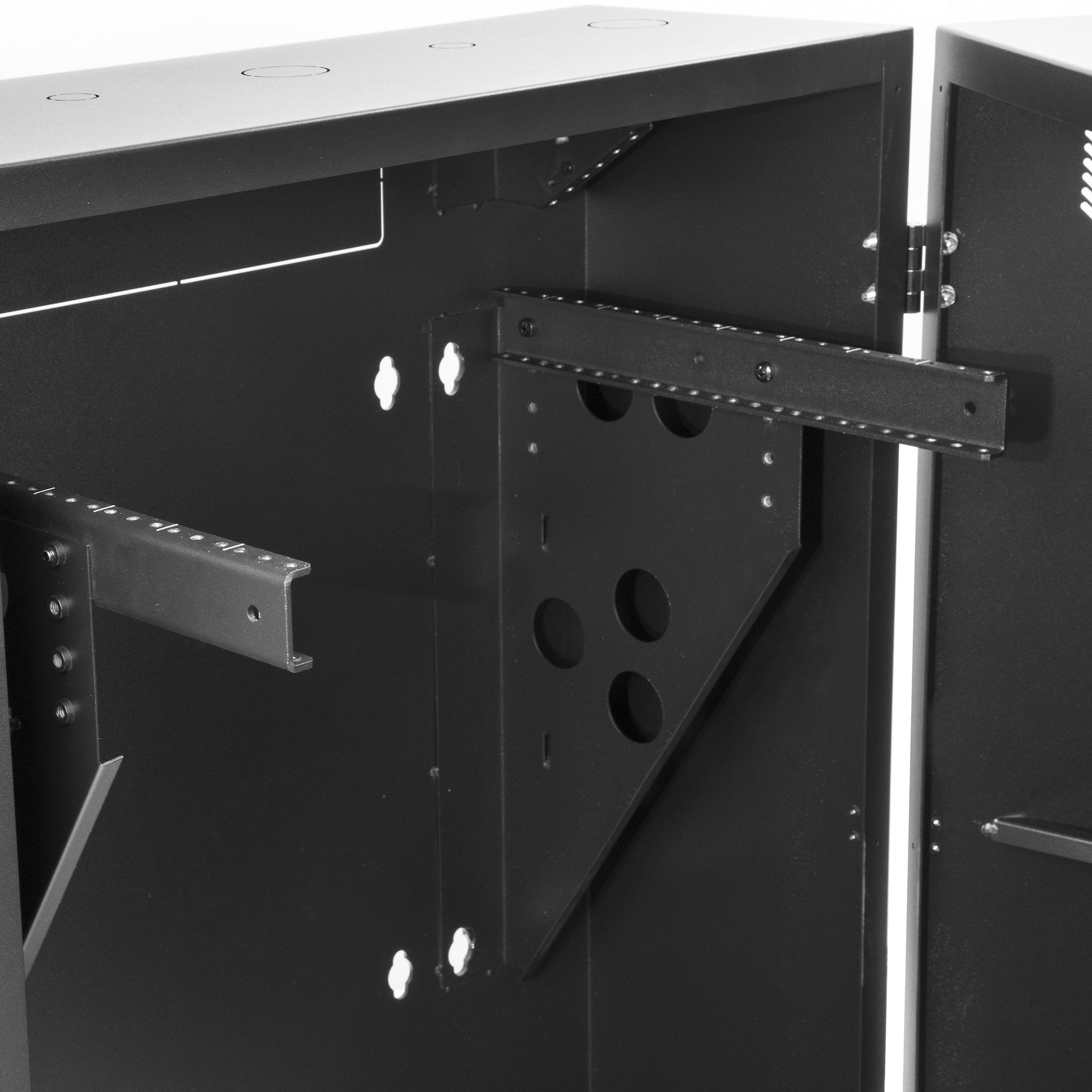

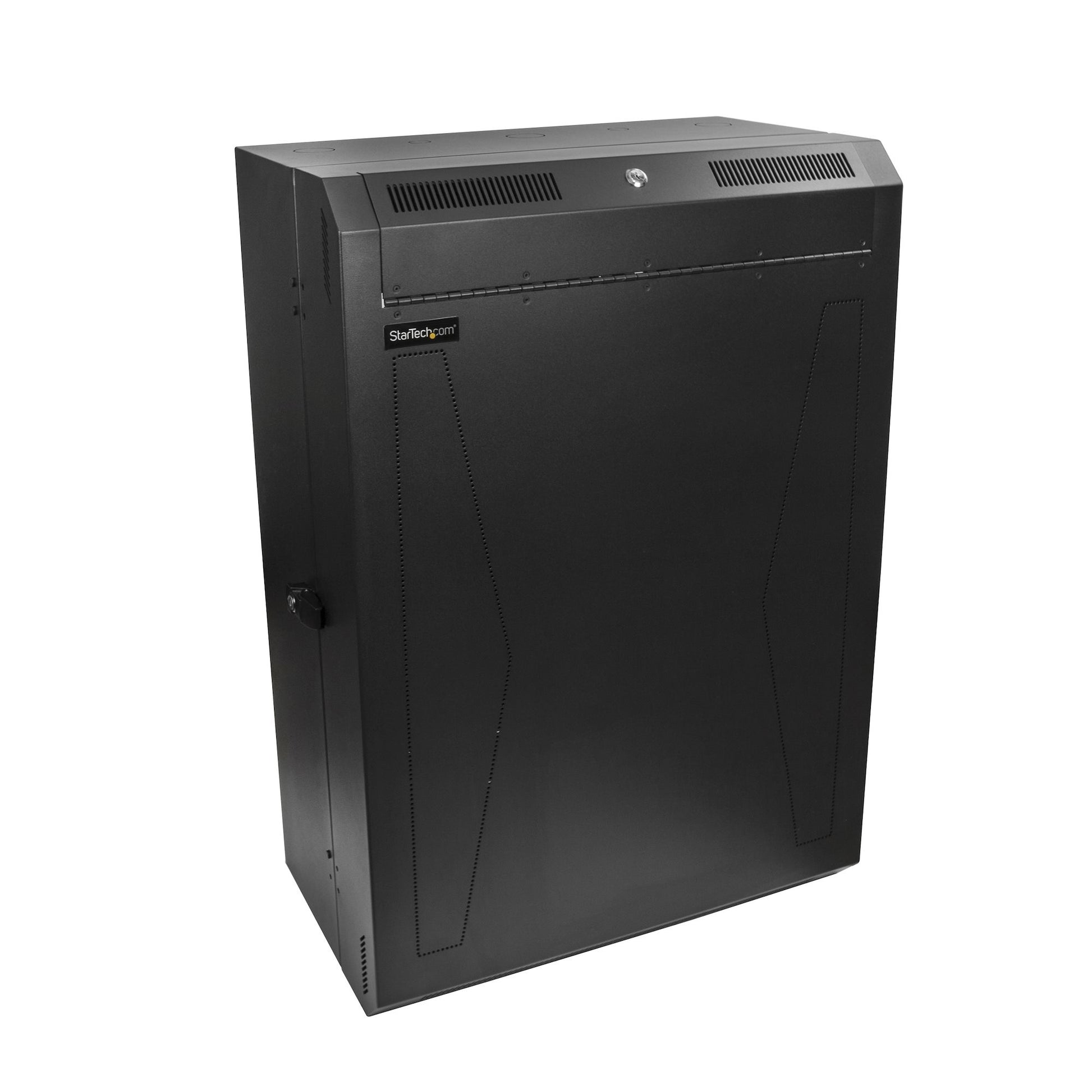

Vertically wall-mount your server or networking equipment in this 8U network cabinetThis 8U vertical server cabinet offers a space-saving way to keep your network and server equipment secure. With its 30 in. depth, and a weight capacity of up to 200 lb. (90.7 kg), the server rack/cabinet is designed to fit your needs. It also features an additional 2U mounting bracket positioned toward the top of the enclosure, that you can use to mount patch cables or other shallow rack-mount equipment.
Free up space
Wall-mount your equipment, even if you don’t have enough space for a full-sized rack or cabinet. This low-profile server cabinet is perfect for areas where space is at a premium, such as an office. The cabinet saves space by extending only minimally from the wall and housing the length of your equipment vertically. This reduces the horizontal footprint of your equipment while still providing plenty of room for your servers, patch panels, and switches.
Keep your equipment cool and secure
To help keep your equipment secure, the vertical server cabinet/network rack features a sturdy metal design and a lock on both the door and access panel. It is also vented, providing passive cooling to help keep your equipment running at suitable temperatures.
Easy, hassle-free installation

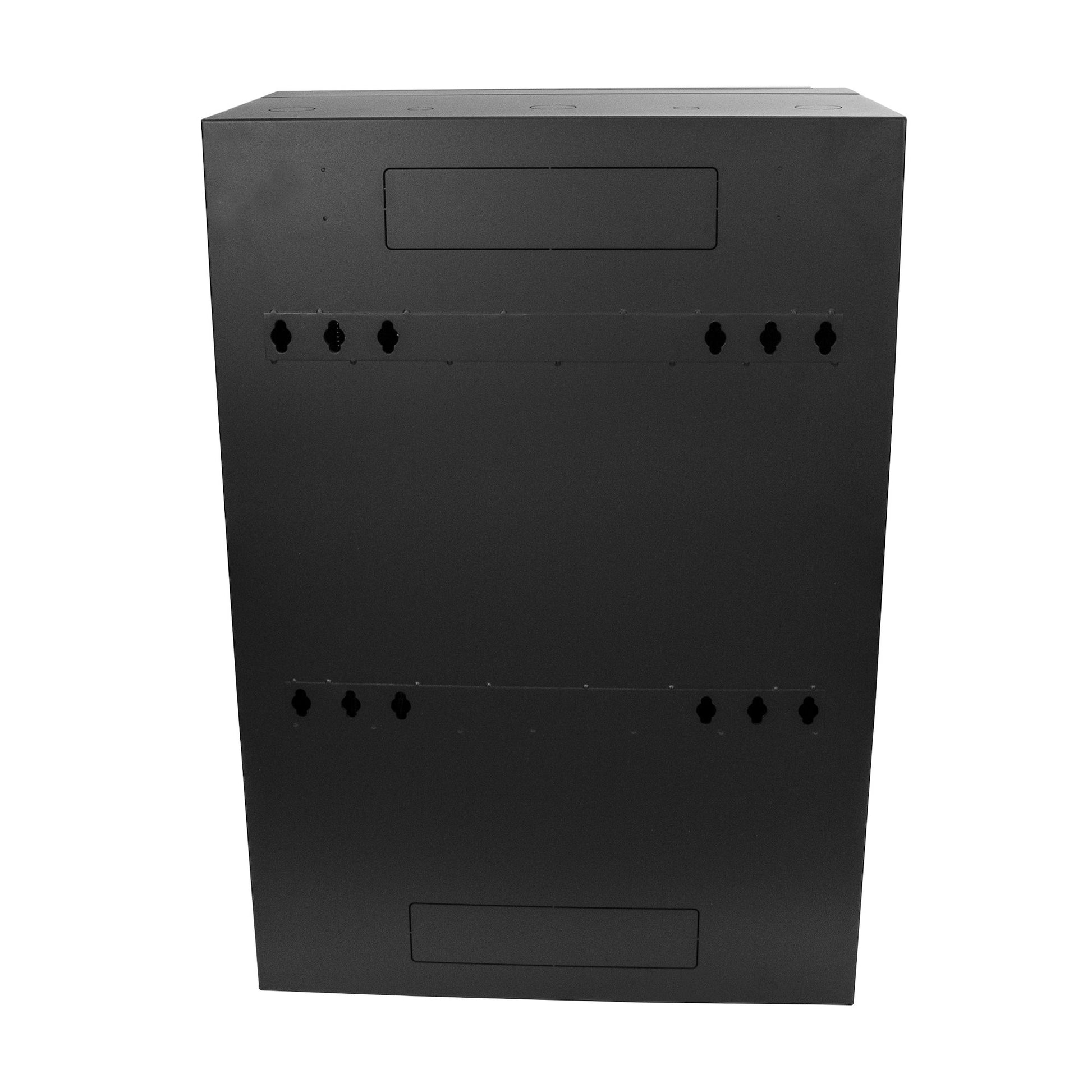

The server rack comes fully assembled and includes all of the necessary hardware to install equipment, making installation fast and easy. The mounting holes are spaced 16 in. apart, making it suitable for mounting on almost any wall, based on common North American wall-frame stud spacing.
The RK830WALVS is backed by a StarTech.com 5-year warranty and free lifetime technical support.
Specifications
| Weight & dimensions | |
|---|---|
| Package depth | 470 mm |
| Package width | 730 mm |
| Package height | 1042 mm |
| Package weight | 39 kg |
| Inner width | 64.2 cm |
| Inner depth | 37.6 cm |
| Width | 675 mm |
| Depth | 383 mm |
| Height | 940 mm |
| Weight | 36.5 kg |
| Maximum weight capacity | 90 kg |

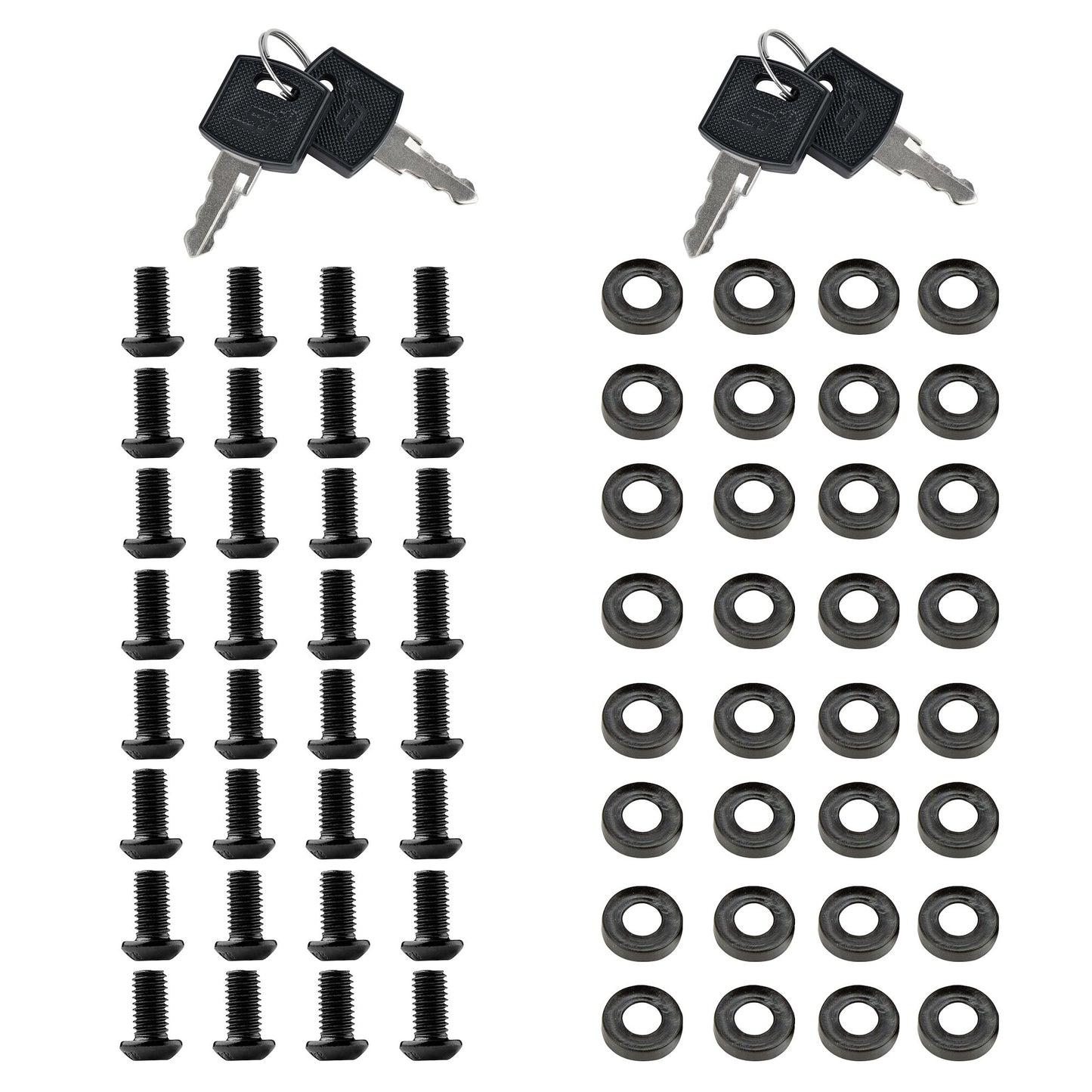

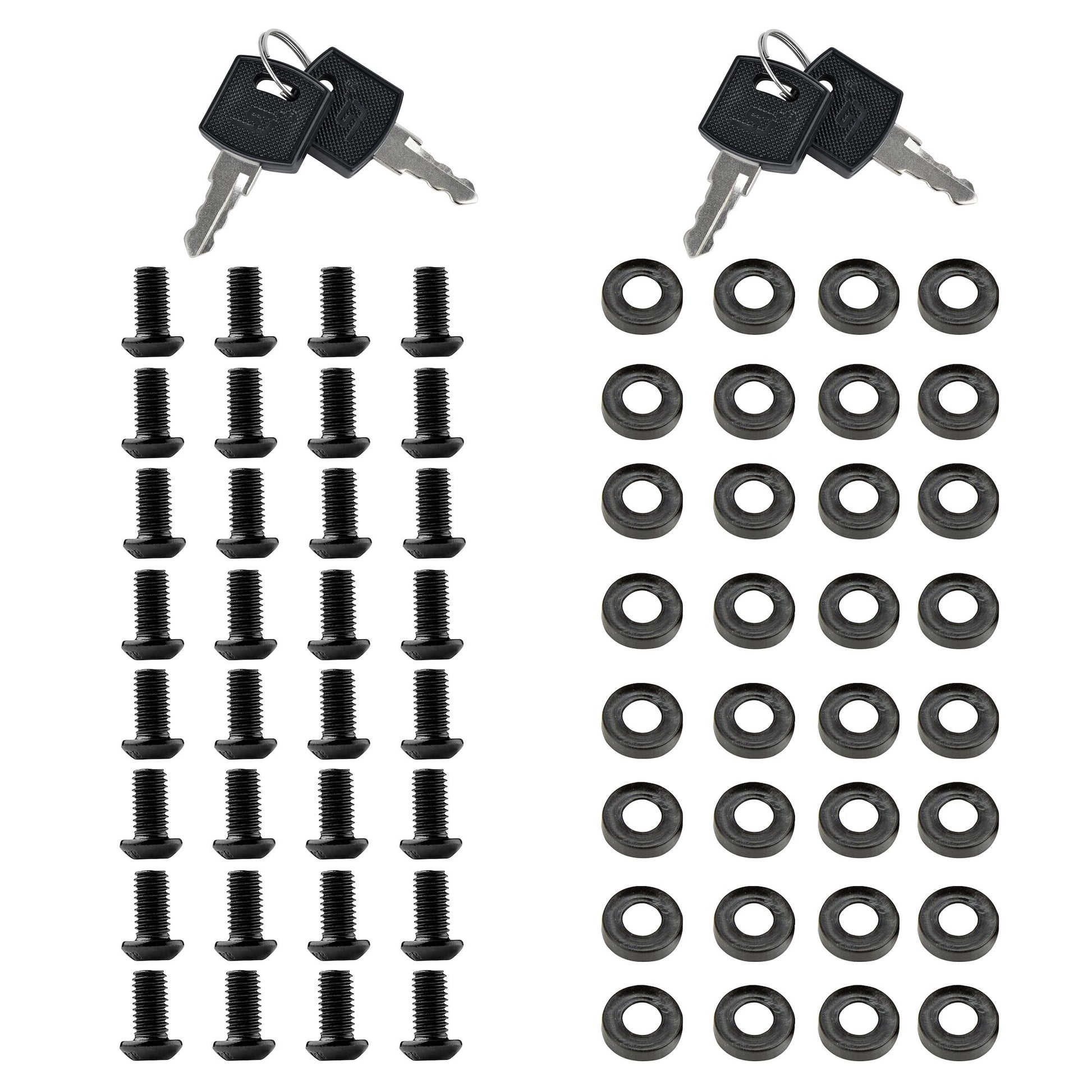

| Packaging content | |
| Manual | Yes |
| Mounting kit | Yes |
| Nuts included | Yes |
| Number of nuts | 32 |
| Screws included | Yes |
| Number of screws | 32 |
| Features | |
| Number of fans | 0 fan(s) |
| Frame type | Closed |
| Product design | 2-post |
| Rack capacity | 8U |
| Castor wheels | No |
| Adjustable mounting rails | Yes |
| Removable back door | No |
| Removable front door | No |
| Back door construction | Steel |
| Front door construction | Steel |
| Side panel construction | Steel |
| Cable management | Yes |
| Mounting hole shape | Round |
| Back door key lock | No |
| Front door key lock | Yes |
| Side panel key lock | No |
| Type | Wall mounted rack |
| Material | Steel |
| Product colour | Black |
| Technical details | |
| Compliance industry standards | EIA/ECA-310-E |
| Harmonized System (HS) code | 85381000 |
| Compliance certificates | CE, RoHS |
| Logistics data | |
| Master (outer) case width | 460 mm |
| Master (outer) case length | 720 mm |
| Master (outer) case height | 1020 mm |
| Products per master (outer) case | 1 pc(s) |
