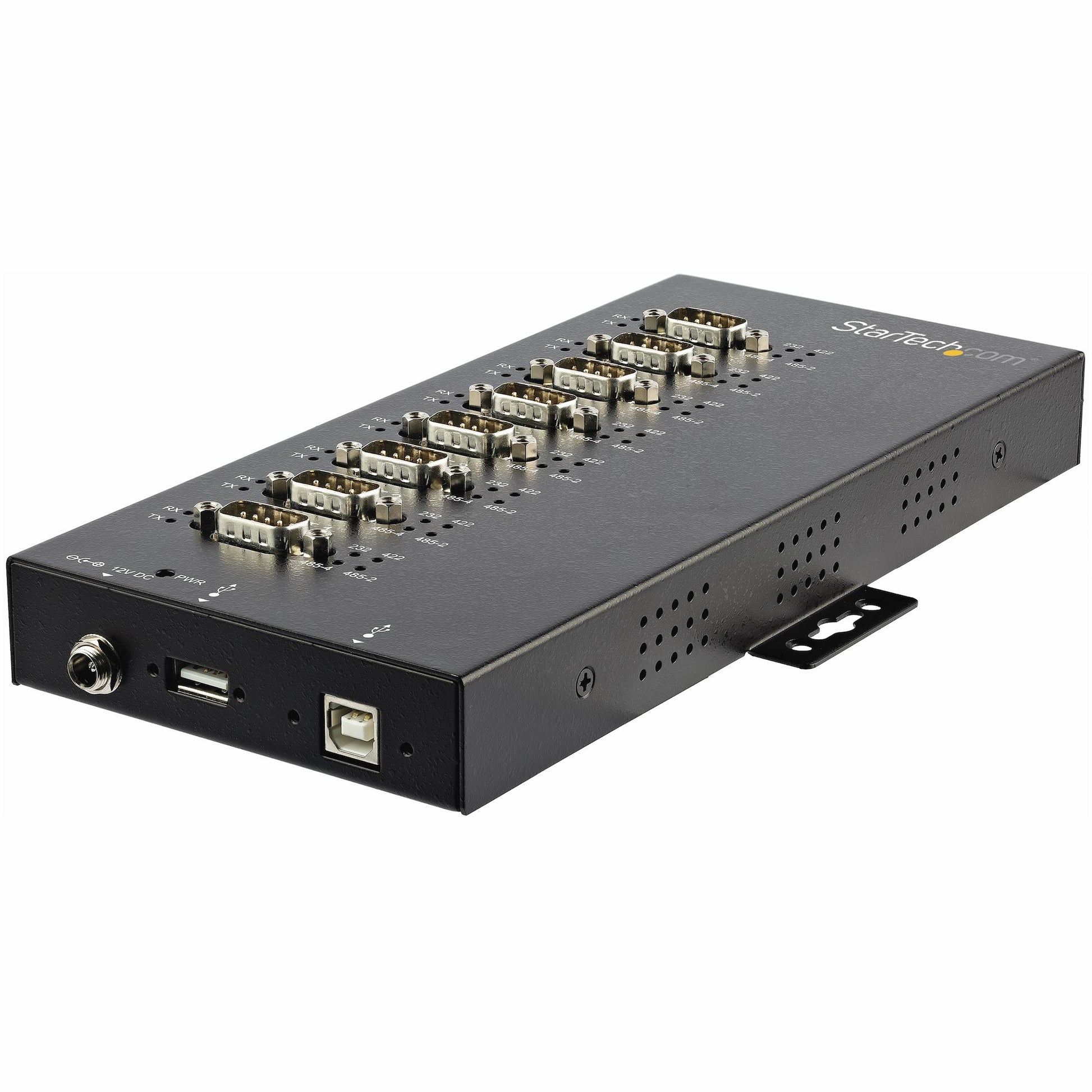

StarTech.com 8 Port Serial Hub USB to RS232/RS485/RS422 Adapter - Industrial USB 2.0
StarTech.com 8 Port Serial Hub USB to RS232/RS485/RS422 Adapter - Industrial USB 2.0
Regular price
£386.22 GBP
Regular price
Sale price
£386.22 GBP
Taxes included.
Quantity
Couldn't load pickup availability
The StarTech.com 8 Port Serial expands your ports in seconds — plug in and go.
Add eight ports supporting three serial protocols, to easily connect serial devices to your computer through USB, with 15kV ESD protectionAdd extra COM ports to your laptop or desktop computer, quickly and easily. This USB to RS232/422/485 serial adapter lets you connect to your serial devices through an external USB port.
Supports multiple serial protocols

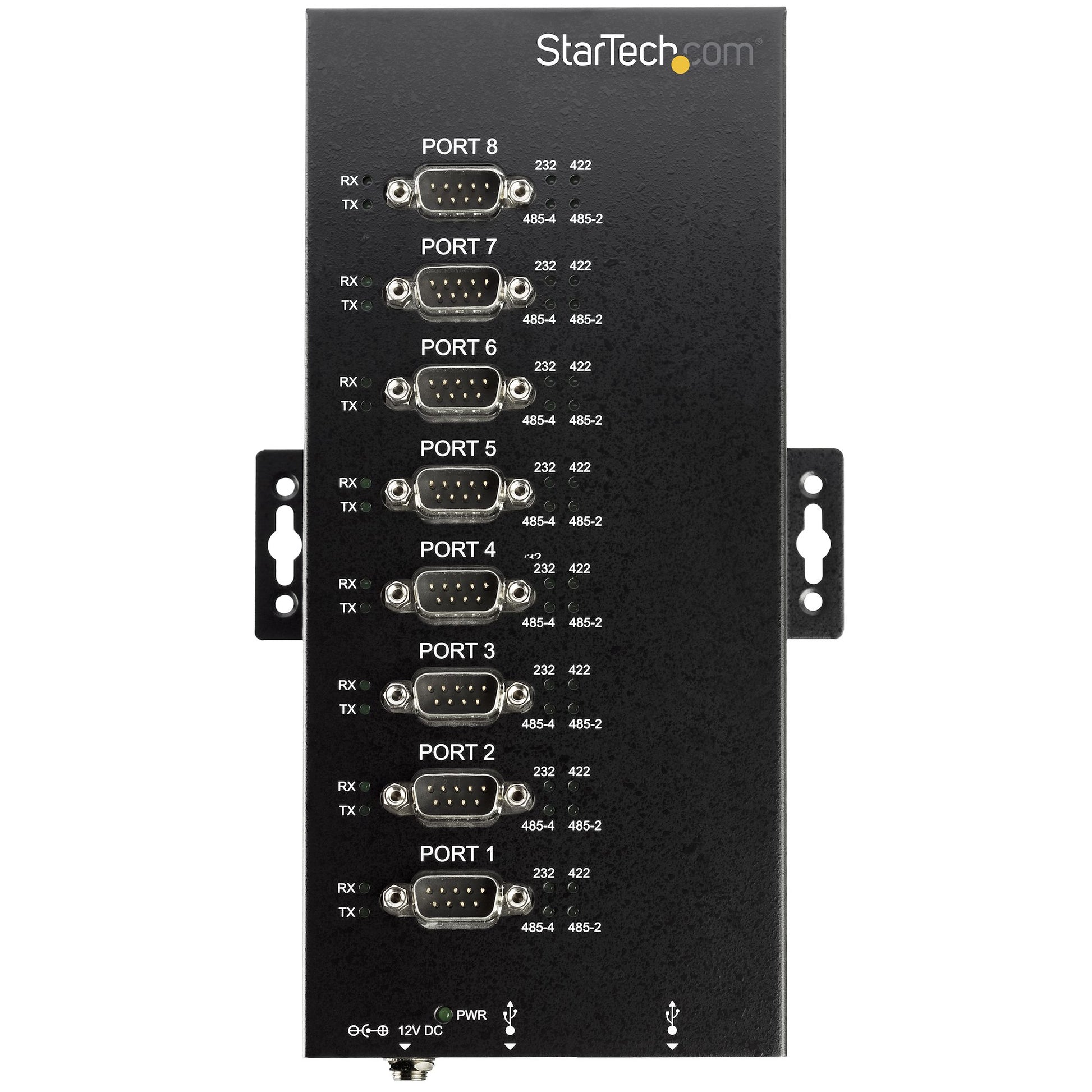

The versatile serial adapter converts a single USB port into eight RS232/RS422/RS485 serial ports, enabling you to connect, monitor, and control a wide range of serial devices, such as sensors, barcode scanners, and LED signage. It supports four operating modes, including RS232, RS422, 4-wire and 2-wire RS485.
Ideal for harsh environments
With its rugged IP30-rated metal hub housing, the serial adapter is built to meet the extreme demands of harsh and mission-critical environments. It provides 15 kV ESD protection, which helps to reduce downtime in industrial environments where communications lines are more prone to noise emissions or sudden spikes in voltage.

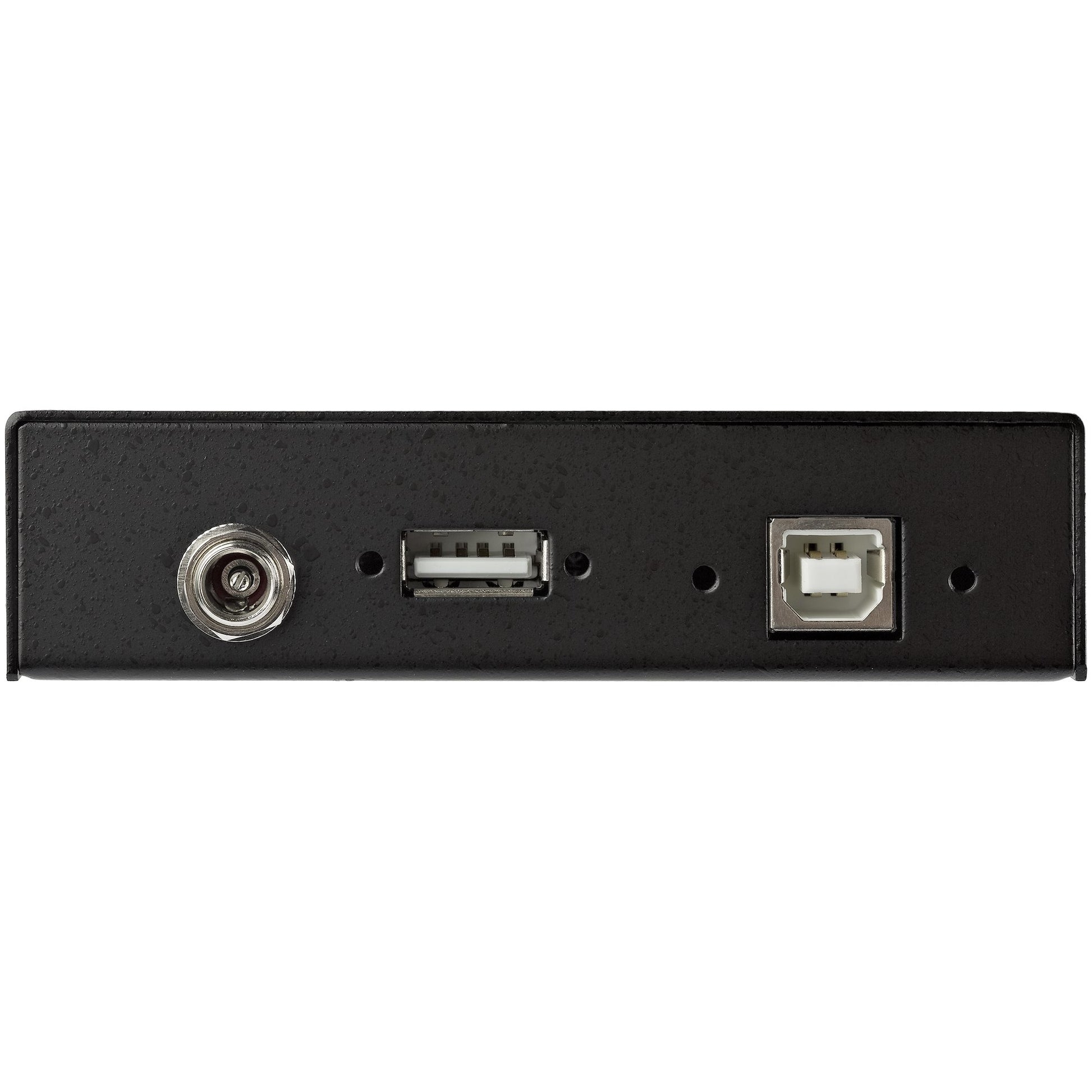

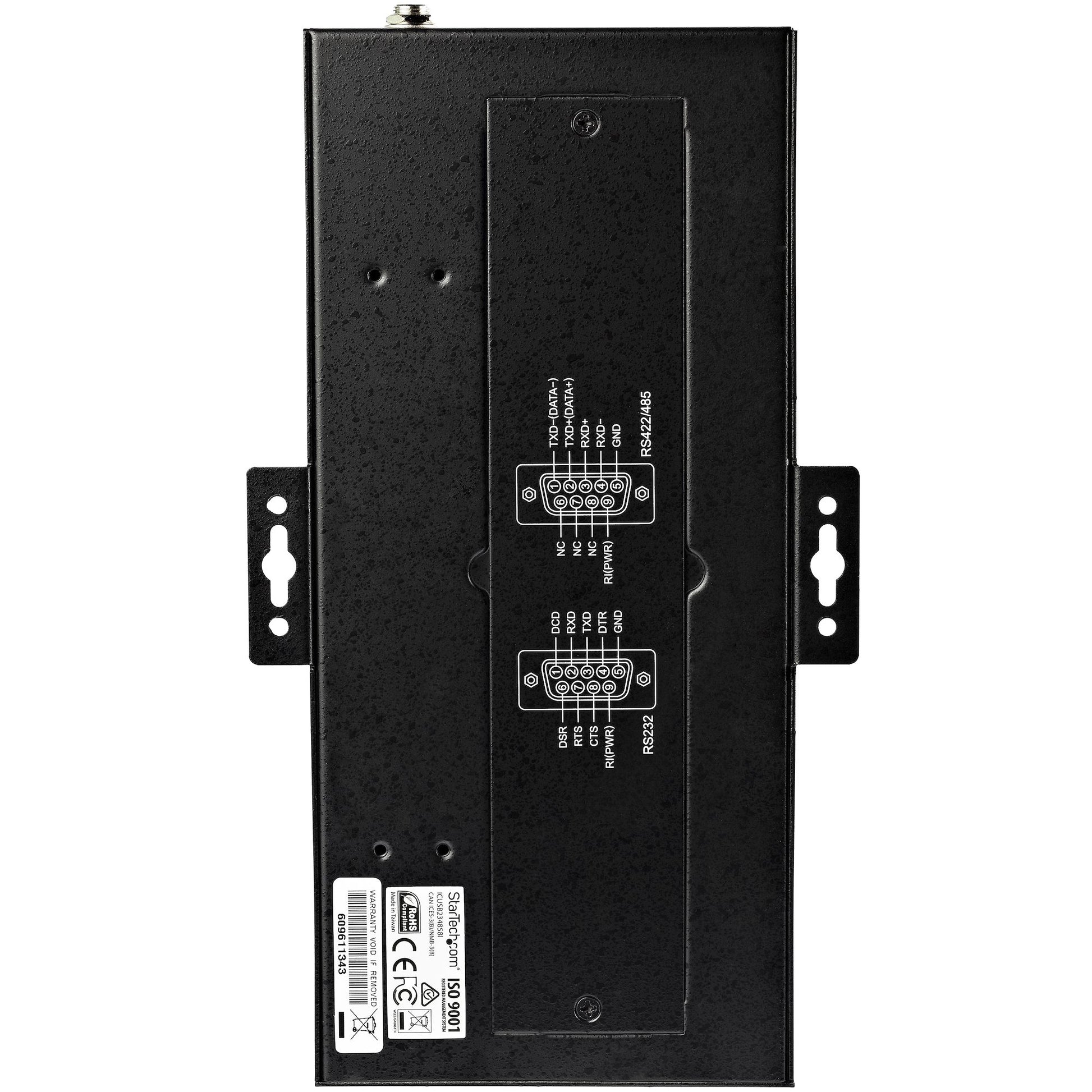

The serial adapter offers flexible mounting options, with a built-in wall-mounting bracket and included DIN rail mounting kit. It also features a screw-locking host connection plus a screw-locking USB-B connector on the included USB cable, to prevent accidental disconnections.
Fast data transfers
The serial adapter is equipped with high-speed UARTs, providing fast data rates of up to 921Kbps in RS232/422/485 operating modes.
The ICUSB234858I is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specifications
| Ports & interfaces | |
|---|---|
| Host interface | USB 2.0 |
| RS-232 ports | 8 |
| Hub interfaces | Serial |
| USB 2.0 ports quantity | 2 |
| DC-in jack | Yes |
| Card reader integrated | No |
| Ports quantity | 8 |
| Features | |
| Surge protection | Yes |
| LED indicators | Power |
| Product colour | Black |
| Housing material | Steel |
| Power | |
| Input current | 1 A |
| Power plug type | Type M |
| Power source type | AC |
| Power consumption (typical) | 36 W |
| Output voltage | 12 V |
| Output current | 3 A |
| Input voltage | 100 - 240 V |
| Technical details | |
| Sustainability compliance | Yes |
| Compliance certificates | CE, RoHS |
| Performance | |
| Data bits | 7, 8 |
| Stop bits | 1, 2 |
| Baud rate | 921.6 Kbit/s |
| Parity bit | Even, Mark, No, Odd, Space |
| Harmonized System (HS) code | 84719000 |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Weight & dimensions | |
| Weight | 688 g |
| Width | 128 mm |
| Depth | 219 mm |
| Height | 25 mm |
| Package width | 195 mm |
| Package depth | 294 mm |
| Package height | 70 mm |
| Package weight | 1.6 kg |

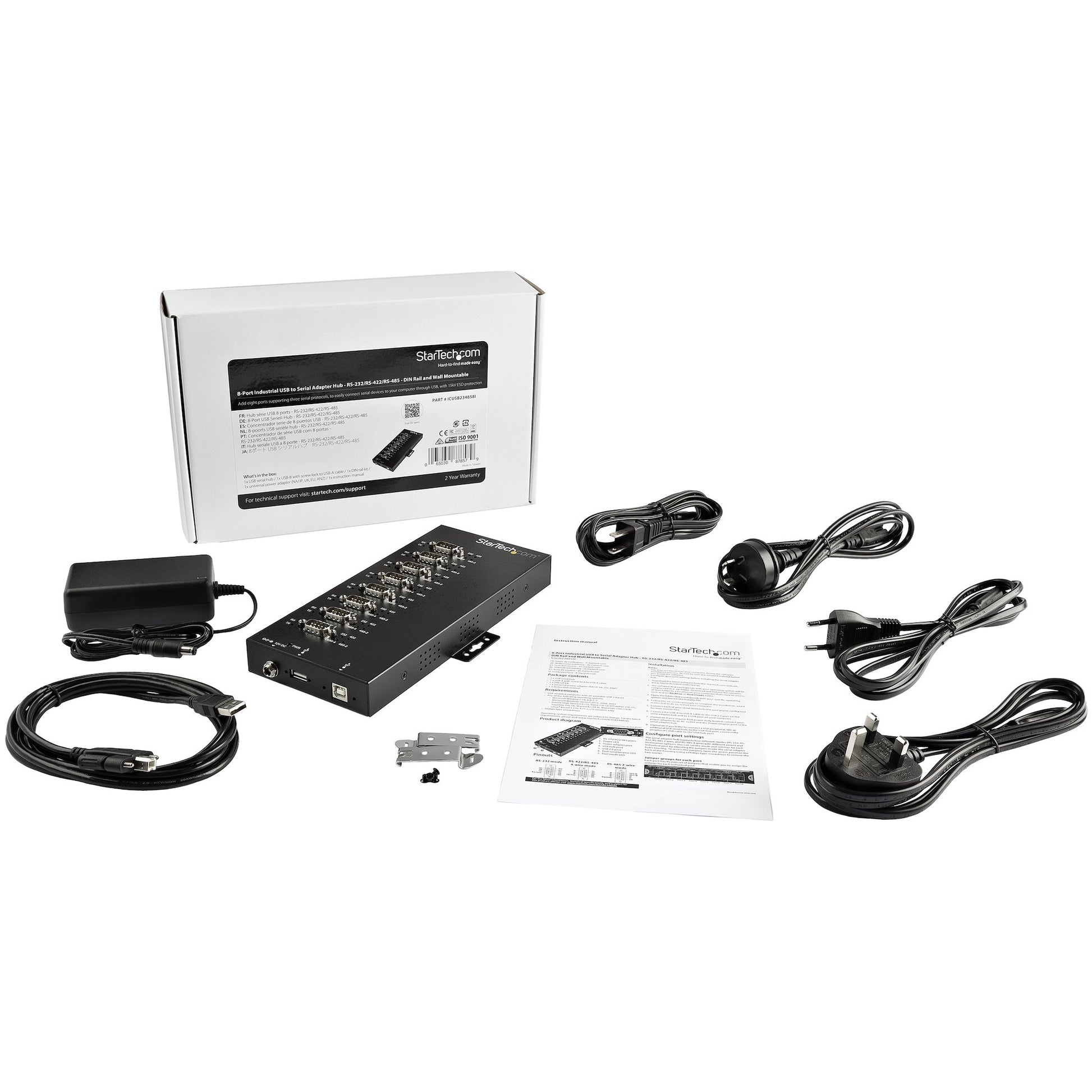

| Packaging content | |
| Included power plug types | ANZ, EU, UK, US |
| Cables included | USB |
| AC adapter included | Yes |
| DIN rail kit included | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Logistics data | |
| Master (outer) case width | 398 mm |
| Master (outer) case length | 514 mm |
| Master (outer) case height | 322 mm |
| Products per master (outer) case | 14 pc(s) |
| Other features | |
| Chipset | FTDI - FT4232H, Genesys Logic - GL825 |
