StarTech.com 8 Port Rackmount USB VGA KVM Switch w/ Audio (Audio Cables Included)

Control multiple machines from one keyboard, monitor and mouse with the StarTech.com 8 Port Rackmount.

Control up to 8 VGA and USB computers from a single keyboard, mouse and monitor

The SV831DUSBAU 8 Port Rack Mount USB VGA KVM Switch (with Audio Cables Included) allows you to control up to 8 USB computers using a single keyboard, mouse and monitor, and features Audio and Microphone ports to switch between audio signals as well as PC ports.

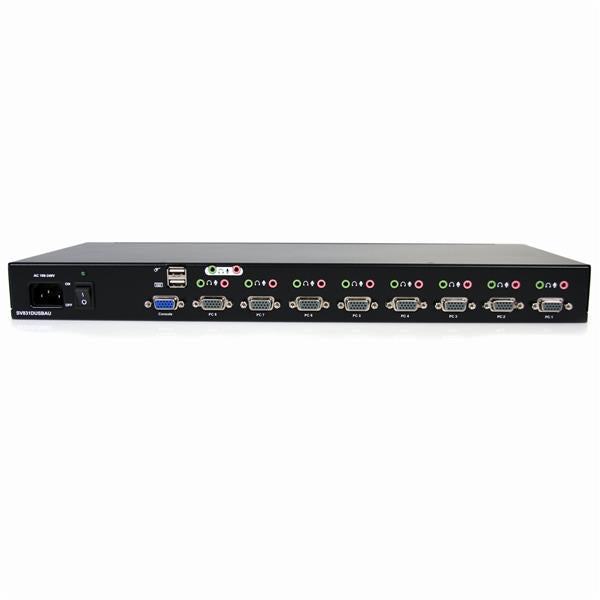

Based on a 1U rack mountable slim form factor design, this 8 Port USB KVM uses rear cable connections to maximize space efficiency. Multiple KVM units can also be connected (cascaded) together for control of up to 64 computers, ensuring a scalable KVM solution that can be expanded as necessary.

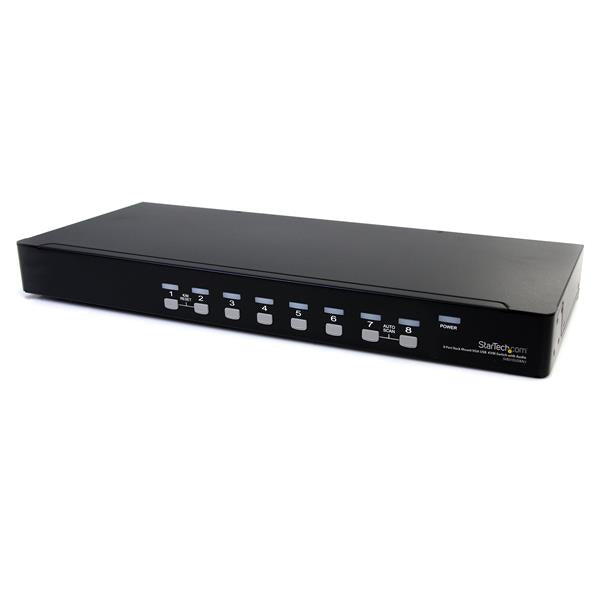

To ensure seamless operation, the switch features automatic and manual scan modes, supports both hot-key and front panel push-button switching, and features a convenient OSD (on-screen display) for added configuration options.

This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.

The SV831DUSBAU only works with specific 2-in-1 VGA and USB cables (sold separately), a list of StarTech.com approved cables are below:

6 ft Ultra Thin USB VGA 2-in-1 KVM Cable

6 ft Ultra Thin USB VGA 2-in-1 KVM Cable

10 ft Ultra Thin USB VGA 2-in-1 KVM Cable

15 ft Ultra Thin USB VGA 2-in-1 KVM Cable

Specifications

Ports & interfaces
Console USB ports quantity	2
Console ports	3.5mm headphone, 3.5mm mic, USB A, VGA (D-Sub)
USB connector type	USB Type-A
Number of microphone inputs	8
Number of computers controlled	8
Keyboard port type	USB
Mouse port type	USB
Video port type	VGA
USB 2.0 ports quantity	2
Headphone outputs	8
DC-in jack	Yes
Performance
Daisy chain	Yes
Plug and Play	Yes
Maximum resolution	1920 x 1440 pixels
Number of users	1 user(s)
Maximum analog resolution	1920 x 1440 pixels
Technical details
Product colour	Black
Rack mounting	Yes
On Screen Display (OSD)	Yes
LED indicators	Yes
IP control	No
Audio support	Yes
Cascadable	Yes
Compliance certificates	RoHS
Design
Certification	CE, FCC, UL
Rack capacity	1U
Housing material	Steel
Power
Input current	1.8 A
Output current	4 A
Power plug type	Type M
Output voltage	12 V
Power consumption (typical)	48 W
Input voltage	110-240 V
Operational conditions
Operating temperature (T-T)	5 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	540 mm
Depth	180 mm
Height	45 mm
Weight	2.6 kg
Package width	598 mm
Package depth	263 mm
Package height	123 mm
Package weight	4.7 kg
Packaging content
Rubber feet	Yes
Cables included	AC
Manual	Yes
AC adapter included	Yes
Logistics data
Master (outer) case width	292 mm
Master (outer) case length	610 mm
Master (outer) case height	409 mm
Products per master (outer) case	3 pc(s)
Harmonized System (HS) code	85176200

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
