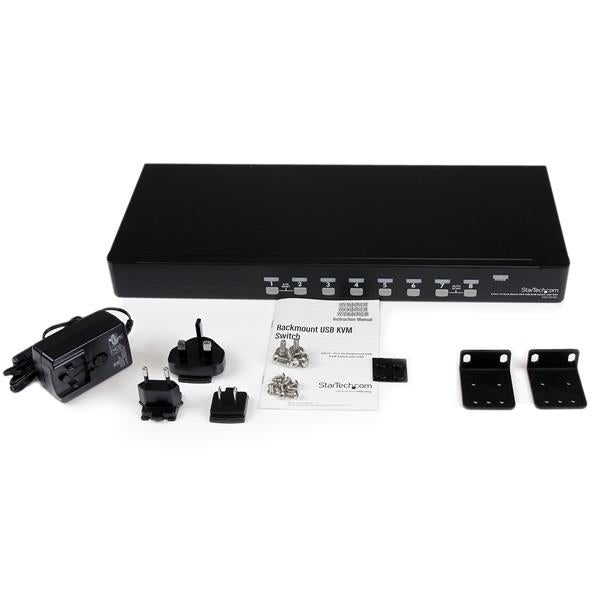

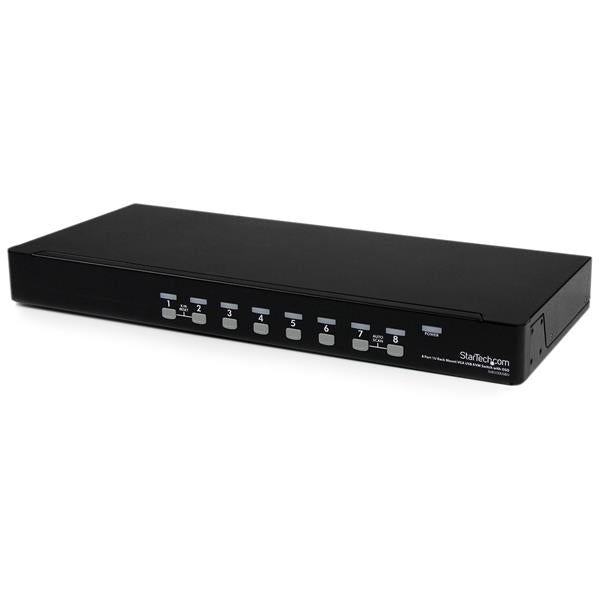

StarTech.com 8 Port 1U Rackmount USB KVM Switch with OSD - TAA

Control multiple machines from one keyboard, monitor and mouse with the StarTech.com 8 Port 1U Rackmount.

Control up to 8 VGA and USB computers from a single keyboard, mouse and monitor

The SV831DUSBU 8 Port 1U Rack Mount USB KVM Switch with OSD offers a dependable computer management tool that allows you to control up to 8 USB-connected computers from a single keyboard, mouse and monitor.

The KVM switch offers maximum control, allowing you to switch computers using hotkey commands or front panel push-buttons, and offers added configuration options and convenience through an On Screen Display (OSD).

A suitable addition to server room operations, the 8 port switch can be rack mounted into 1U of cabinet space, and can be cascaded with multiple KVM switches to deliver control of up to 64 computers from this single switch.

The SV831DUSBU only works with specific 2-in-1 VGA and USB cables (sold separately), a list of StarTech.com approved cables are below:

6 ft Ultra Thin USB VGA 2-in-1 KVM Cable

6 ft Ultra Thin USB VGA 2-in-1 KVM Cable

10 ft Ultra Thin USB VGA 2-in-1 KVM Cable

15 ft Ultra Thin USB VGA 2-in-1 KVM Cable

This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.

Specifications

Ports & interfaces
Console USB ports quantity	2
Console ports	USB A, VGA (D-Sub)
Number of computers controlled	8
Keyboard port type	USB
Mouse port type	USB
Video port type	VGA
Audio connections	No
VGA (D-Sub) ports quantity	9
DC-in jack	Yes
Performance
Daisy chain	Yes
Plug and Play	Yes
Maximum resolution	1920 x 1440 pixels
Technical details
Product colour	Black
Rack mounting	Yes
On Screen Display (OSD)	Yes
LED indicators	Yes
IP control	No
Audio support	No
Compliance certificates	RoHS
Design
Mean time between failures (MTBF)	150000 h
Certification	CE, FCC, TAA, REACH
Rack capacity	1U
Housing material	Steel
Display
Built-in display	No
Power
Input current	0.8 A
Output current	1.5 A
Power plug type	Type M
Compatible power plug types	EU, UK, US
Output voltage	12 V
Input voltage	100 - 240 V
Operational conditions
Operating temperature (T-T)	5 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	540 mm
Depth	180 mm
Height	45 mm
Weight	2.9 kg
Package width	89 mm
Package depth	573 mm
Package height	268 mm
Package weight	3.3 kg
Packaging content
Rubber feet	Yes
Manual	Yes
AC adapter included	Yes
Other features
Connectivity technology	Wired
Power requirements	110 - 240 AC
Ports quantity	8
Dimensions (WxDxH)	540 x 180 x 45 mm
Logistics data
Master (outer) case width	607 mm
Master (outer) case length	286 mm
Master (outer) case height	337 mm
Products per master (outer) case	4 pc(s)
Harmonized System (HS) code	85176200

Downloads

• Datasheet (PDF)
