StarTech.com 8 Port 1U Rackmount USB KVM Switch Kit with OSD and Cables - TAA

Control multiple machines from one keyboard, monitor and mouse with the StarTech.com 8 Port 1U Rackmount.

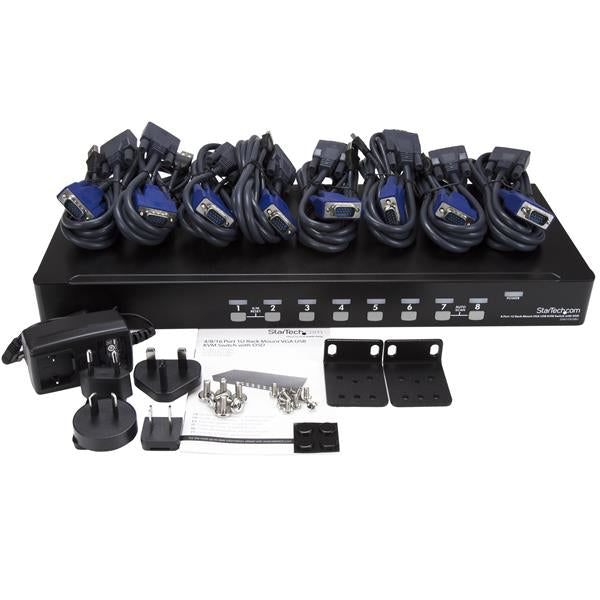

A complete 8-port USB KVM kit, including all necessary cables and accessories

The SV831DUSBUK 8-Port Rack Mount USB KVM Switch Kit offers a well-appointed KVM switch that includes all of the cables and accessories required to connect to 8 servers or PCs right out of the box, making setup convenient and simple.
The USB KVM delivers a dependable computer management tool that allows you to control up to 8 USB-connected computers from a single keyboard, mouse and display, providing maximum control through hotkey command-based switching or front panel push-buttons, with the added configurability and convenience of an On-Screen Display.
A suitable addition to server room operations, the 8-port switch can be rackmounted into 1U of cabinet space and can be cascaded with multiple KVM switches to enable control of up to 64 computers from this single switch.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.

Specifications

Ports & interfaces
Console USB ports quantity	2
Console ports	USB A, VGA (D-Sub)
USB connector type	USB Type-A
Number of computers controlled	8
Keyboard port type	USB
Mouse port type	USB
Video port type	VGA
USB 2.0 ports quantity	2
VGA (D-Sub) ports quantity	9
DC-in jack	Yes
Performance
Daisy chain	Yes
Plug and Play	Yes
Maximum resolution	1920 x 1440 pixels
Maximum analog resolution	1920 x 1440 pixels
Technical details
Product colour	Black
Rack mounting	Yes
On Screen Display (OSD)	Yes
LED indicators	Power
Hot keys	Yes
IP control	No
Audio support	No
Cascadable	Yes
Compliance certificates	RoHS
Design
Certification	CE, FCC, TAA, REACH
Rack capacity	1U
Housing material	Steel
Power
Output current	1 A
Compatible power plug types	AU, EU, UK, US
Output voltage	12 V
Power consumption (typical)	12 W
External power adapter	Yes
Input voltage	100 - 240 V
Operational conditions
Operating temperature (T-T)	5 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	435 mm
Depth	180 mm
Height	45 mm
Weight	2.2 kg
Package width	594 mm
Package depth	265 mm
Package height	124 mm
Package weight	4.7 kg
Packaging content
Rack mount kit	Yes
Cables included	KVM
Manual	Yes
AC adapter included	Yes
Logistics data
Master (outer) case width	614 mm
Master (outer) case length	290 mm
Master (outer) case height	413 mm
Products per master (outer) case	3 pc(s)
Harmonized System (HS) code	85176200

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
