StarTech.com 8 Port 1U Rackmount DVI USB KVM Switch - TAA

Control multiple machines from one keyboard, monitor and mouse with the StarTech.com 8 Port 1U Rackmount.

Control up to 8 USB computers with DVI or HDMI® video, from one keyboard, mouse and monitor

The SV831DVIU 8-Port 1U Rack Mount DVI USB KVM Switch lets you control up to 8 USB-connected computers (each with DVI or HDMI display output) from a single keyboard, mouse and monitor.

The KVM switch offers maximum control, allowing you to switch computers using hot-key commands or front panel push-buttons. Supporting digital resolutions up to 1920x1200 via DVI or HDMI connection (using DVI to HDMI adapter - see accessories), the KVM provides the high resolutions recommended for newer displays, allowing you to take full advantage of your monitor/screen capability.

A perfect addition to any server room or software test lab, this 8-port switch can be rack-mounted into 1U of cabinet space.

This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.

Note: This KVM supports digital signals only, and cannot be used with DVI-to-VGA adapters.

Specifications

Ports & interfaces
Number of computers controlled	8
Keyboard port type	USB
Mouse port type	USB
Video port type	DVI-I
Audio connections	No
USB 2.0 ports quantity	10
Network
Ethernet LAN	No
Performance
Daisy chain	No
Maximum resolution	1920 x 1200 pixels
Maximum analog resolution	1920 x 1200 pixels
Technical details
Product colour	Black
Rack mounting	Yes
LED indicators	Yes
Hot keys	Yes
IP control	Yes
Compliance certificates	RoHS
Design
Mean time between failures (MTBF)	45254 h
Certification	CE, FCC
Rack capacity	1U
Housing material	Steel
Power
Input current	1.8 A
Output current	4 A
Power plug type	Type M
Compatible power plug types	AU, EU, UK, US
Output voltage	12 V
External power adapter	Yes
Input voltage	100-240 V
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	438 mm
Depth	180 mm
Height	44 mm
Weight	3.5 kg
Package width	595 mm
Package depth	265 mm
Package height	90 mm
Package weight	3.77 kg
Packaging content

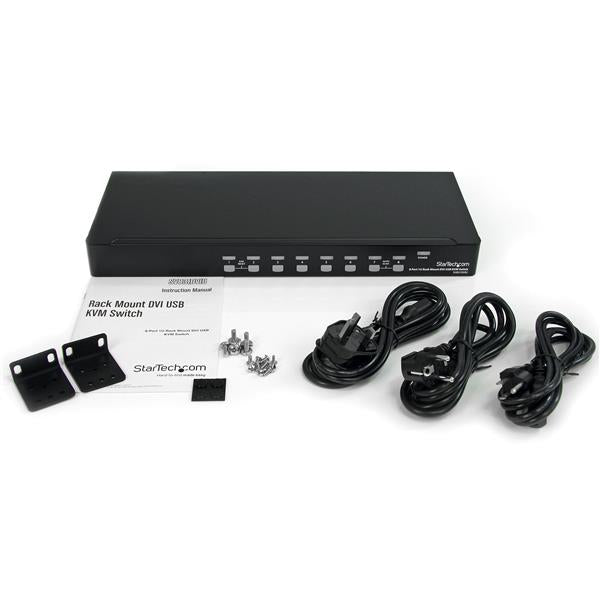

Rack mount kit	Yes
Manual	Yes
Logistics data
Master (outer) case width	288 mm
Master (outer) case length	610 mm
Master (outer) case height	408 mm
Products per master (outer) case	4 pc(s)
Harmonized System (HS) code	85176200

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
