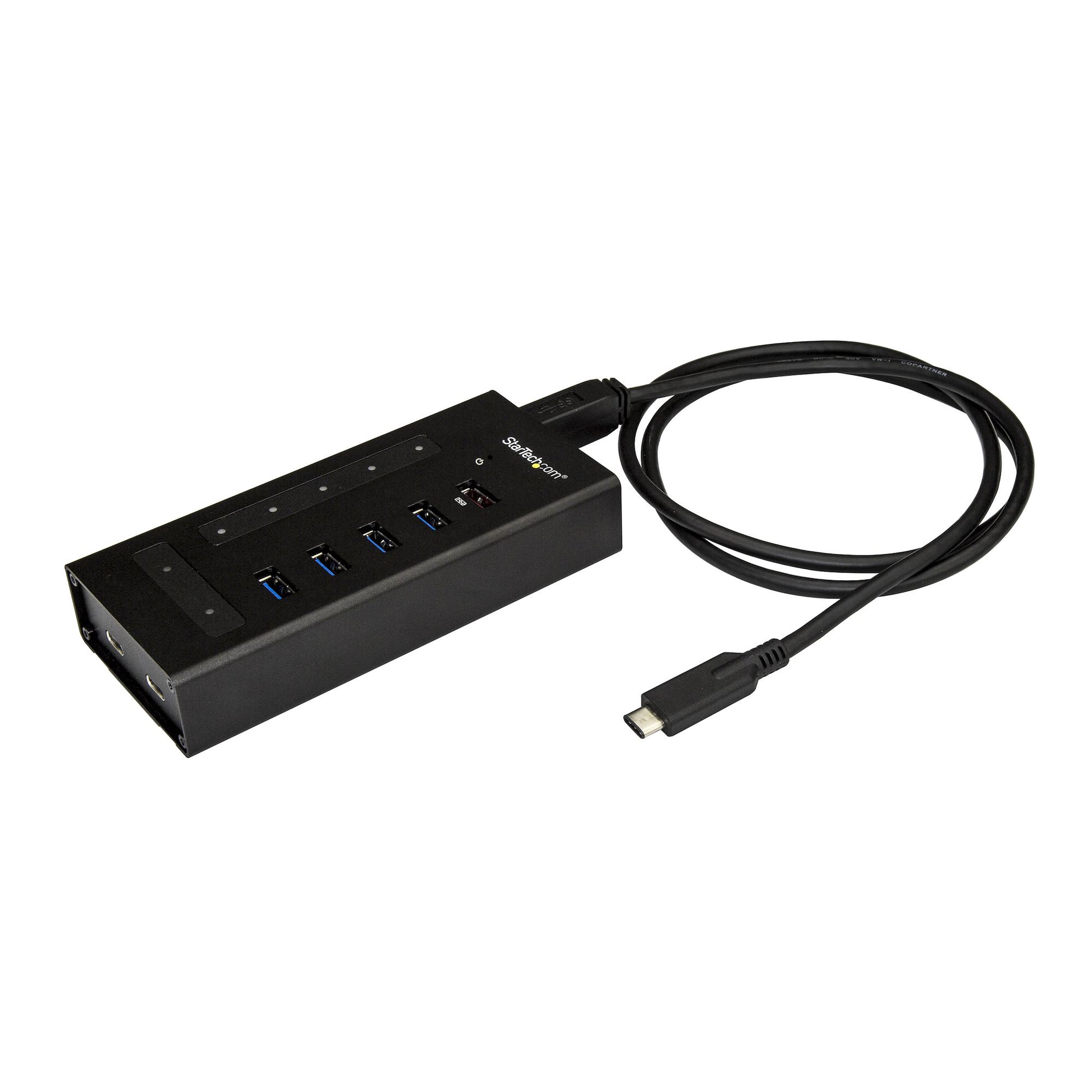

StarTech.com 7 Port USB C Hub - USB Type-C to 2x USB-C/5x USB-A - Commercial Metal

The StarTech.com 7 Port expands your ports in seconds — plug in and go.

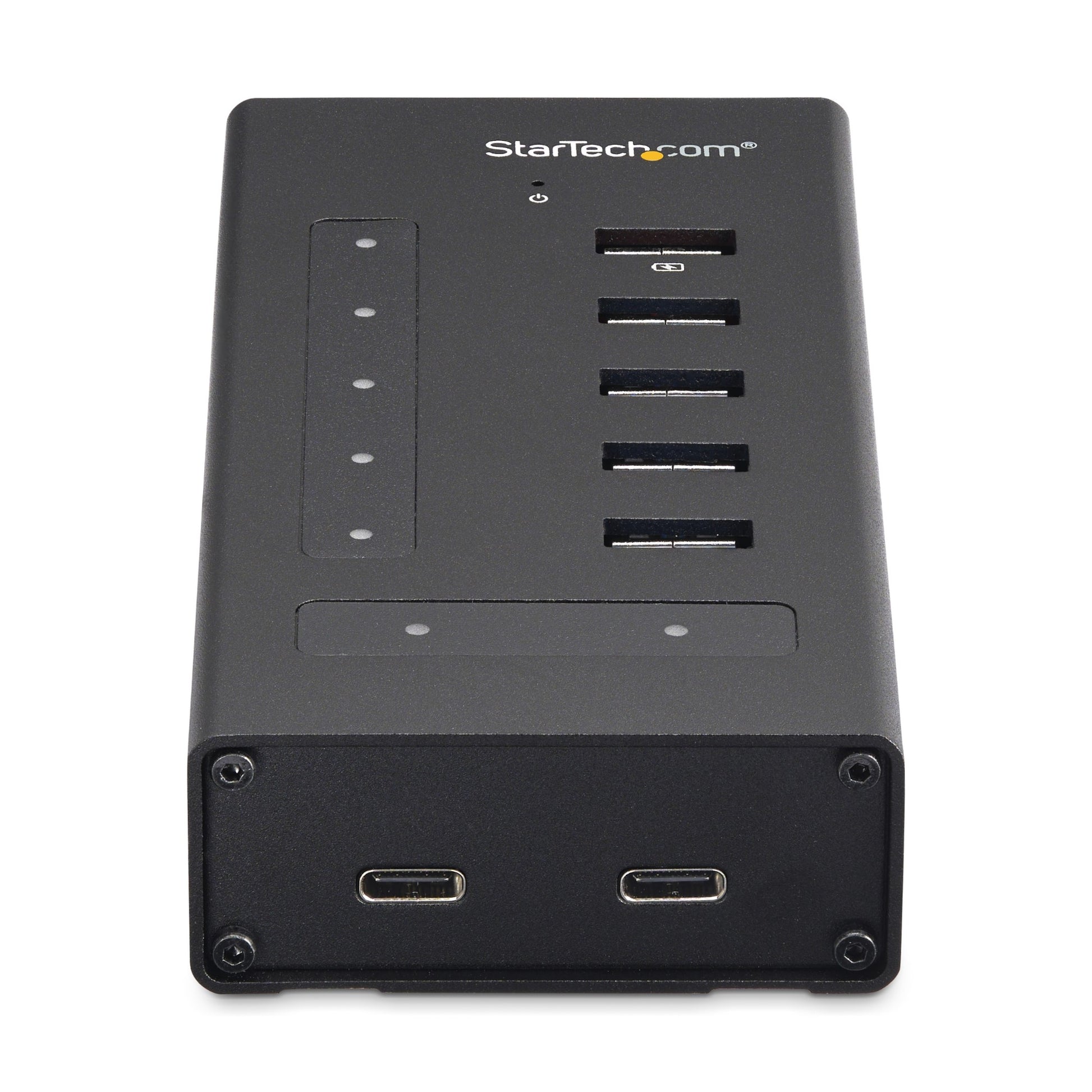

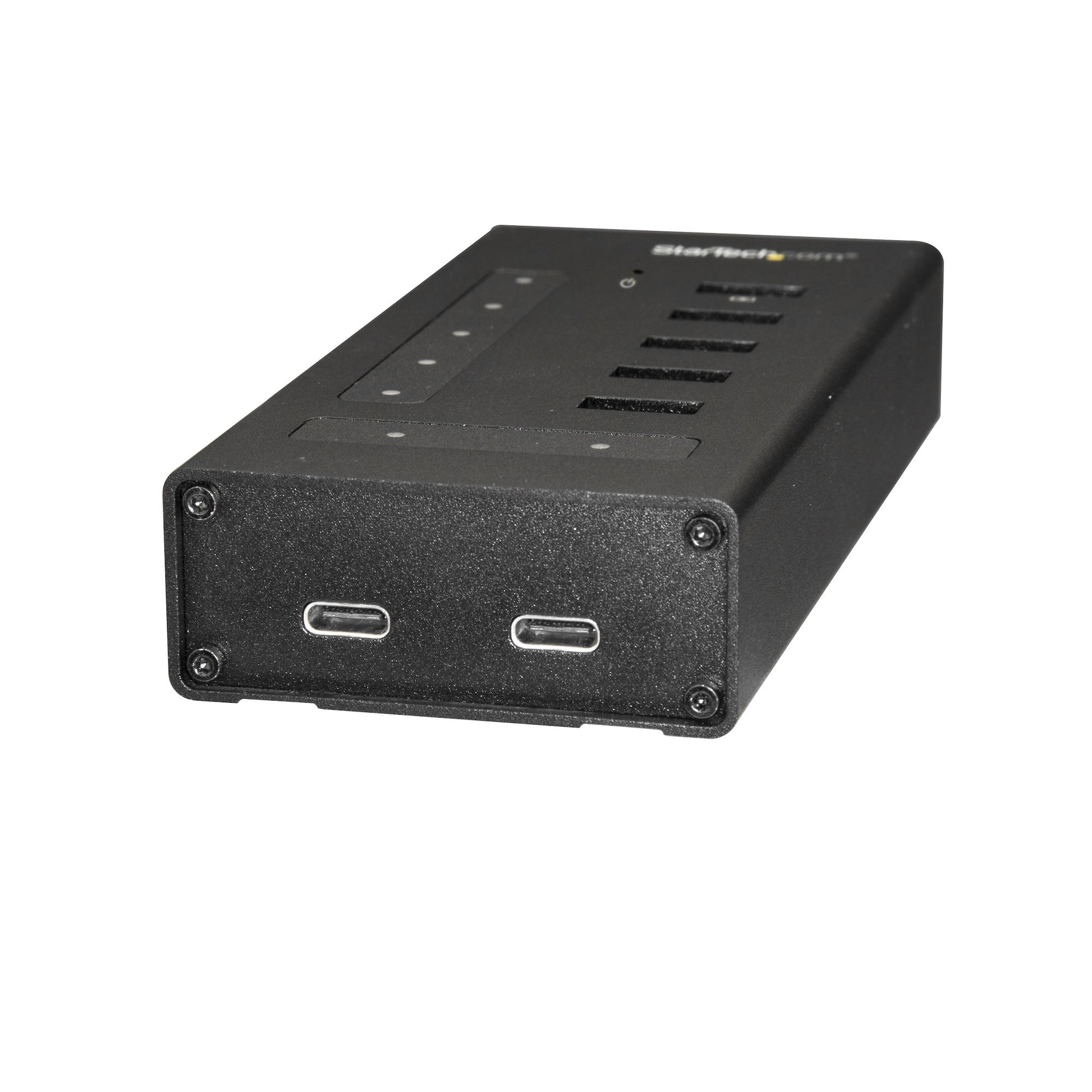

Add five USB Type-A ports and two USB Type-C ports to your USB-C equipped computer, using this mountable USB 3.2 Gen 1 (5Gbps) hub

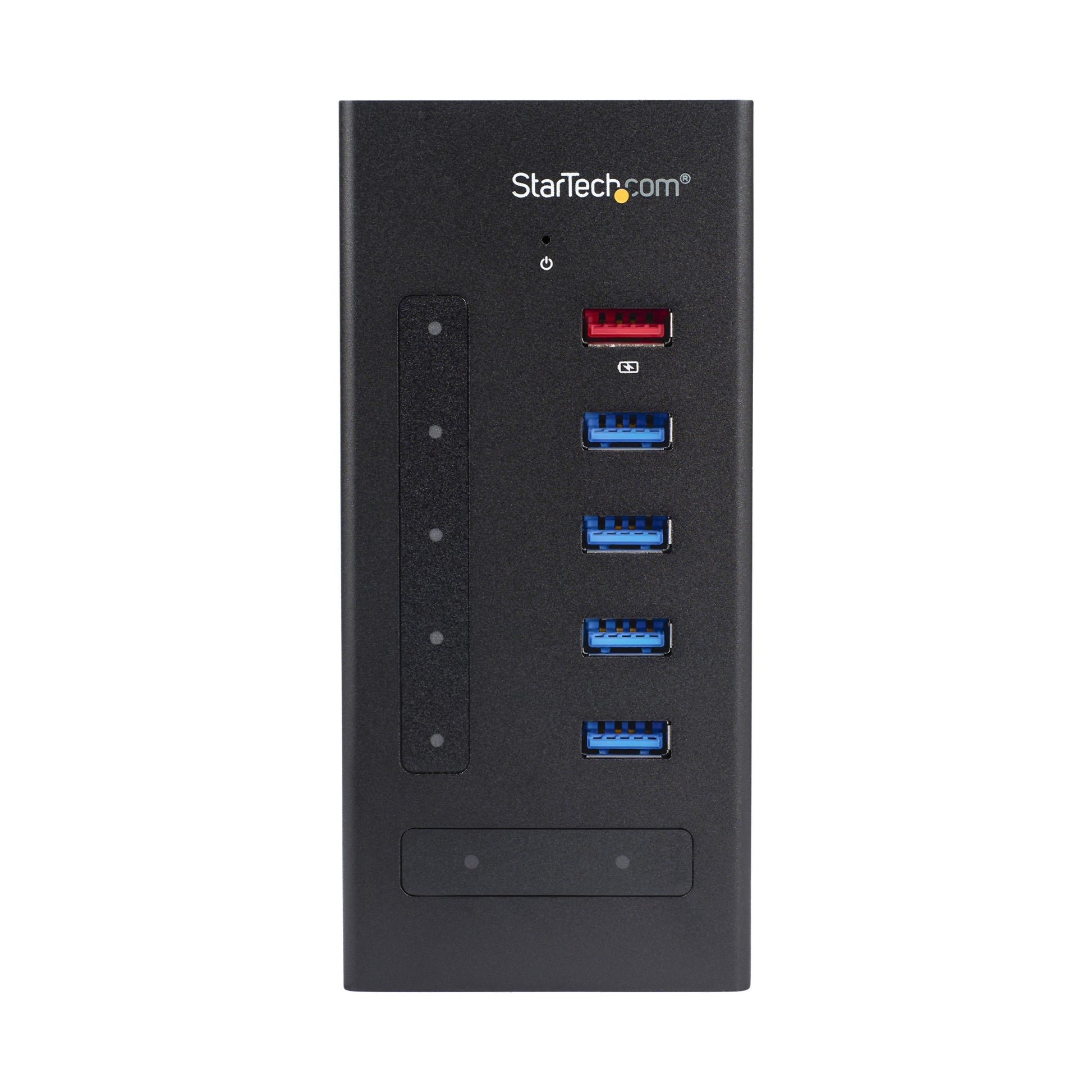

This USB-C™ hub turns your laptop or desktop USB Type-C™ port into four standard USB-A ports, one USB-A fast-charge port, and two USB-C ports. You can also extend the range of your USB devices by using this hub as a mid-point repeater.

Connect more devices quickly and easily

The 7-port hub is designed for easy port access when the hub is mounted or sitting on your desk. The hub ports are spaced with enough room between them to easily plug or unplug your USB devices, without having to disconnect other devices from neighboring ports.

With extra USB 3.2 Gen 1 ports, you can increase productivity and connect more devices to your computer, or simply avoid the hassle of swapping connected devices on your port-limited laptop. The hub lets you extend the life of your current USB 3.2 Gen 1 devices while also taking advantage of newer USB-C devices.

It’s perfect for IT professionals or anyone who needs to plug and unplug their devices regularly.

Enjoy mounted or desktop convenience

This hub is the perfect accessory for a laptop or desktop workstation, with a rugged metal housing that can withstand the wear and tear of daily use.

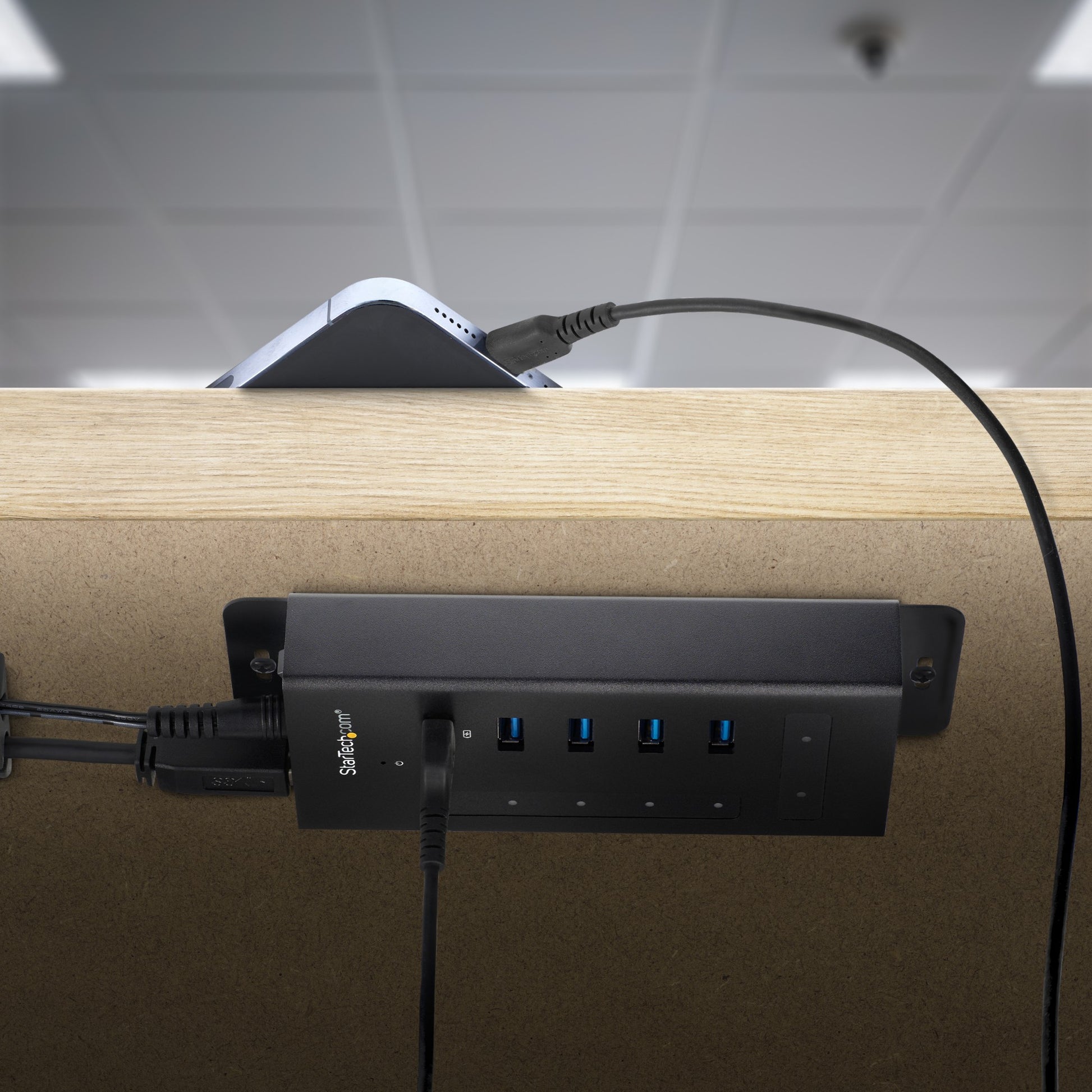

With the included wall-mount bracket, you can attach the hub to a surface such as a desktop or a wall, to best suit your needs.

Charge-and-sync your mobile devices

With the available fast-charge port, the hub helps to ensure that your tablet or smartphone are charged and ready to use when you need them. You can also sync and access your device while it's charging. The USB-A charge port supports USB Battery Charging Specification 1.2 and delivers up to 2.4 amps of power, so you can charge your mobile device faster than traditional USB ports allow.

The HB30C5A2CST is backed by a 2-year StarTech.com warranty and free lifetime technical support.

Specifications

Ports & interfaces

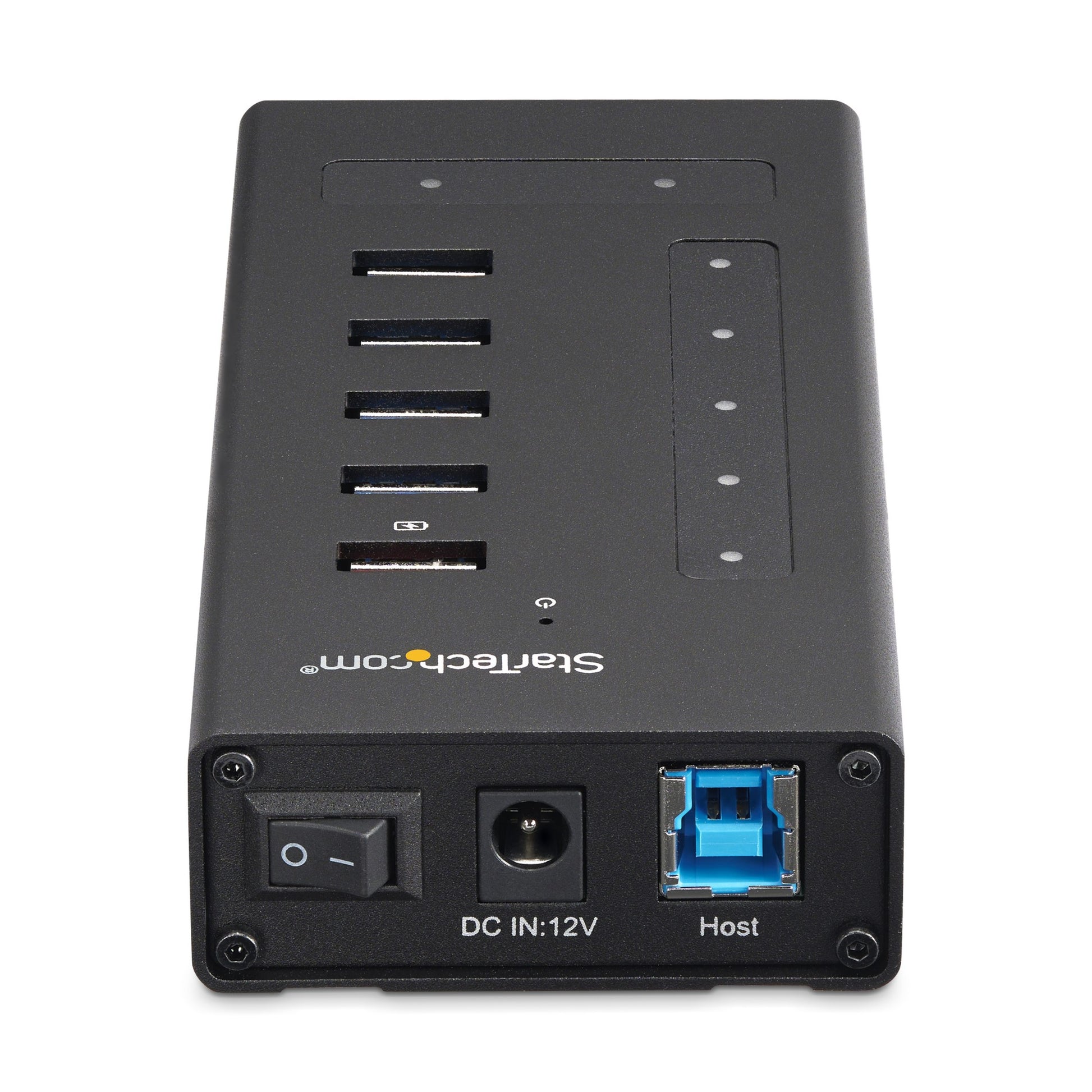

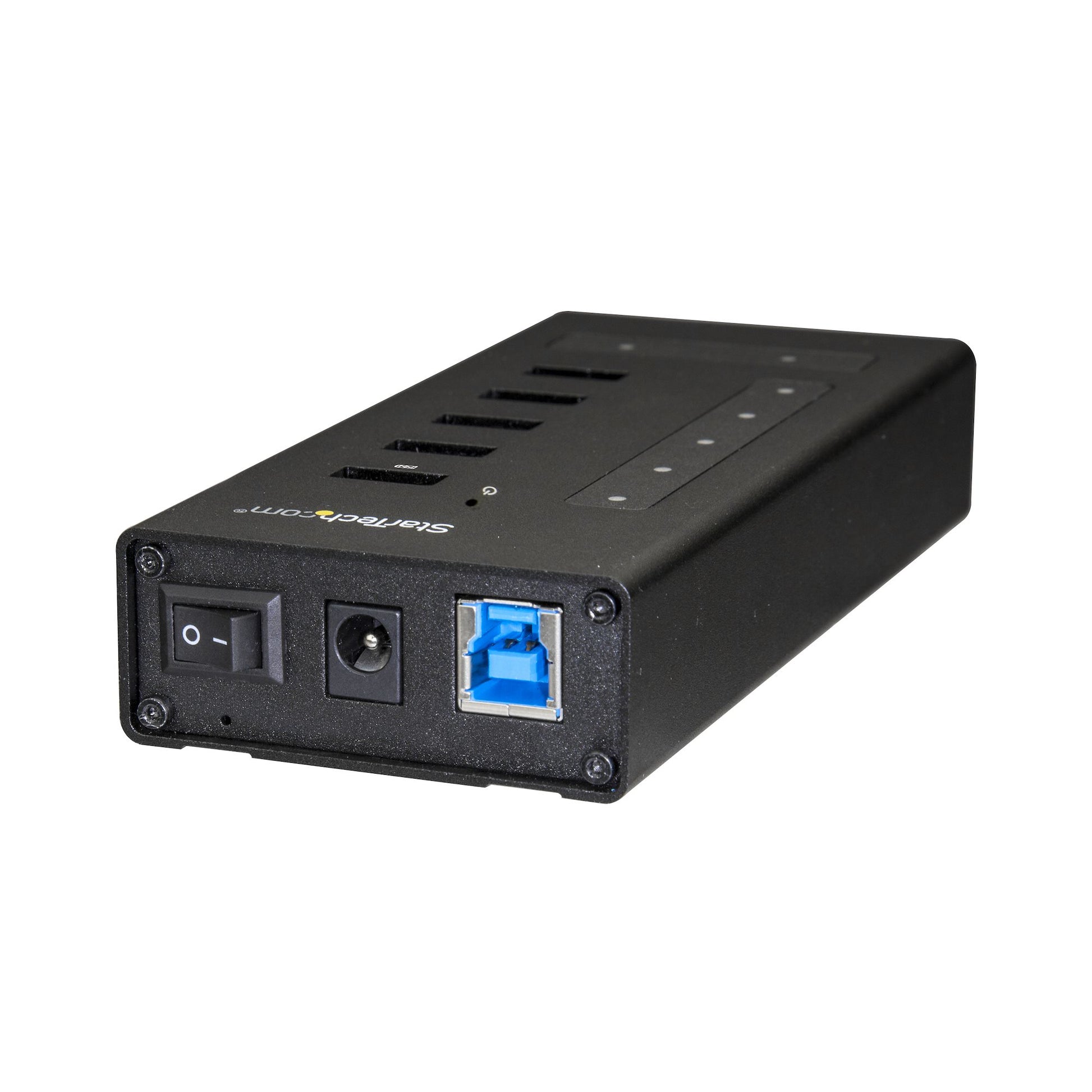

Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-B
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	5
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	2
Hub interfaces	USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C
DC-in jack	Yes
Ports quantity	8
Cable length	1 m
Features
Plug and Play	Yes
LED indicators	Power
Hot-swap	Yes
Product colour	Black
Certification	CE, FCC, RoHS
Data transfer rate	5000 Mbit/s
Housing material	Aluminium
Power
Input current	3 A
Power plug type	Type M
Power consumption (typical)	36 W
Output voltage	12 V
Output current	1.5 A
Input voltage	100 - 240 V
Performance
Harmonized System (HS) code	84719000
Weight & dimensions
Weight	170 g
Width	60 mm
Depth	130 mm
Height	26 mm
Package width	105 mm
Package depth	195 mm
Package height	96 mm
Package weight	650 g
Packaging content
Quick installation guide	Yes
Cables included	USB Type-C
AC adapter included	Yes
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	20 - 80%
Logistics data
Master (outer) case width	536 mm
Master (outer) case length	220 mm
Master (outer) case height	345 mm
Products per master (outer) case	15 pc(s)
Other features
Chipset	Realtek - RTS5411
