StarTech.com 7-Port USB 3.0 Hub (5Gbps) - Metal Industrial USB-A Hub with ESD

The StarTech.com 7-Port expands your ports in seconds — plug in and go.

Industrial-grade | 15kV Air | 8kV Contact | Metal | Mountable | DIN Rail | 5 Gbps

This TAA compliant 7-port industrial USB 3.2 Gen 1 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.

Perfect for Harsh Environments

This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-48V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.

Perfect for factory environments, the rugged hub also supports a wide operating temperature range (0°C to 70°C) and offers surge and ESD protection to each USB port, which can help prevent damage to your connected devices.

Connect & Charge More USB Devices

Designed for a high volume of connections, this robust USB 3.2 Gen 1 hub offers 7 connection ports, for connecting more USB devices and peripherals.

The hub also supports USB battery charging specification 1.2, delivering up to 2.4A on any port to a maximum of 35W total, so you can charge your mobile devices faster than traditional USB ports allow.

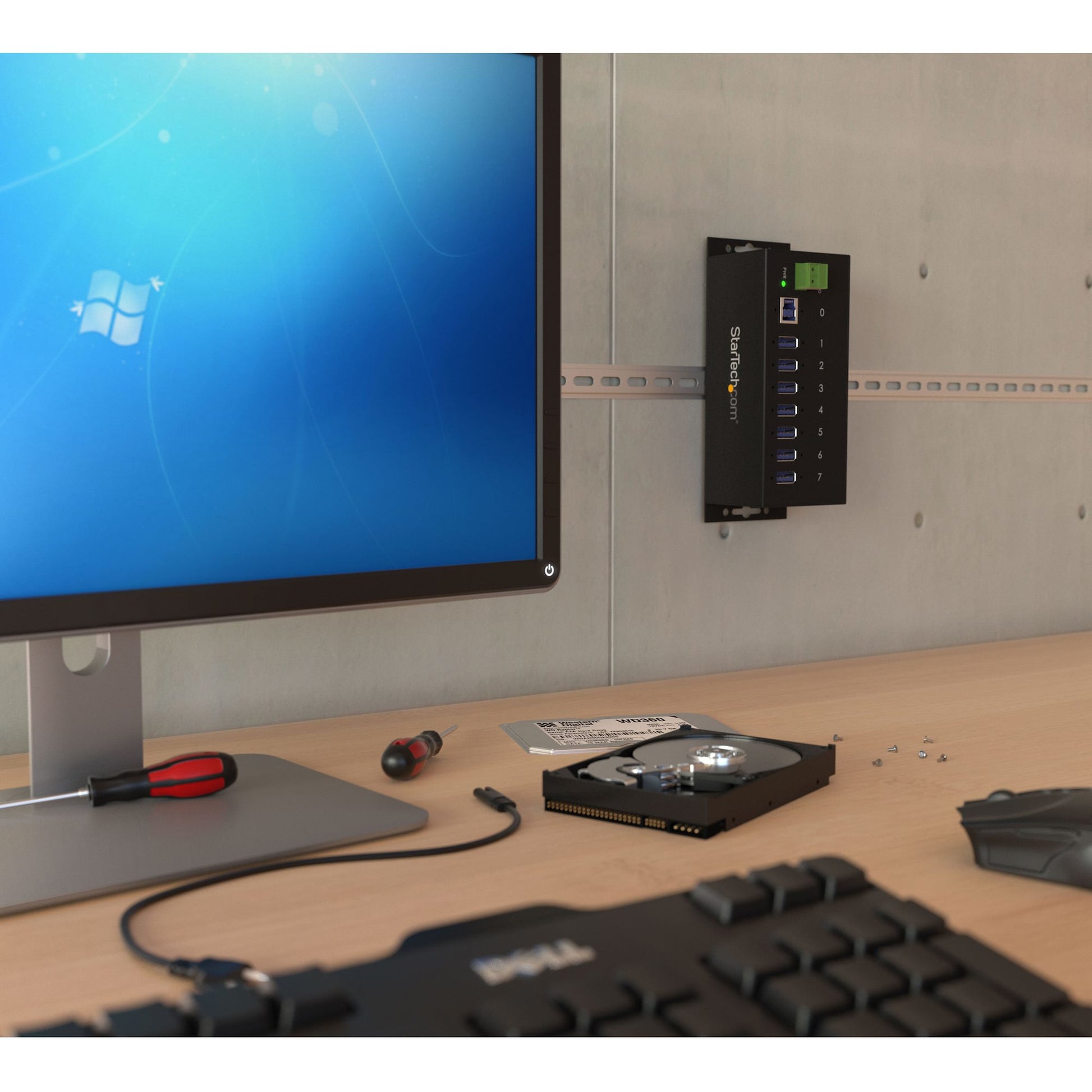

Locate the Hub Where You Need It Most

With versatile installation options, you can install the hub where it’s best suited for your environment. With built-in mounting brackets and included DIN mount rails, you can securely mount the USB 3.2 Gen 1 hub to most surfaces such as a wall, under a desk or rack.

StarTech.com offers an external power adapter, ITB20D3250, sold separately. The universal DC power adapter can be used as an alternative, back up or replacement power supply for StarTech.com’s line of industrial USB hubs.

Works with Older USB Devices

The rugged USB hub supports the full 5Gbps bandwidth of USB 3.2 Gen 1 and is backward compatible with previous USB devices. You can connect your legacy peripherals alongside your newer USB 3.2 Gen 1 devices without any disruptions.

The ST7300USBME is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Specifications

Ports & interfaces
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-B
Terminal block port	Yes
Hub interfaces	USB 3.2 Gen 1 (3.1 Gen 1) Type-A
DC-in jack	No
Card reader integrated	No
Ports quantity	7
Features
Surge protection	Yes
LED indicators	Power
Product colour	Black
Certification	CE, FCC, RoHS, TAA, REACH
Data transfer rate	5000 Mbit/s
Housing material	Steel
Power
Power source type	DC
Input voltage	7 - 48 V
Performance
Mean time between failures (MTBF)	126106 h
Harmonized System (HS) code	84719000
Weight & dimensions
Weight	325 g
Width	54 mm
Depth	145 mm
Height	45 mm
Package width	190 mm
Package depth	294 mm
Package height	71 mm
Package weight	600 g

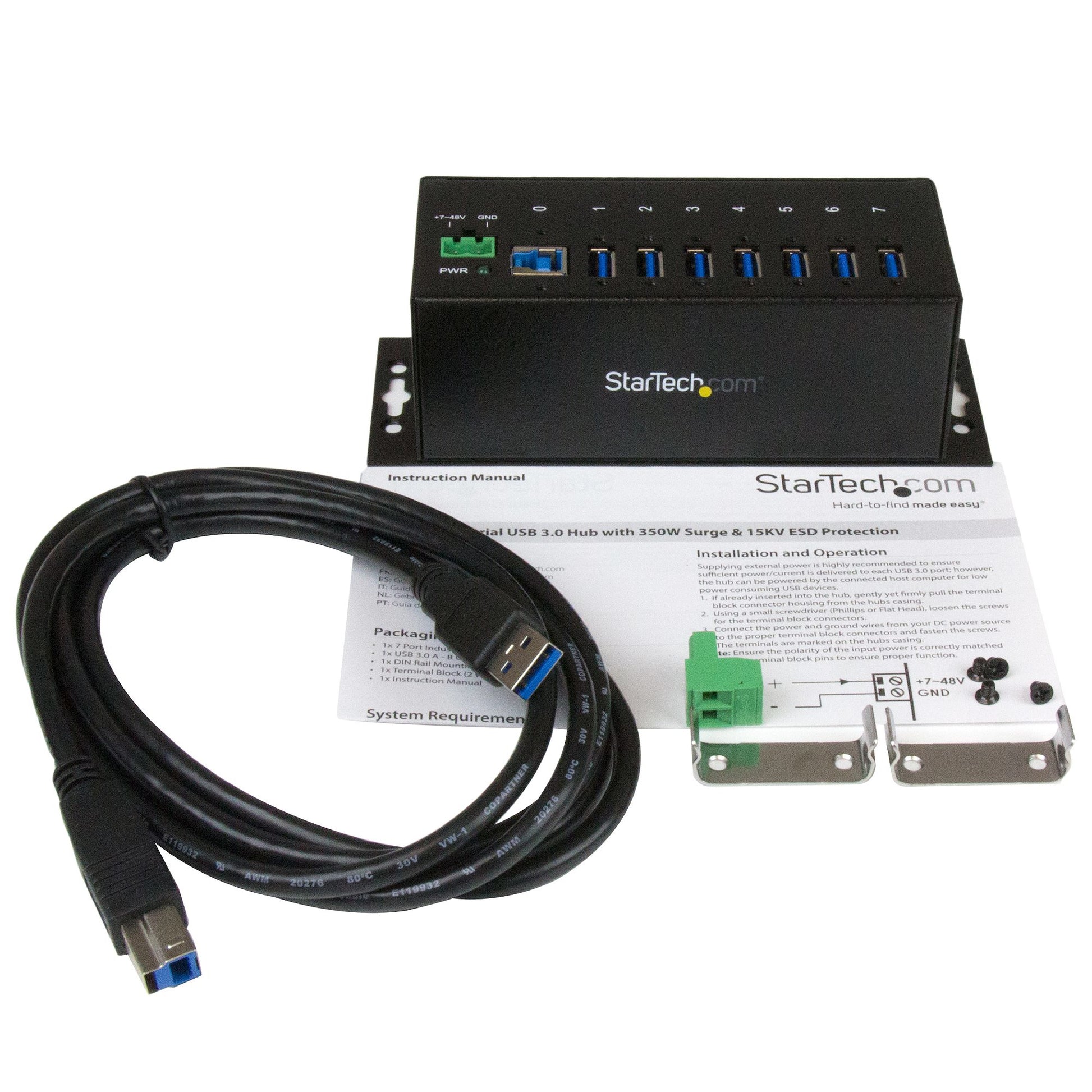

Packaging content
Manual	Yes
Terminal block included	Yes
Cables included	USB
DIN rail kit included	Yes
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-20 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Logistics data
Master (outer) case width	515 mm
Master (outer) case length	407 mm
Master (outer) case height	325 mm
Products per master (outer) case	14 pc(s)
Other features
Chipset	Genesys Logic - GL3520
