StarTech.com 7-Port USB 2.0 Hub - Metal Industrial USB-A Hub with ESD Protection &

The StarTech.com 7-Port expands your ports in seconds — plug in and go.

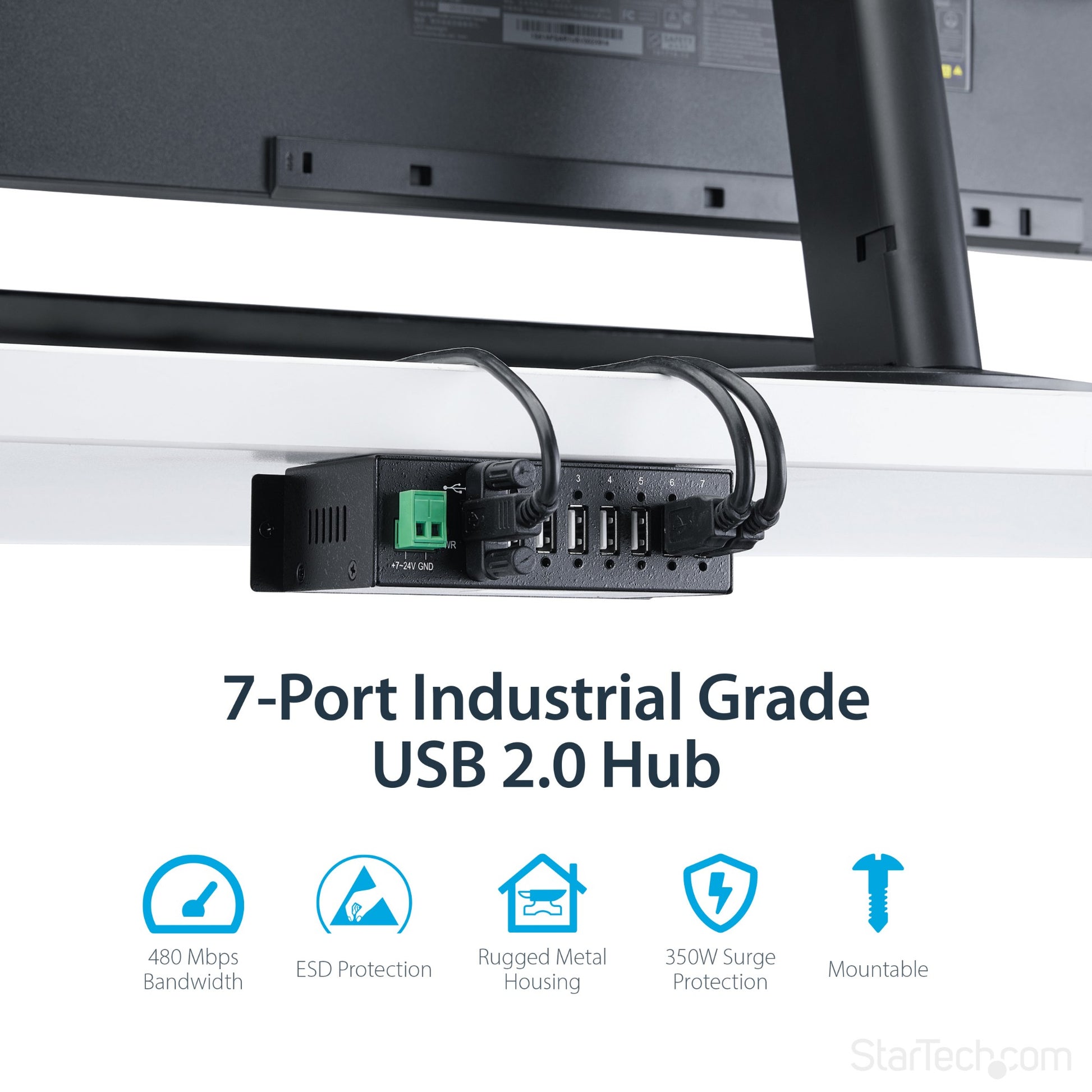

Industrial Grade | 15kV Air | 8kV Contact | Metal | Mountable | DIN Rail | 480 Mbps

This TAA compliant 7-port industrial USB 2.0 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.

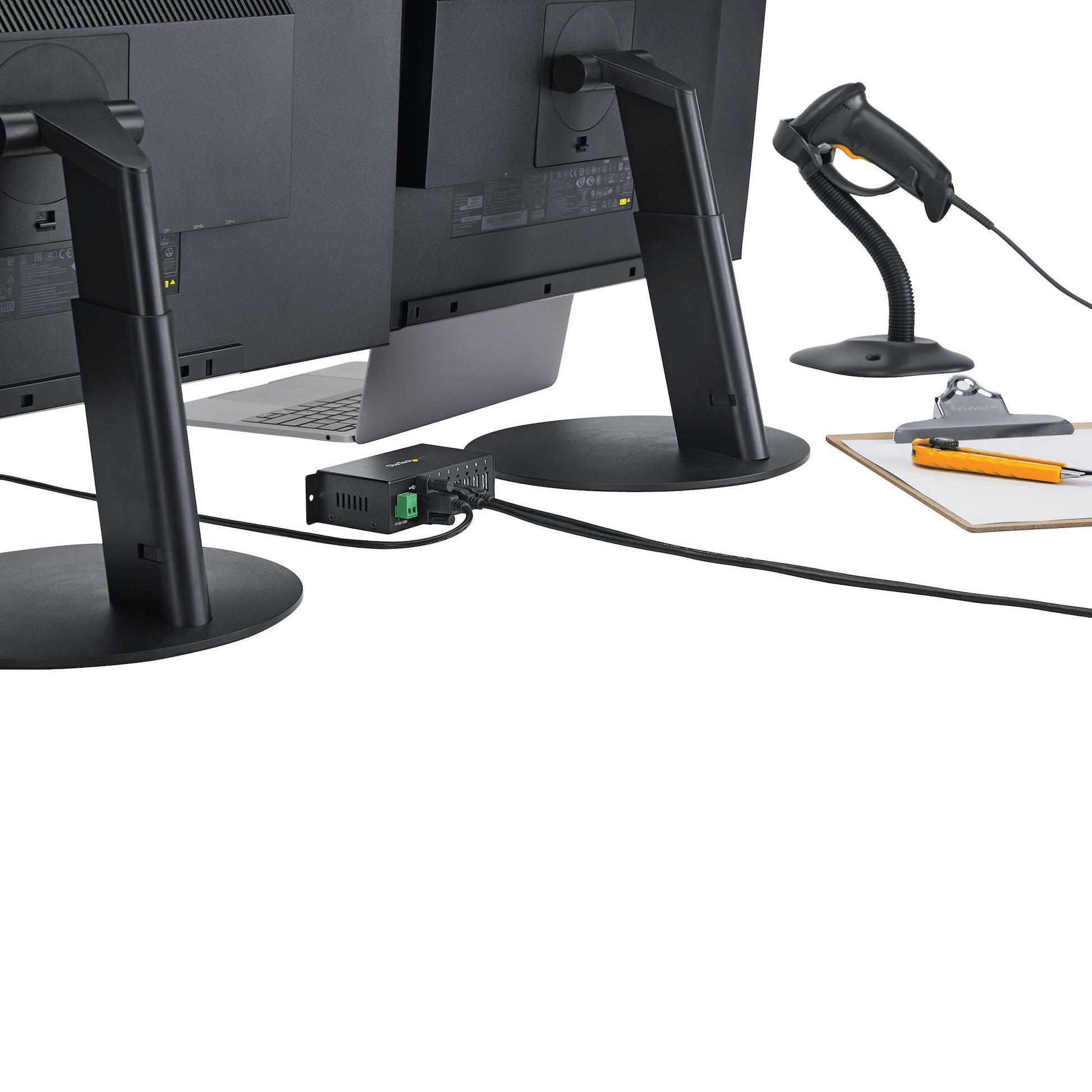

Perfect for Harsh Environments

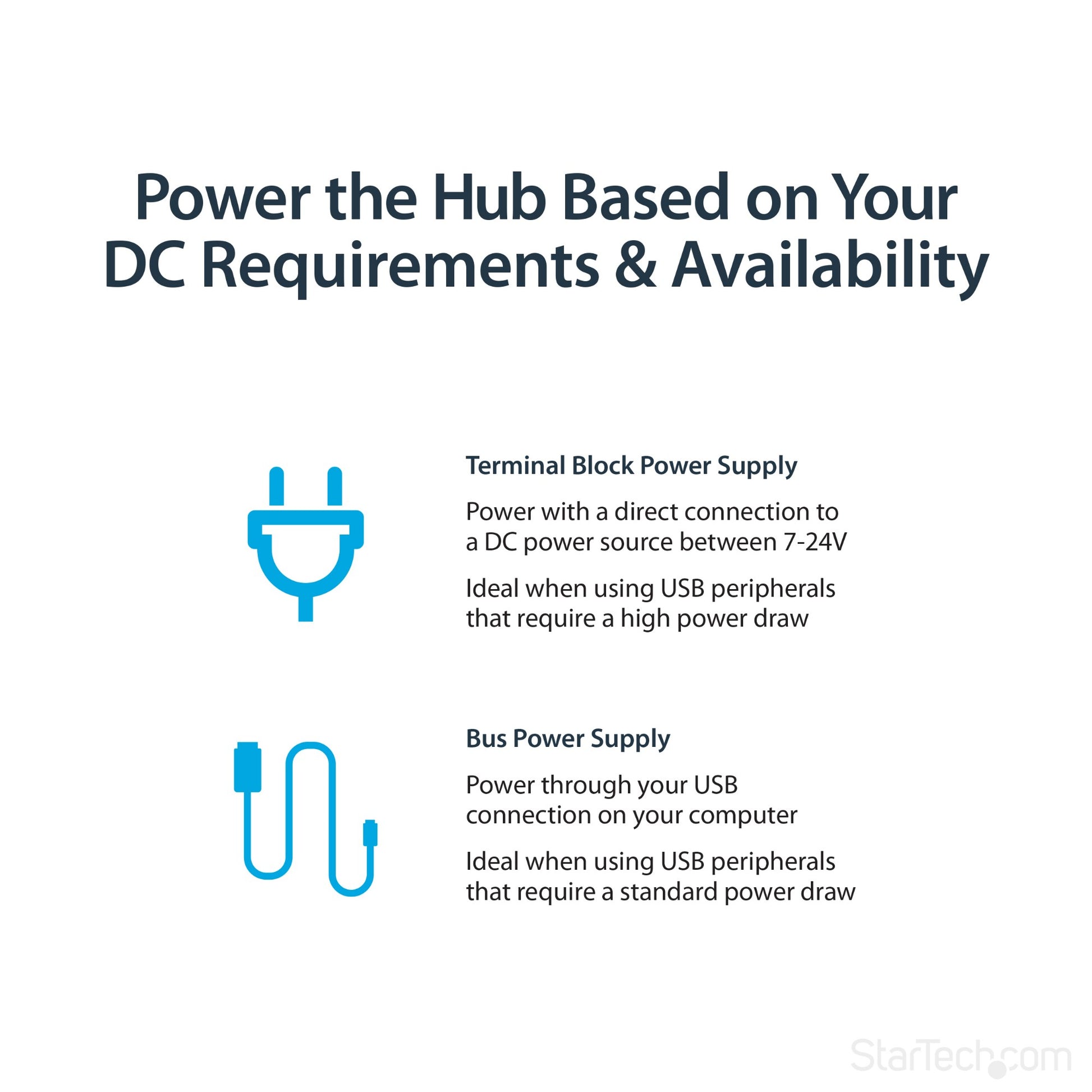

This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.

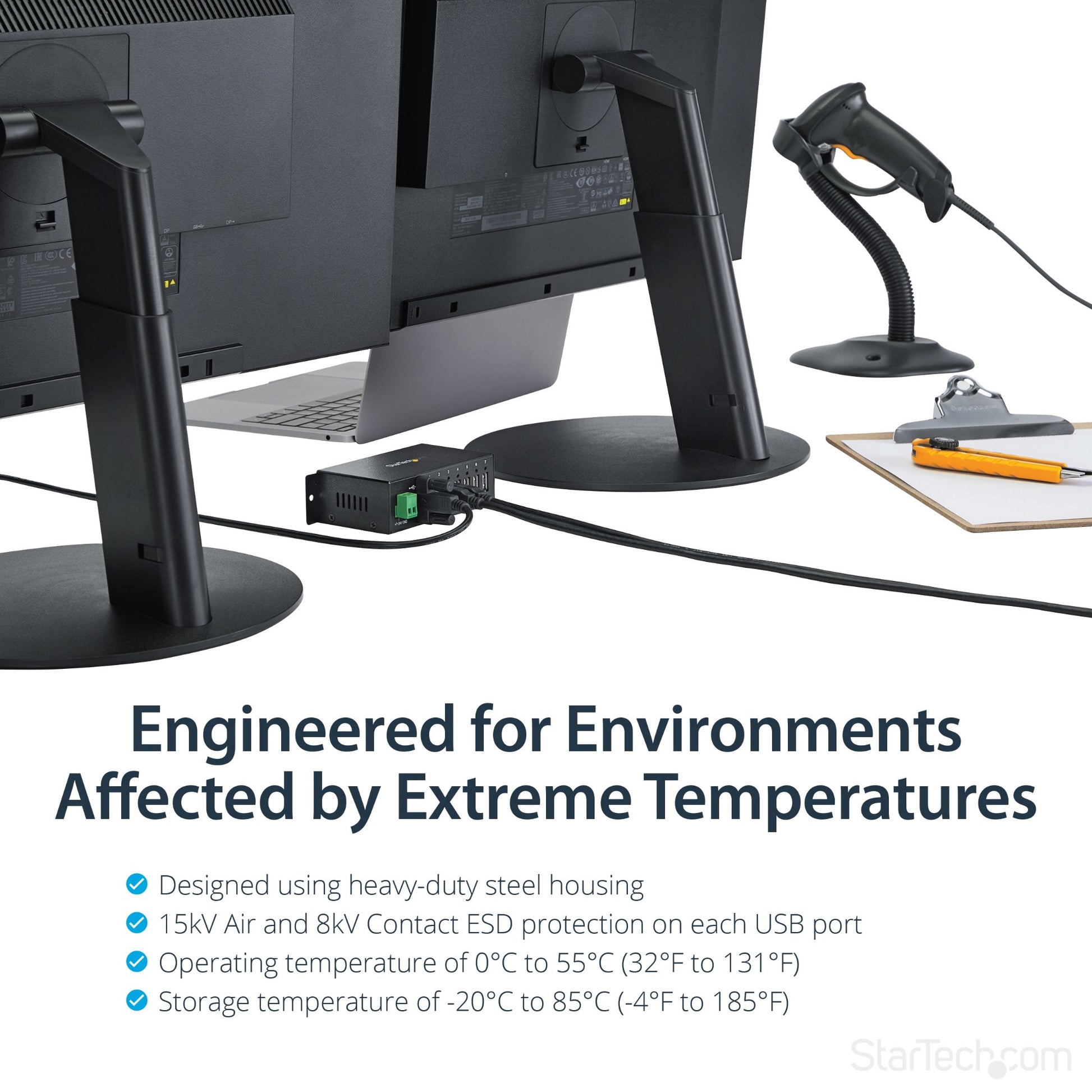

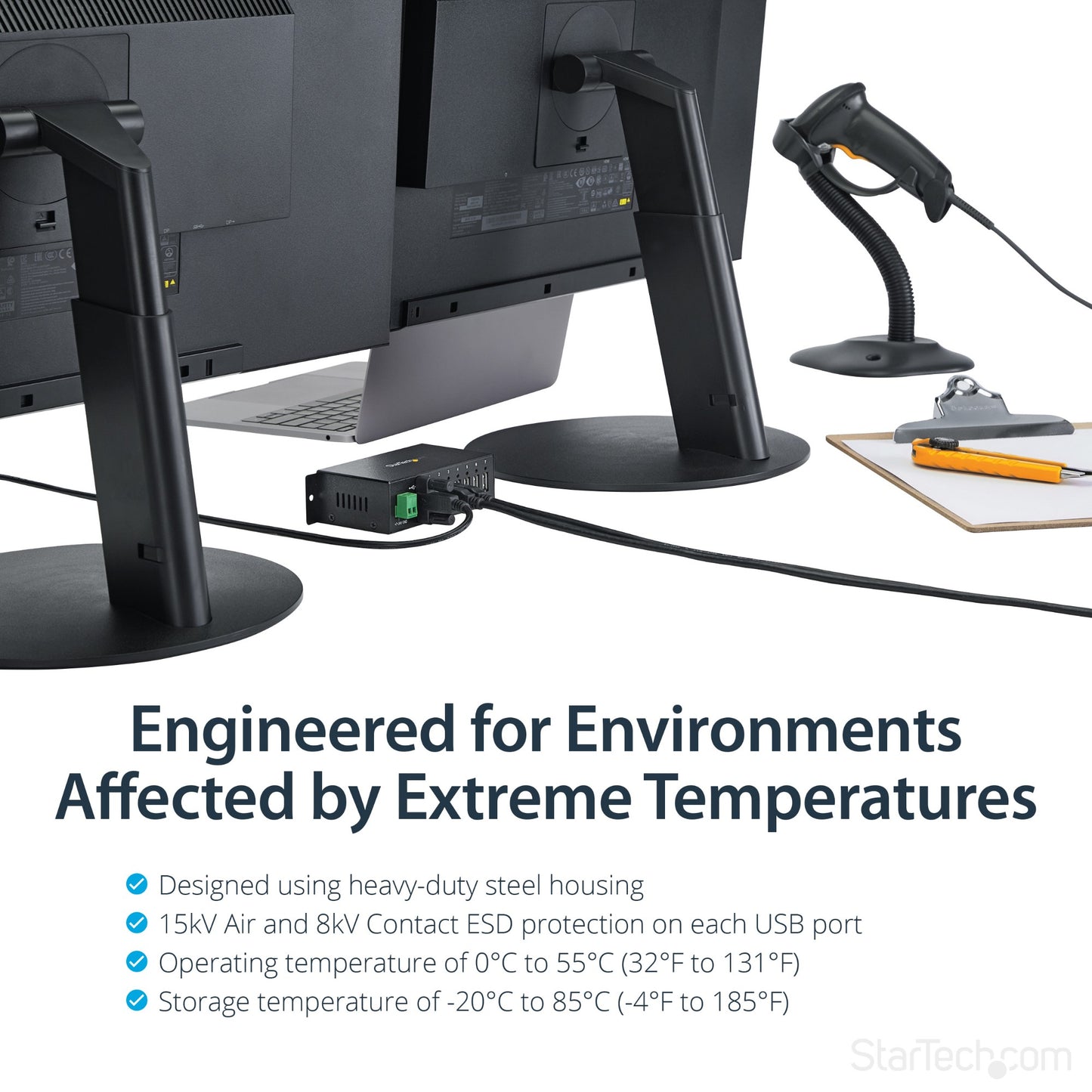

Perfect for factory environments, the rugged hub also supports a wide operating temperature range (0°C to 55°C) and offers surge and ESD protection to each USB port, which can help prevent damage to your connected devices.

Connect More USB Devices

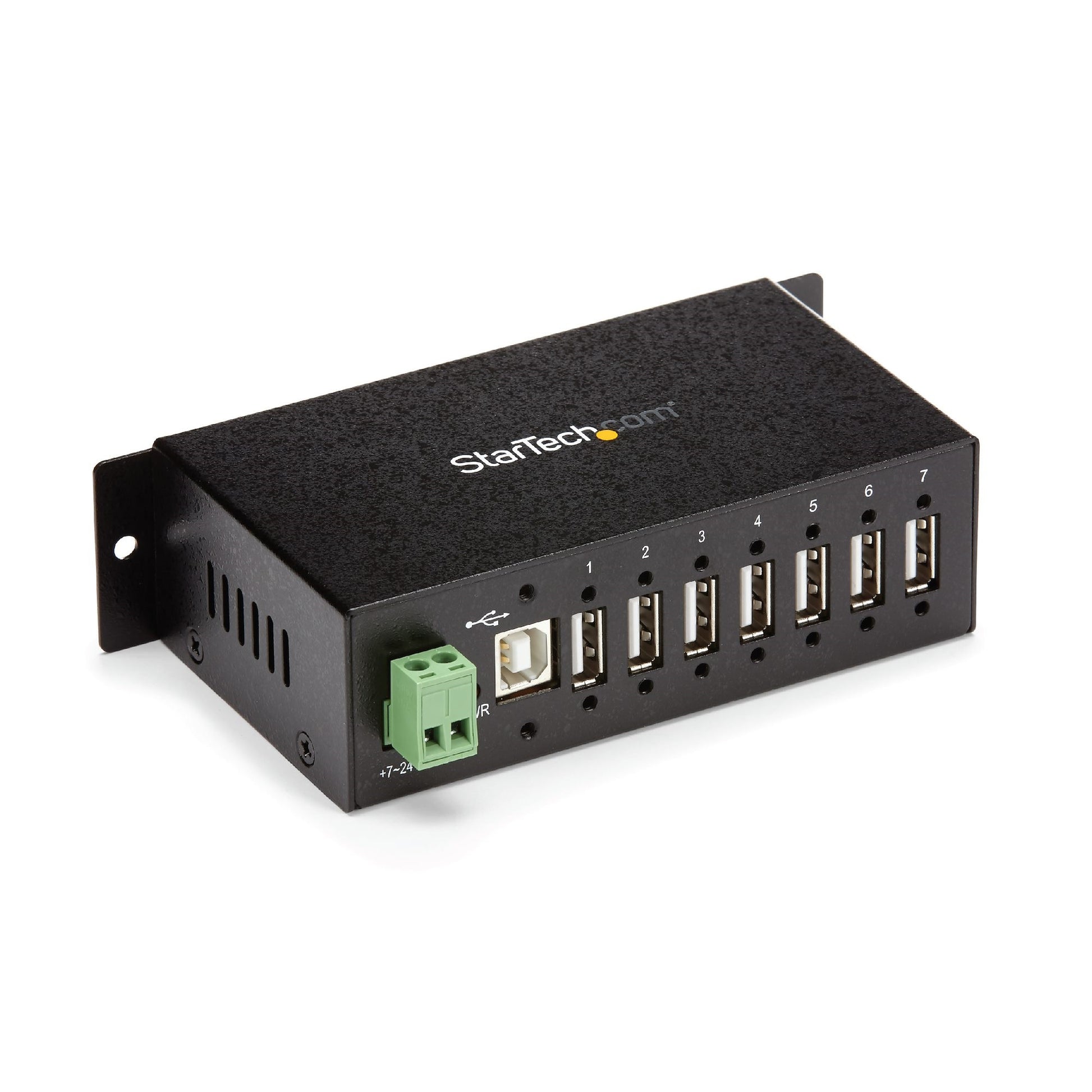

Designed for a high volume of connections, this robust USB 2.0 hub offers 7 connection ports, for connecting more USB devices and peripherals.

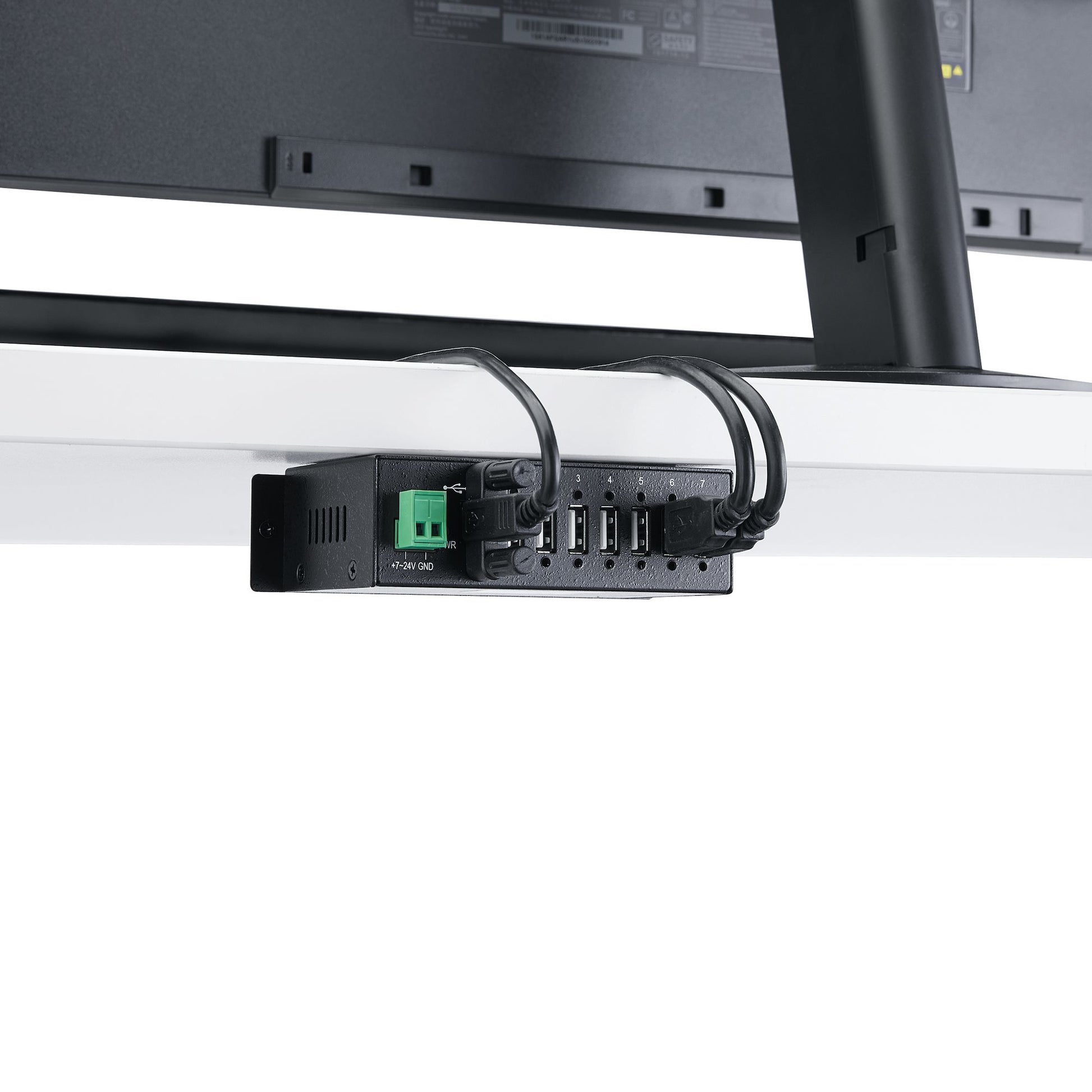

Locate the Hub Where You Need It Most

With versatile installation options, you can install the hub where it’s best suited for your environment. With built-in mounting brackets and included DIN mount rails, you can securely mount the USB 2.0 hub to most surfaces such as a wall, under a desk or rack.

StarTech.com offers an external power adapter, ITB20D3250, sold separately. The universal DC power adapter can be used as an alternative, back up or replacement power supply for StarTech.com’s line of industrial USB hubs.

Works with Older USB Devices

The rugged USB hub supports the full 480 Mbps bandwidth of USB 2.0 and is backward compatible with previous USB devices.

The ST7200USBM is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Specifications

Ports & interfaces
Host interface	USB 2.0 Type-B
Terminal block port	Yes
Hub interfaces	USB 2.0
USB 2.0 ports quantity	7
DC-in jack	No
Card reader integrated	No
Ports quantity	7
Features
Surge protection	Yes
Plug and Play	Yes
LED indicators	Yes
Hot-swap	Yes
Product colour	Black
Certification	CE, FCC, RoHS, REACH, TAA
Data transfer rate	480 Mbit/s
Housing material	Steel
Power
Input voltage	7 - 24 V
Performance
Mean time between failures (MTBF)	170227 h
Harmonized System (HS) code	84719000
Weight & dimensions
Weight	283 g
Width	61.5 mm
Depth	133 mm
Height	36.3 mm
Package width	218 mm
Package depth	151 mm
Package height	54 mm
Package weight	500 g

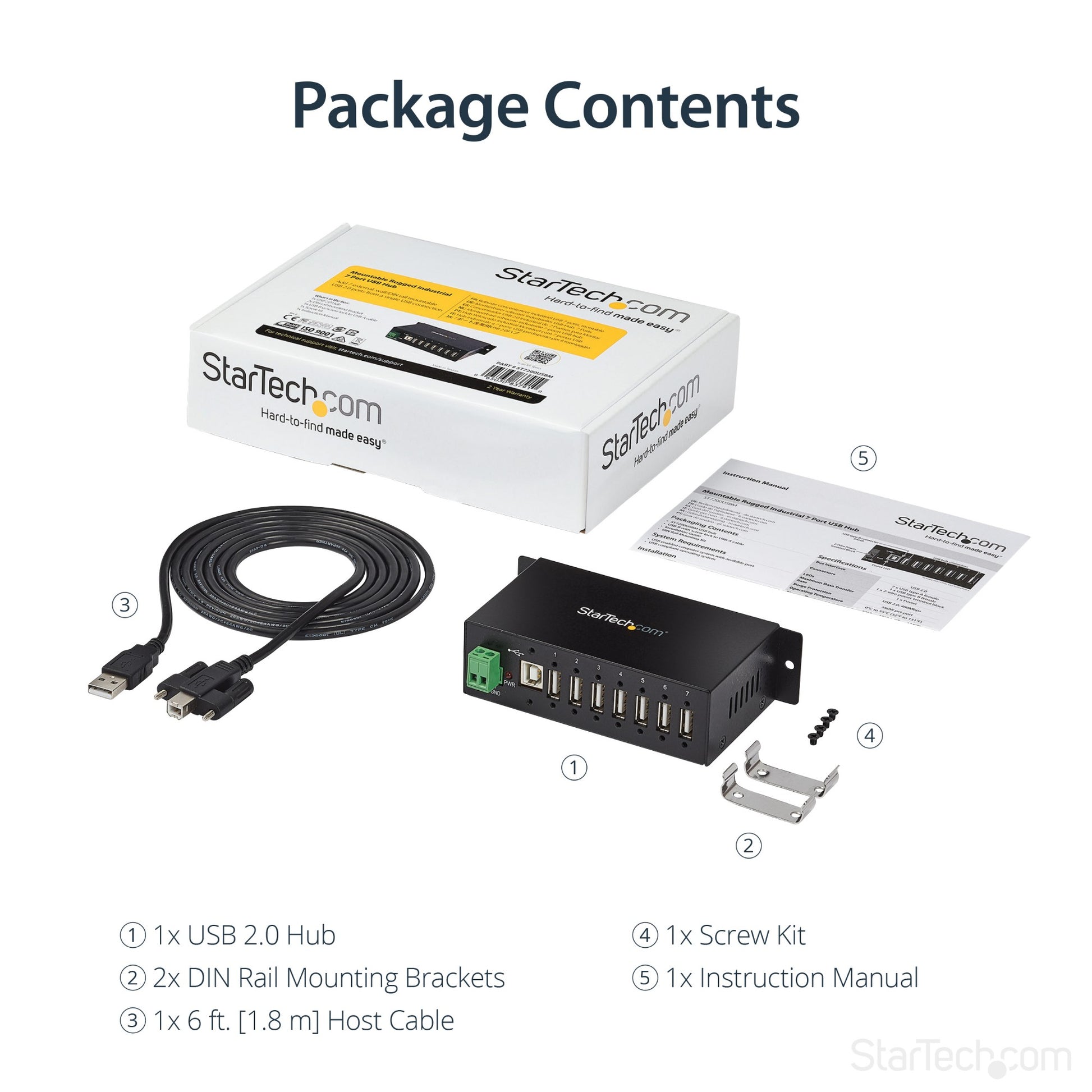

Packaging content
Manual	Yes
Cables included	USB
DIN rail kit included	Yes
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-20 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Logistics data
Master (outer) case width	524 mm
Master (outer) case length	434 mm
Master (outer) case height	272 mm
Products per master (outer) case	25 pc(s)
Other features
Chipset	Terminus - FE2.1
