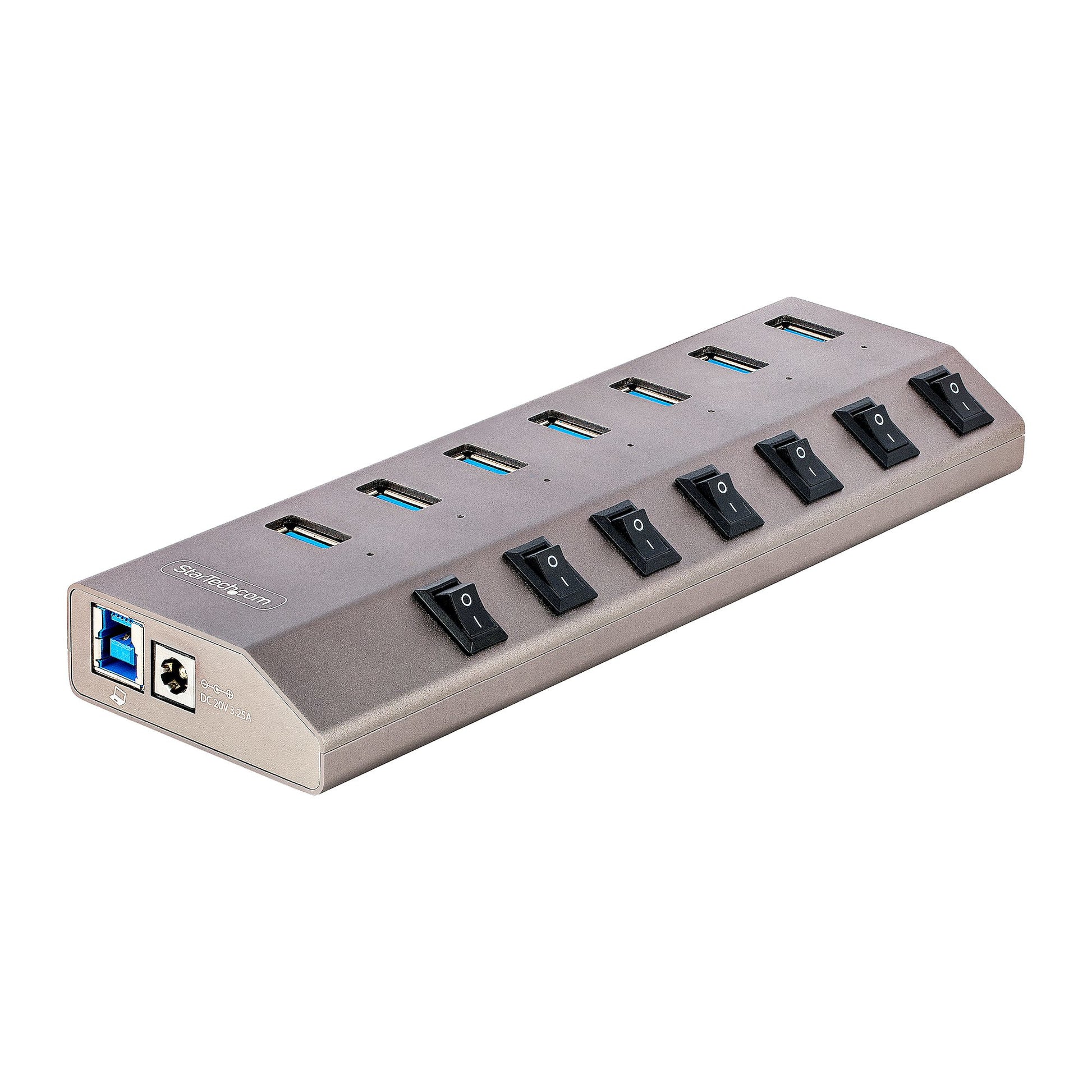

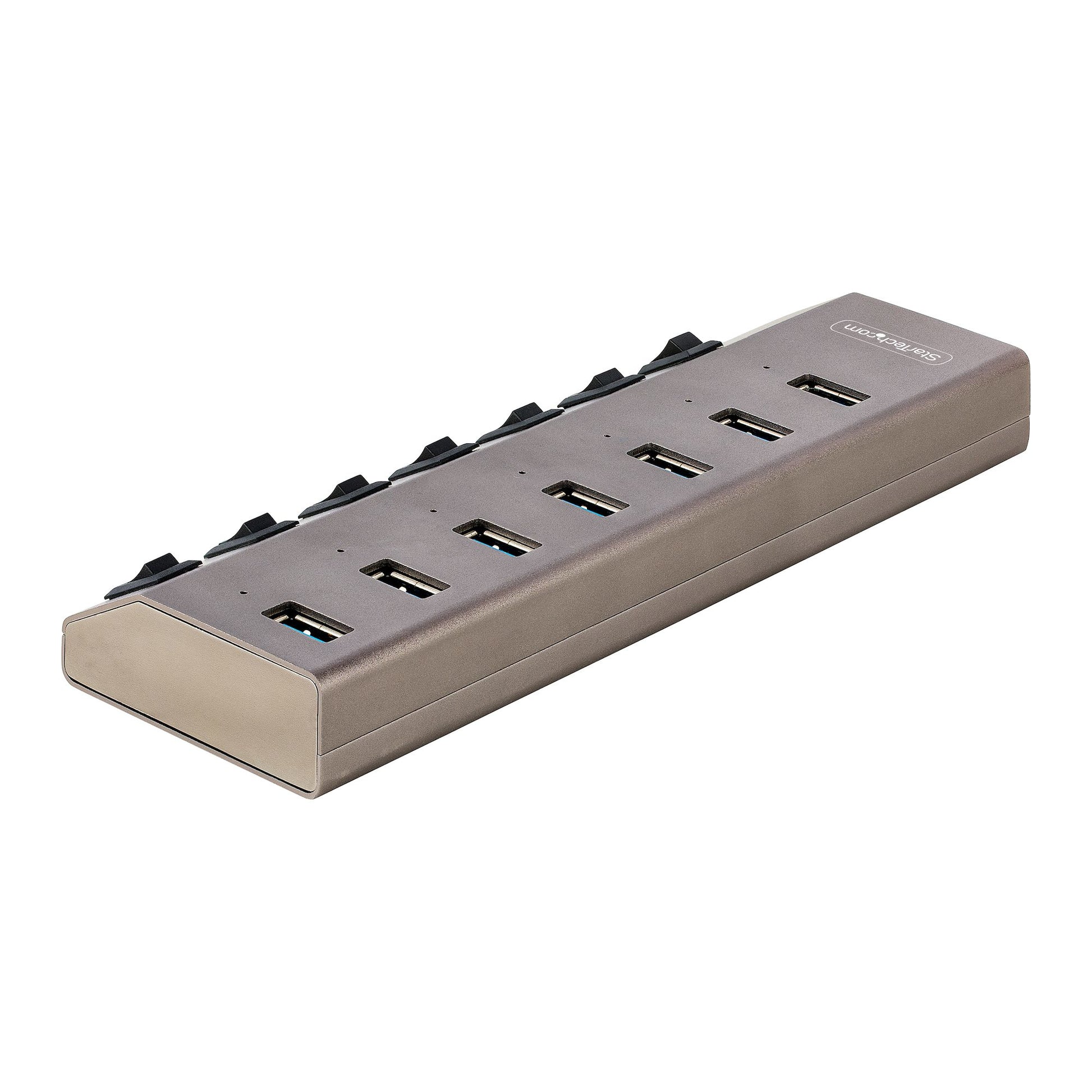

StarTech.com 7 Port Self-Powered USB C Hub with Individual On/Off Switches, USB 3.0

The StarTech.com 7 Port Self-Powered expands your ports in seconds — plug in and go.

7-Port USB Hub | Individual On/Off Port Switches | USB 3.2 Gen 1 (5Gbps) | 3ft (1 m) USB-C & USB-A Host Cables Included

This 7-Port USB 5Gbps Hub adds seven USB Type-A ports to a computer, with the added benefit of each port having an individual on/off switch. The USB hub is self-powered with an included power adapter. It connects to a USB-A, or USB-C port on a laptop or desktop computer.

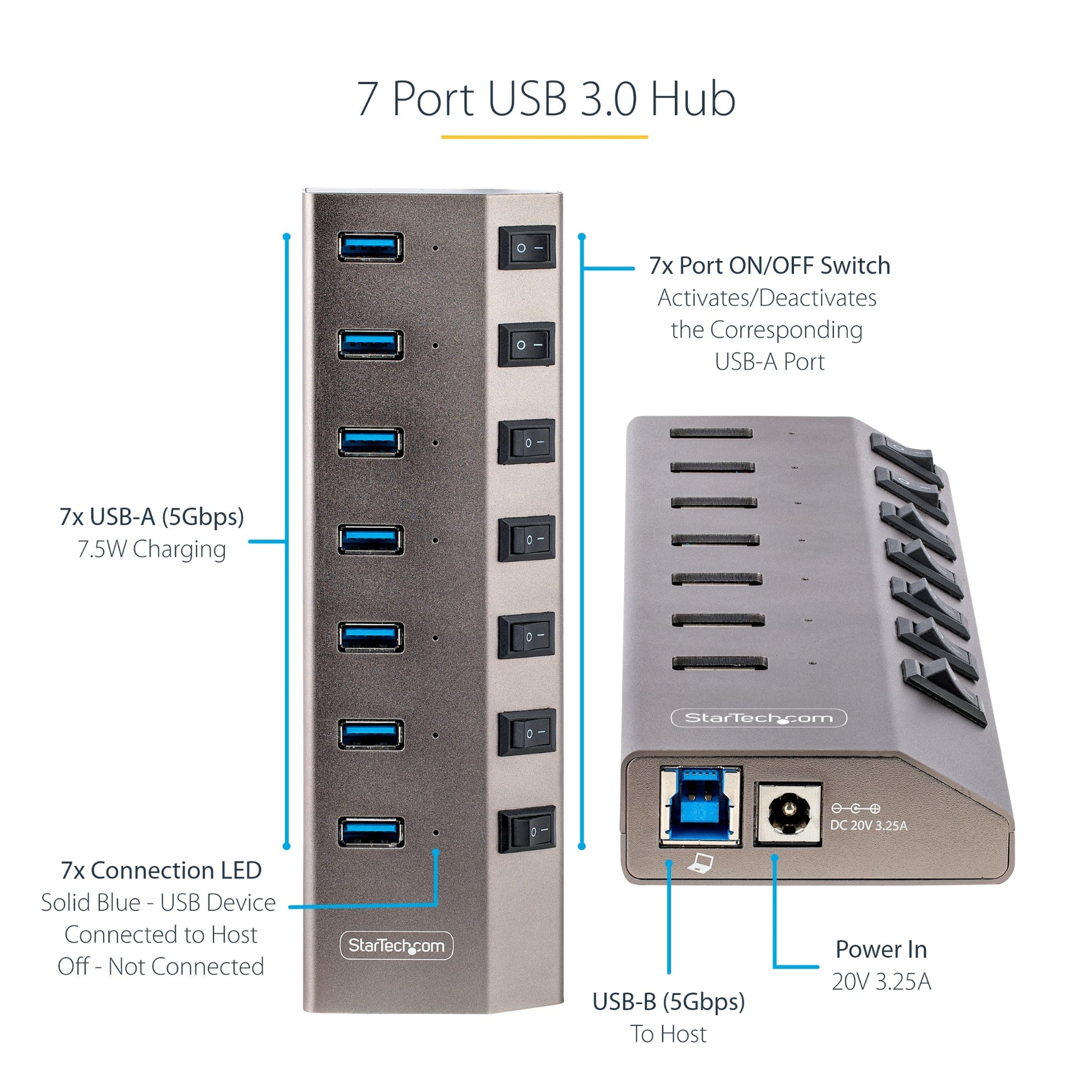

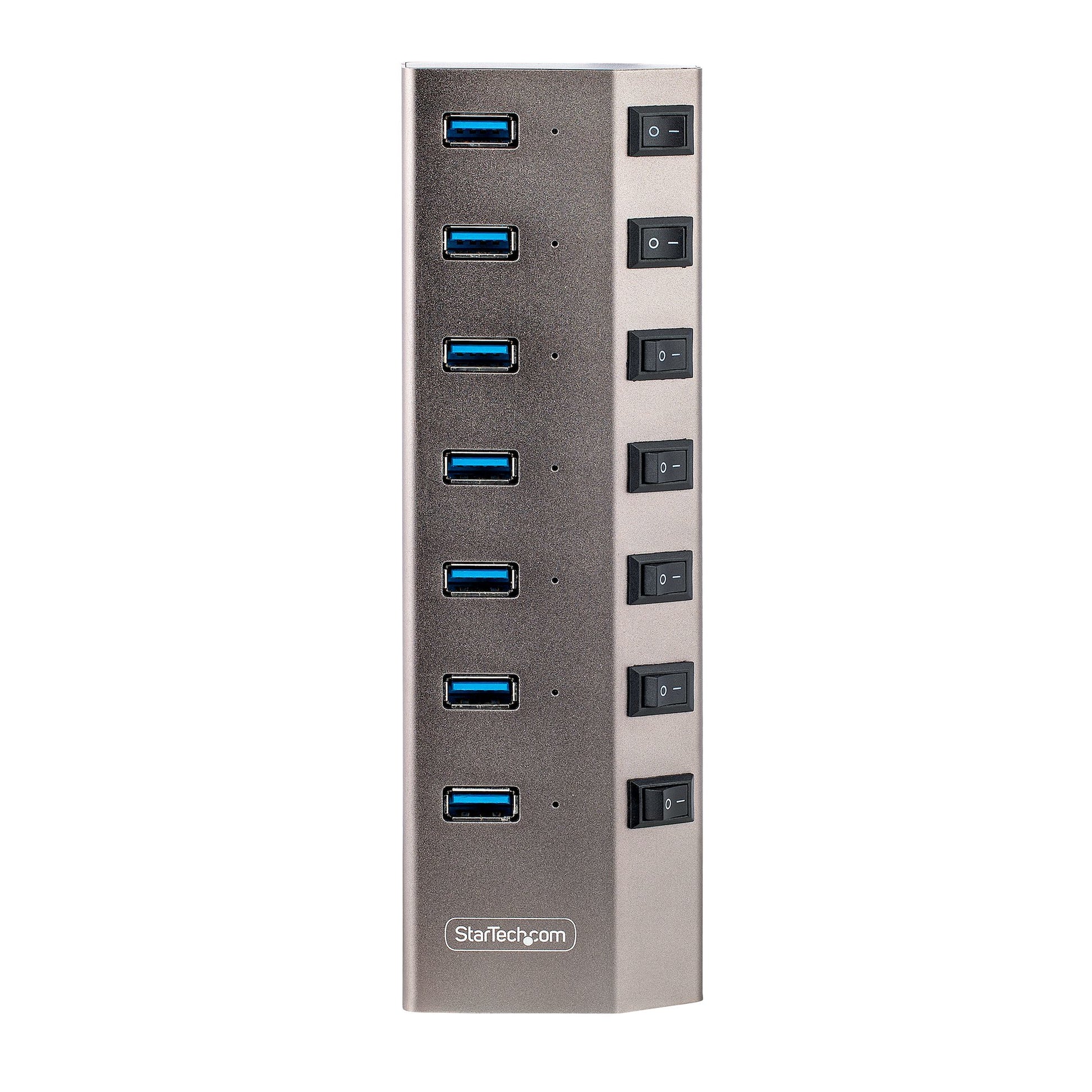

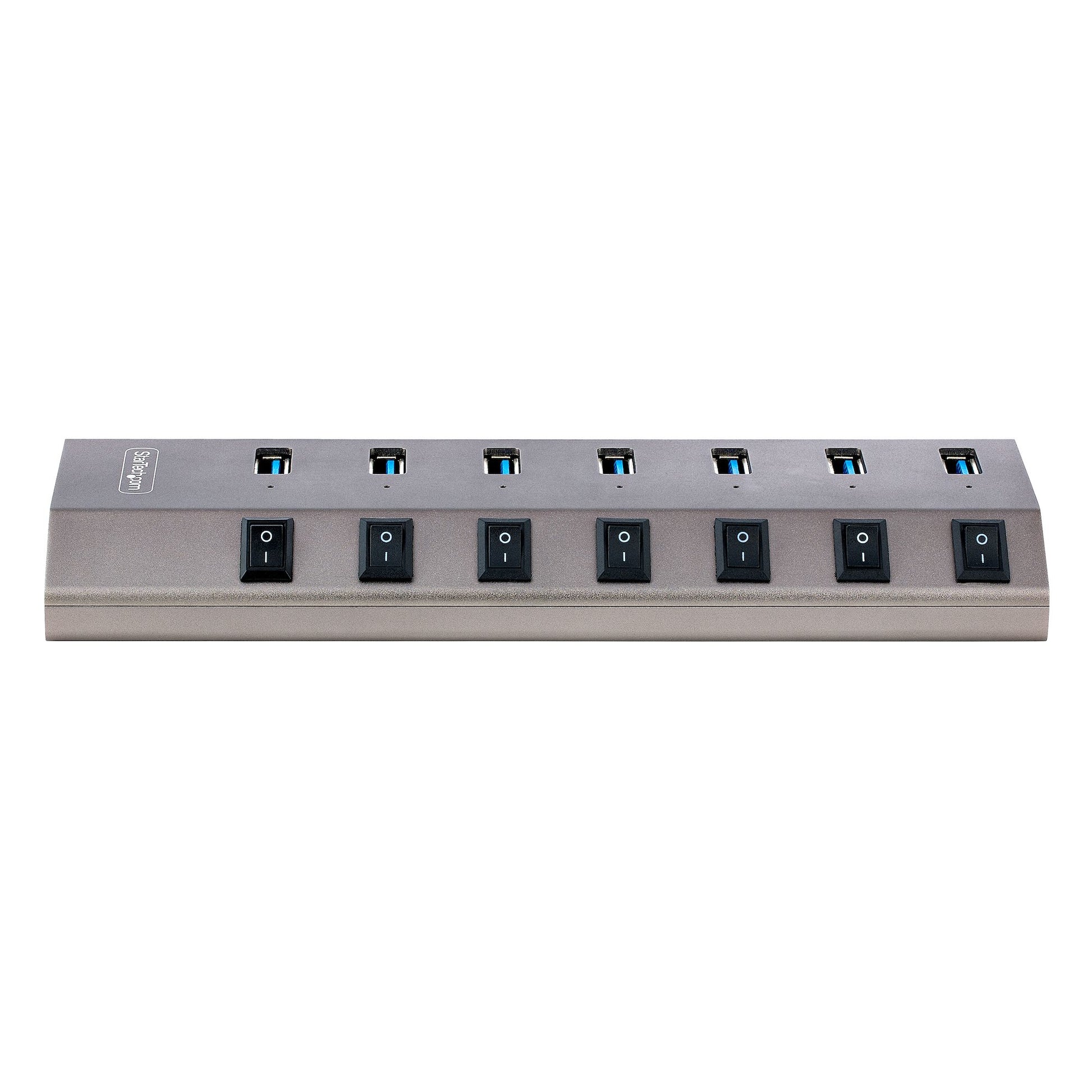

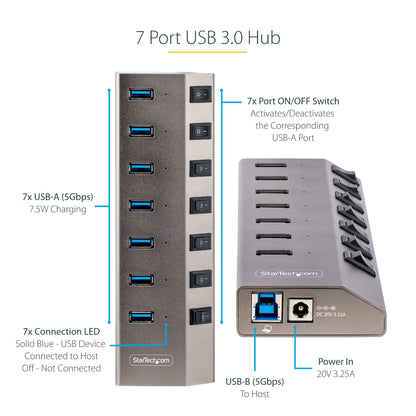

Seven On/Off Switches

The seven ports on the USB Hub feature a power switch to turn off the computers power connection to the attached device when it's not being used. This means you can turn off individual USB ports to reduce power consumption, without having to physically disconnect the device or cable. Also, this feature can ensure privacy by turning off cameras or external data storage devices that contain sensitive data, when they're not in use.

Power and Charge USB Devices

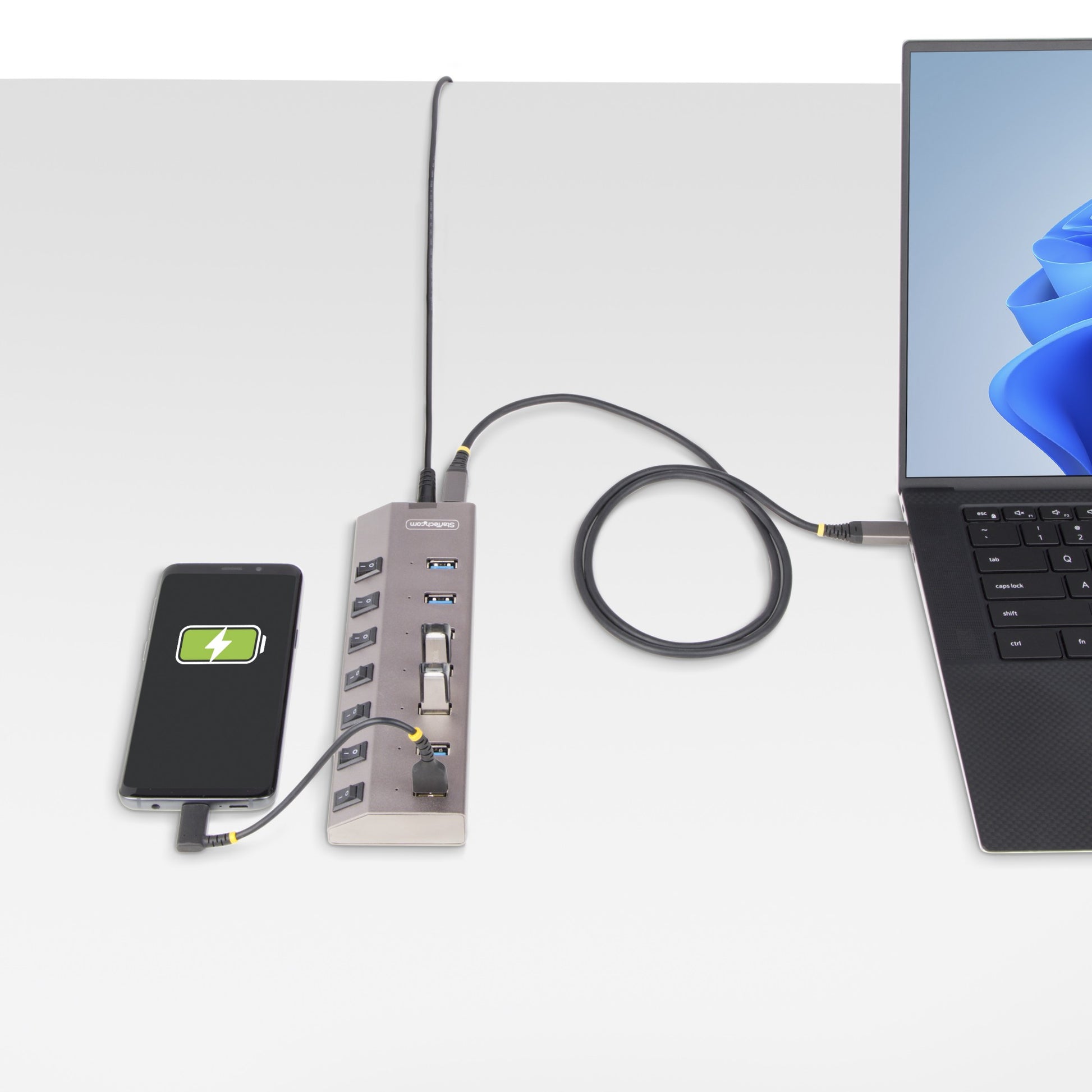

The USB hub is self-powered, with an included 65W power adapter. This enables all seven ports on this USB hub to support BC 1.2, providing 1.5A (7.5W) of power simultaneously (52.5W total), making it ideal to charge battery powered USB devices like Smartphones, and Tablets, while also providing a data connection. The USB hub will provide power with or without a host computer connected, with support for both CDP (Charging Downstream Port) & DCP (Dedicated Charging Port) applications.

Add Seven USB Ports, to Connect USB Devices

The 7-port USB Hub expands computer's USB connectivity, adding seven USB-A ports from a single USB-A or USB-C port. The USB hub is backward compatible with older USB 2.0 (480Mbps) devices, ensuring support for a wide range of modern and legacy USB devices such as external storage devices (thumb drives, HDDs/SSDs), HD Cameras, mice, keyboards, webcams, and USB headsets.

USB 5Gbps is also known as USB 3.2 Gen 1, and USB 3.0.

Hassle-Free, Plug-and-Play Installation

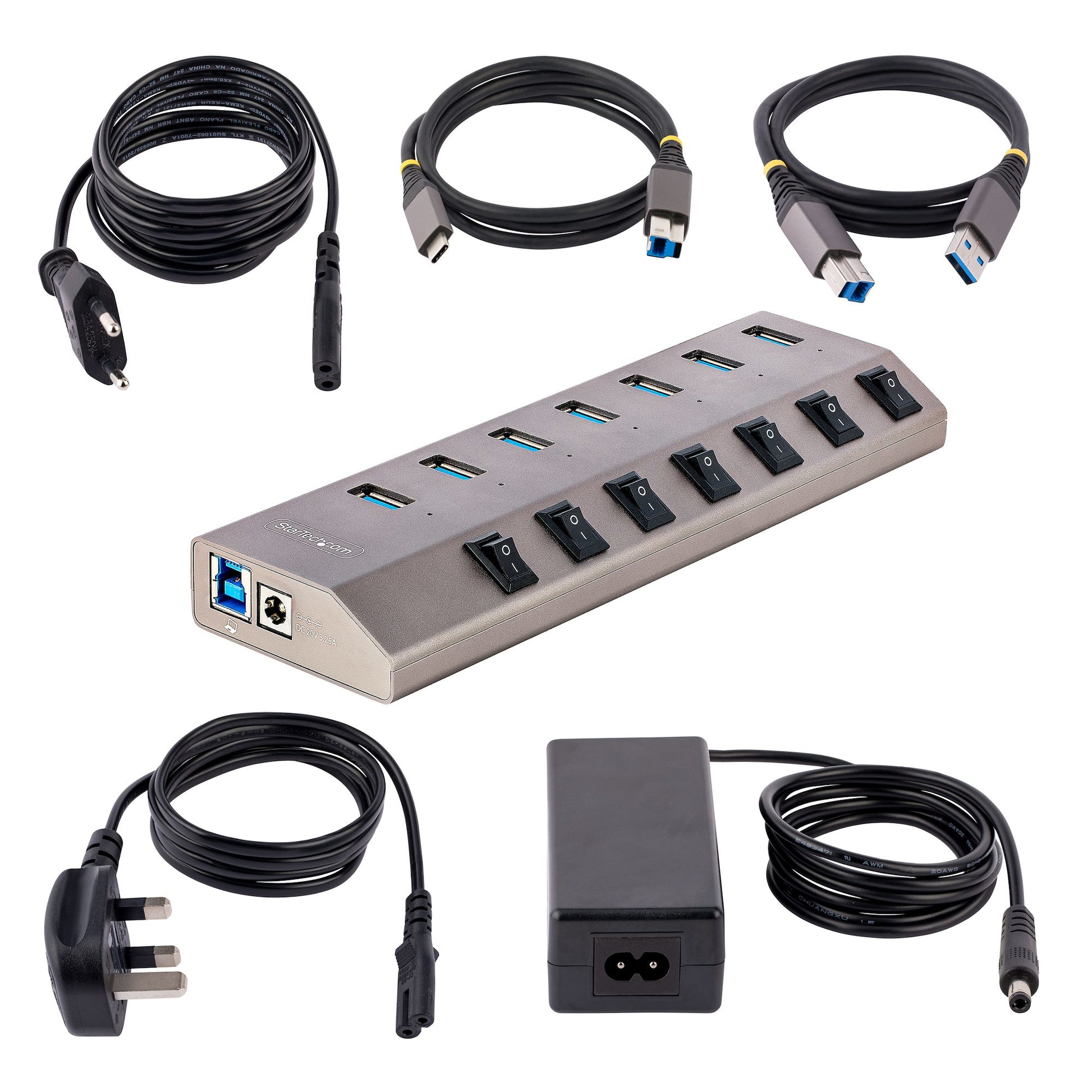

The 7-Port USB Hub is OS independent supporting all operating systems including Windows, macOS, Chrome OS, iPad OS and Android, and installs automatically when connected to a computer. To ensure wide compatibility with USB host devices, individual 3.3 ft. (1 m) USB-A, and USB-C host cables are included.

Specifications

Ports & interfaces

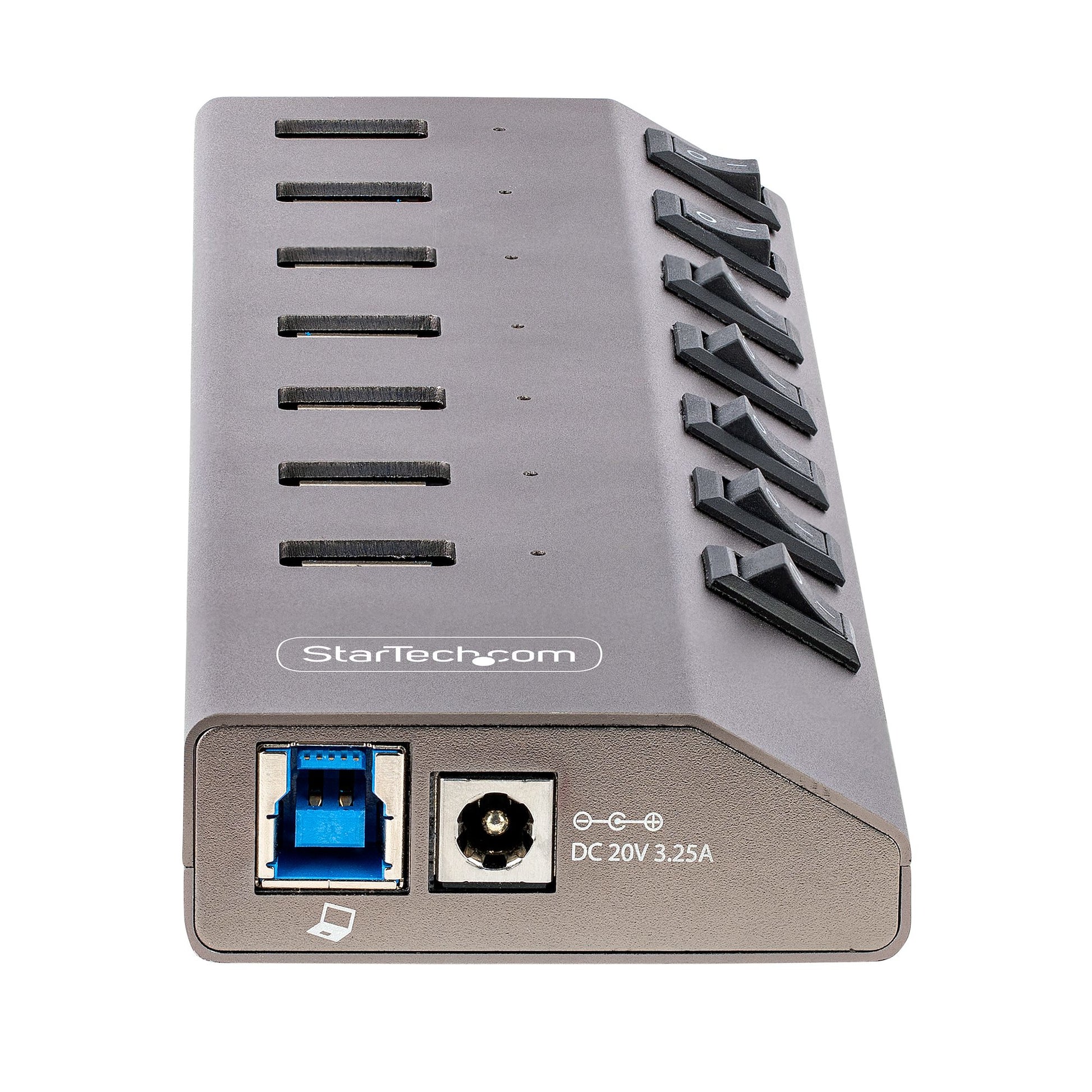

Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-B
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	7
Hub interfaces	USB 3.2 Gen 1 (3.1 Gen 1) Type-A
DC-in jack	Yes
Ports quantity	7
Cable length	1 m
Features
Plug and Play	Yes
LED indicators	Yes
Product colour	Grey
Data transfer rate	5000 Mbit/s
Housing material	Plastic
Fast charging	Yes
Network
UASP support	Yes
Power
Power plug type	Type M
Power consumption (typical)	65 W
Output voltage	20 V
Output current	3.25 A
Input voltage	110 - 240 V
Power supply type	DC
Technical details
Sustainability compliance	Yes
Compliance certificates	CE, RoHS
Weight & dimensions
Weight	208 g
Width	188 mm
Depth	59 mm
Height	21 mm
Package width	225 mm
Package depth	170 mm
Package height	70 mm
Package weight	5 kg
Performance
Mean time between failures (MTBF)	50000 h
Harmonized System (HS) code	84719000
Packaging content
Included power plug types	EU, UK
Cables included	USB
AC adapter included	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Logistics data
Master (outer) case width	470 mm
Master (outer) case length	380 mm
Master (outer) case height	190 mm
Products per master (outer) case	10 pc(s)
Other features
Chipset	VIA - VL817
