StarTech.com 7-Port Industrial USB 10Gbps Hub with Power Adapter, Metal, Mountable

The StarTech.com 7-Port Industrial expands your ports in seconds — plug in and go.

Add 7 external, wall mountable USB 3.2 (10Gbps) ports from a single USB-C connection

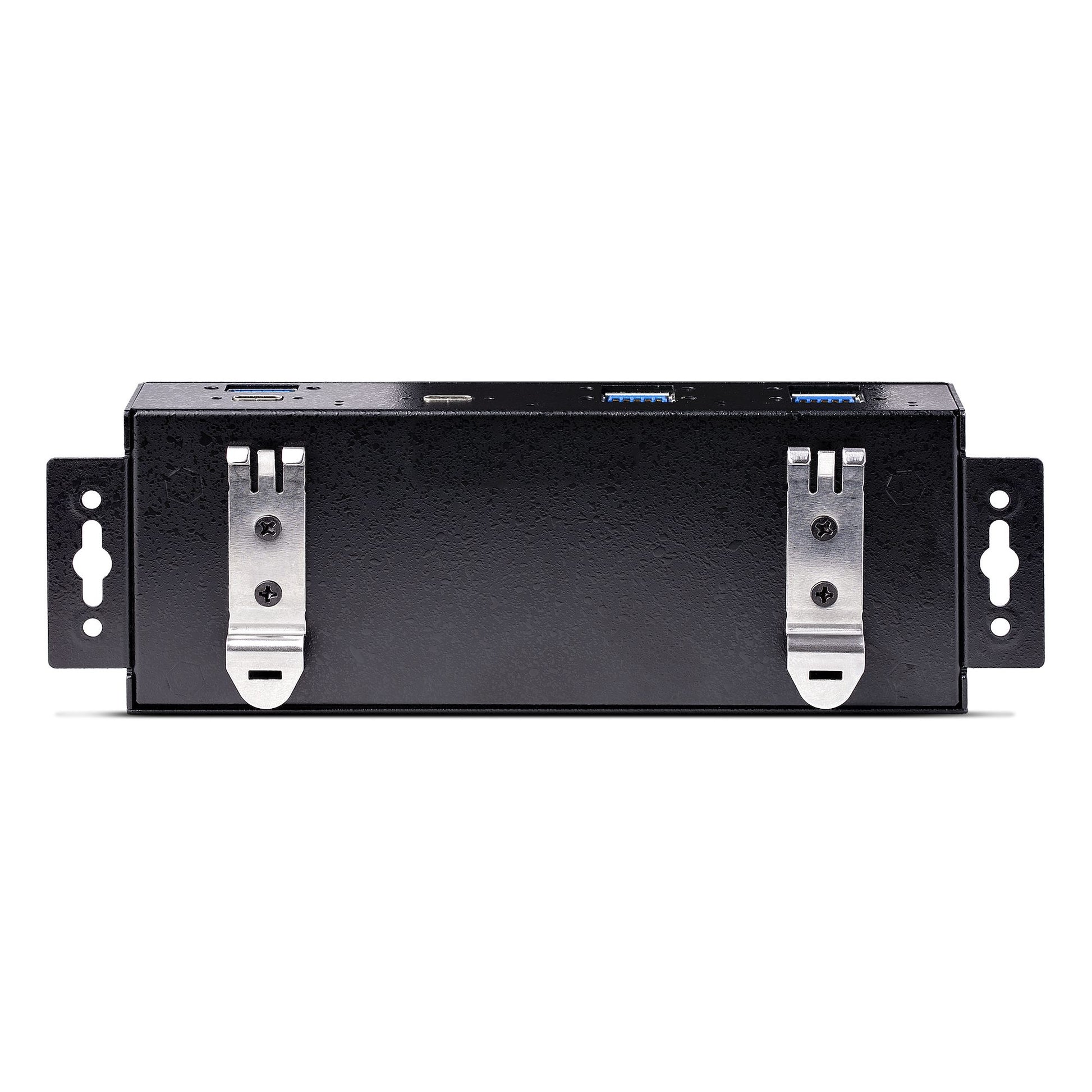

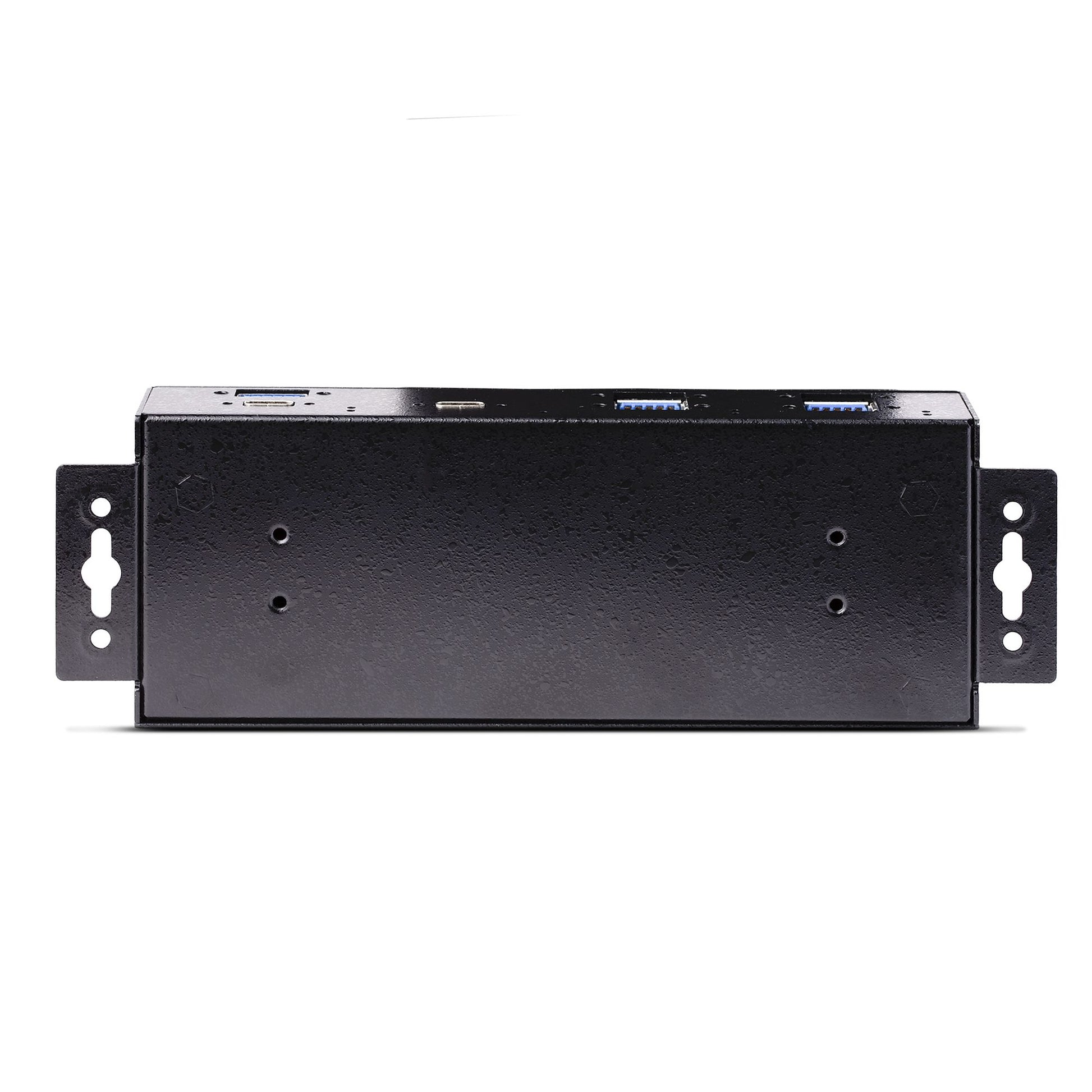

The 7-Port Industrial USB 10Gbps Hub with Power Adapter features 5x USB-A and 2x USB-C device ports. Built with a durable all-metal enclosure, it withstands harsh and industrial environments while offering Level-4 Electrostatic Discharge (ESD) protection (15kV Air / 8kV Contact) to safeguard connected devices. For secure connections, this hub includes two 3.3ft (1m) USB cables (USB-C to C & USB-C to A) with side screw locking to prevent accidental disconnection. The hub can be surface-mounted (on or under a desk, wall-mounted) or DIN rail-mounted, ensuring a secure and space-efficient installation.

Power & Charging

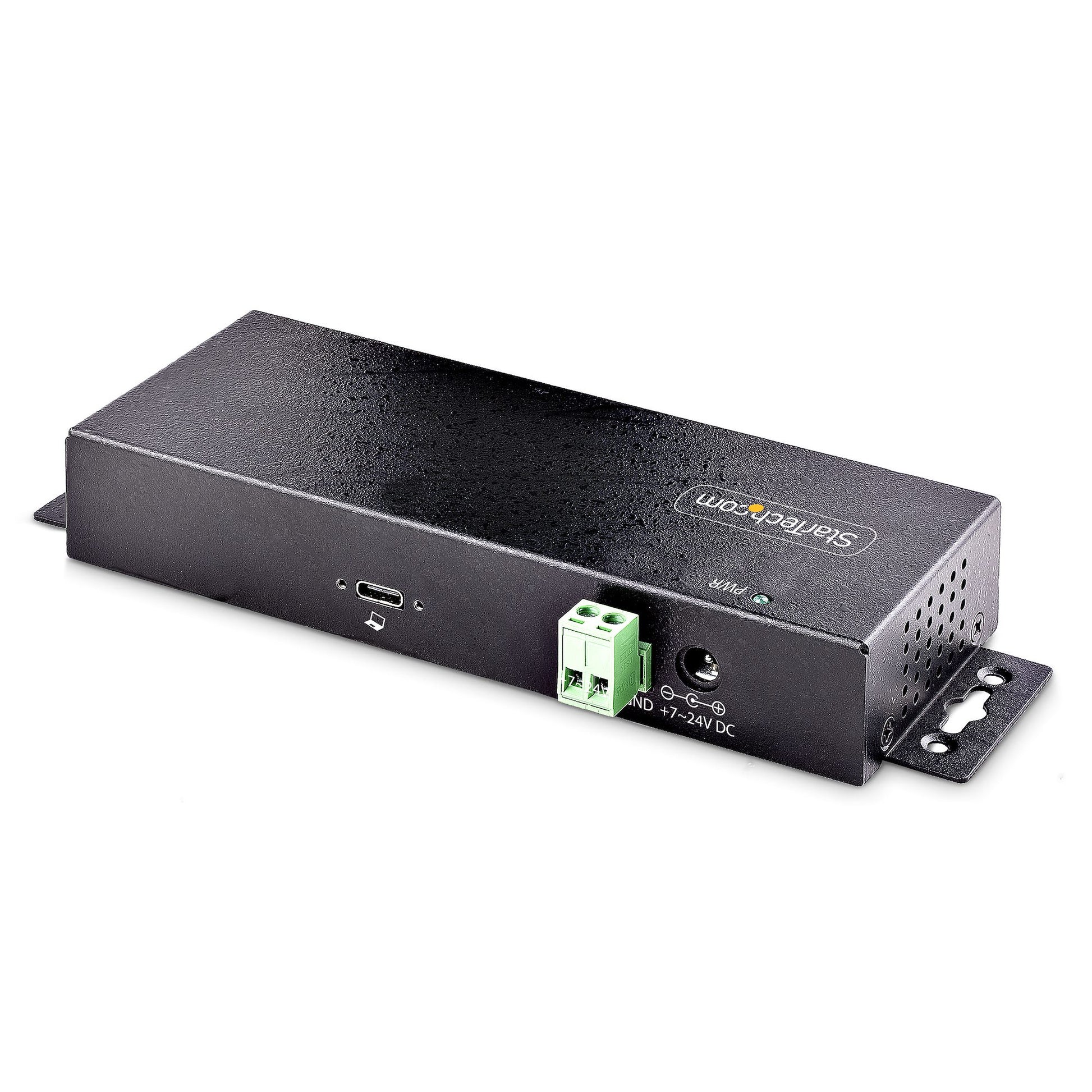

This versatile hub can be powered via the included universal power adapter or the 7-24V DC terminal block, making it ideal for industrial settings or where standard power outlets may be limited.

When not connected to a host, the hub functions as a dedicated charging station, supporting BC1.2 charging / Dedicated Charging Port (DCP) across all ports. Each port delivers up to 2.4A, with a total power budget of 40W (8A) when all ports are in use, ensuring efficient charging for multiple high-powered peripherals.

High-Speed Data Transfer

With speeds of up to 10Gbps on all downstream ports, this hub is ideal for data storage banks, SSDs, NVMe enclosures, RAID drive enclosures, and 3D printers/scanners. It is fully backwards compatible with USB 3.2 Gen 1 (5Gbps), USB 2.0, and USB 1.x devices.

OS-Independent

This TAA Compliant hub is compatible with all operating systems and host devices and has been tested for compatibility with Windows, macOS, Linux, and ChromeOS.

Specifications

Ports & interfaces
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Terminal block port	Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Hub interfaces	USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C
DC-in jack	Yes
Ports quantity	7
Features
Surge protection	Yes
LED indicators	Yes
Product colour	Black
Data transfer rate	10000 Mbit/s
Housing material	Steel
Electrostatic Discharge (ESD) protection (air)	15 kV
Electrostatic Discharge (ESD) protection (contact)	8 kV
Power
Input voltage	100 - 240 V
Power supply type	DC
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA)
Weight & dimensions
Weight	300 g
Width	26 mm
Depth	60 mm
Height	178 mm
Package width	290 mm
Package depth	187 mm
Package height	70 mm
Package weight	1.4 kg
Performance
Mean time between failures (MTBF)	163021.7 h

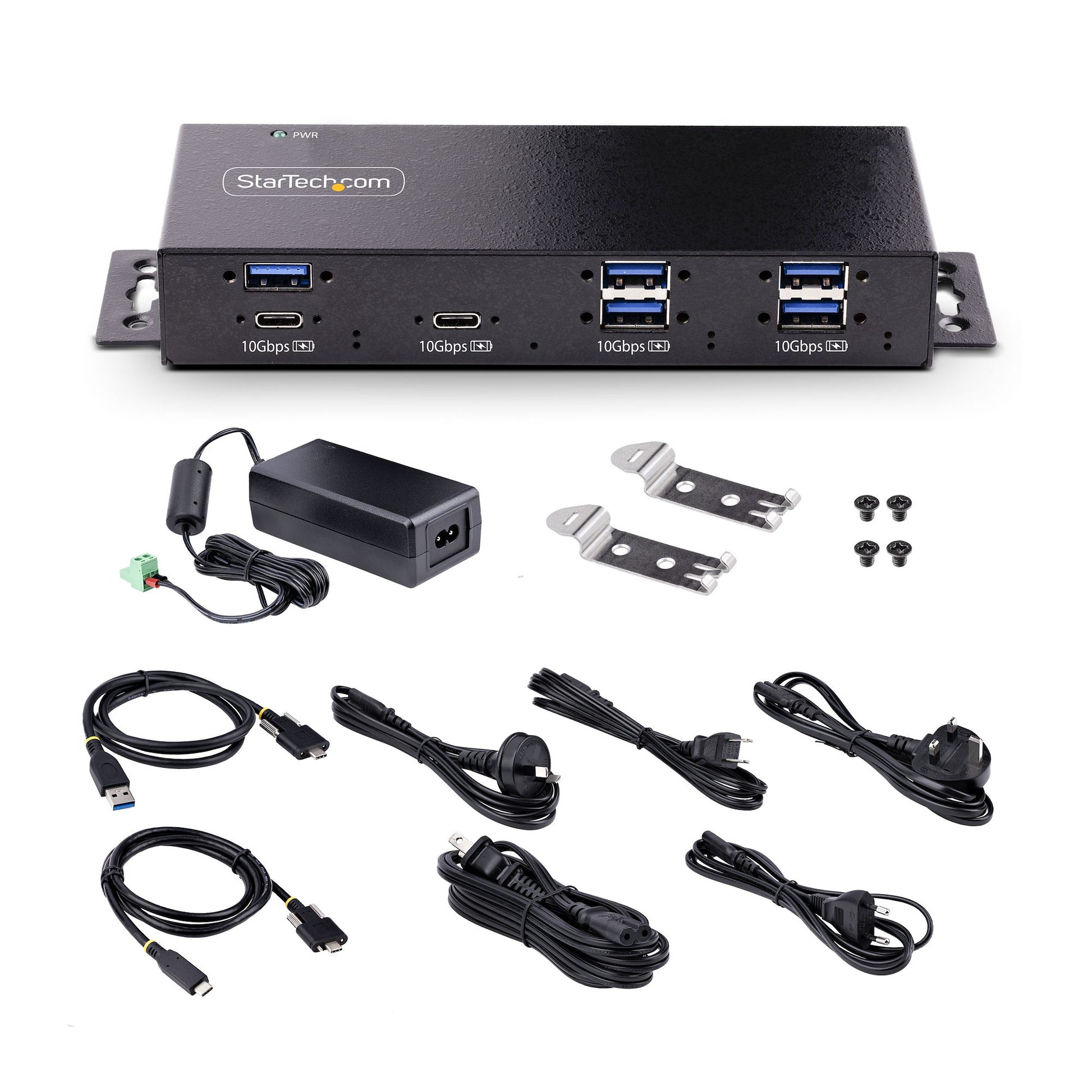

Packaging content
Included power plug types	ANZ, EU, JP, NA, UK
Cables included	USB Type-A to USB Type-C, USB Type-C to USB Type-C
AC adapter included	Yes
DIN rail kit included	Yes
Quick start guide	Yes
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-20 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Logistics data
Master (outer) case width	515 mm
Master (outer) case length	390 mm
Master (outer) case height	313 mm
Products per master (outer) case	14 pc(s)
Other features
Chipset	VIA/VLI VL822
