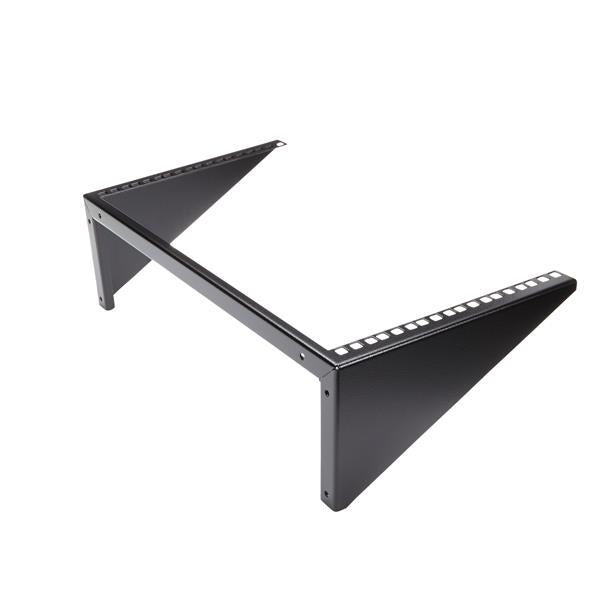

StarTech.com 6U Wall Mount Patch Panel Bracket – 19 in – Steel - Vertical Mounting

Build a tidy install with the StarTech.com 6U Wall Mount Patch — dimensions and mounting details are in the spec table.

Mount server, network or telecommunications devices vertically with this 6U wall-mountable rack

This wall-mount bracket provides 6U of storage space to vertically mount your equipment on the wall. The 6U wall-mount rack is EIA-310-D compliant to ensure compatibility with any 19” rack-mount equipment, such as your power strips, telecommunication, network and A/V devices.

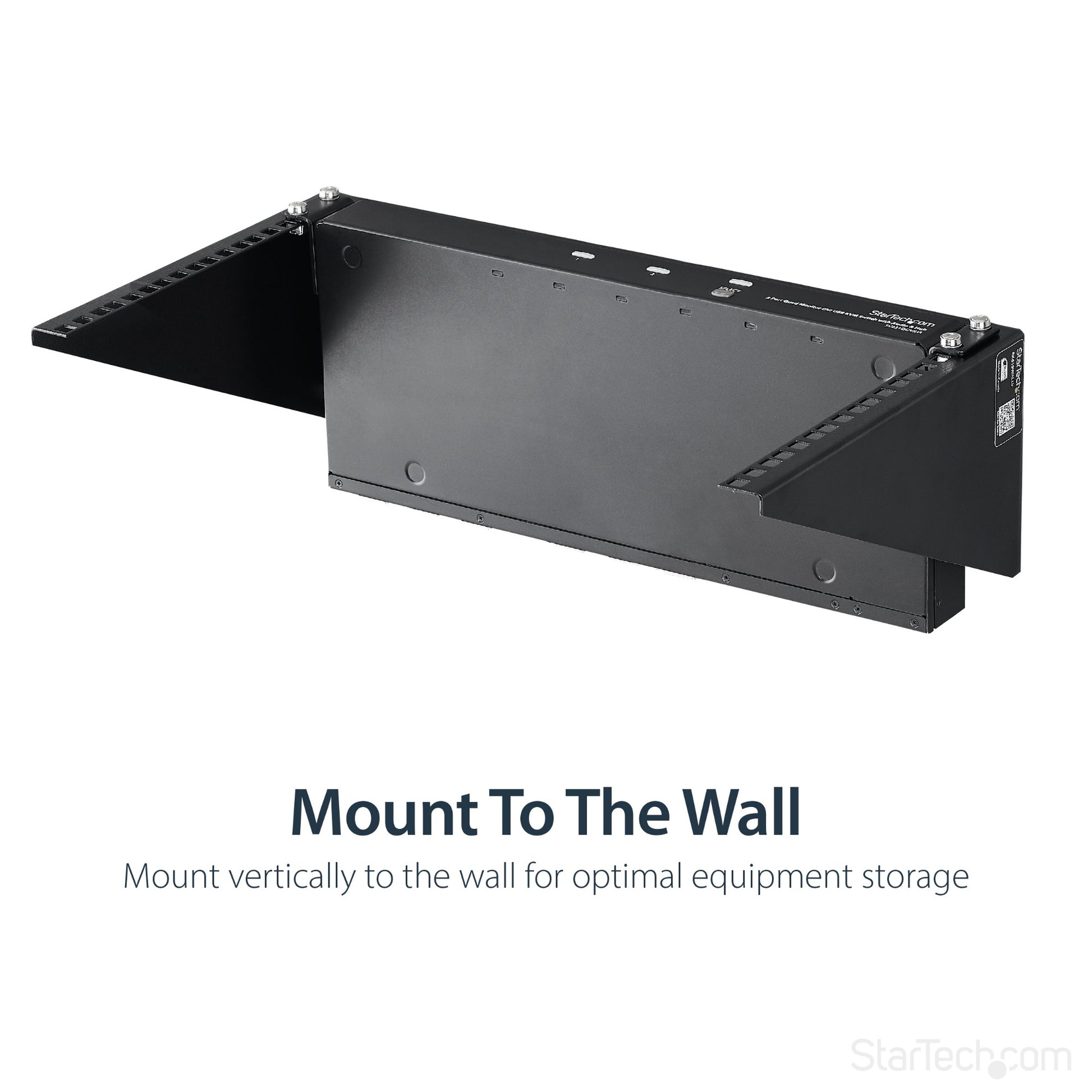

Save space by mounting your equipment to the wall or other surface

The 6U rack optimizes your working space by mounting equipment to your wall instead of taking up desk space or other surface area. It's perfect for your SoHo (small office, home office) environment, server room or any other location where available space is limited.

Ensure a secure and hassle-free installation

The wall rack is constructed of solid steel to ensure a sturdy and safe mounting solution for your expensive, mission-critical equipment. Also, because the wall mounting holes are positioned 16”apart, it exactly matches standard drywall construction framework to ensure simple and secure wall-stud anchoring. Cage nuts and screws are also included with the wall-mount bracket, to save you the hassle of sourcing separate mounting hardware.

Customize your workspace with versatile installation options

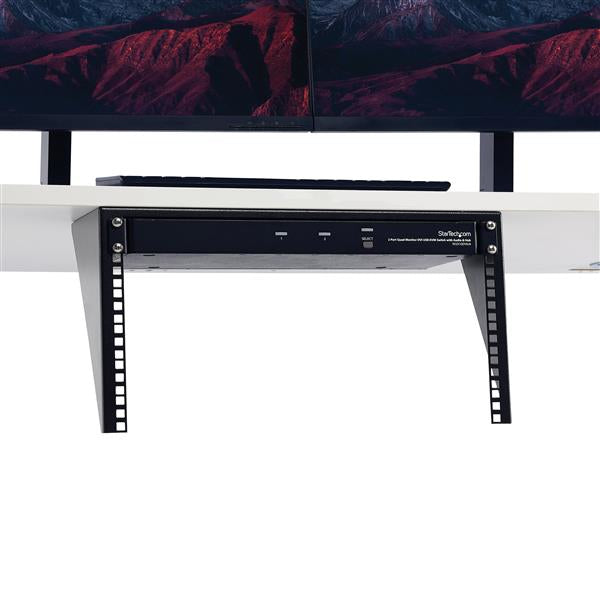

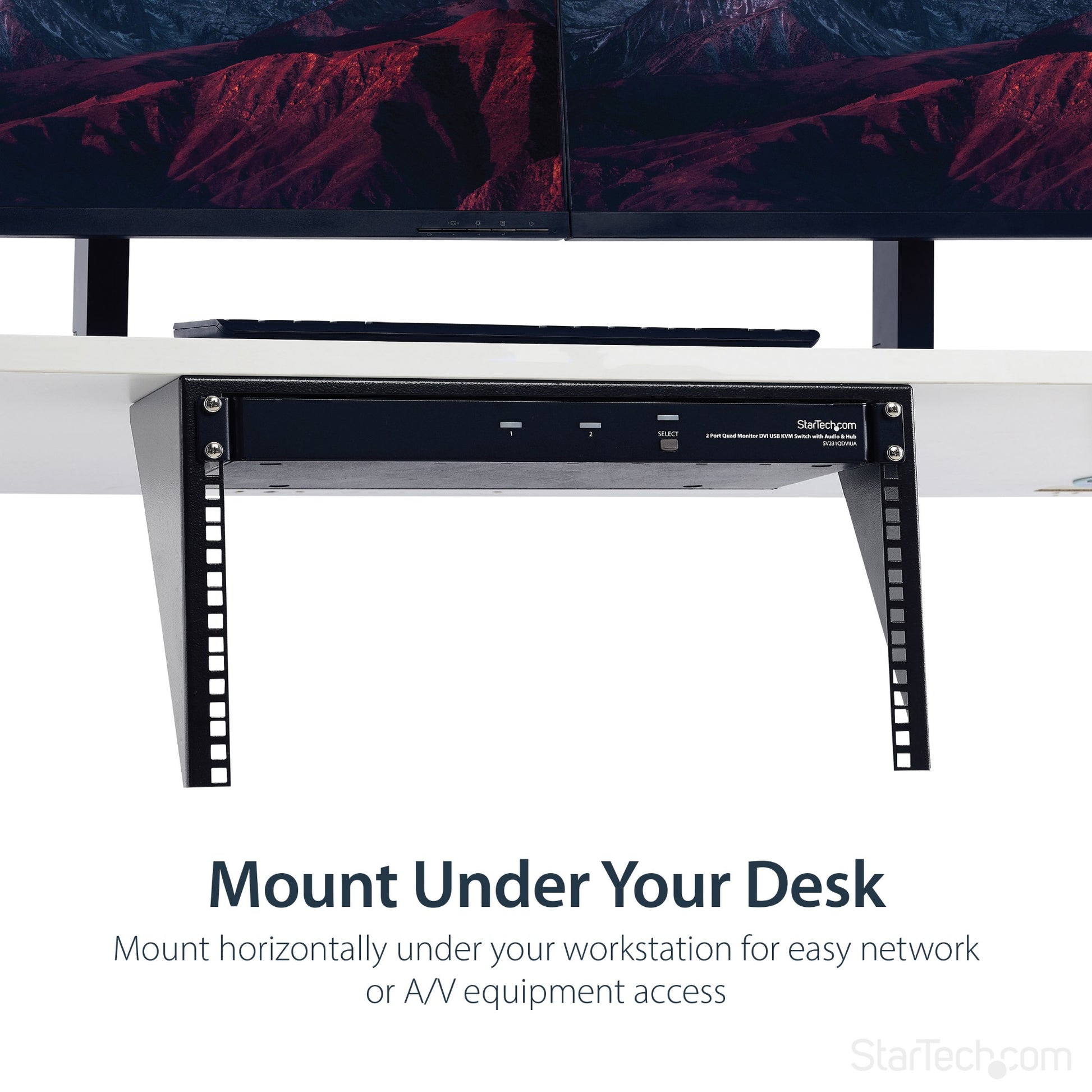

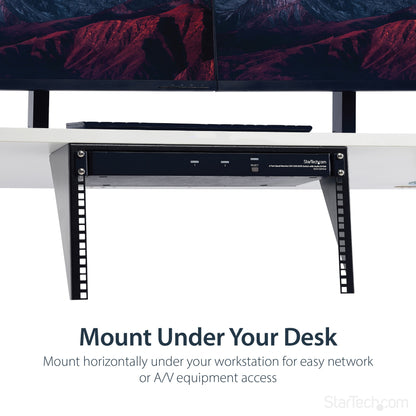

To provide a suitable mounting solution for virtually any surface such as your wall, ceiling or desk, the 6U bracket features separate mounting patterns for both ceilings and walls. This means that you can mount the bracket vertically to your wall or horizontally to your ceiling or under your desk.

If you're looking for a mountable storage solution with fewer rack units, StarTech.com also offers a 1U wall-mount bracket, a 2U wall-mount bracket, a 3U wall-mount bracket and a 4U wall-mount bracket.

The RK619WALLV is backed by a StarTech.com lifetime warranty and free lifetime technical support.

Specifications

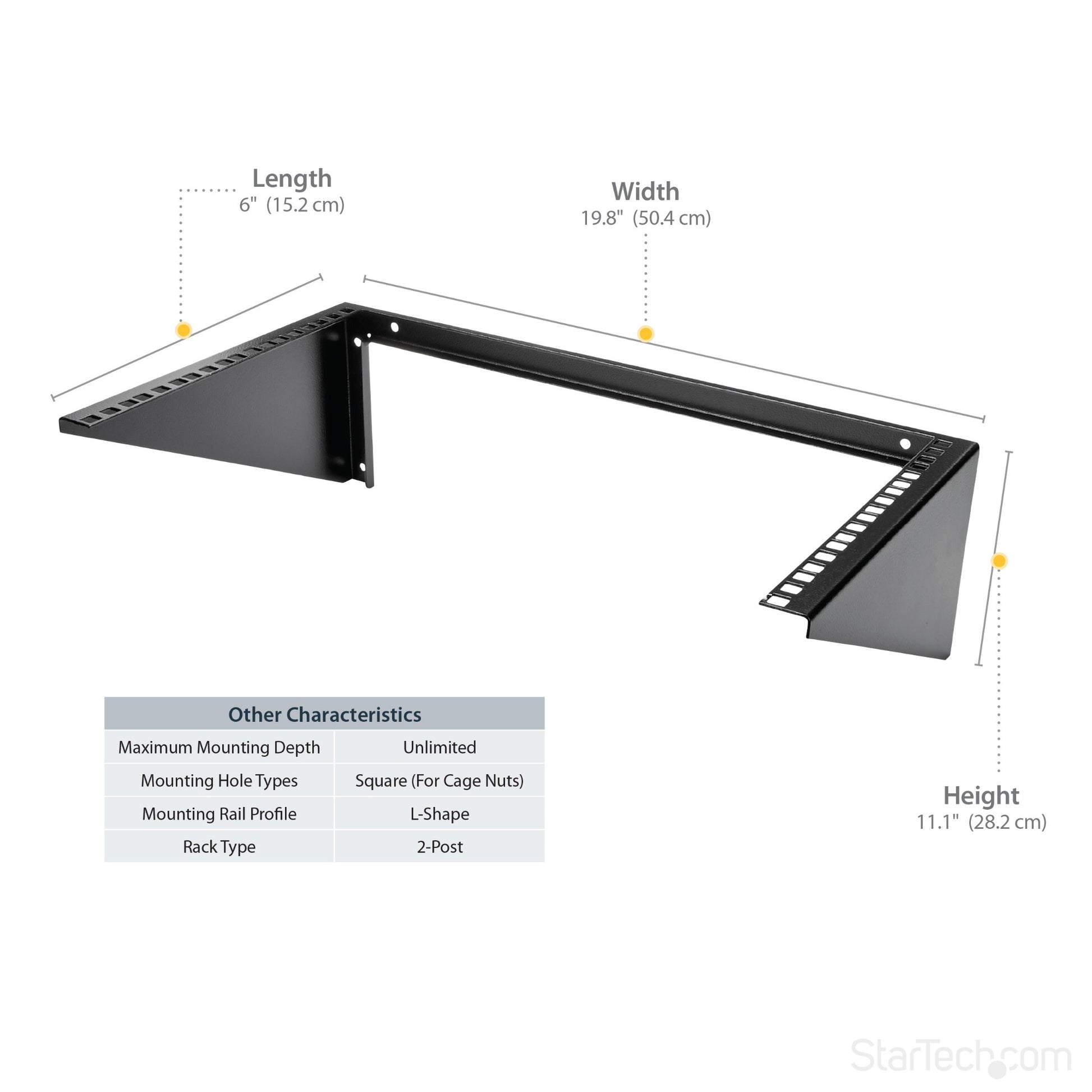

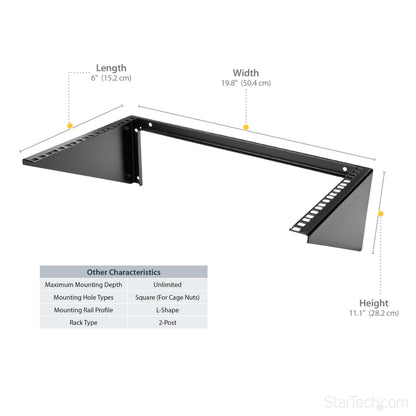

Weight & dimensions
Package depth	306 mm
Package width	547 mm
Package height	171 mm
Package weight	2.2 kg
Width	505 mm
Depth	152 mm
Height	282 mm
Weight	1.3 kg
Maximum weight capacity	90.7 kg

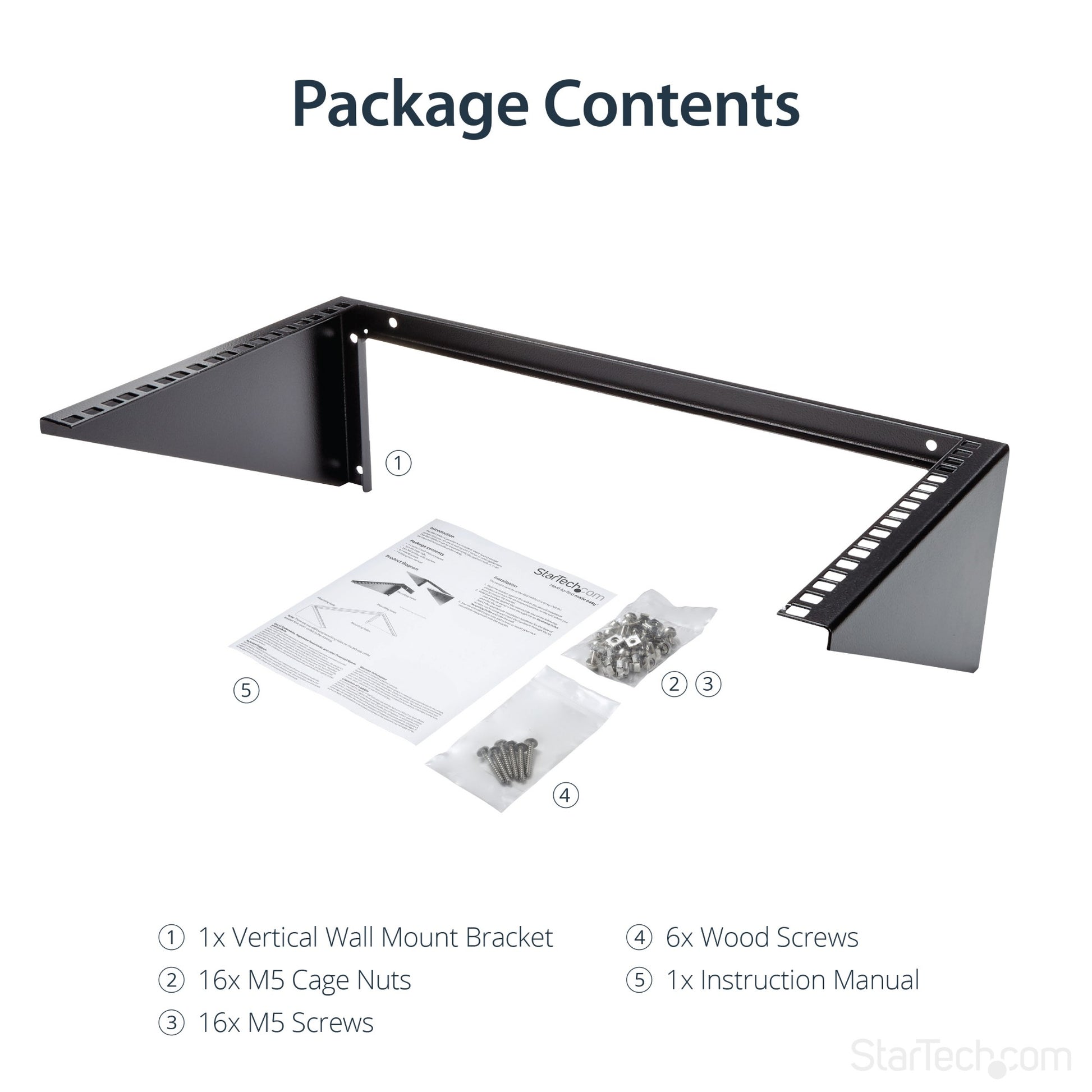

Packaging content
Wall mounting kit	Yes
Manual	Yes
Nuts included	Yes
Number of nuts	16
Screws included	Yes
Number of screws	22
Features
Number of fans	0 fan(s)
Frame type	Open
Product design	2-post
Rack capacity	6U
Castor wheels	No
Cable management	No
Mounting hole shape	Square
Type	Wall mounted rack
Material	Steel
Product colour	Black
Certification	CE, TAA, REACH
Technical details
Compliance industry standards	EIA/ECA-310-E
Harmonized System (HS) code	85381000
Compliance certificates	RoHS
