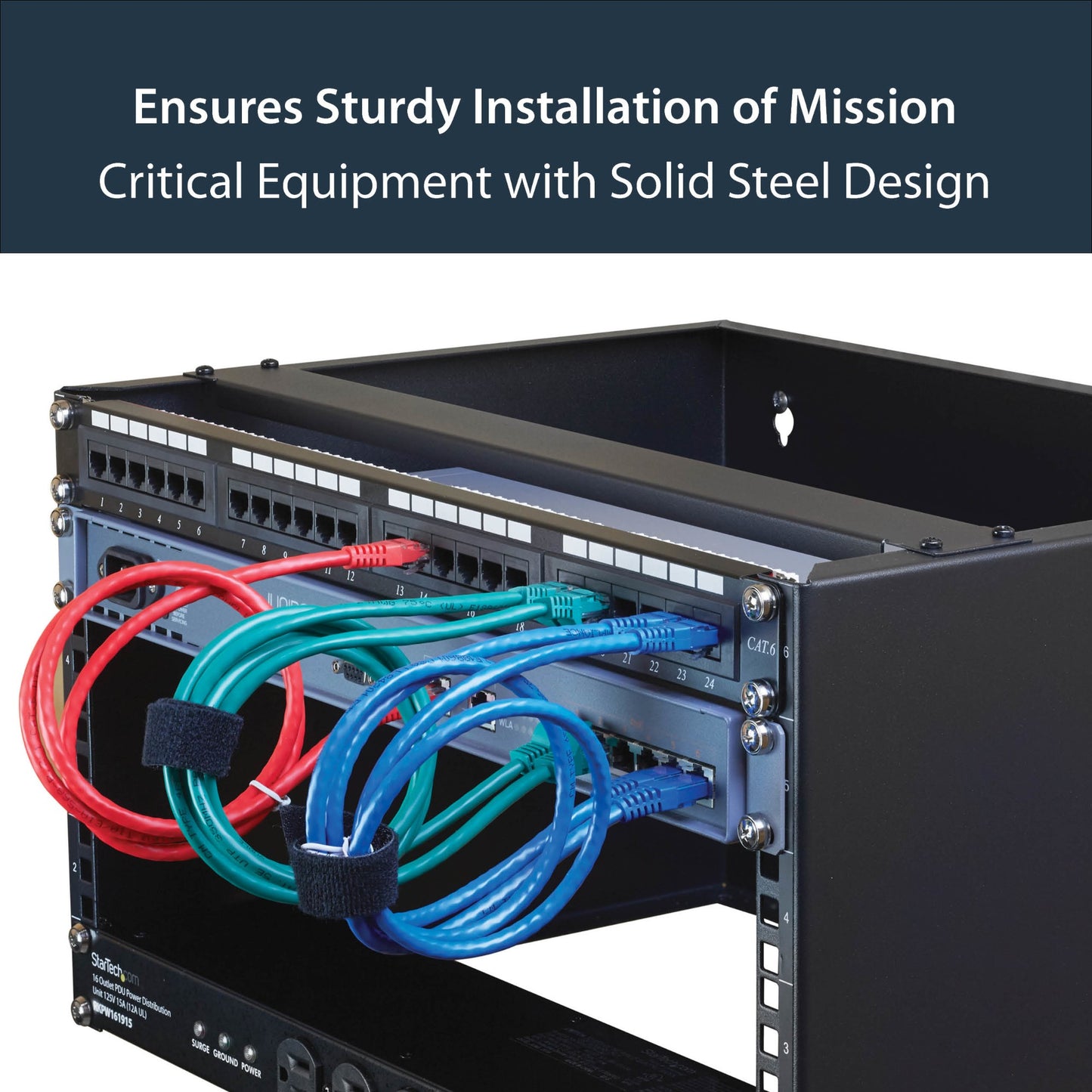

StarTech.com 6U Wall Mount Network Rack - 14 Inch Deep (Low Profile) - 19" Patch
StarTech.com 6U Wall Mount Network Rack - 14 Inch Deep (Low Profile) - 19" Patch
Regular price
£52.79 GBP
Regular price
Sale price
£52.79 GBP
Taxes included.
Quantity
Couldn't load pickup availability
Build a tidy install with the StarTech.com 6U Wall Mount Network — dimensions and mounting details are in the spec table.

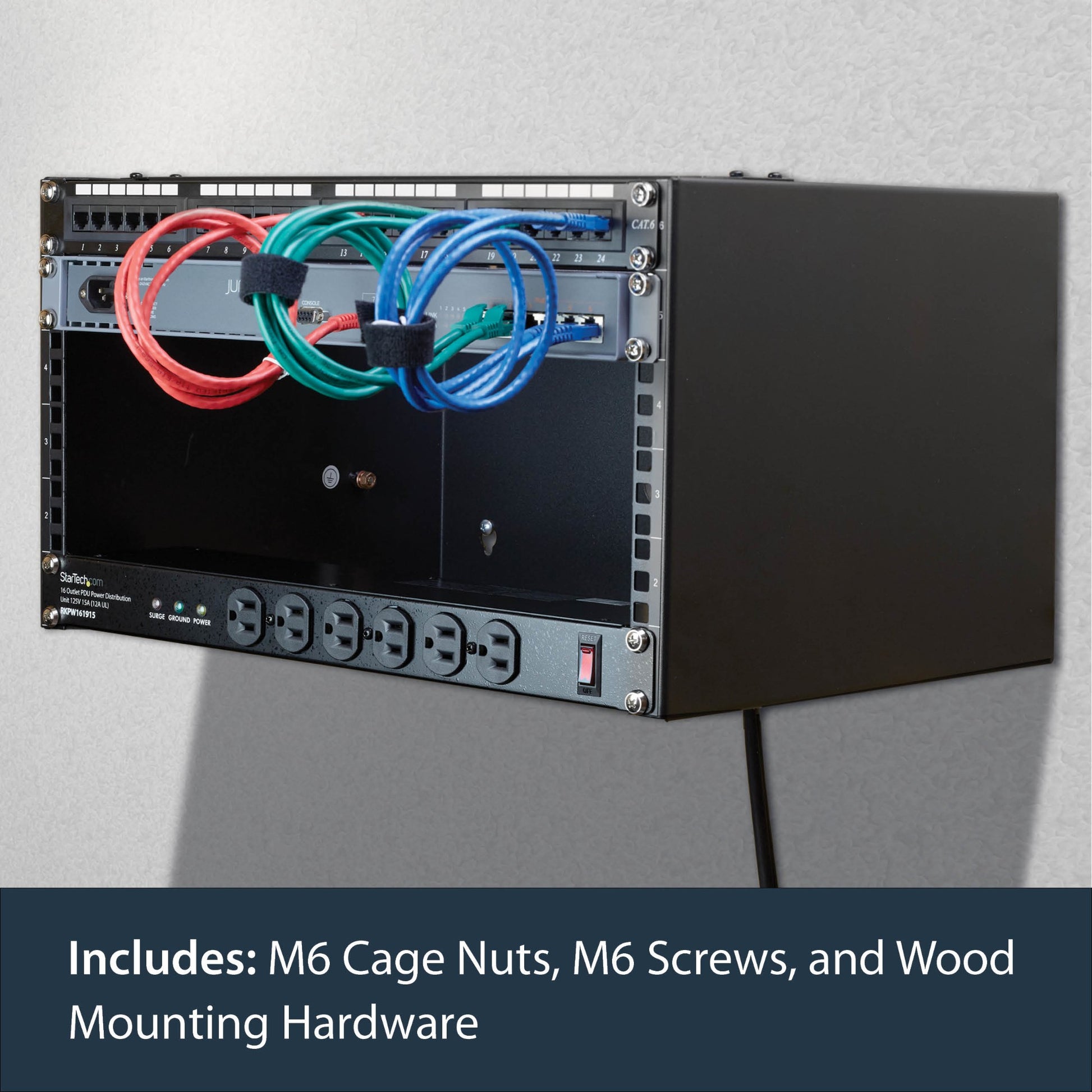

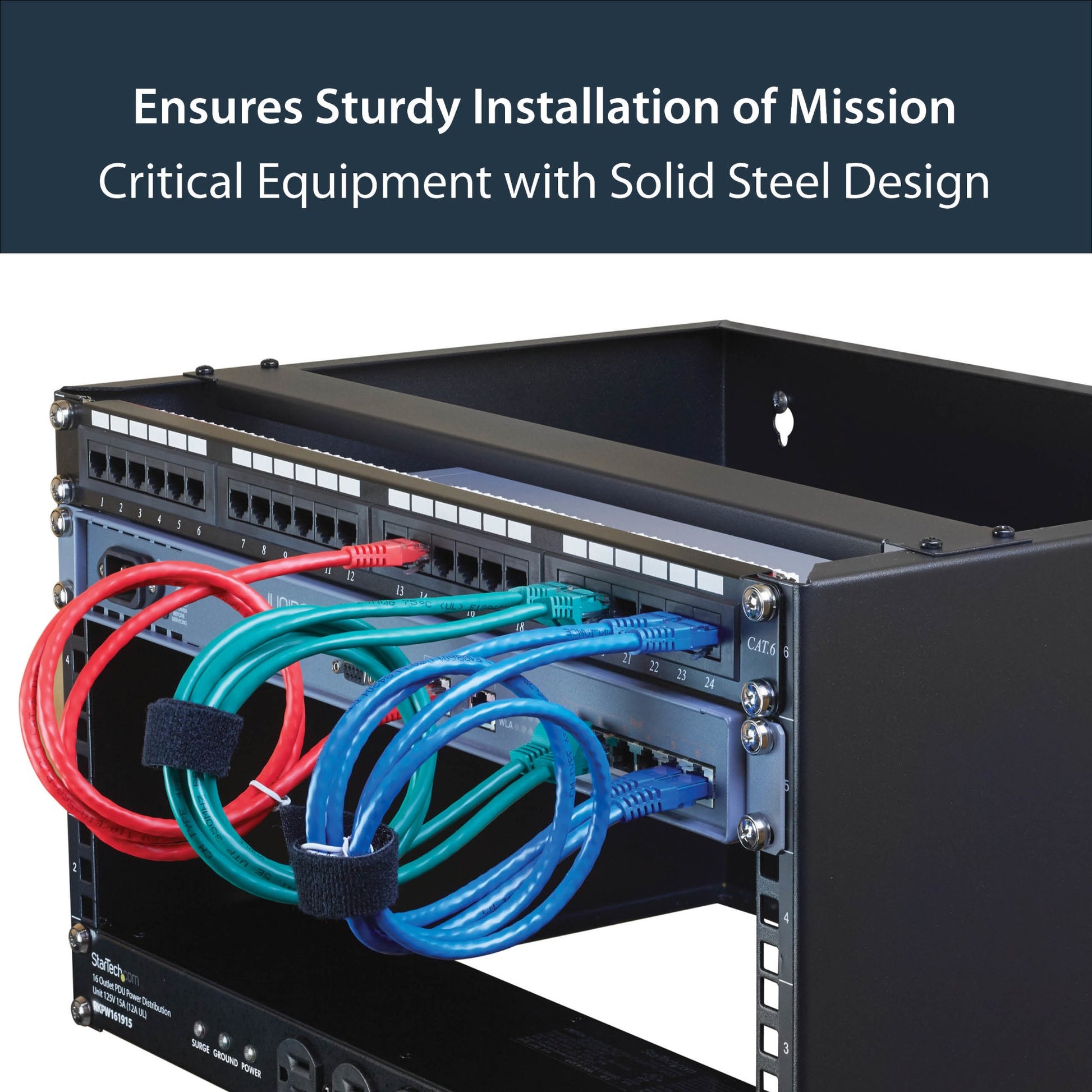

Mount networking equipment and shallow rackmount devices with this 6U wall-mountable rackThe WALLMOUNT6 6U 13.78 in. Deep Wall Mounting Bracket for Patch Panel delivers a sturdy and dependable equipment storage option, allowing you to wallmount equipment for a more efficient and accessible operating environment.

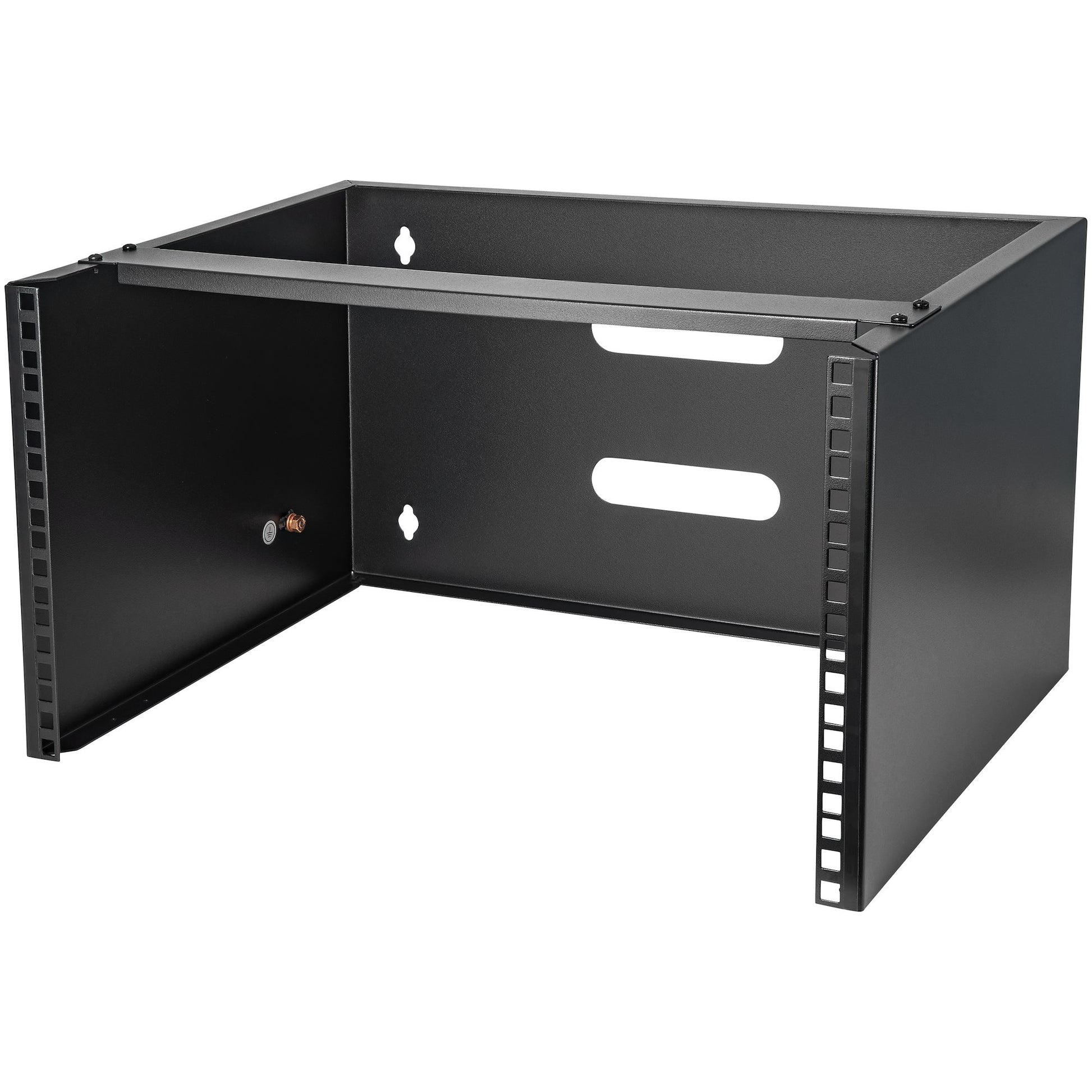

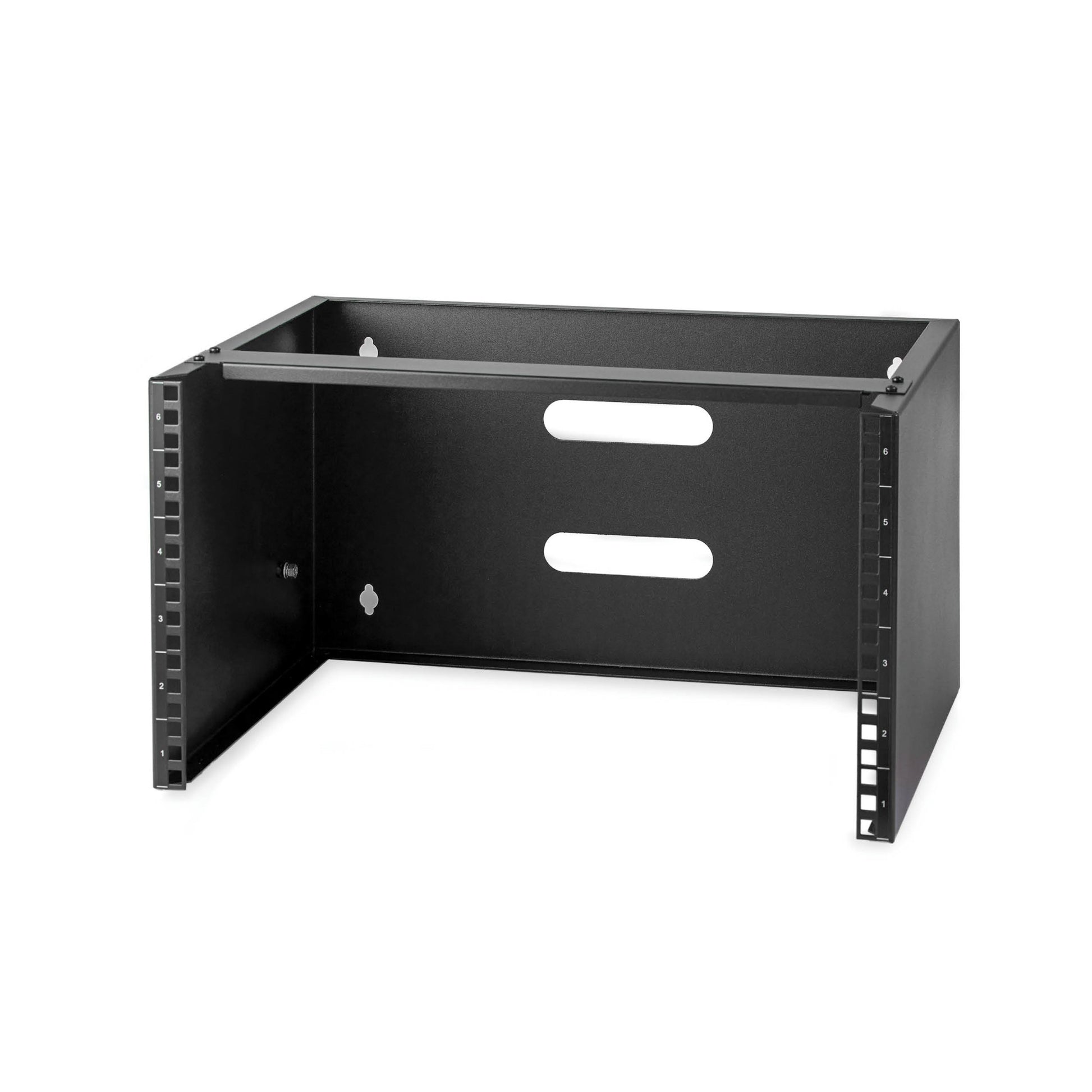

The mounting bracket features an all-steel design and is suitable for mounting patch panels, or other slim 19in equipment to a wall.
Backed by a StarTech.com Lifetime warranty.
Specifications
| Weight & dimensions | |
|---|---|
| Package depth | 444 mm |
| Package width | 543 mm |
| Package height | 312 mm |
| Package weight | 6.3 kg |

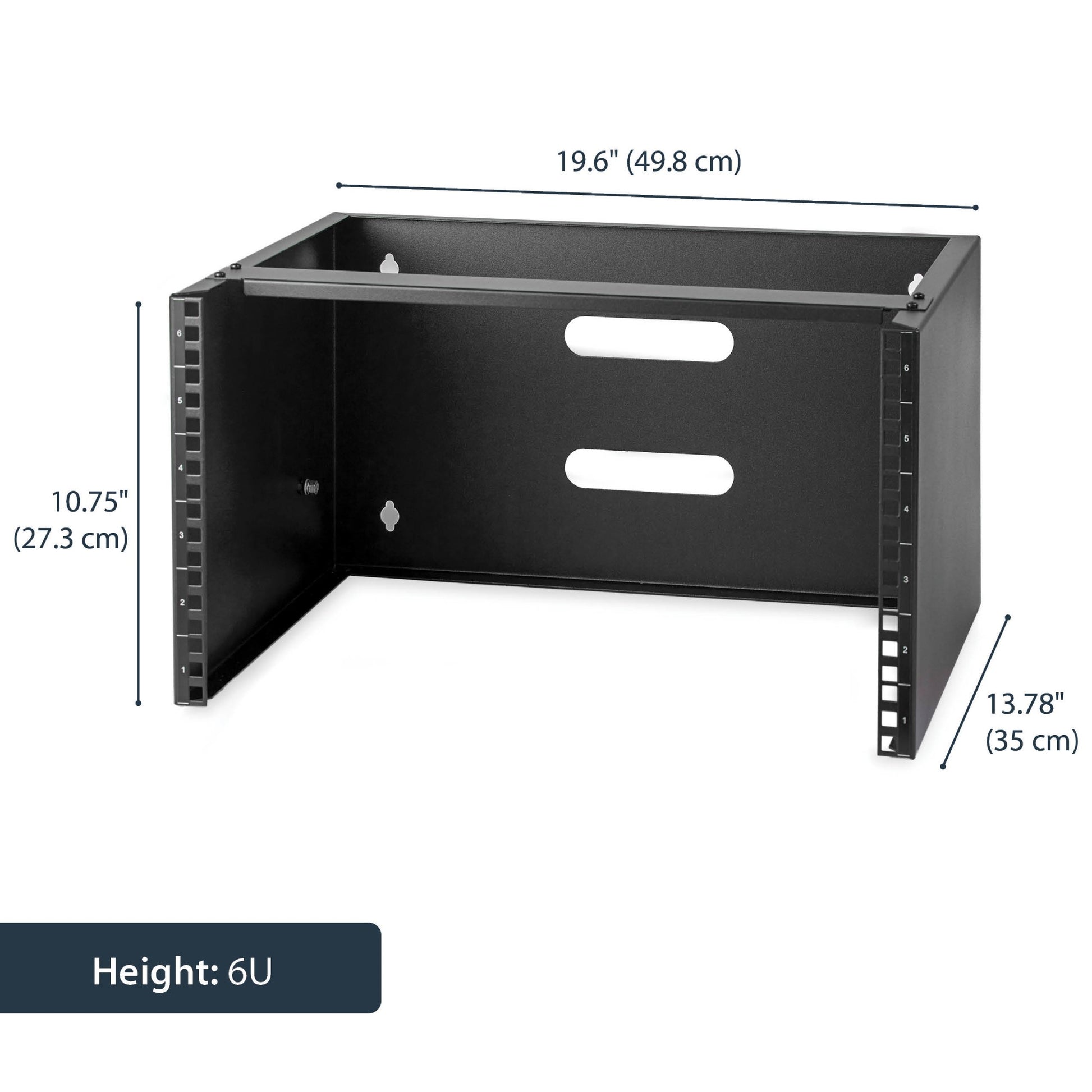

| Mounting depth (max) | 35 cm |
| Width | 498 mm |
| Depth | 350 mm |
| Height | 273 mm |
| Weight | 4.5 kg |
| Maximum weight capacity | 20 kg |

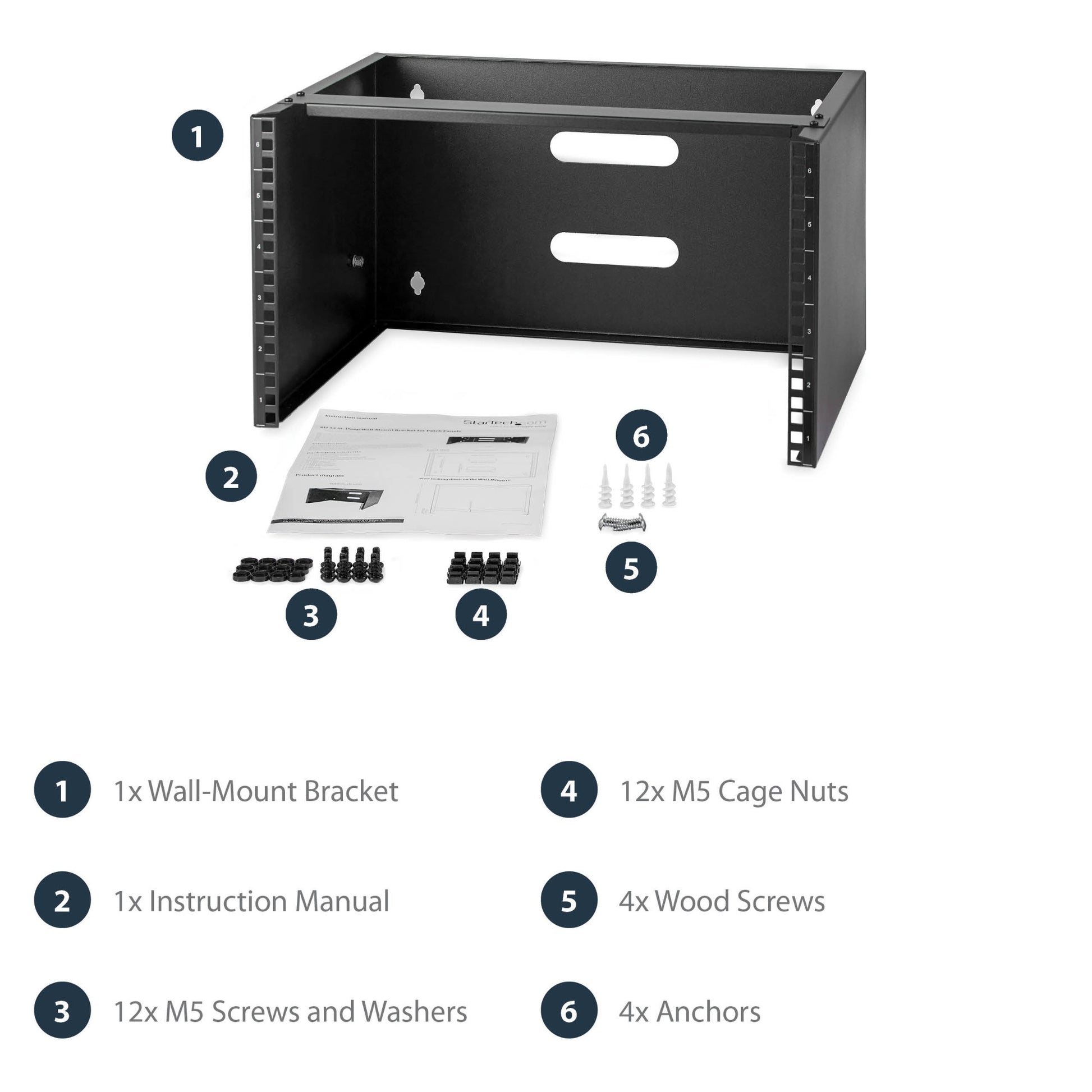

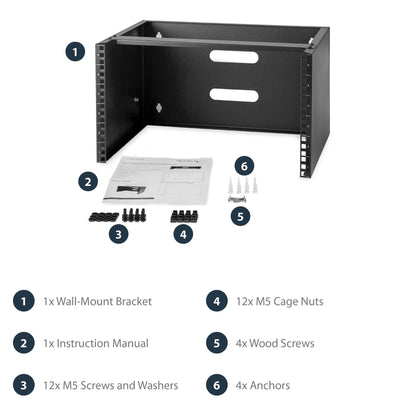

| Packaging content | |
| Manual | Yes |
| Nuts included | Yes |
| Number of nuts | 12 |
| Screws included | Yes |
| Number of screws | 12 |
| Features | |
| Number of fans | 0 fan(s) |
| Frame type | Open |
| Product design | 2-post |
| Rack capacity | 6U |
| Castor wheels | No |
| Adjustable mounting rails | No |
| Cable management | No |
| Mounting hole shape | Square |
| Type | Wall mounted rack |
| Material | Steel |
| Product colour | Black |
| Technical details | |
| Compliance industry standards | EIA/ECA-310-E |
| Harmonized System (HS) code | 85381000 |
| Compliance certificates | RoHS |
| Logistics data | |
| Master (outer) case width | 390 mm |
| Master (outer) case length | 535 mm |
| Master (outer) case height | 325 mm |
| Products per master (outer) case | 1 pc(s) |
