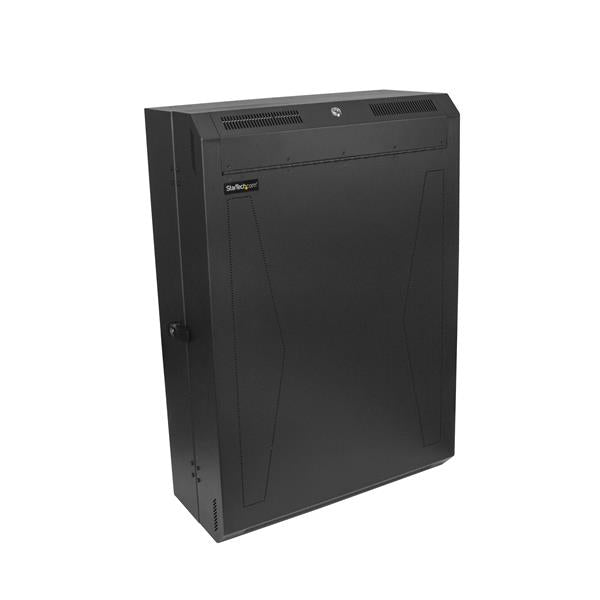

StarTech.com 6U Wall Mount Network Cabinet - Vertical Wall Mount Patch Panel Rack
StarTech.com 6U Wall Mount Network Cabinet - Vertical Wall Mount Patch Panel Rack
Regular price
£302.44 GBP
Regular price
Sale price
£302.44 GBP
Taxes included.
Quantity
Couldn't load pickup availability
Build a tidy install with the StarTech.com 6U Wall Mount Network — dimensions and mounting details are in the spec table.

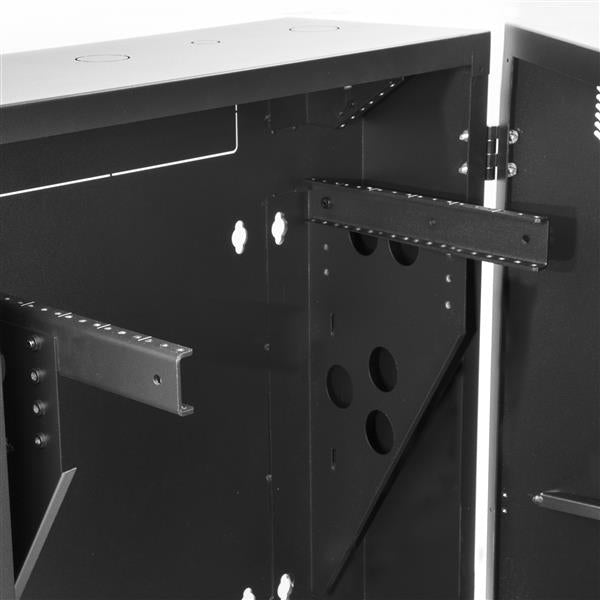

Vertically wall-mount your server or networking equipment in this 6U network cabinetThis 6U vertical server cabinet offers a space-saving way to keep your network and server equipment secure. With its 30 in. depth and a weight capacity of up to 200 lb. (90.7 kg), the server rack/cabinet is designed to fit your needs. It also features an additional 2U mounting bracket positioned toward the top of the enclosure, that you can use to mount patch cables or other shallow rack-mount equipment.
Free up space
Wall-mount your equipment, even if you don’t have enough space for a full-sized rack or cabinet. This low-profile server cabinet is perfect for areas where space is at a premium, such as an office. The cabinet saves space by extending only minimally from the wall and housing the length of your equipment vertically. This reduces the horizontal footprint of your equipment while still providing plenty of room for your servers, patch panels, and switches.
Keep your equipment cool and secure
To help keep your equipment secure, the vertical server cabinet/network rack features a sturdy metal design and a lock on both the door and access panel. It is also vented, providing passive cooling to help keep your equipment running at suitable temperatures.
Easy, hassle-free installation
The server rack comes fully assembled and includes all of the necessary hardware to install equipment, making installation fast and easy. The mounting holes are spaced 16 in. apart, making it suitable for mounting on almost any wall, based on common North American wall-frame stud spacing.
The RK630WALVS is backed by a StarTech.com 5-year warranty and free lifetime technical support.
Specifications
| Weight & dimensions | |
|---|---|
| Package depth | 718 mm |
| Package width | 1040 mm |
| Package height | 375 mm |
| Package weight | 35 kg |
| Inner width | 64.1 cm |
| Inner depth | 28.8 cm |
| Mounting depth (max) | 76 cm |
| Width | 645 mm |
| Depth | 294 mm |
| Height | 941 mm |
| Weight | 33 kg |
| Maximum weight capacity | 90 kg |
| Packaging content | |
| Manual | Yes |

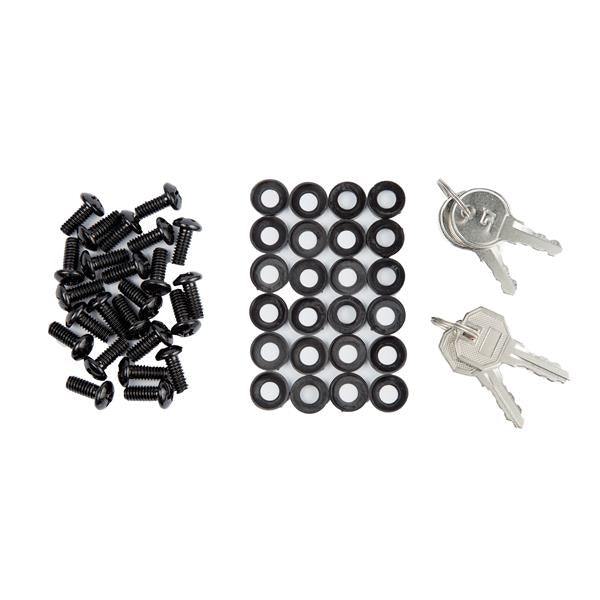

| Nuts included | Yes |
| Number of nuts | 24 |
| Screws included | Yes |
| Number of screws | 24 |
| Number of washers included | 24 |
| Features | |
| Number of fans | 0 fan(s) |
| Frame type | Closed |
| Product design | 2-post |
| Rack capacity | 6U |
| Castor wheels | No |
| Adjustable mounting rails | Yes |
| Removable back door | No |
| Removable front door | No |
| Removable side panels | No |
| Back door construction | Steel |
| Front door construction | Steel |
| Side panel construction | Steel |
| Cable management | Yes |
| Back door key lock | No |
| Front door key lock | Yes |
| Side panel key lock | No |
| Type | Wall mounted rack |
| Material | Steel |
| Product colour | Black |
| Certification | CE, REACH |
| Technical details | |
| Compliance industry standards | EIA/ECA-310-E |
| Harmonized System (HS) code | 85381000 |
| Compliance certificates | RoHS |
| Logistics data | |
| Master (outer) case width | 370 mm |
| Master (outer) case length | 720 mm |
| Master (outer) case height | 1020 mm |
| Products per master (outer) case | 1 pc(s) |
