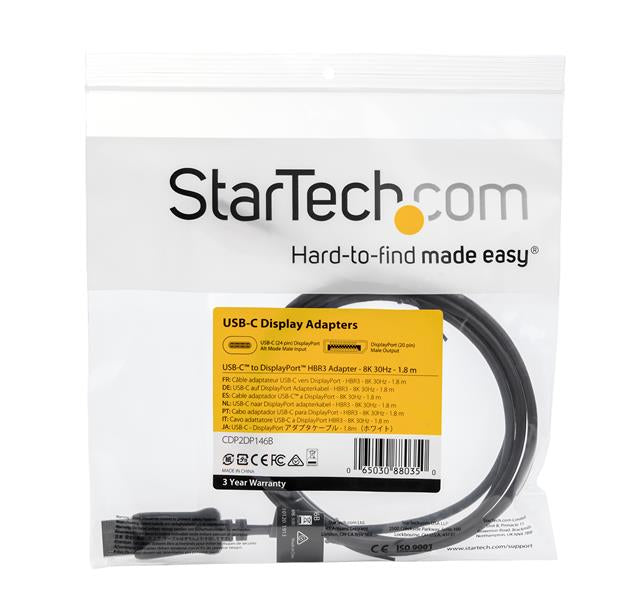

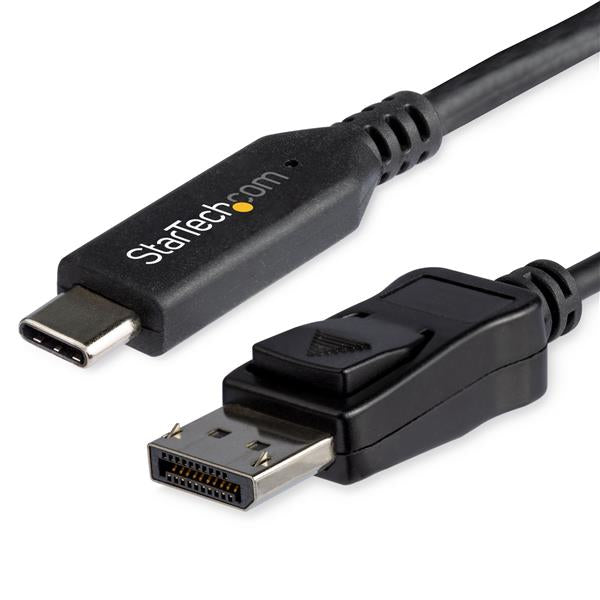

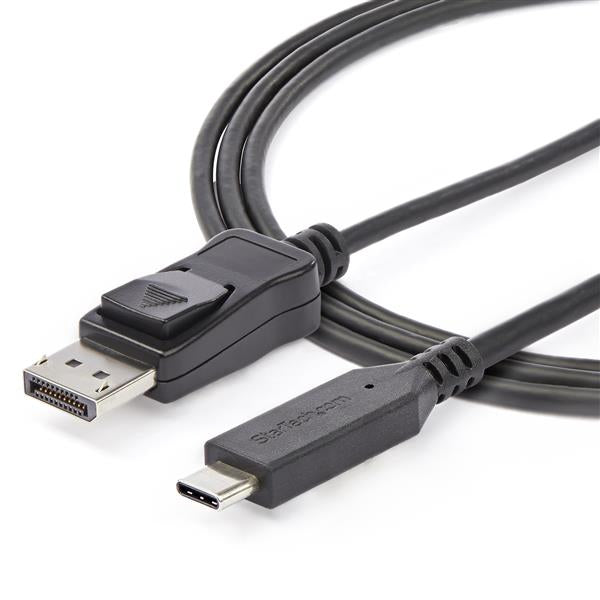

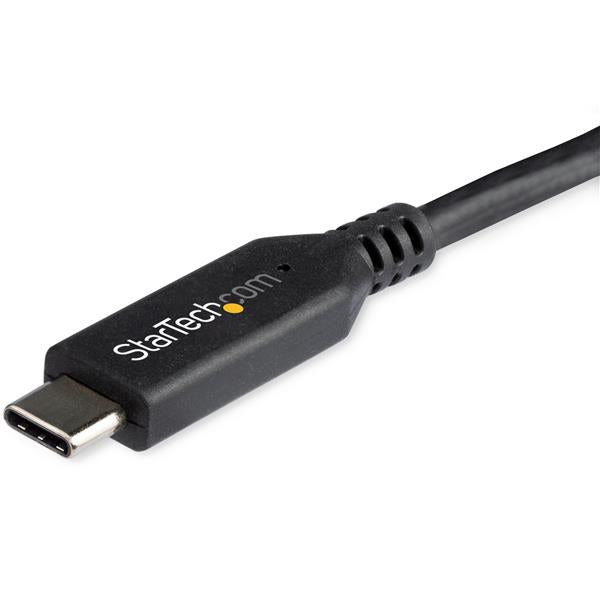

StarTech.com 6ft (1.8m) USB C to DisplayPort 1.4 Cable - 4K/5K/8K USB Type-C to DP

Make the connection with the StarTech.com 6ft (1.8m) — length and connector details are in the spec table.

USB-C™ Video Adapter Cable | Thunderbolt™ 3 Compatible | HBR3

This USB-C to DisplayPort 1.4 cable lets you connect your USB Type-C device to a DisplayPort monitor with just one cable, providing you with a convenient, clutter-free solution.

Incredible Picture Quality

Supporting four times the resolution of 4K, this 8K DP 1.4 adapter cable delivers the stunning quality of UHD at resolutions up to 7680×4320; and also features HBR3 functionality, providing a bandwidth of up to 32.4Gbps.

With cutting-edge picture quality, this cable is ideal for:

• Displaying crisp digital signage walls
• Creating eye-catching visuals for photography and videography

The USB-C to DP cable is backward compatible with 4K and 1080p displays, which makes it a great accessory for home, office or other work environments, while future-proofing for 8K implementation.

At 6 ft. (1.8 m) in length, this DisplayPort adapter cable delivers a direct connection that eliminates excess cabling, ensuring a tidy installation. For installations requiring a shorter length, we also offer a 3.3 ft. (1 m) DisplayPort cable, enabling you to customize your connection needs. Clutter-Free Installation

Hassle-Free Setup

To ensure easy operation, this DisplayPort converter cable supports plug-and-play installation, removing the need for additional software or drivers.

CDP2DP146B is backed by a 3-year StarTech.com warranty and free lifetime technical support.

Note:

• Your USB-C device must support DP Alt Mode to work with this adapter cable.
• To achieve 8K resolutions, your source and your destination must support DisplayPort 1.4.

Specifications

Features
Chipset	STM32F072CBY6TR
DisplayPort version	1.4
Product colour	Black
Cable length	1.8 m
Connector 1	USB Type-C
Connector 2	DisplayPort
Connector 1 gender	Male
Connector 2 gender	Male
Maximum resolution	7680 x 4320 pixels
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1440, 2560 x 1600 (WQXGA), 3860 x 2160, 4096 x 2160, 7680 x 4320
Certification	CE, FCC, REACH
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Maximum refresh rate	60 Hz
Supported audio channels	7.1
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	80 - 90%
Certificates
Compliance certificates	RoHS
Other features
Width	200 mm
Height	11 mm
Depth	1800 mm
Weight & dimensions
Weight	57 g
Package width	157 mm
Package depth	181 mm
Package height	27 mm
Package weight	100 g
Packaging data
Quantity per pack	1 pc(s)
Technical details
Harmonized System (HS) code	84733080
Logistics data
Master (outer) case width	507 mm
Master (outer) case length	343 mm
Master (outer) case height	232 mm
Products per master (outer) case	60 pc(s)
