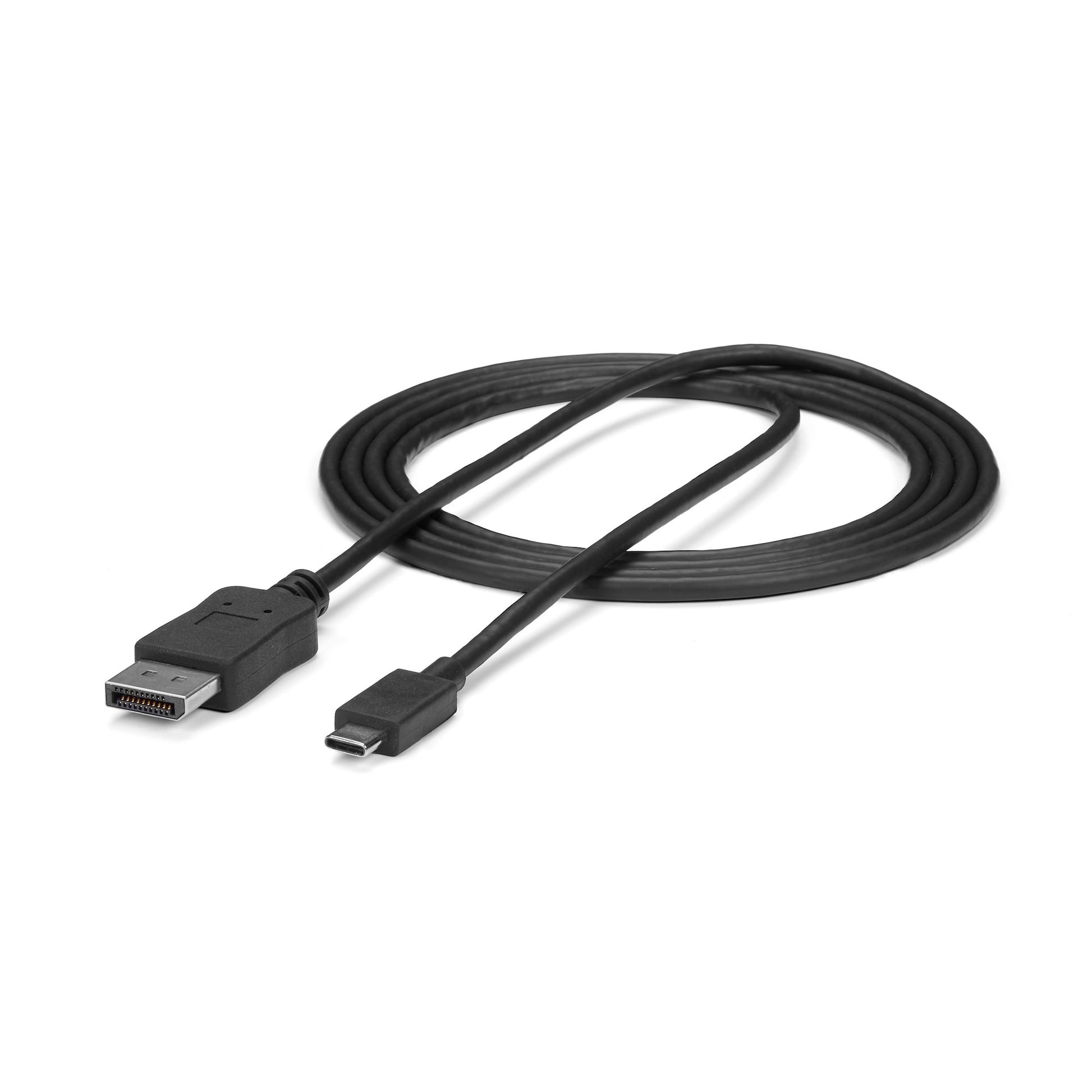

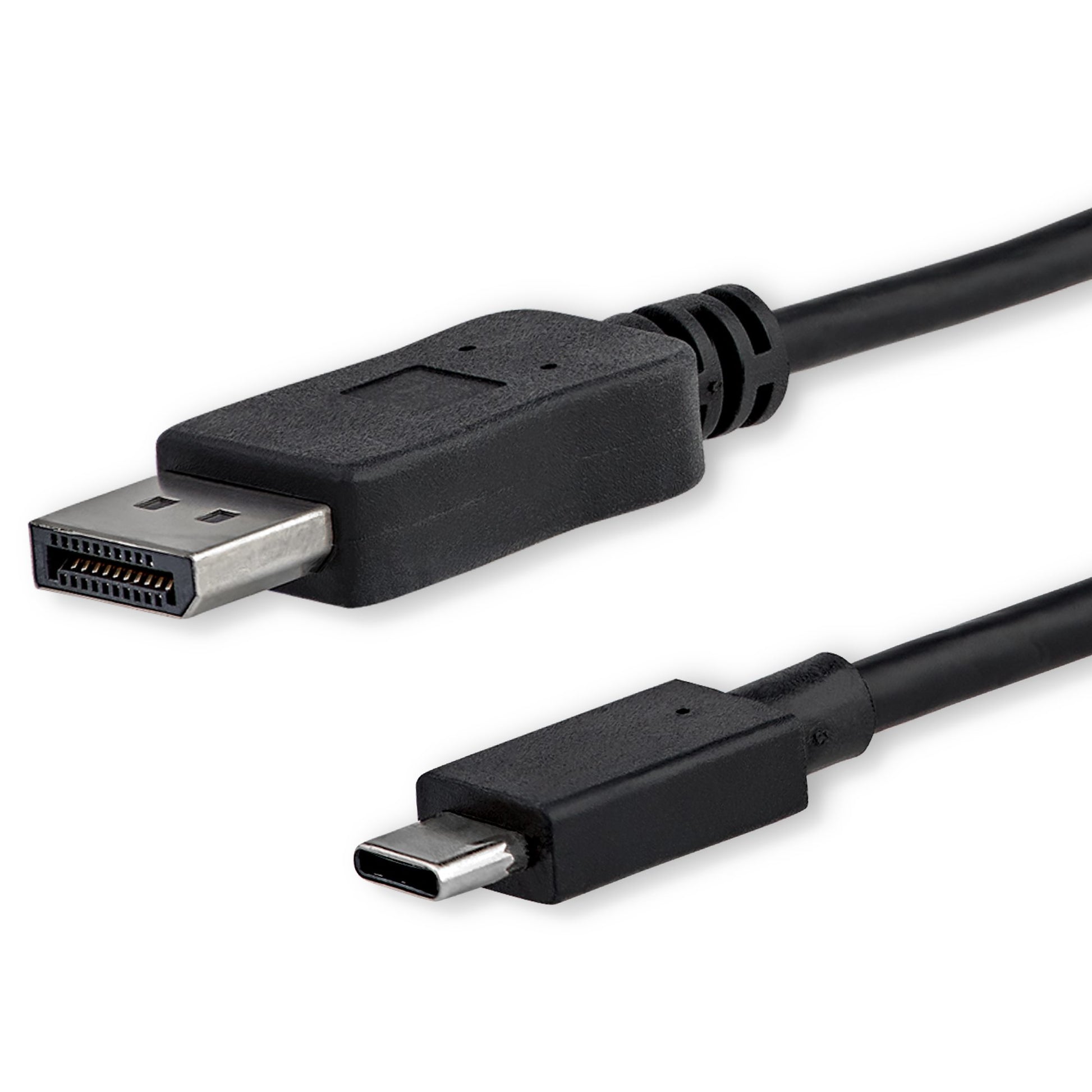

StarTech.com 6ft (1.8m) USB C to DisplayPort 1.2 Cable 4K 60Hz - USB-C to

Make the connection with the StarTech.com 6ft (1.8m) — length and connector details are in the spec table.

USB Type-C™ Video Adapter Cable | Thunderbolt™ 3 Compatible

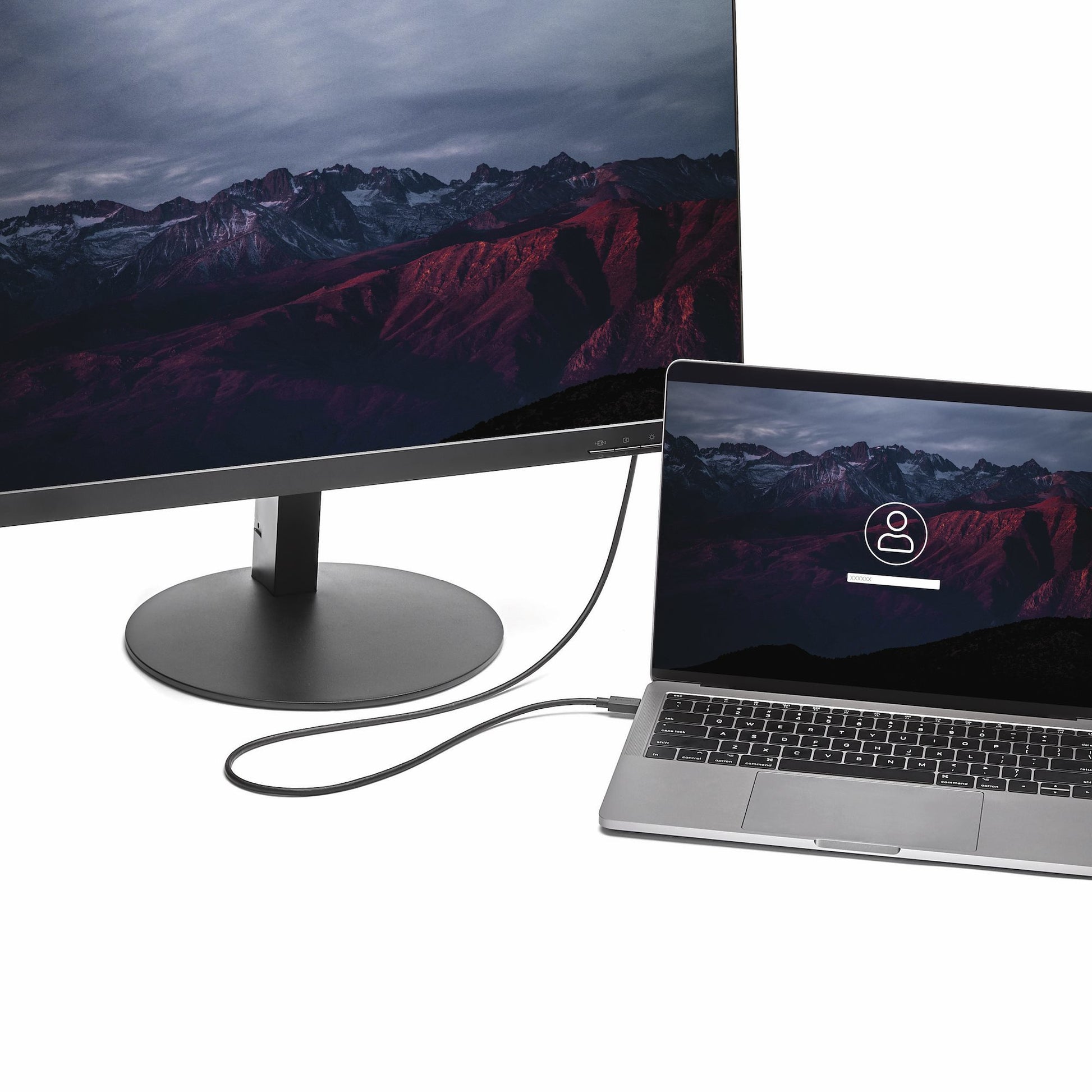

This USB-C to DisplayPort cable lets you connect your Thunderbolt 3 or USB Type-C enabled device to a 4K DisplayPort monitor with just one cable, providing you with a convenient, clutter-free solution.

Astonishing Picture Quality

The USB C to DisplayPort adapter cable lets you harness the video capabilities that are built into your USB-C connection, to deliver the astonishing quality of Ultra HD to your 4K display and supporting resolutions up to 3840 x 2160.

Plus, the adapter is backward compatible with 1080p displays, which makes it a great accessory for home, office or other work environments.

Clutter-Free Installation

At 6 ft. (1.8 m) in length, this monitor cable eliminates the need for excess adapters and cabling, ensuring a tidy, professional installation. For installations requiring shorter or longer connections we also offer a 9.8 ft. (3 m) (CDP2DPMM3MB, CDP2DPMM3MW) and a 3.3 ft. (1 m) (CDP2DPMM1MB, CDP2DPMM1MW) USB-C to DP cable, enabling you to choose the right cable length for your custom installation needs.

Hassle-Free Setup

To ensure easy operation and installation, this USB C to DisplayPort cable works with both Windows and Mac computers and allows for plug-and-play installation, removing the need for any additional software or drivers.

CDP2DPMM6B is backed by a 3-year StarTech.com warranty and free lifetime technical support.

Note: Your USB-C port must support DisplayPort over USB-C (DP Alt mode) in order to work with this adapter.

Specifications

Features
Chipset	STMicroelectronics - STM32F072CBU6
DisplayPort version	1.2
Product colour	Black
Cable length	1.8 m

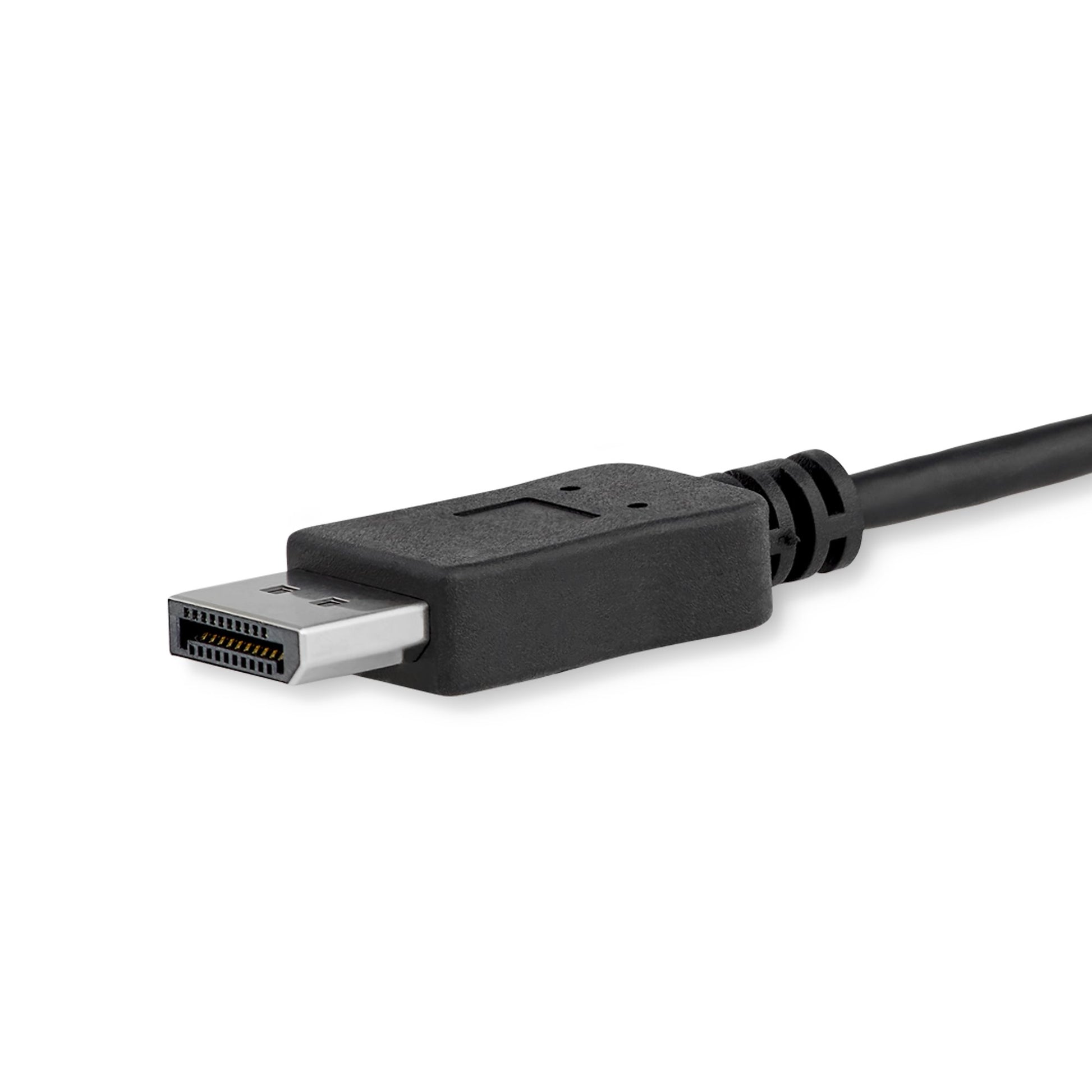

Connector 1	DisplayPort

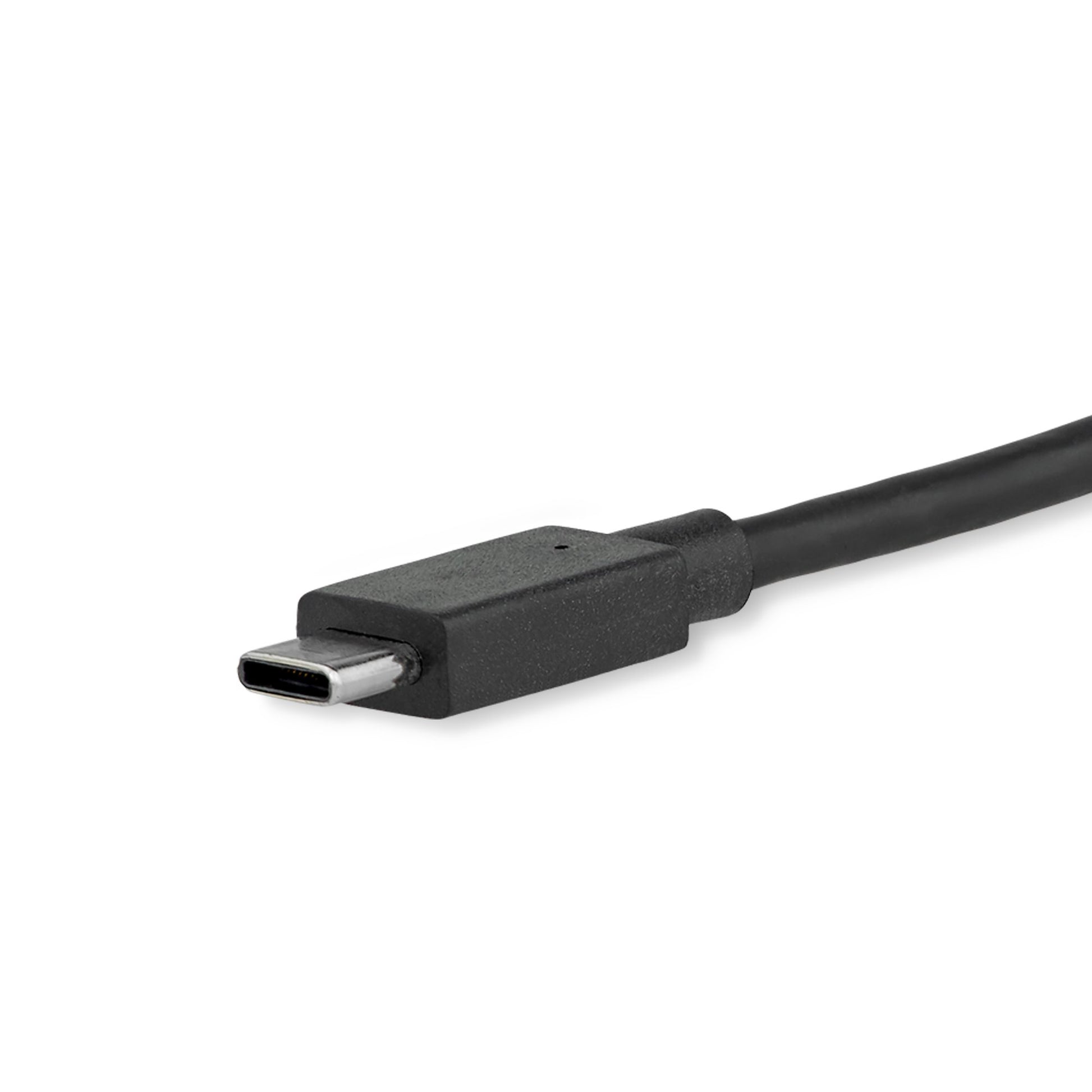

Connector 2	USB Type-C
Connector 1 gender	Male
Connector 2 gender	Male
Bandwidth	21600 MB/s
Maximum resolution	3840 x 2160 pixels
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1440, 2560 x 1600 (WQXGA), 3840 x 2160
Supported video modes	720p, 1080p, 2160p
HDCP	Yes
Plug and Play	Yes
Certification	CE, FCC, REACH
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Maximum refresh rate	60 Hz
HDCP version	1.4/2.2
Supported audio channels	7.1
USB Type-C DisplayPort Alternate Mode	Yes
HBR2 support	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 80 °C
Operating relative humidity (H-H)	20 - 70%
Certificates
Compliance certificates	RoHS
Other features
Width	20 mm
Height	10 mm
Depth	1800 mm
Weight & dimensions
Weight	49 g
Package width	200 mm
Package depth	162 mm
Package height	22 mm
Package weight	58 g
Packaging data
Quantity per pack	1 pc(s)
Technical details
Harmonized System (HS) code	84733080
Logistics data
Master (outer) case width	512 mm
Master (outer) case length	341 mm
Master (outer) case height	228 mm
Products per master (outer) case	60 pc(s)

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
