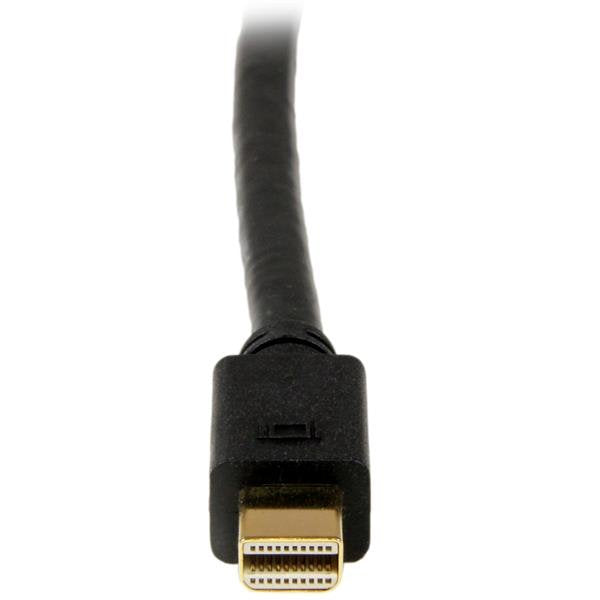

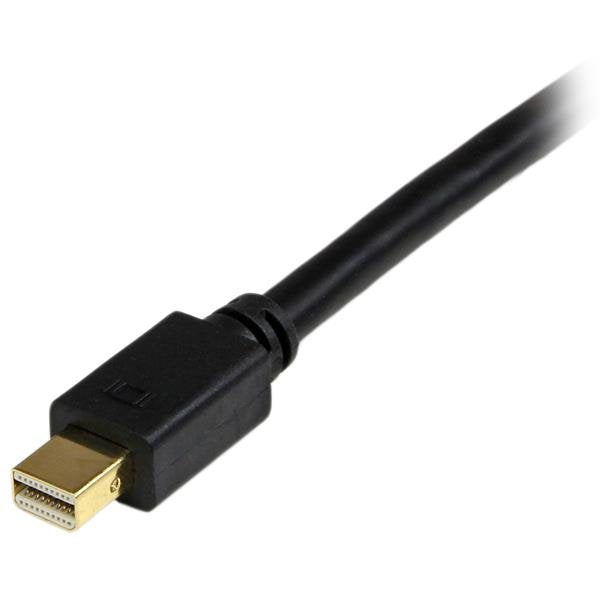

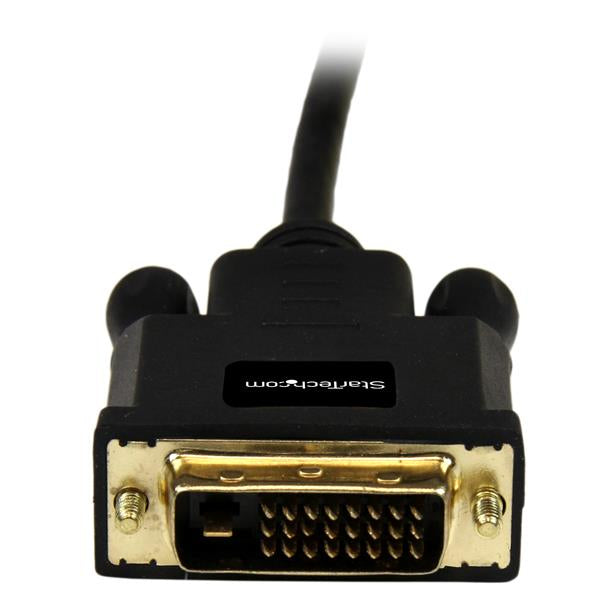

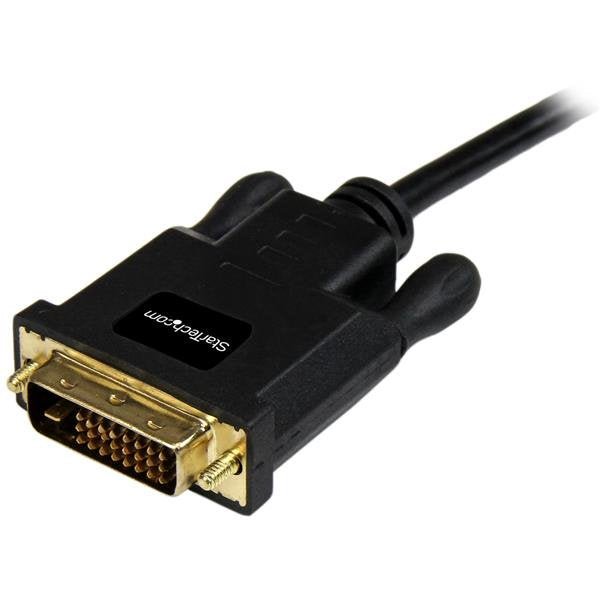

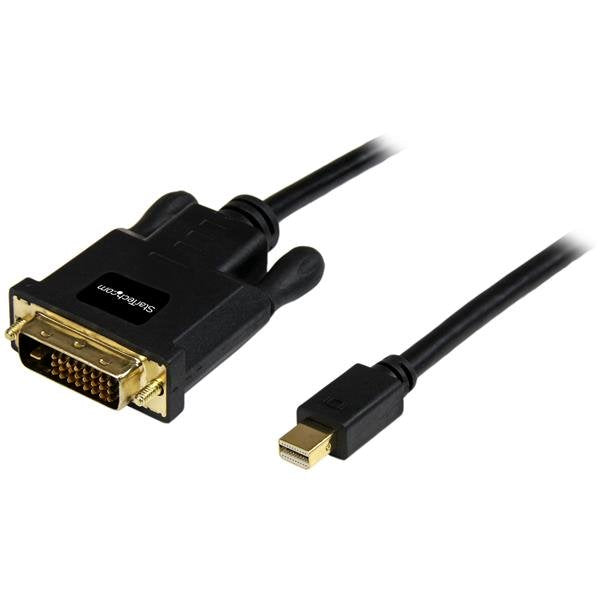

StarTech.com 6ft (1.8m) Mini DisplayPort to DVI Cable - Mini DP to DVI Adapter Cable

Make the connection with the StarTech.com 6ft (1.8m) Mini DisplayPort — length and connector details are in the spec table.

Connect a DVI display to a Mini DisplayPort-equipped PC or MAC® over a 6 foot distance – Black

The MDP2DVIMM6B Mini DisplayPort to DVI Adapter Cable lets you directly connect your Mini DP video source (such as any of your MacBook® or Microsoft® Surface™ Pro devices with mDP) to a DVI monitor or projector, eliminating the expense of having to upgrade to a Mini DisplayPort-capable monitor.

The adapter cable is 6 feet (1.8 m) in length, and features male-to-male connectors, allowing you to connect your Mini DisplayPort source directly to a DVI display with no additional cabling required.

Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt I/O port, the adapter supports resolutions up to 1920x1200 (WUXGA).

MDP2DVIMM6B is a passive adapter that requires a dual-mode DisplayPort port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.

Specifications

Features
Converter type	Passive
Chipset	NXP - 3361
DisplayPort version	1.2
Product colour	Black
Cable length	1.8 m
Connector 1	mini DisplayPort
Connector 2	DVI-D
Connector 1 gender	Male
Connector 2 gender	Male
Maximum resolution	1920 x 1200 pixels
Supported video modes	1080p
Plug and Play	Yes
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Dual Link DVI	No
Operational conditions
Operating temperature (T-T)	0 - 60 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	40 - 85%
Certificates
Compliance certificates	CE, RoHS
Other features
Width	40 mm
Height	15 mm
Depth	1800 mm
Weight & dimensions
Weight	101.3 g
Package width	199 mm
Package depth	161 mm
Package height	24 mm
Package weight	125 g
Packaging data
Quantity per pack	1 pc(s)
Technical details
Harmonized System (HS) code	84733080
Logistics data
Master (outer) case width	456 mm
Master (outer) case length	426 mm
Master (outer) case height	424 mm
Products per master (outer) case	150 pc(s)
