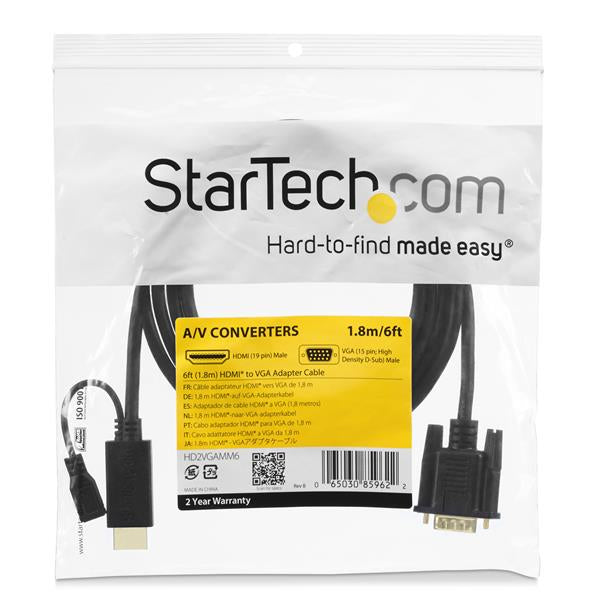

StarTech.com 6ft (1.8m) HDMI to VGA Active Converter Cable - HDMI to VGA Adapter

Make the connection with the StarTech.com 6ft (1.8m) HDMI to — length and connector details are in the spec table.

Eliminate adapters, by connecting your HDMI source directly to a VGA monitor/projector using this 6ft adapter cable

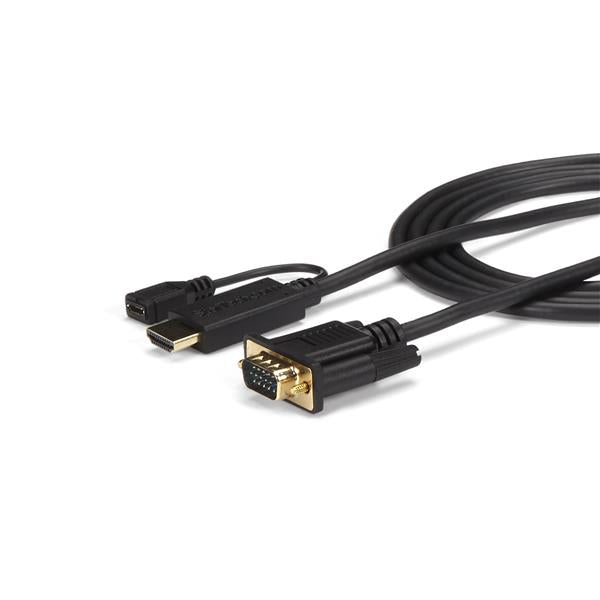

The HD2VGAMM6 6ft HDMI® to VGA converter cable lets you connect your HDMI equipped Chromebook™, laptop or desktop to a VGA monitor or projector, with no additional adapters or cables required.

The converter cable saves you the hassle of combining an HDMI to VGA adapter with a bulky VGA cable by providing an end-to-end solution for connecting your digital HDMI computer to your VGA monitor or projector.

Unlike most HDMI to VGA adapters which require a power outlet to convert the video signal, the HD2VGAMM6 doesn’t need external power in most installations. To work with Mac computers where extra power is needed, the HD2VGAMM6 features an optional integrated USB power source (USB cable not included), which makes connecting a display to your desktop or workstation that much easier, if additional power is required.

In the past, converting digital HDMI to analog VGA was a difficult and expensive task. Now, you can avoid upgrade costs by connecting your HDMI video source to your existing VGA monitor or projector using the HD2VGAMM6. Plus, because the adapter cable supports video resolutions up to 1920x1200 or 1080p, you can rest assured you can use your existing VGA display while maintaining high-definition video quality.

The HD2VGAMM6 converter cable delivers a precise 6ft connection that eliminates the clutter of excess cable length and ensures a tidy, professional installation. For longer shorter installations, we offer a 3 ft HDMI to VGA cable (HD2VGAMM3), and longer installations we offer a 10 ft HDMI to VGA cable (HD2VGAMM10), enabling you to choose the right cable length for your installation needs.

Please note: Digitally encrypted content from the HDMI video source will not be displayed.

The HD2VGAMM6 is backed by a 3-year StarTech.com warranty and free lifetime technical support.

Specifications

Features
Converter type	Active
Chipset	Chrontel - 7101A
Product colour	Black
Cable length	1.9 m

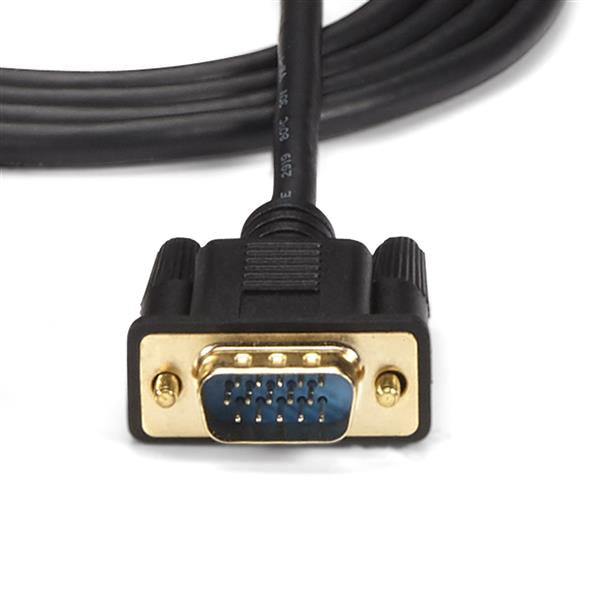

Connector 1	VGA (D-Sub)

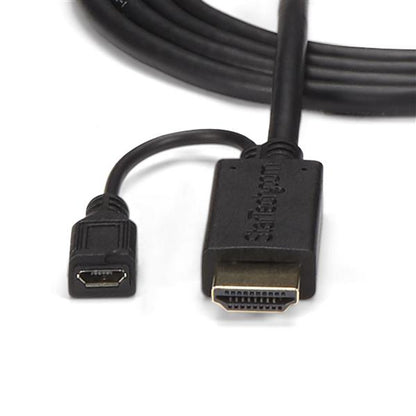

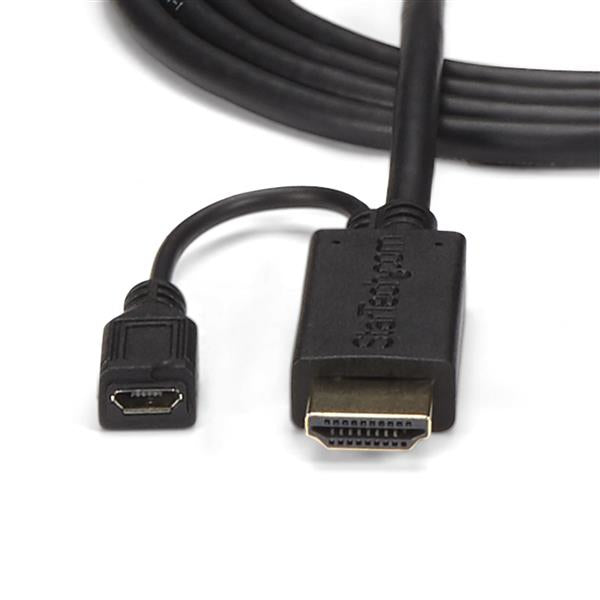

Connector 2	HDMI + Micro USB
Connector 1 gender	Male
Connector 2 gender	Male/Female
Maximum resolution	1920 x 1200 pixels
Supported video modes	1080p
Plug and Play	Yes
Certification	FCC, CE, REACH
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Maximum refresh rate	60 Hz
Power source	USB
Operational conditions
Operating temperature (T-T)	0 - 60 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	40 - 85%
Certificates
Compliance certificates	RoHS
Other features
Width	40 mm
Height	15 mm
Depth	1900 mm
Weight & dimensions
Weight	112.8 g
Package width	199 mm
Package depth	129 mm
Package height	19 mm
Package weight	130 g
Packaging data
Quantity per pack	1 pc(s)
Technical details
Harmonized System (HS) code	84733080
Logistics data
Master (outer) case width	422 mm
Master (outer) case length	434 mm
Master (outer) case height	418 mm
Products per master (outer) case	120 pc(s)

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
