StarTech.com 6ft (1.8m) 1-Port Professional RS422/485 USB Serial Cable Adapter with

Make the connection with the StarTech.com 6ft (1.8m) 1-Port Professional — length and connector details are in the spec table.

Add an RS422/485 serial port to your system through USB; features COM port retention

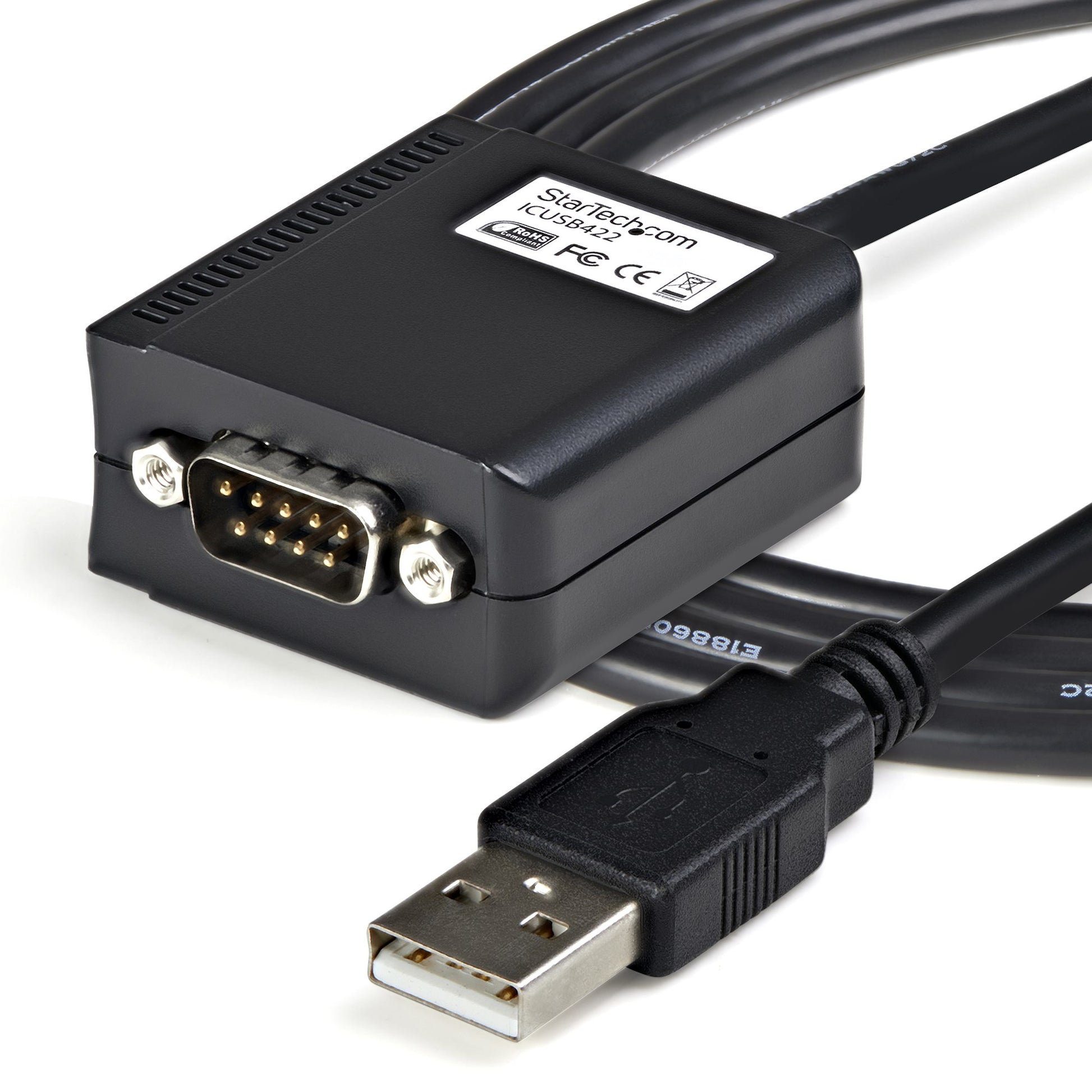

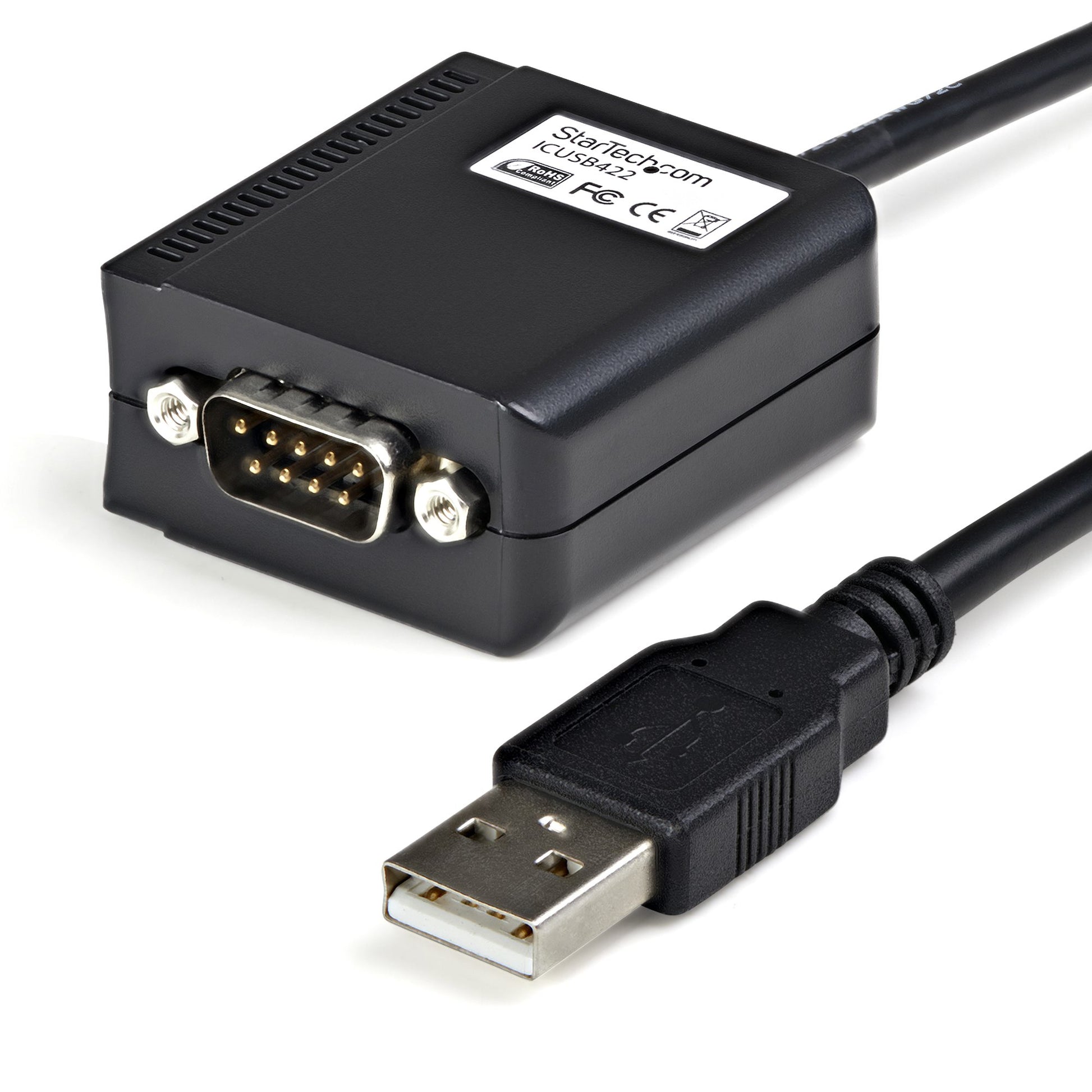

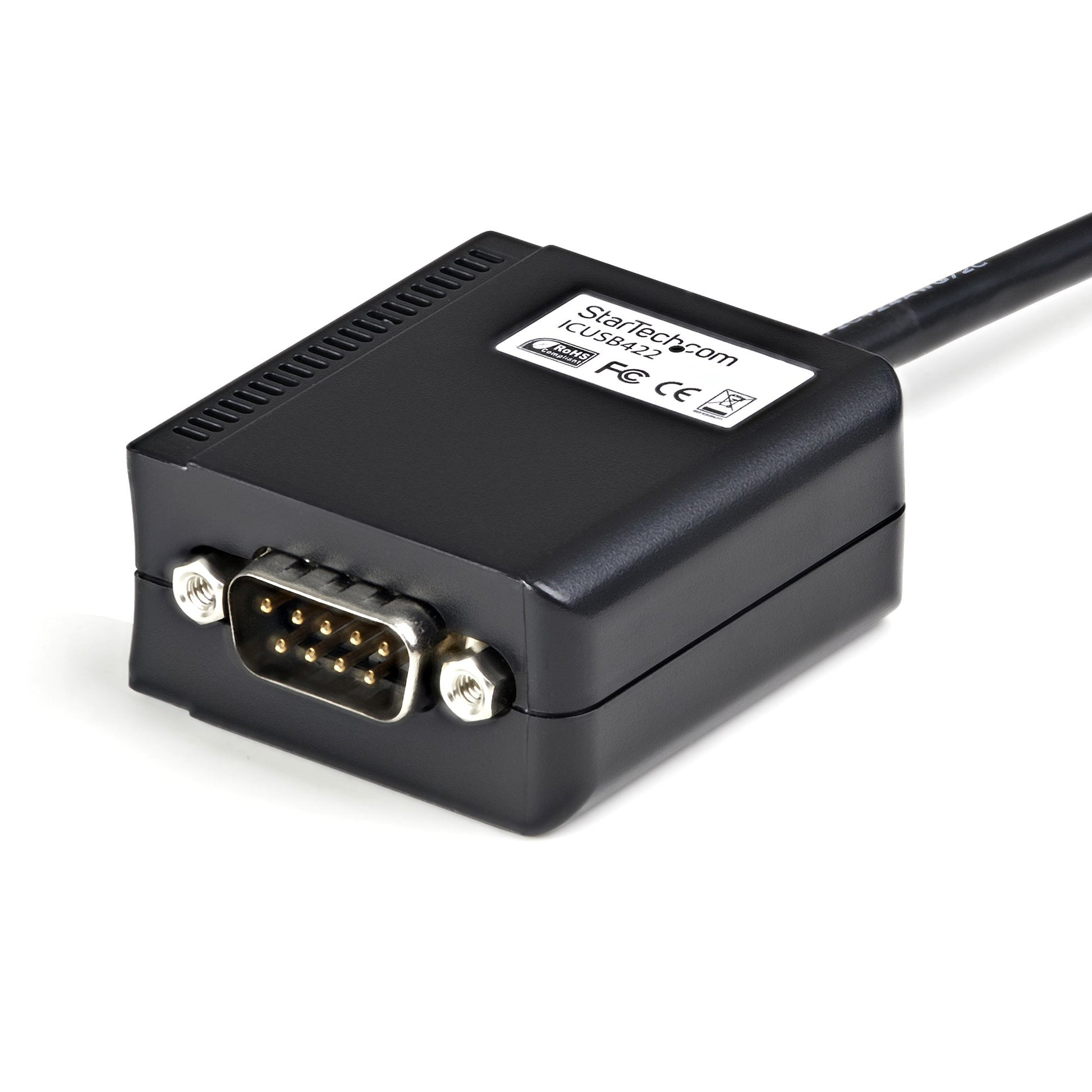

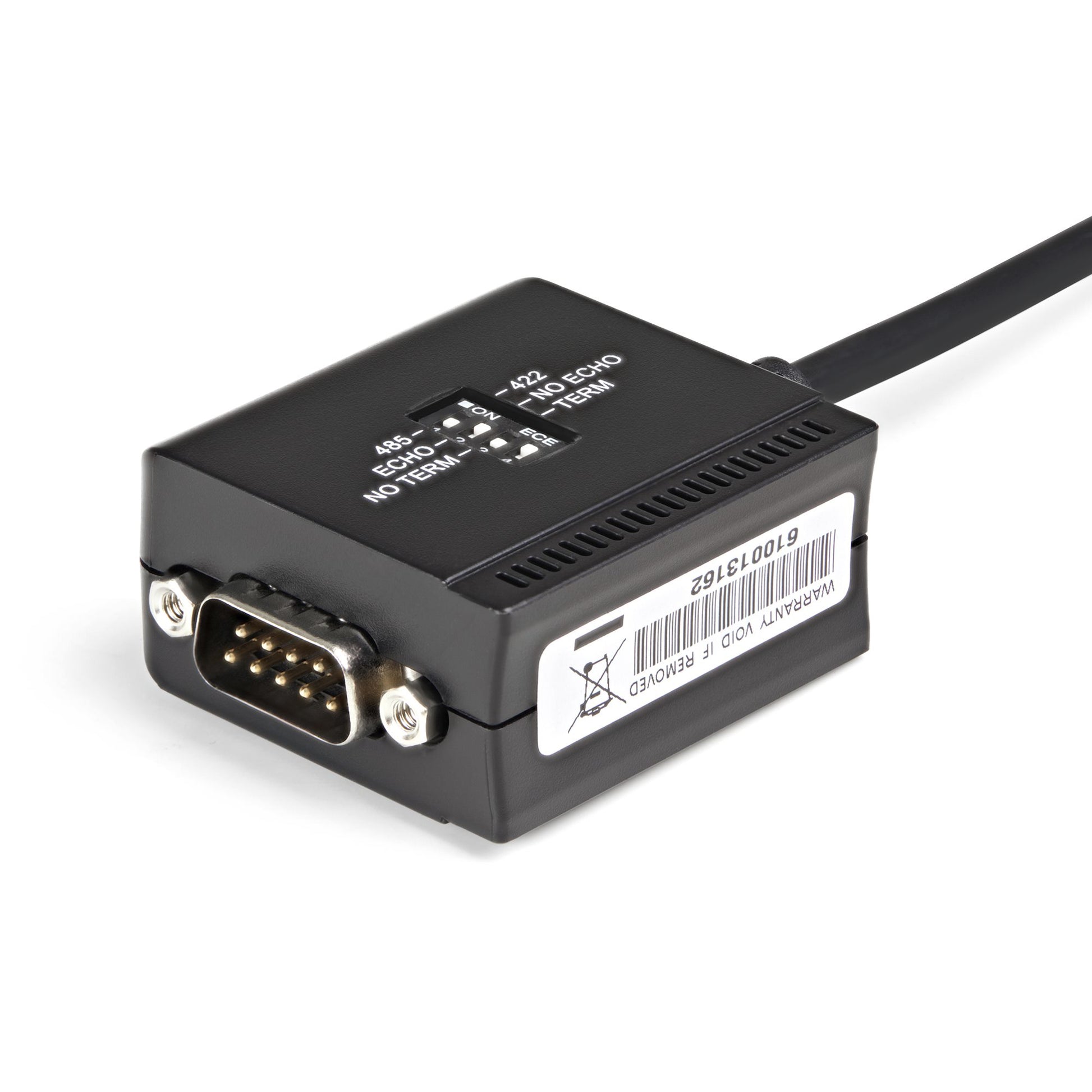

The ICUSB422 6ft Professional RS422/485 USB Serial Cable Adapter with COM Port Retention lets you connect RS422 or RS485 serial devices to your USB-enabled computer. The adapter features a 9-pin (DB9) male serial connector as well as dipswitch controls for easy port configuration, and requires minimal software.

The serial adapter is USB-powered, eliminating the aggravation of requiring an external power adapter. With COM port retention, assigned port settings are saved, so you can disconnect and reconnect the adapter with virtually no configuration required on the host computer.

Specifications

Ports & interfaces
Connector 2	USB-A FM
Connector 1	DB9 M
Cable length	1.8 m
Connector 2 gender	Female
Connector 1 gender	Male
Connector 2 form factor	Straight
Connector 1 form factor	Straight
Performance
Compatible operating systems	Windows CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10, 11 Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 macOS 10.6 to 10.15, 11.0, 12.0, 13.0 Linux Kernel 3.0.x+
Product colour	Black
Weight & dimensions
Weight	100 g
Packaging data
Package width	145 mm
Package height	42 mm
Package depth	209 mm
Package weight	220 g
Technical details
Minimum system requirements	Win 98SE/ ME/ 2000/ XP(32/64bit)/ 2003(32/64bit)/ Vista(32/64bit)/ 2008(32/64bit)/ CE(4.2/5.2/6.0) Mac 9.8/OS X Linux 2.4.x +
Dimensions (WxDxH)	41.5 x 1778 x 22.1 mm
Logistics data
Products per master (outer) case	50 pc(s)
Master (outer) case width	448 mm
Master (outer) case length	532 mm
Master (outer) case height	332 mm
