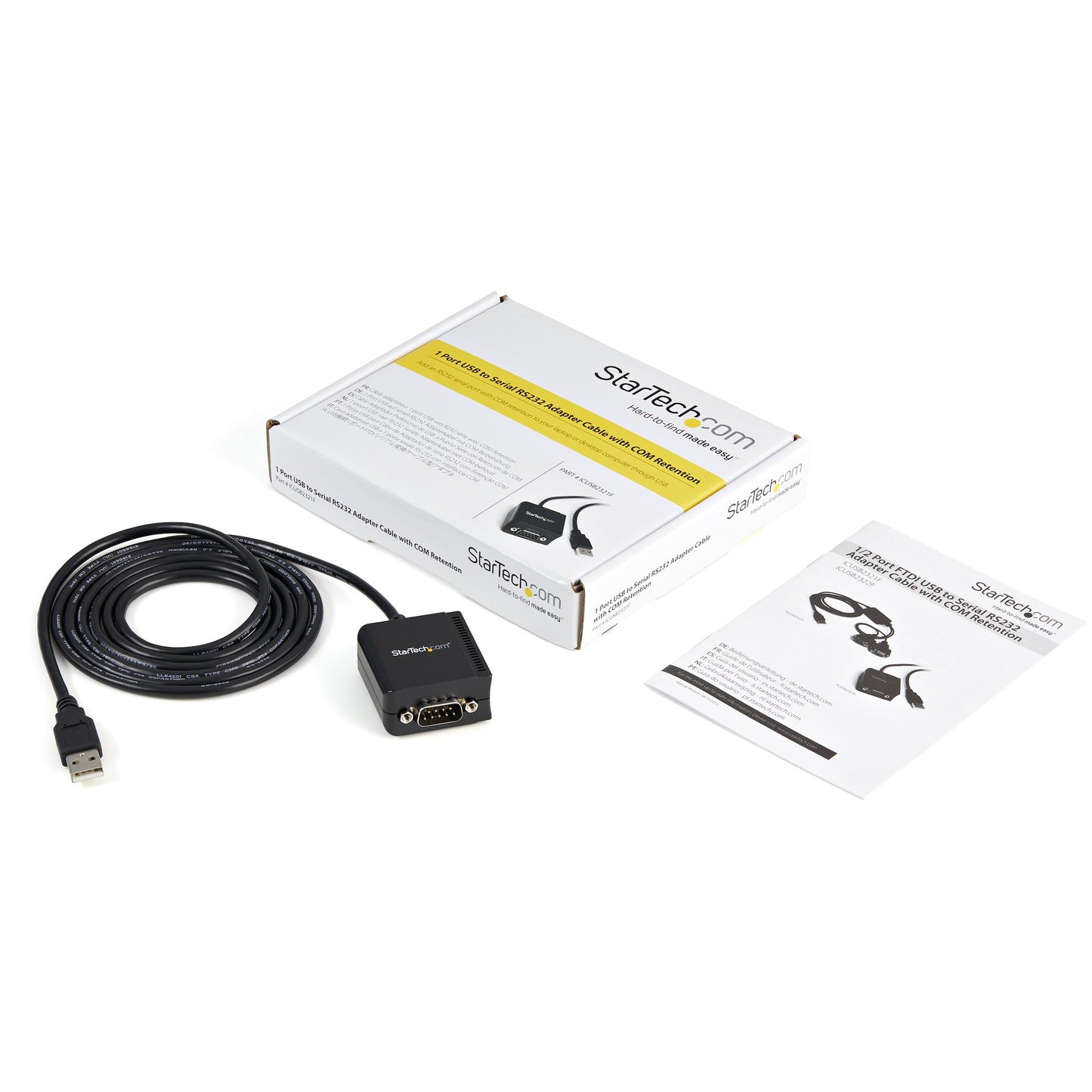

StarTech.com 6ft (1.8m) 1-Port FTDI USB to Serial RS232 Adapter Cable with COM

Make the connection with the StarTech.com 6ft (1.8m) 1-Port FTDI — length and connector details are in the spec table.

Add an RS232 serial port with COM retention to your laptop or desktop computer through USB

The ICUSB2321F 1-Port USB to Serial RS232 Adapter Cable with FTDI chipset and COM Retention converts an available USB 1.1 or 2.0 port into an RS232 serial DB9 port to connect, monitor and control your serial devices. This compact adapter features COM retention, allowing the same COM port value to automatically be re-assigned to the port if the cable is disconnected and re-connected to the host computer, or if the system is rebooted. The ICUSB2321F uses the FTDI chipset which supports additional customization, advanced features, and compatibility not necessarily offered by other solutions. Compatibility with a broad list of Operating Systems including Windows®, Windows CE, Mac OS and Linux, makes this product easy to integrate into mixed environments. Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Specifications

Ports & interfaces
Connector 2	USB 2.0 A
Connector 1	DB-9
Cable length	0.2 m
Connector 2 gender	Male
Connector 1 gender	Male
Performance
Chipset	FTDI - FT232RL
Stop bits	1, 2
Data bits	7, 8
Baud rate	115.2 Kbit/s
FIFO (First In, First Out)	256 B
Compatible operating systems	Windows CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10, 11 Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 macOS 10.6 to 10.15, 11.0, 12.0, 13.0 Linux Kernel 3.0.x
Product colour	Black
Parity bit	Even, Mark, No, Odd, Space
Certification	CE, FCC
Operational conditions
Storage temperature (T-T)	-20 - 85 °C
Relative humidity	5 - 95%
Operating temperature (T-T)	0 - 55 °C
Certificates
Compliance certificates	RoHS
Weight & dimensions
Width	41.5 mm
Weight	90 g
Height	22 mm
Depth	45 mm
Packaging content
Manual	Yes
Drivers included	Yes
Packaging data
Package width	175 mm
Package height	32 mm
Package depth	144 mm
Package weight	176 g
Logistics data
Products per master (outer) case	80 pc(s)
Master (outer) case width	534 mm
Master (outer) case length	453 mm
Master (outer) case height	356 mm

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
