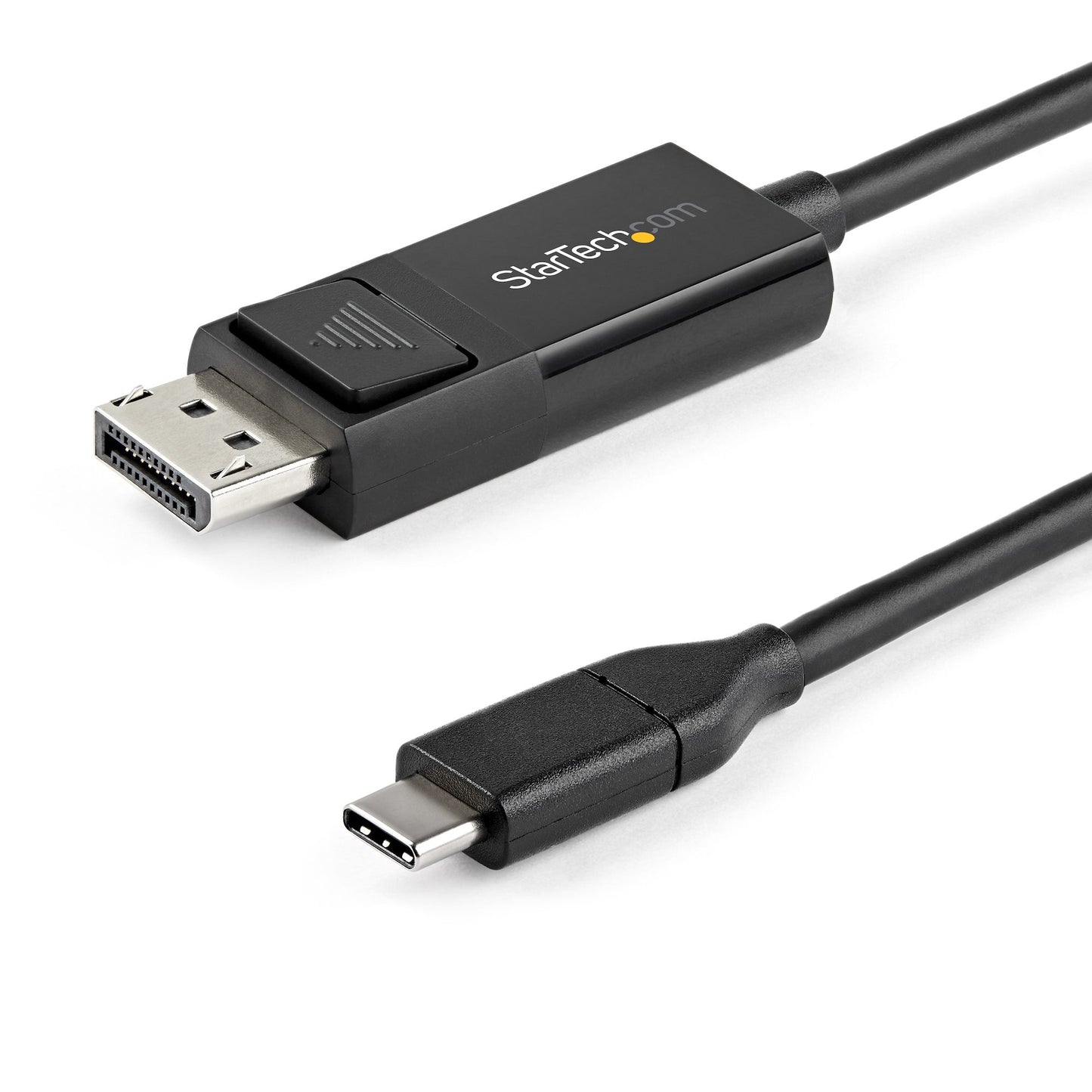

StarTech.com 6.6ft (2m) USB C to DisplayPort 1.2 Cable 4K 60Hz - Bidirectional DP to

Make the connection with the StarTech.com 6.6ft (2m) — length and connector details are in the spec table.

Connect a USB-C™ device to a DisplayPort™ display, or a DP device to a USB-C display with this versatile, bi-directional cable

This USB-C™ to DisplayPort™ 1.2 cable lets you connect your USB Type-C™ (or Thunderbolt 3™) device to a DisplayPort display, or a DP device to a USB-C display with just one cable.

Easy & Clutter-Free Installation

At 6.6 ft. (2 m) in length, this bidirectional adapter cable delivers a direct connection that eliminates excess adapters and cabling, ensuring a tidy, professional installation. For shorter installations, we also offer a 3.3 ft. (1 m) USB-C to DP cable, enabling you to choose the right cable length for your custom installation needs.

As well, the cable works with both Mac and Windows devices and allows for plug-and-play installation, removing the need for any additional software or drivers.

Convenient, Bi-Directional Support

Use this USB-C to DisplayPort adapter cable to output 4K video and audio to a DP display from the USB Type-C (or Thunderbolt 3) port on your laptop or mobile device. With bi-directional capabilities, this cable can also connect your DisplayPort-enabled devices to a display featuring USB-C input.

Ultra HD 4K Resolution at 60Hz

This USB-C to DP 1.2 adapter cable lets you harness the video capabilities that are built into your computer's USB Type-C (or DisplayPort) connection, to deliver the astonishing quality of UHD to your 4K display. For even higher resolution and bandwidth support, we offer a USB-C to DP 1.4 cable, which is the perfect accessory for early adopters of 8K.

CDP2DP2MBD is backed by a StarTech.com 3-year warranty and free lifetime technical support.

Note: Your USB 3.1 Type-C device must support DP Alt Mode to work with this cable.

Specifications

Features
Converter type	Active video converter
Chipset	Chrontel - CH7213C-BF, VIA Labs - VL170
DisplayPort version	1.2
Product colour	Black
Cable length	2 m
Connector 1	USB Type-C
Connector 2	DisplayPort
Connector 1 gender	Male
Connector 2 gender	Male
Bandwidth	21600 MB/s
Maximum resolution	3840 x 2160 pixels
HDCP	Yes
Plug and Play	Yes
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Maximum refresh rate	60 Hz
HDCP version	1.4/2.2
High Dynamic Range (HDR) supported	Yes
Supported audio channels	7.1
HBR2 support	Yes
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 85%
Certificates
Compliance certificates	CE, RoHS
Other features
Width	220 mm
Height	12 mm
Depth	2038 mm
Weight & dimensions
Weight	77 g
Package width	125 mm
Package depth	183 mm
Package height	19 mm
Package weight	84 g
Packaging data
Quantity per pack	1 pc(s)
Technical details
Harmonized System (HS) code	84733080
Logistics data
Master (outer) case width	508 mm
Master (outer) case length	336 mm
Master (outer) case height	216 mm
Products per master (outer) case	80 pc(s)
