StarTech.com 5U Vertical Wall Mount Rack - 19in Low Profile Open Wall Mounting

Build a tidy install with the StarTech.com 5U Vertical Wall Mount — dimensions and mounting details are in the spec table.

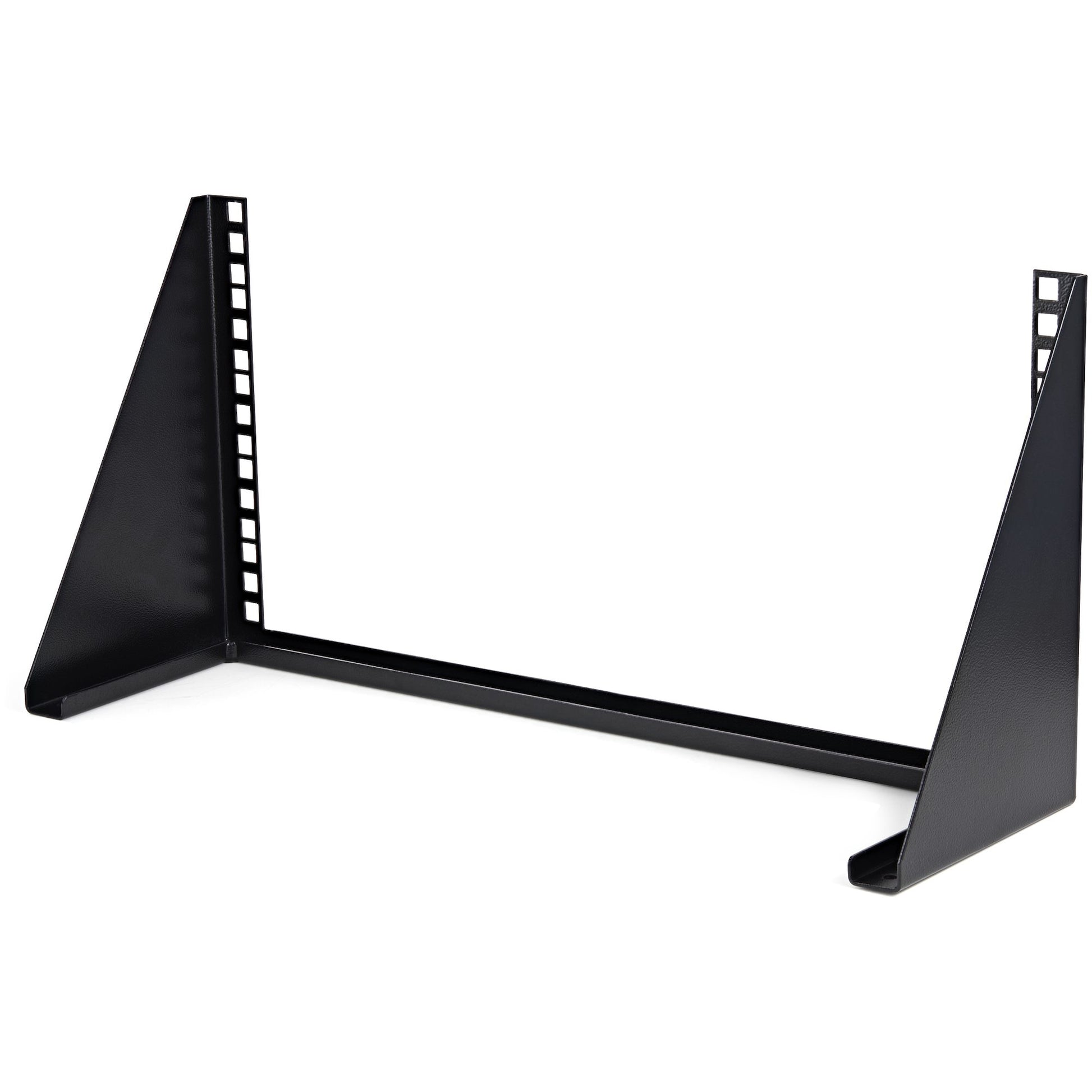

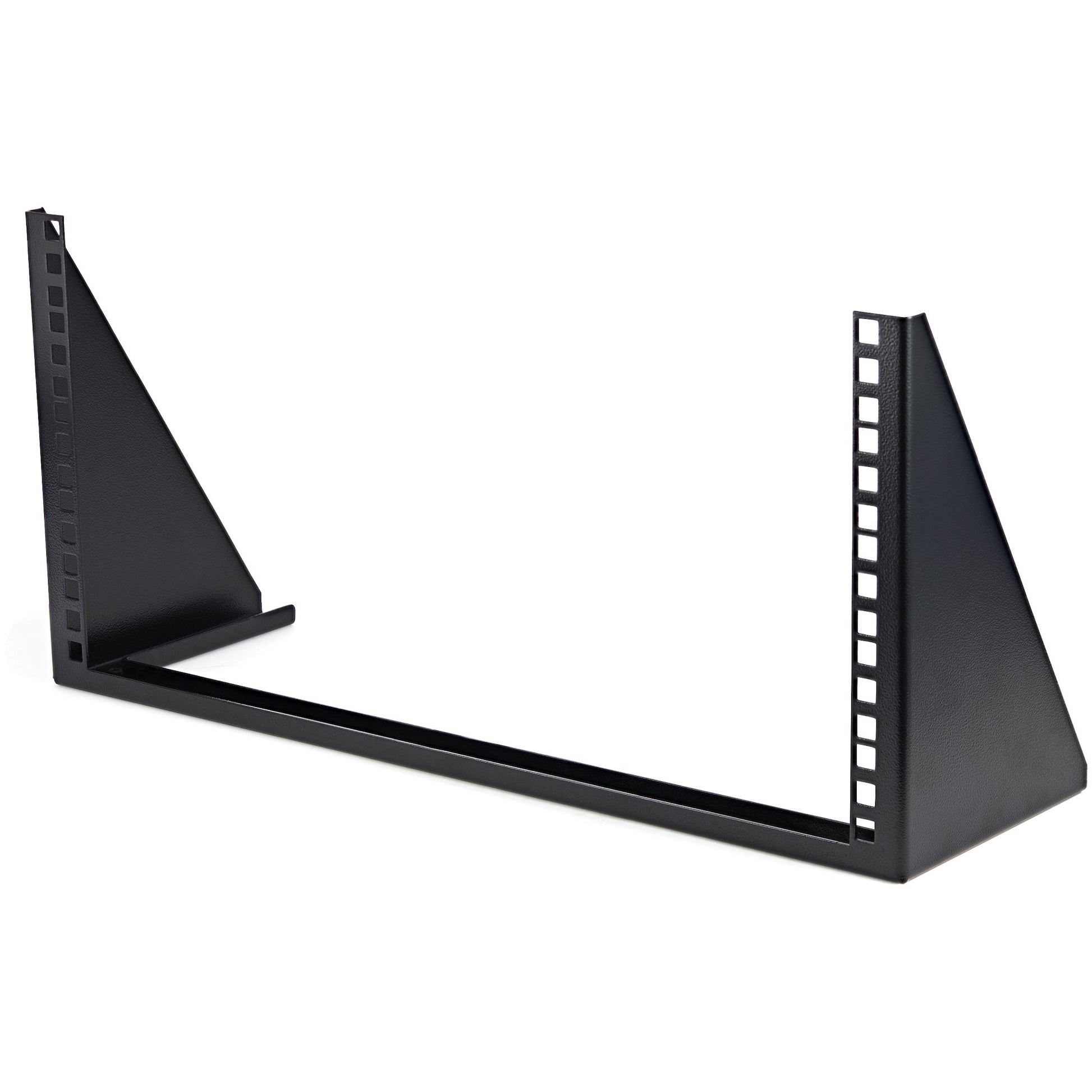

Mount server, network or telecommunications devices vertically with this 5U wall-mountable rack

The RK519WALLV 5U Wallmount Rack Bracket offers a versatile storage solution, allowing equipment (Network devices, power strips, patch panels) to be mounted vertically (flush with the wall) to save space. Alternatively, the 5U bracket can be installed under a desk for horizontal installation, making it easy to access installed equipment directly from your workspace. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.

Perfect for SoHo (small office, home office) environments, the wallmount bracket offers space-saving installation for environments lacking the footprint space for a full size server equipment rack.

Suitable for mounting on virtually any wall/ceiling surface (e.g. drywall), the bracket mounting holes (used to mount to a wall or the desk underside) are positioned at exactly 16in apart, matching standard construction framework.

Constructed to EIA-310 19in rack standards, the wallmount bracket features a sturdy steel design and is backed by StarTech.com's Lifetime Warranty.

Need additional storage? StarTech.com also offers:

1U 19in Wallmount Bracket

2U 19in Wallmount Bracket

3U 19in Wallmount Bracket

4U 19in Wallmount Bracket

Specifications

Weight & dimensions
Package depth	259 mm
Package width	562 mm
Package height	181 mm
Package weight	2.2 kg
Width	235 mm
Depth	500 mm
Height	140 mm
Weight	1.4 kg
Maximum weight capacity	90 kg

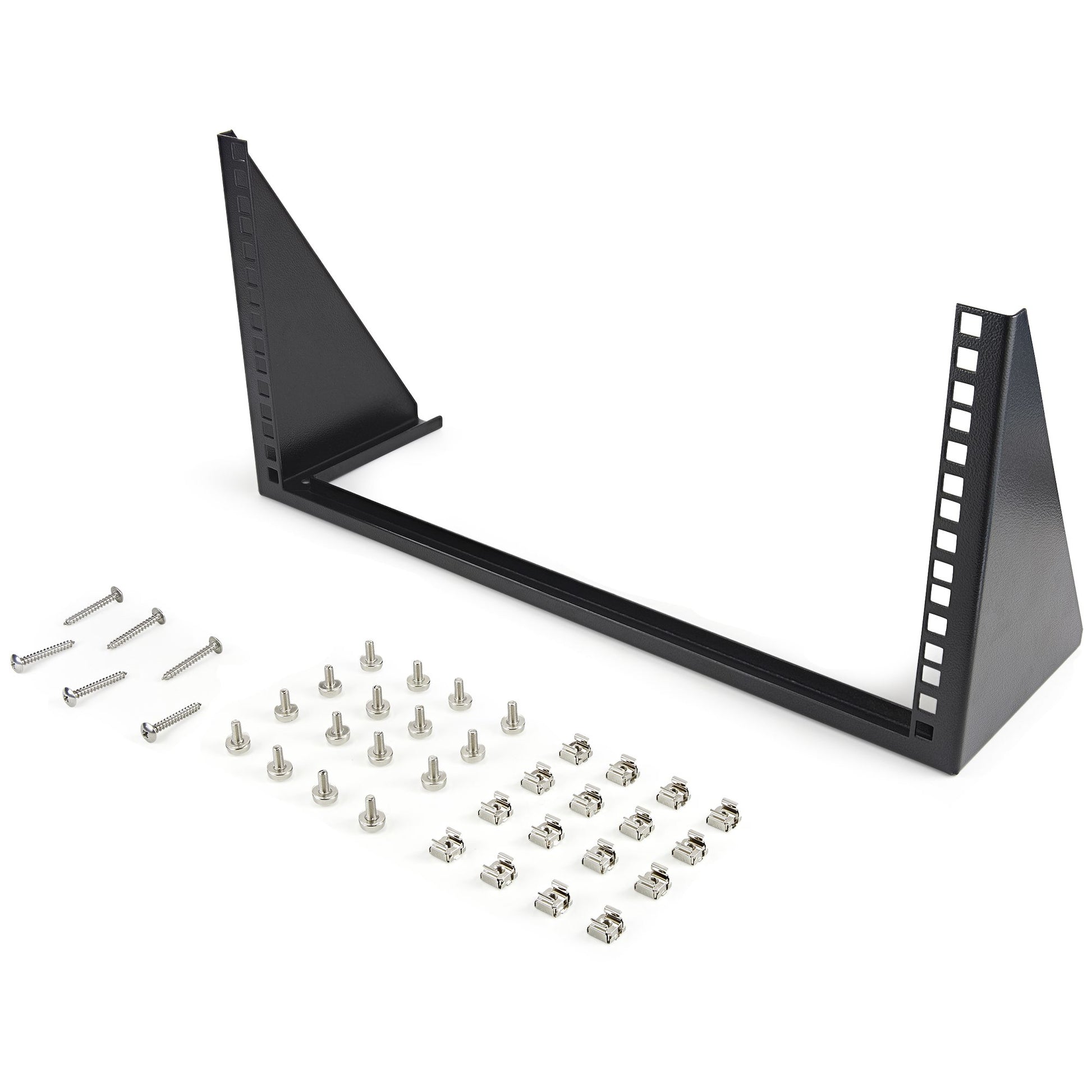

Packaging content
Nuts included	Yes
Number of nuts	16
Screws included	Yes
Number of screws	22
Features
Frame type	Open
Product design	2-post
Rack capacity	5U
Mounting hole shape	Square
Type	Wall mounted rack
Material	Steel
Product colour	Black
Technical details
Compliance industry standards	EIA/ECA-310-E
Harmonized System (HS) code	85381000
Compliance certificates	CE, RoHS
Logistics data
Master (outer) case width	560 mm
Master (outer) case length	175 mm
Master (outer) case height	260 mm
Products per master (outer) case	1 pc(s)
