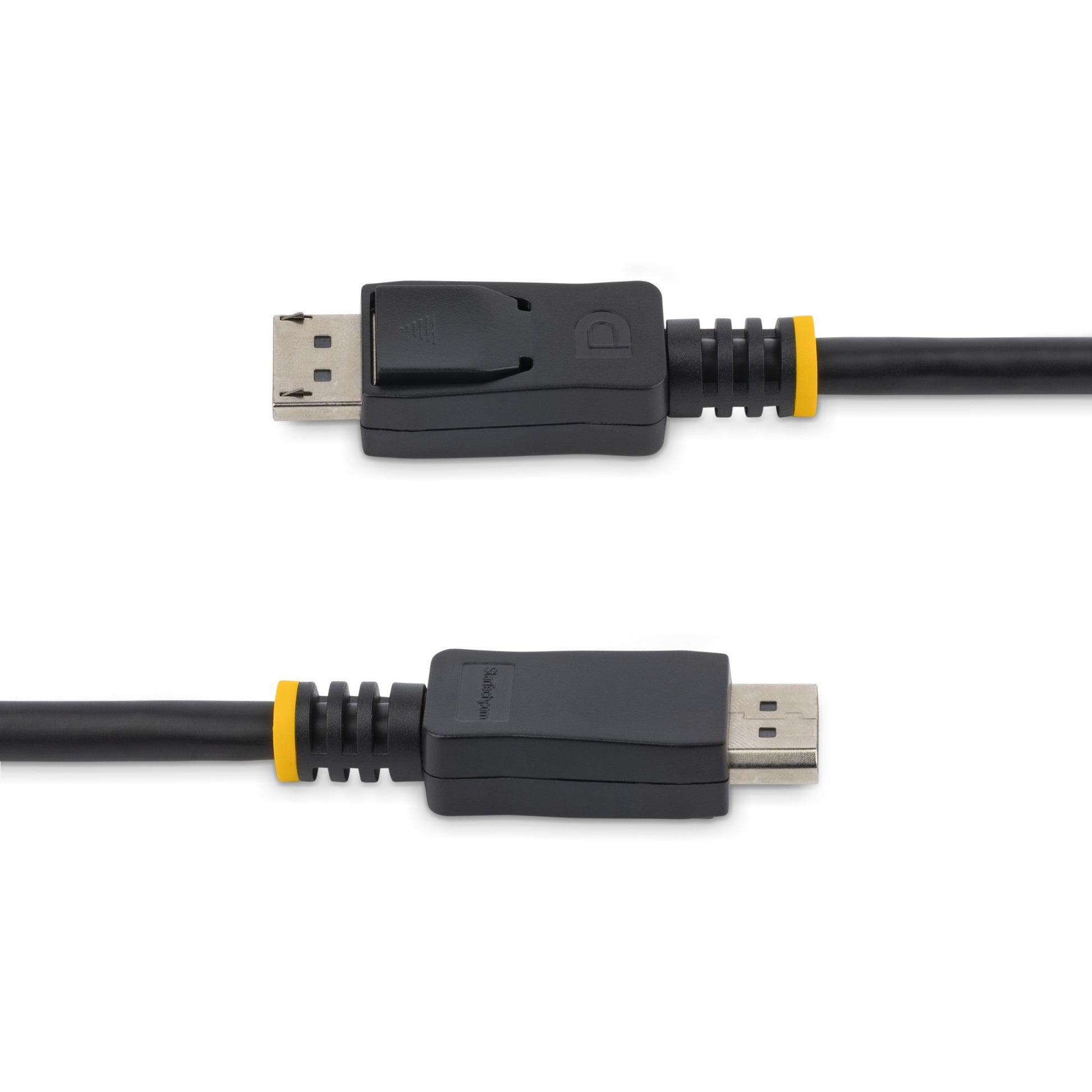

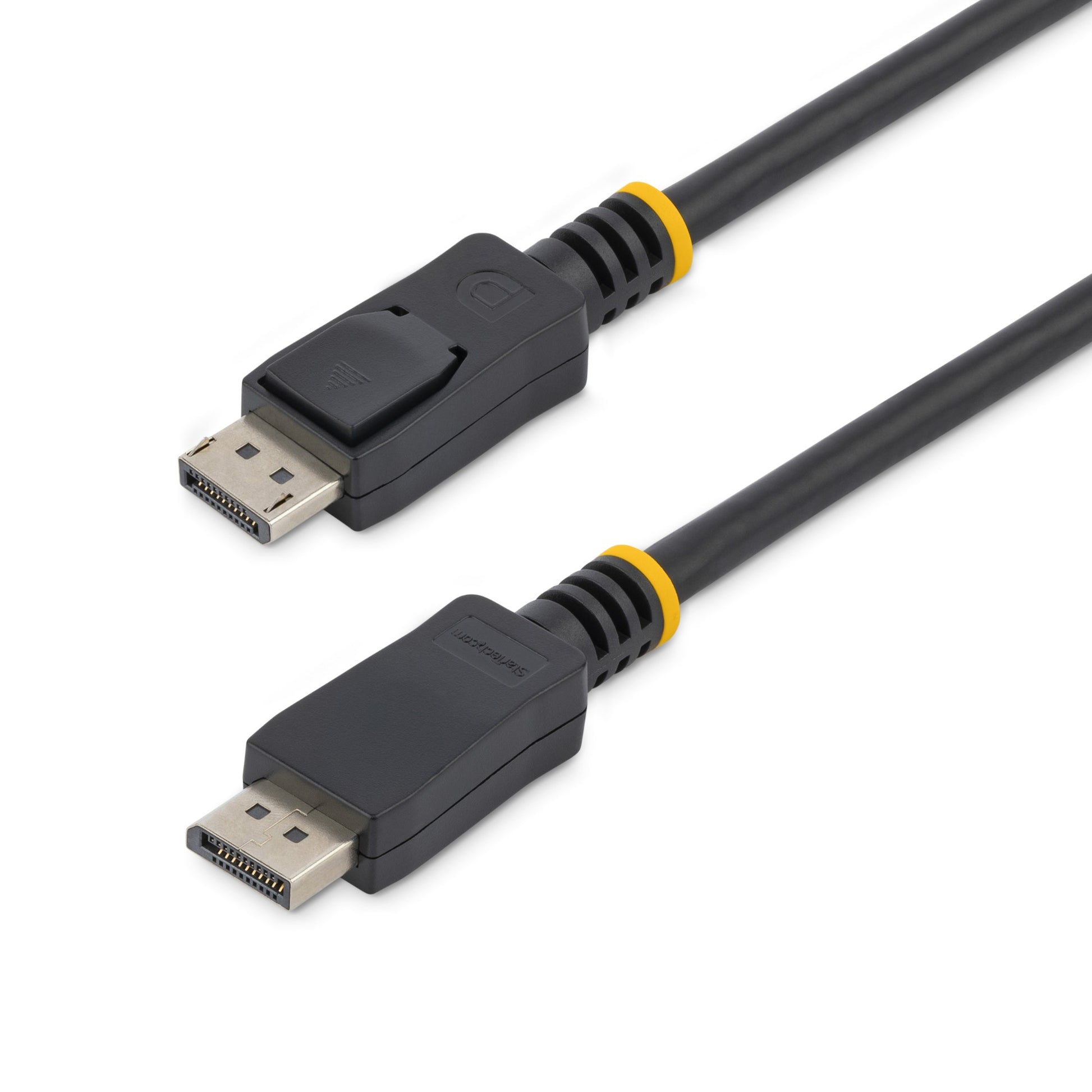

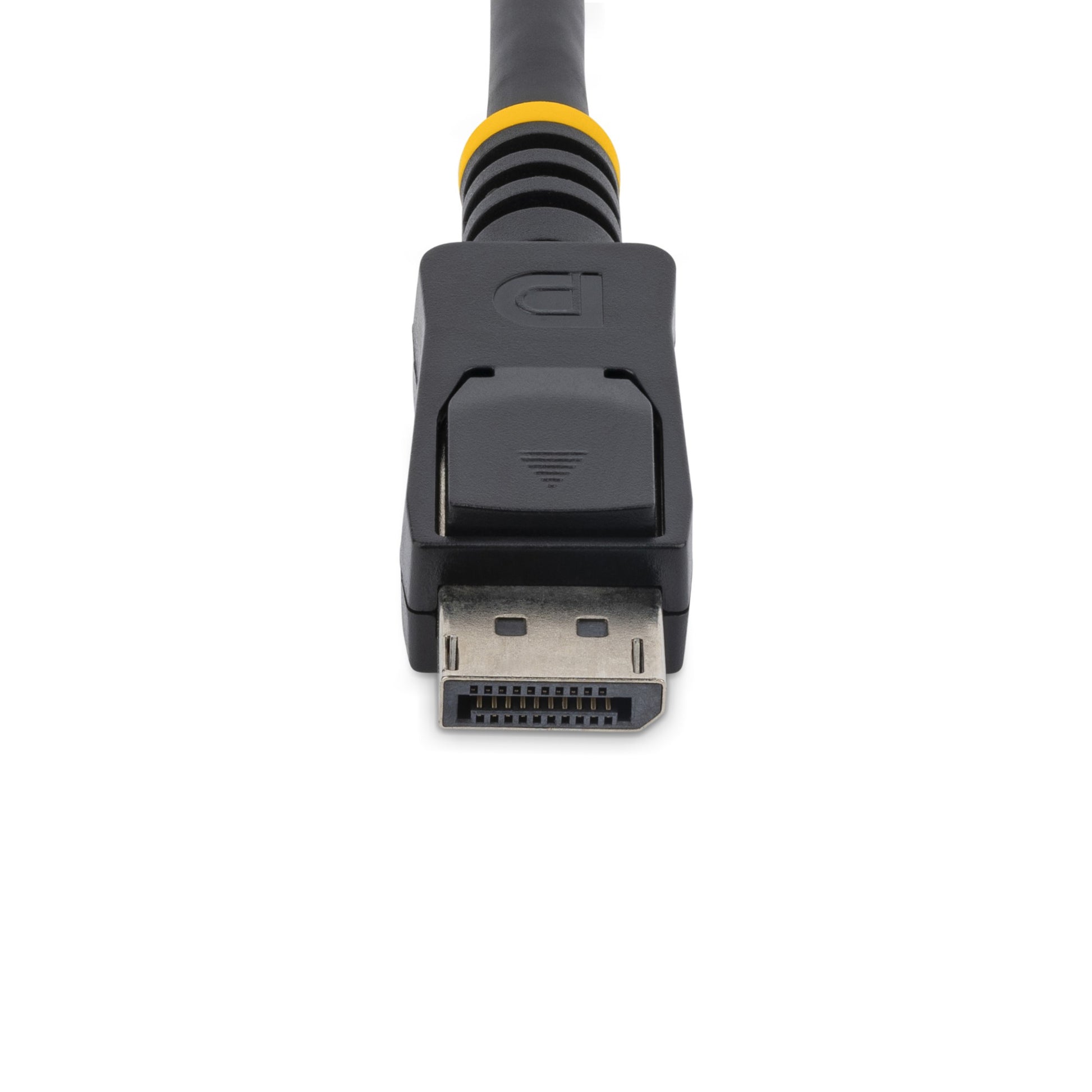

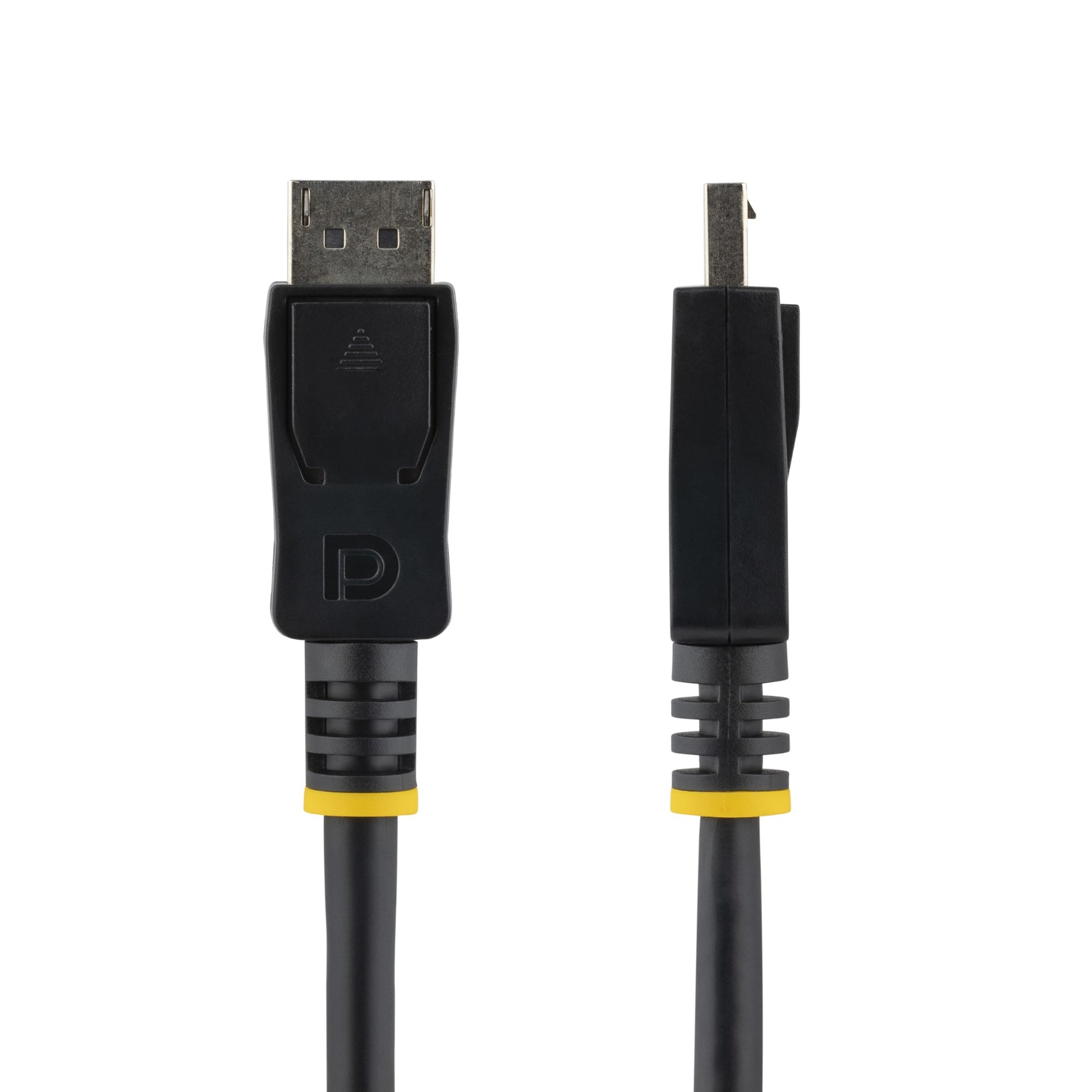

StarTech.com 5m (16.4ft) DisplayPort 1.2 Cable - 4K x 2K Ultra HD VESA Certified
StarTech.com 5m (16.4ft) DisplayPort 1.2 Cable - 4K x 2K Ultra HD VESA Certified
Regular price
£15.31 GBP
Regular price
Sale price
£15.31 GBP
Taxes included.
Quantity
Couldn't load pickup availability
Make the connection with the StarTech.com 5m (16.4ft) DisplayPort 1.2 — length and connector details are in the spec table.
Create high-resolution 4k x 2k connections with HBR2 support between your DisplayPort-equipped devices over longer distancesThe DISPL5M DisplayPort™ 1.2 Cable with latches provides a secure connection between your DisplayPort-equipped devices and allows for a connection distance of up to 5-meters between your source and display.
The DP cable is capable of providing higher performance than either HDMI® or dual link DVI with support for high resolutions of up to 4k x 2k (4096 x 2160) @ 60Hz and a maximum HBR2 bandwidth of 21.6 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.
The DISPL5M long DisplayPort cable is backed by StarTech.com’s Lifetime Warranty, for guaranteed reliability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.
Specifications
| Features | |
|---|---|
| Cable shielding | Aluminum mylar foil |
| Latching connectors | Yes |
| Cable rating | CMG (CM) |
| Number of conductors | 19 |
| DisplayPort Content Protection (DPCP) | Yes |
| Product colour | Black |
| Cable length | 5 m |
| Connector 1 | DisplayPort |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Nickel |
| Jacket material | Polyvinyl chloride (PVC) |
| AWG wire size | 28 |
| DisplayPort version | 1.2 |
| Bandwidth | 21600 MB/s |
| Maximum resolution | 3840 x 2400 pixels |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 3840 x 2400, 2560 x 1600 (WQXGA) |
| HDCP | Yes |
| Plug and Play | Yes |
| Maximum refresh rate | 60 Hz |
| Multi-Stream Transport (MST) | Yes |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Certificates | |
| Compliance certificates | RoHS, CE |
| Weight & dimensions | |
| Cable diameter | 7.3 mm |
| Weight | 320 g |
| Package weight | 320 g |
| Package width | 222 mm |
| Package depth | 201 mm |
| Package height | 43 mm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Harmonized System (HS) code | 84733080 |
| Logistics data | |
| Products per master (outer) case | 30 pc(s) |
| Master (outer) case width | 510 mm |
| Master (outer) case length | 362 mm |
| Master (outer) case height | 286 mm |
