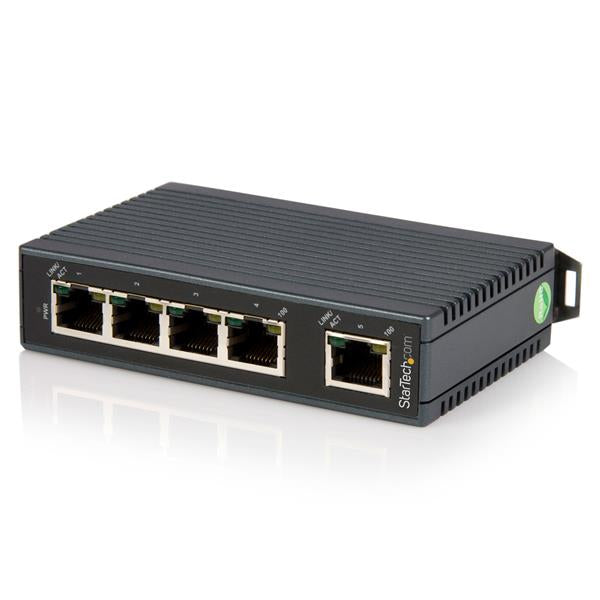

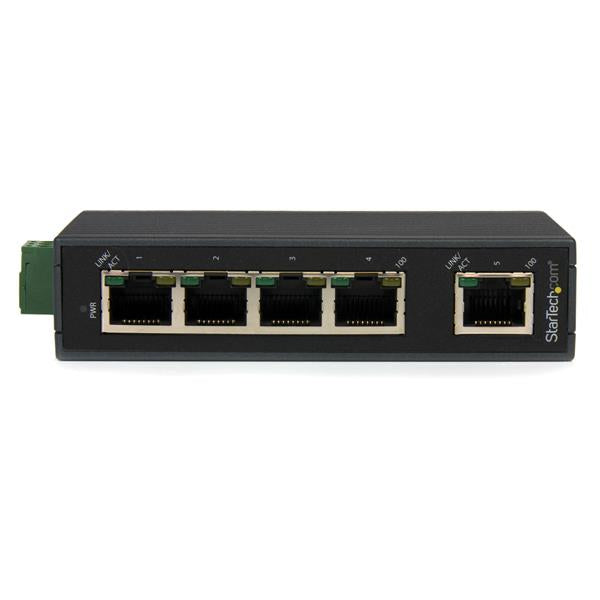

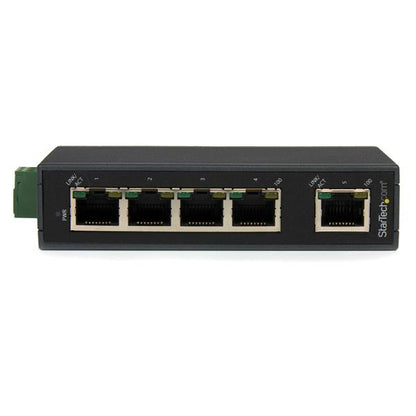

StarTech.com 5-Port Industrial Ethernet Switch - DIN Rail Mountable - TAA

The StarTech.com 5-Port Industrial Ethernet Switch - DIN Rail Mountable - TAA keeps your wired network organised.

Expand your network connectivity with this rugged unmanaged 10/100Mbps switch

This compact 5-port industrial Ethernet switch is engineered to deliver fast, reliable network connectivity and durability in the most demanding industrial environments. It provides top performance in a wider range of operating temperatures than conventional network switches, making it ideal for factories and warehouses.

Conquer the tough demands of industrial environments

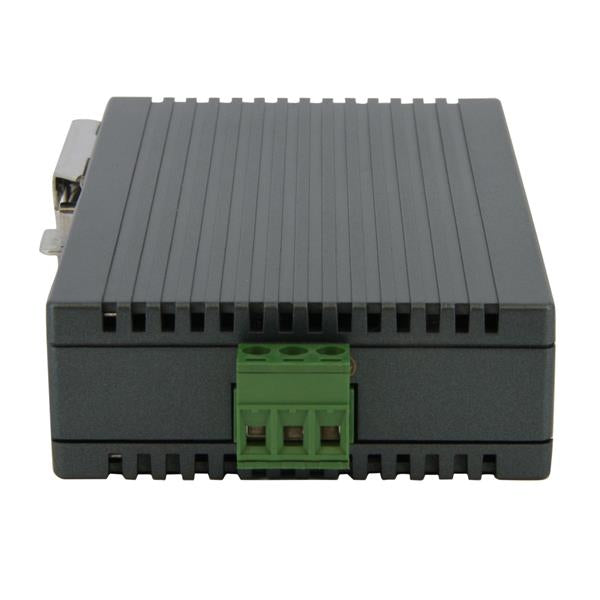

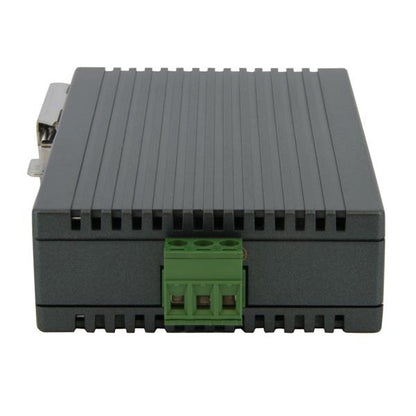

Designed with a rugged IP30-rated housing, the network switch delivers maximum performance even in harsh industrial conditions. Its wide-range terminal block input gives you the flexibility to power the switch as required, based on your own power input source, while its wide operating temperature range keeps your network running smoothly.

Get up and running in no time

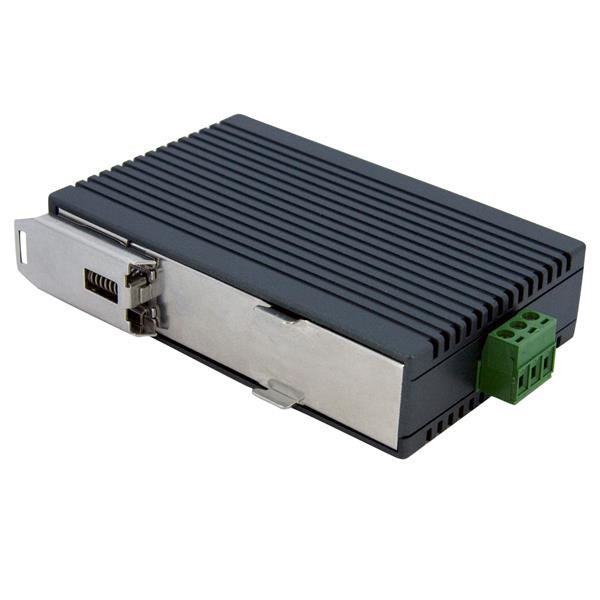

This industrial Ethernet switch is easy to install, with an attached metal bracket for DIN rail mounting on equipment racks and cabinets.

Now you can eliminate the hassle of troubleshooting mismatched speed and duplex settings. This switch gives you full/half-duplex auto-negotiation and auto MDI/MDIX operation, enabling you to connect your network devices quickly and easily with little to no configuration required.

Reduce your energy costs with Energy-Efficient Ethernet

With lower overall power consumption, the Ethernet switch enhances your energy efficiency, in turn helping you reduce monthly costs.

The IES5102 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Specifications

Management features
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Network
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u
Full duplex	Yes
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
Data transmission
Store-and-forward	Yes
Jumbo frames support	No
Design
International Protection (IP) code	IP30
Product colour	Black
LED indicators	Activity, Link, Power
Housing material	Plastic
Rack mounting	Yes
Regulatory Approvals	EN61000-6-2, EN61000-6-4, EN61000-4-3, EN61000-4-4, EN61000-4-6, EN61000-4-8, IEC60068-2-6 Fc, IEC60068-2-27 Ea
Certification	CE, FCC
Performance
Maximum data transfer rate	200 Mbit/s
Maximum cable length	100 m
Buffer size	56 KB
Mean time between failures (MTBF)	1179133 h
Harmonized System (HS) code	85176990
Power
Power consumption (max)	2.12 W
Input voltage	12 - 48 V
Operational conditions
Storage temperature (T-T)	-25 - 85 °C
Operating temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	25 mm
Depth	70 mm
Height	110 mm
Weight	148 g
Packaging content
Manual	Yes
Terminal block included	Yes
Packaging data
Package width	177 mm
Package depth	201 mm
Package height	81 mm
Package weight	312 g
Logistics data
Master (outer) case width	425 mm
Master (outer) case length	388 mm
Master (outer) case height	236 mm
Products per master (outer) case	10 pc(s)
