StarTech.com 4U Wall Mount Network Rack - 14 Inch Deep (Low Profile) - 19" Patch

Build a tidy install with the StarTech.com 4U Wall Mount Network — dimensions and mounting details are in the spec table.

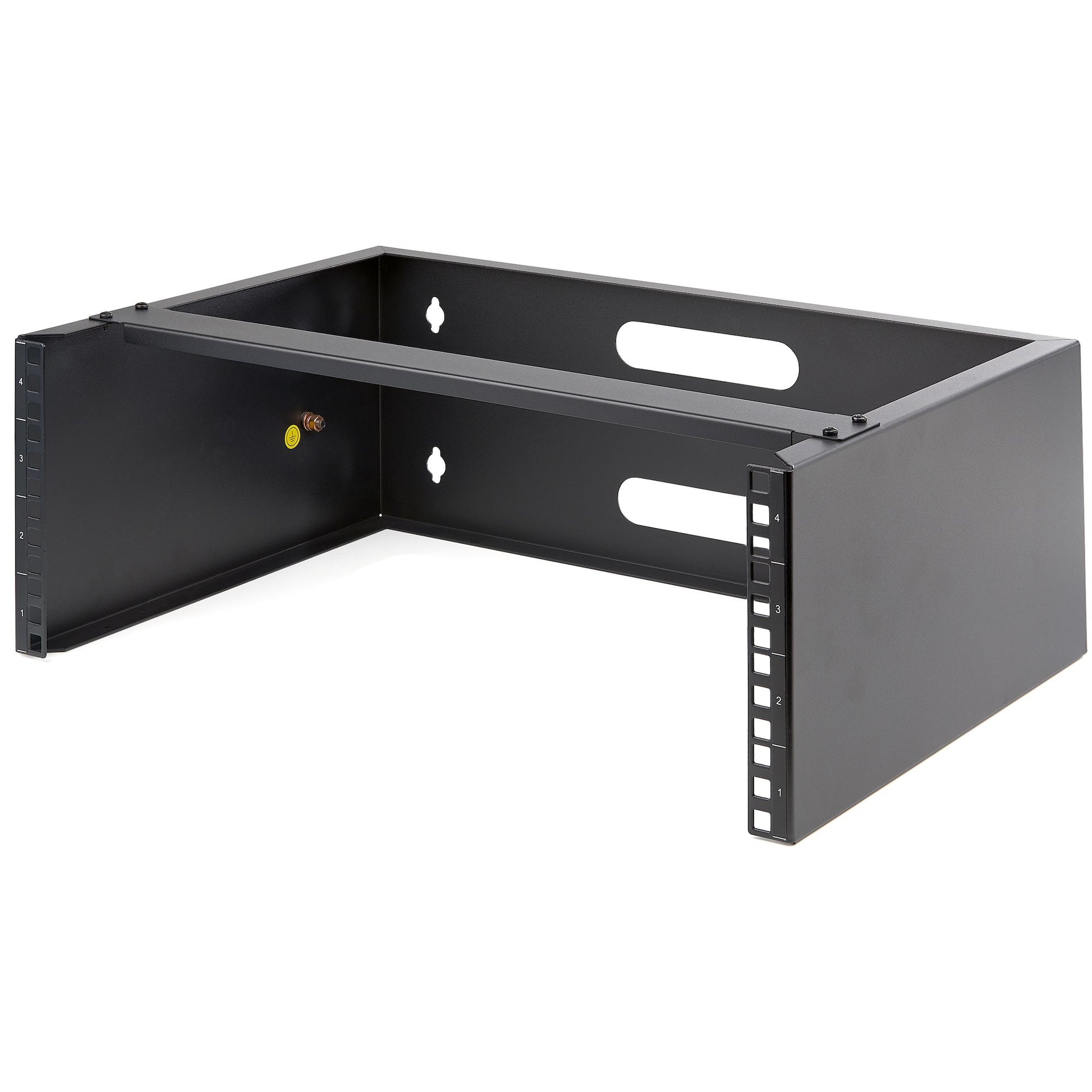

Mount networking equipment and shallow rackmount devices with this 4U wall-mountable rack

The 4U 13.78in. (35cm) deep wall-mounting bracket for patch panels and network equipment, delivers a sturdy and dependable equipment storage option, allowing you to wall mount data/IT equipment up to ta total of 44lbs. (20kg). It's the perfect solution for areas where space is at a premium like small office/home office environments or spaces with limited server room because it doesn't take up any floor space.

Sturdy Construction & Easy Installation

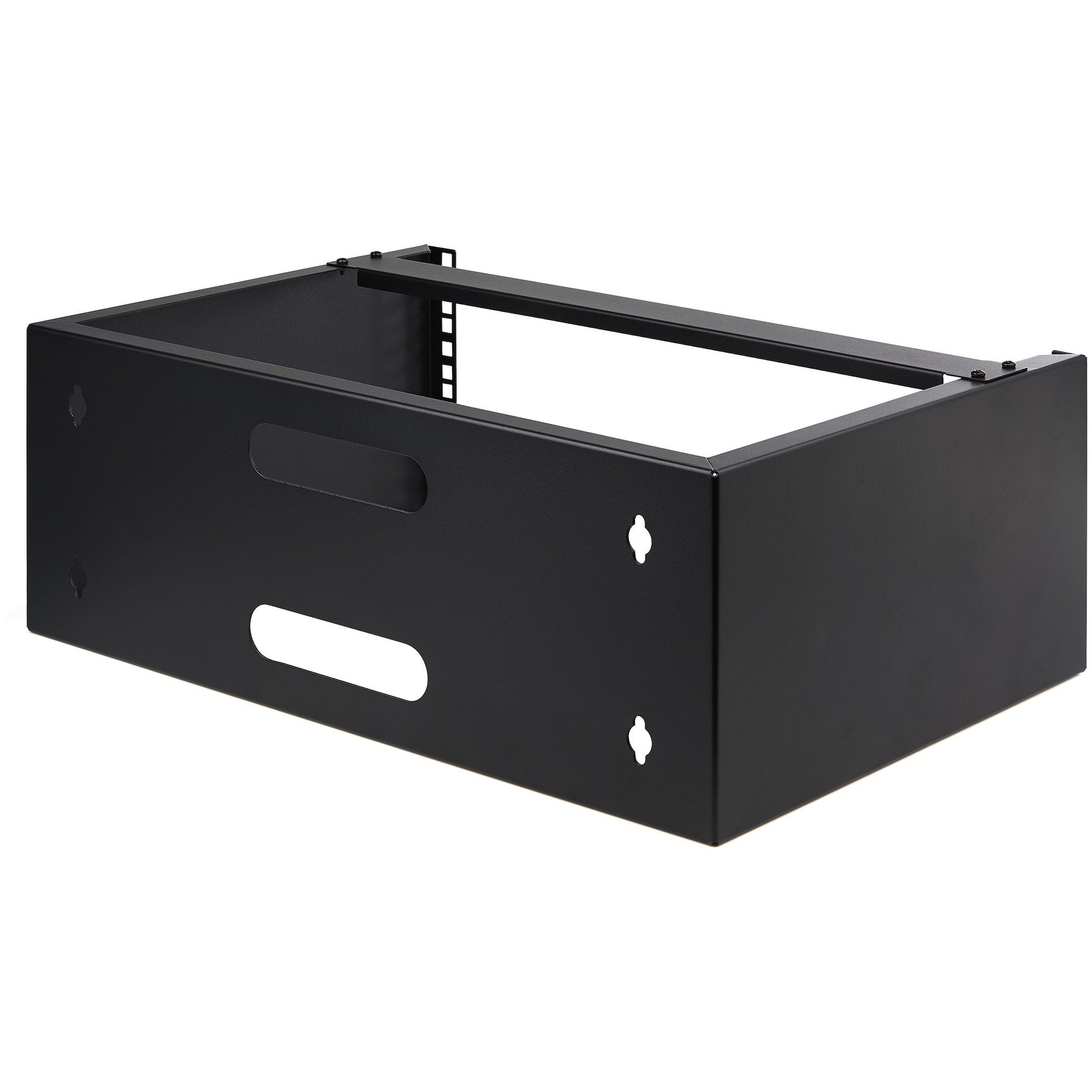

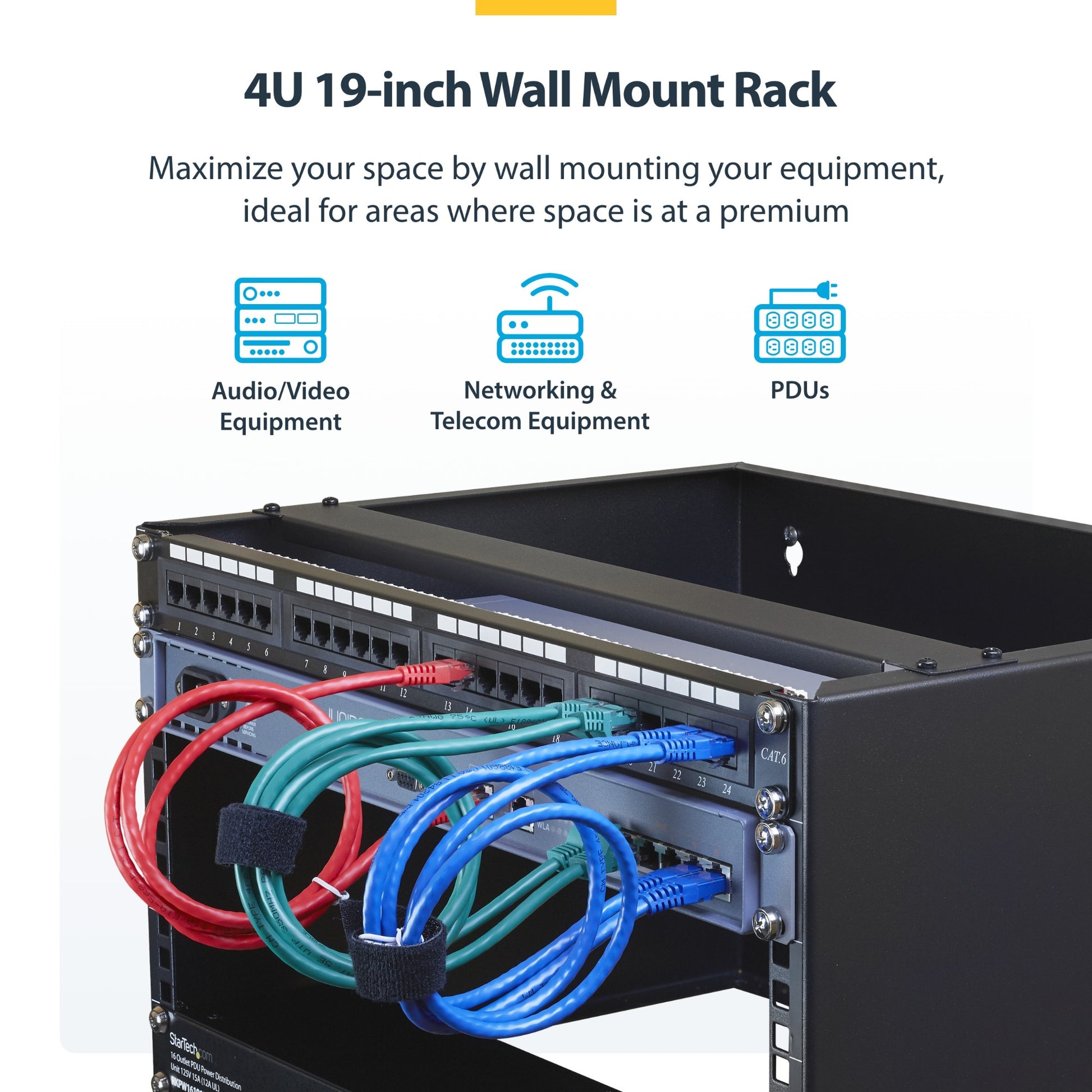

The mounting bracket features an all-steel design and is suitable for mounting patch panels, or other slim 19in rack equipment to a wall, and to organize cabling or equipment in your network closet, wiring closet, back office or IDF. The sturdy steel construction is especially helpful for durability in harsh environments. The open frame wall rack's mounting holes are positioned 16in. apart, matching typical drywall construction framework to ensure simple and secure wall-stud anchoring.

Includes Hardware

Cage nuts and screws are included with the wall-mount bracket, to save you the hassle of sourcing separate mounting hardware. The bracket is ideal for mounting equipment 12" or less in depth to ensure there is room for cabling.

WALLMOUNT4 is backed by a StarTech.com lifetime warranty and free lifetime technical support.

Specifications

Weight & dimensions
Package depth	390 mm
Package width	537 mm
Package height	228 mm
Package weight	5 kg
Mounting depth (max)	35 cm

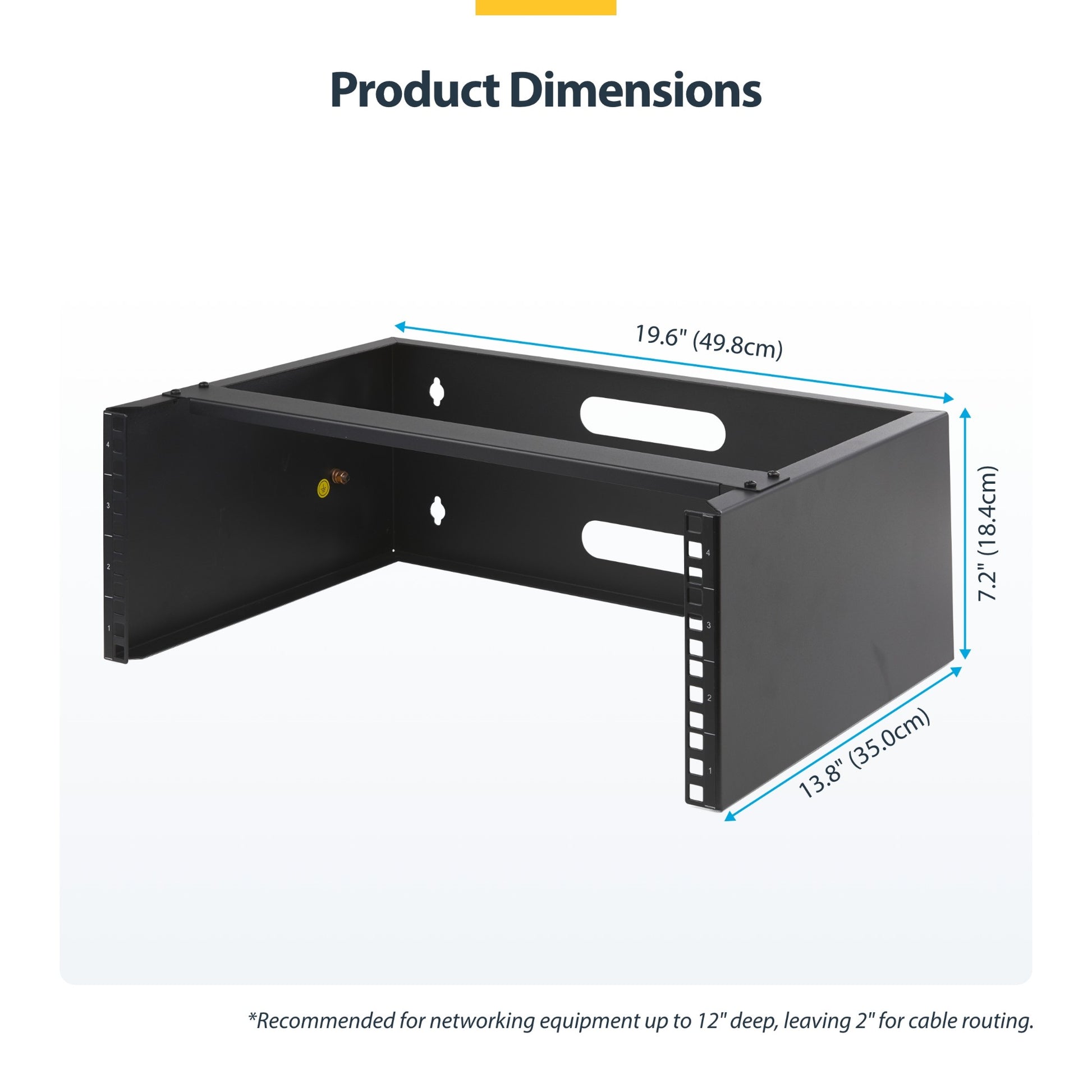

Width	498 mm
Depth	350 mm
Height	184 mm
Weight	5 kg
Maximum weight capacity	20 kg
Packaging content
Nuts included	Yes
Number of nuts	16
Screws included	Yes
Number of screws	20
Number of washers included	16
Features
Frame type	Open
Product design	2-post
Rack capacity	4U
Cable management	Yes

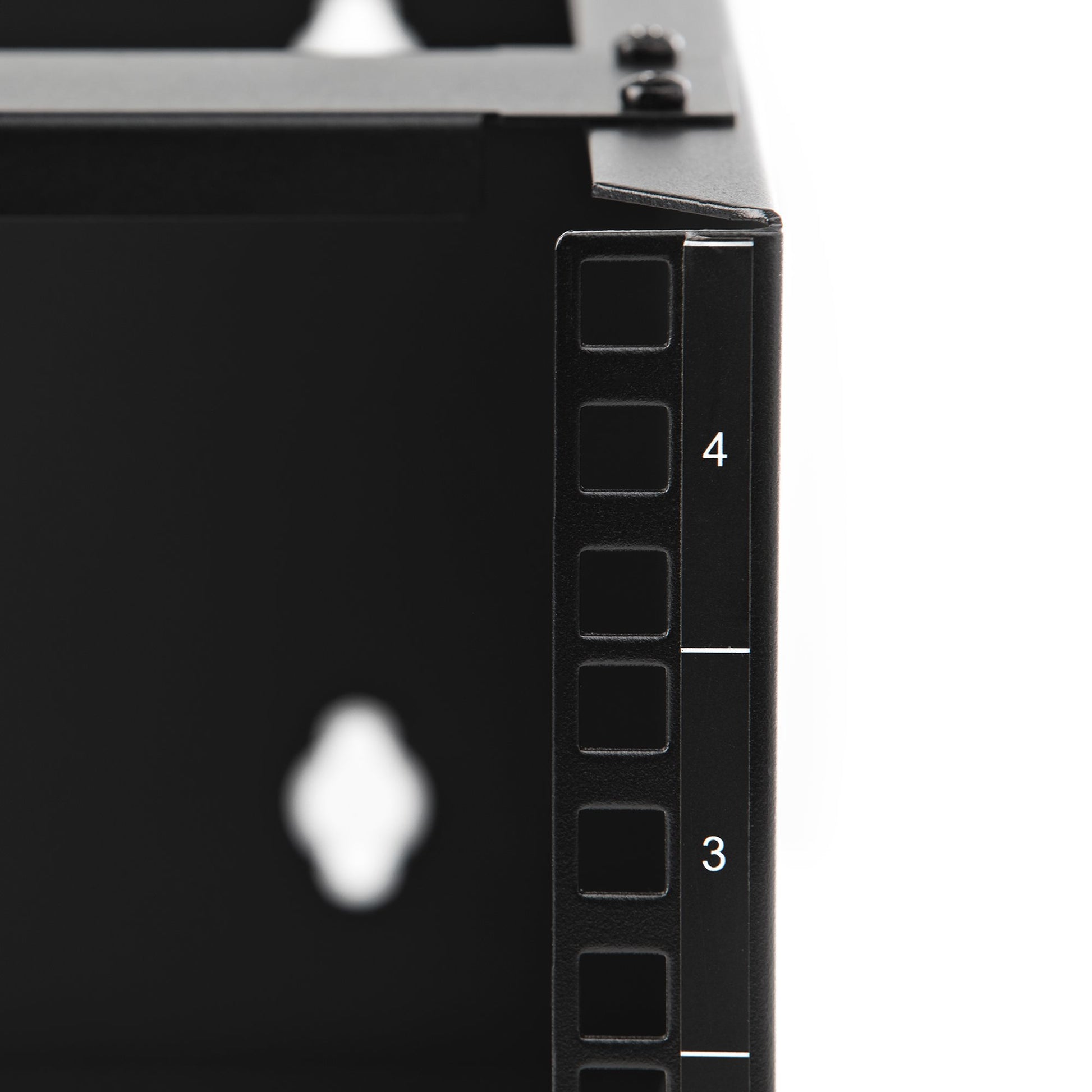

Mounting hole shape	Square
Type	Wall mounted rack
Material	Steel
Product colour	Black
Technical details
Compliance industry standards	EIA/ECA-310-E
Harmonized System (HS) code	85381000
Compliance certificates	CE, RoHS
Logistics data
Master (outer) case width	534 mm
Master (outer) case length	387 mm
Master (outer) case height	230 mm
Products per master (outer) case	1 pc(s)
