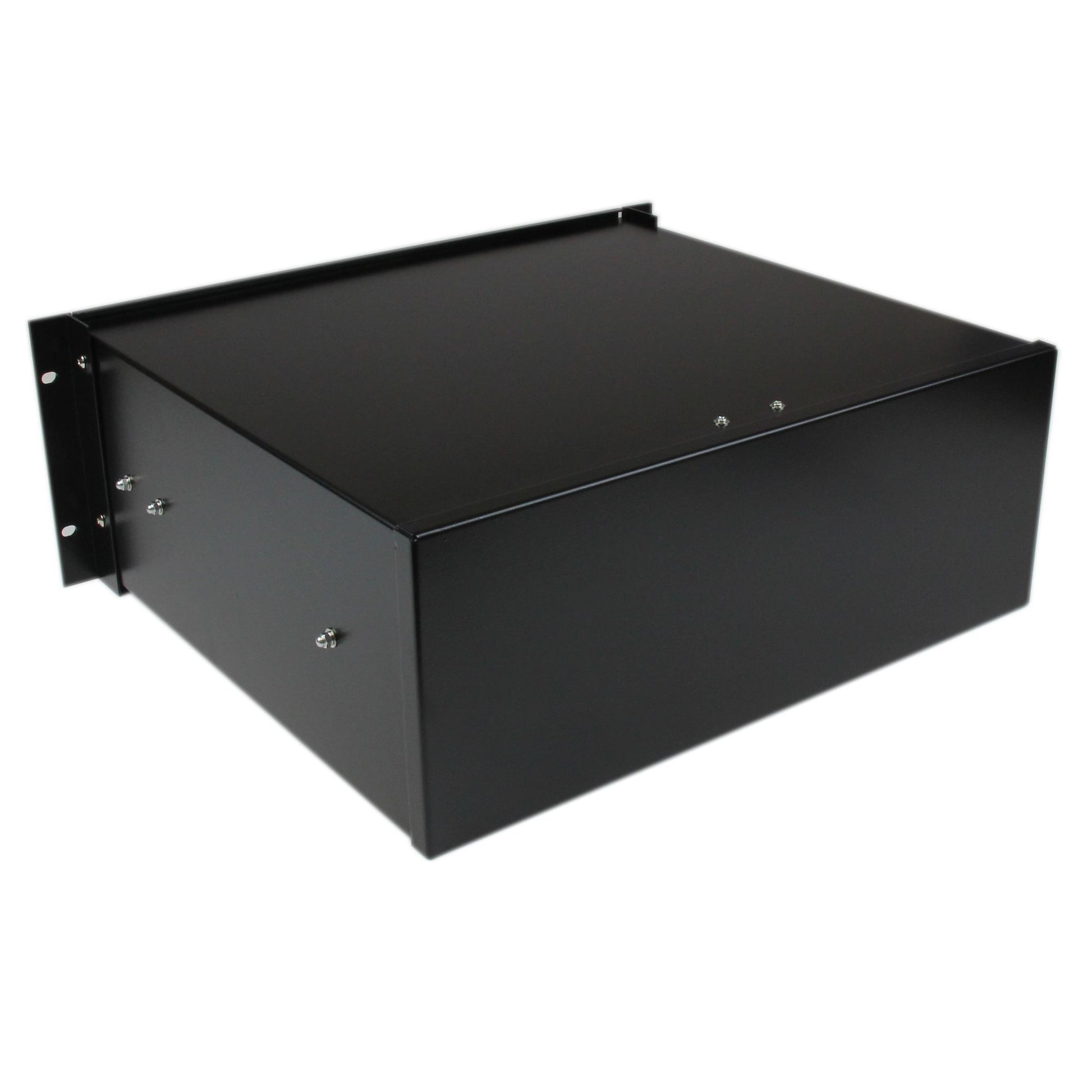

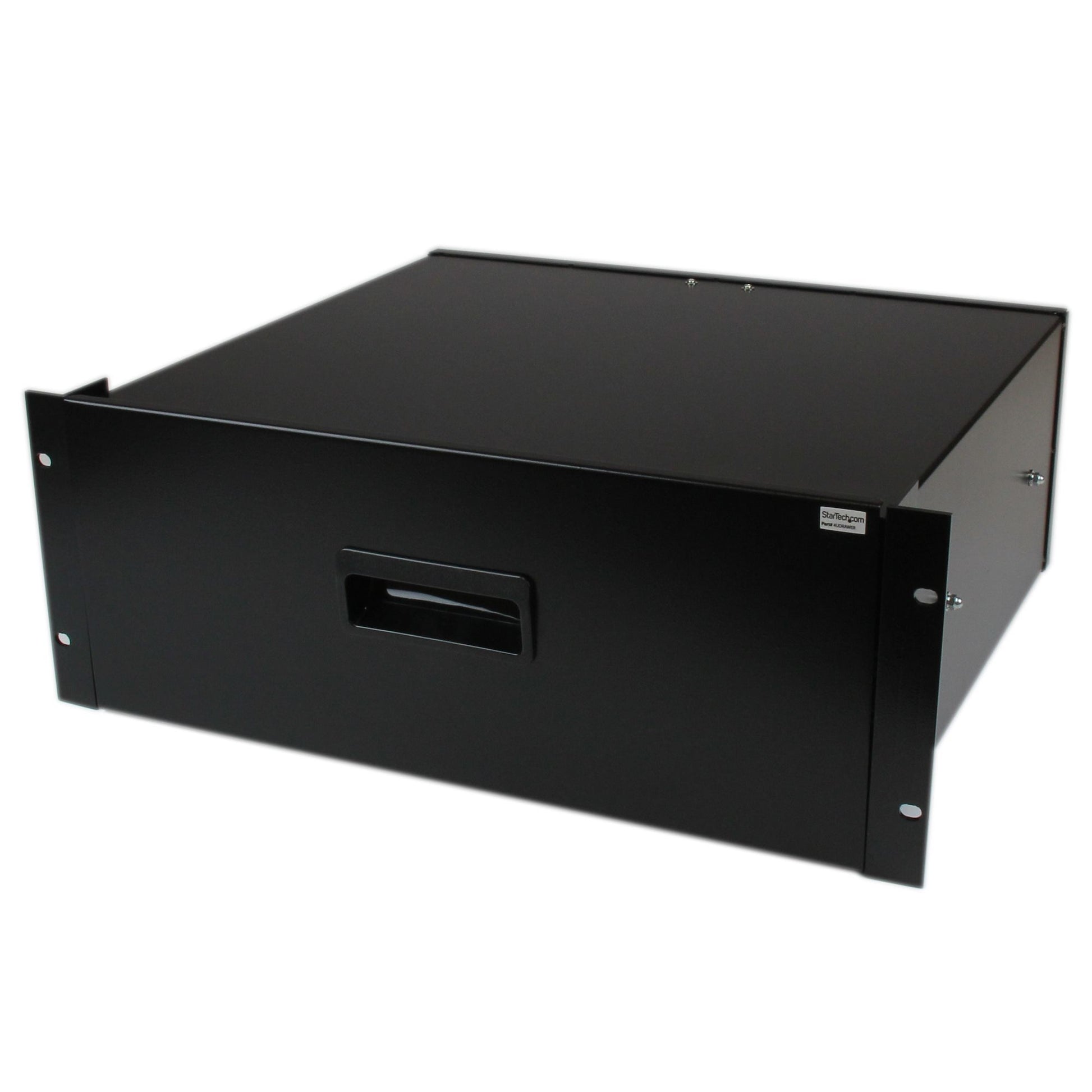

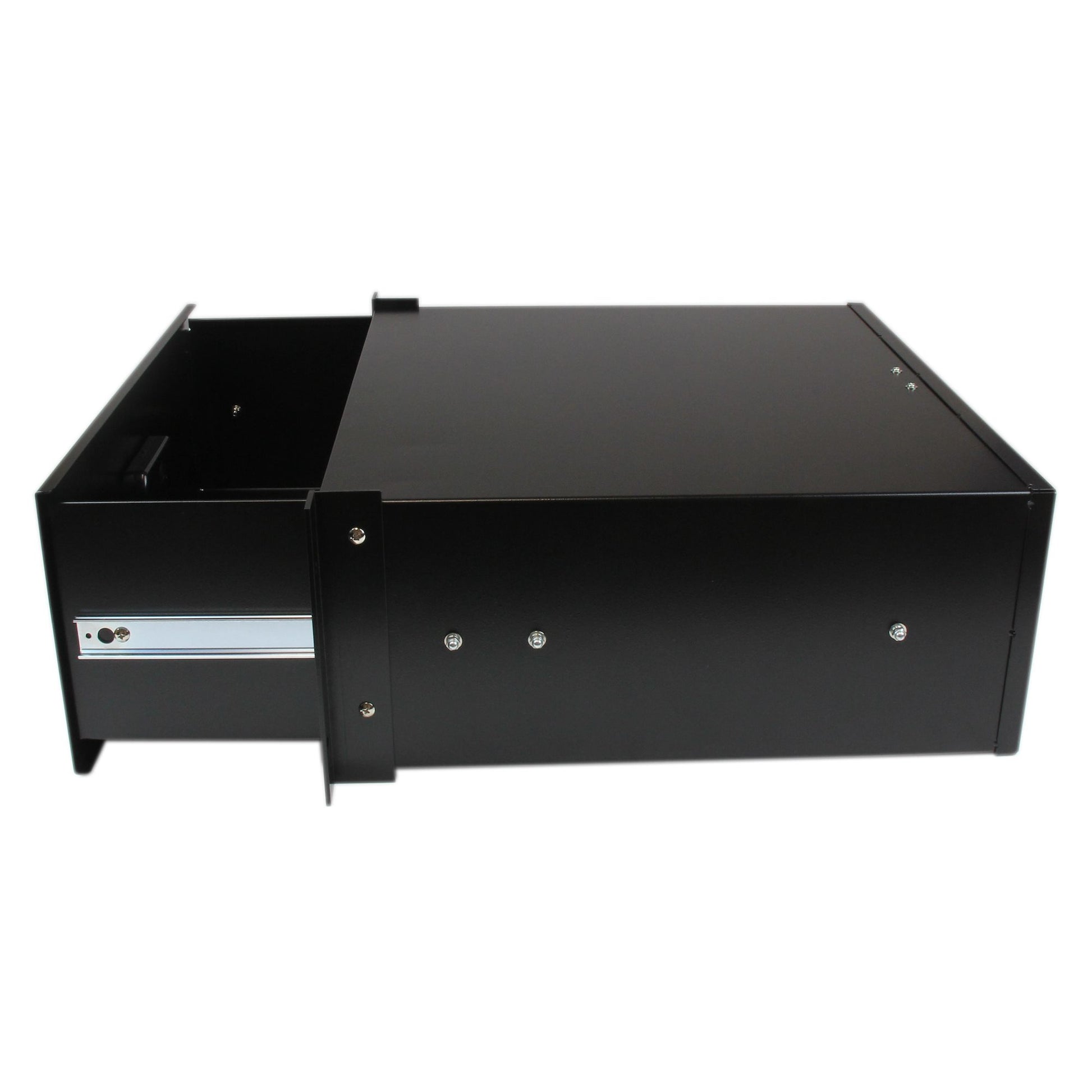

StarTech.com 4U Rack Mount Drawer - 55 lb (25 kg) - 4U Steel Storage Rack Drawer for

Build a tidy install with the StarTech.com 4U Rack Mount Drawer — dimensions and mounting details are in the spec table.

Add a rugged 4U storage drawer to any standard 19in server rack or cabinet

The 4UDRAWER 4U Black Steel Storage Drawer for 19in Racks and Cabinets helps to efficiently organize your mission critical computer hardware and accessories with the capacity to hold up to 25 kg (55 lbs).

Perfect for storing tools, software and documents for easy access, this sliding rack storage drawer is a cost-effective solution that provides tidy, out-of-the-way storage. Universally mountable in any standard front mount 19" server rack or cabinet, the rack drawer is constructed of sturdy, cold-rolled steel for long-term durability.

Backed by a StarTech.com Lifetime warranty.

Specifications

Features
Type	Rack shelf
Rack capacity	4U
Maximum weight capacity	25 kg
Product colour	Black
Harmonized System (HS) code	85389099
Housing material	Steel
Weight & dimensions
Package width	442 mm
Package height	222 mm
Package depth	524 mm
Package weight	9.75 kg
Width	402 mm
Weight	8.8 kg
Height	146 mm
Depth	352 mm
Packaging data
Quantity per pack	1 pc(s)
Technical details
Compliance certificates	RoHS
Logistics data
Master (outer) case width	567 mm
Master (outer) case length	459 mm
Master (outer) case height	245 mm
Products per master (outer) case	1 pc(s)

Downloads

• Datasheet (PDF)

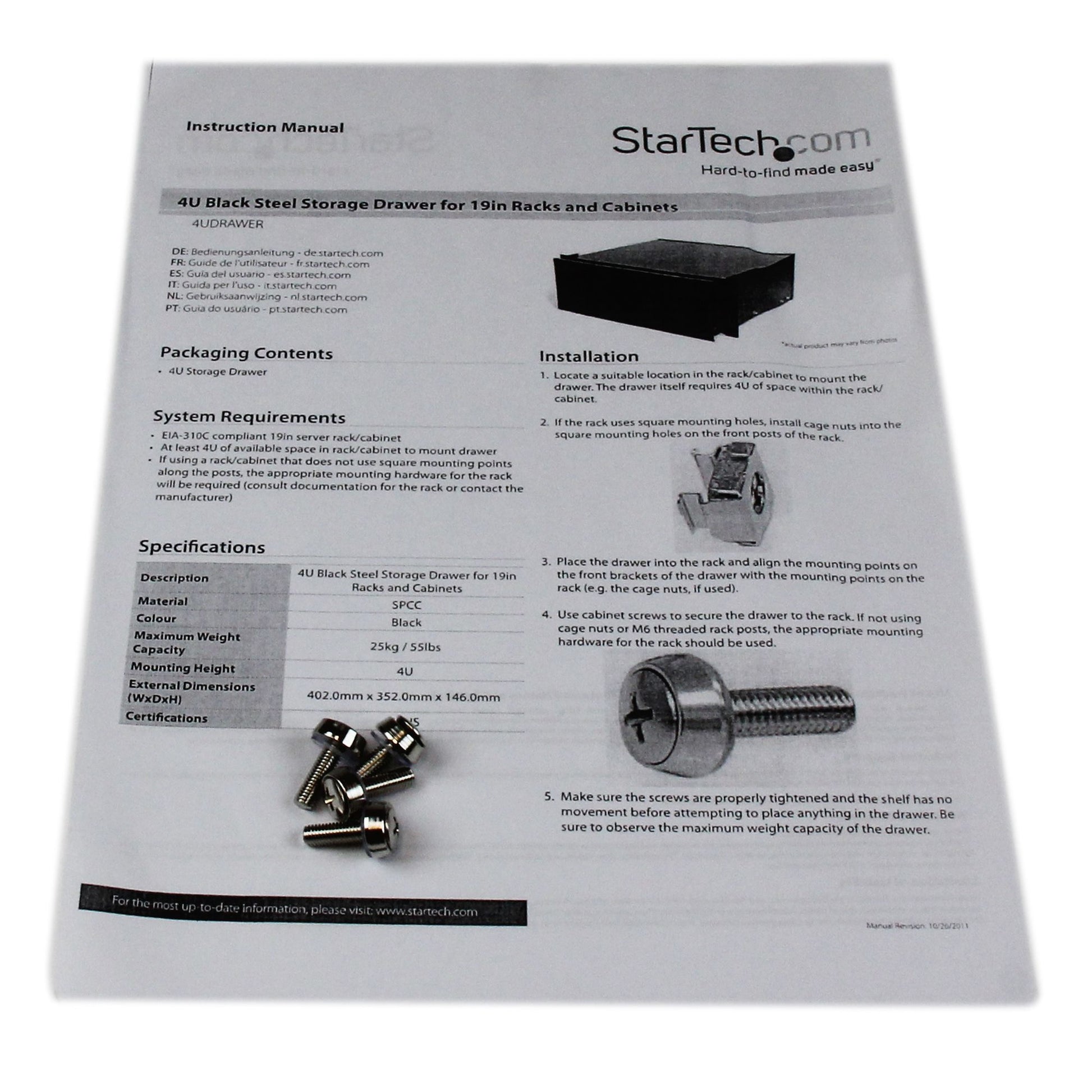

• Product manual / brochure (PDF)
