StarTech.com 4U 19in Steel Vertical Wall Mount Equipment Rack Bracket - TAA

£64.98 GBP

Sale Sold out

Taxes included.

Condition New

Build a tidy install with the StarTech.com 4U 19in Steel Vertical — dimensions and mounting details are in the spec table.

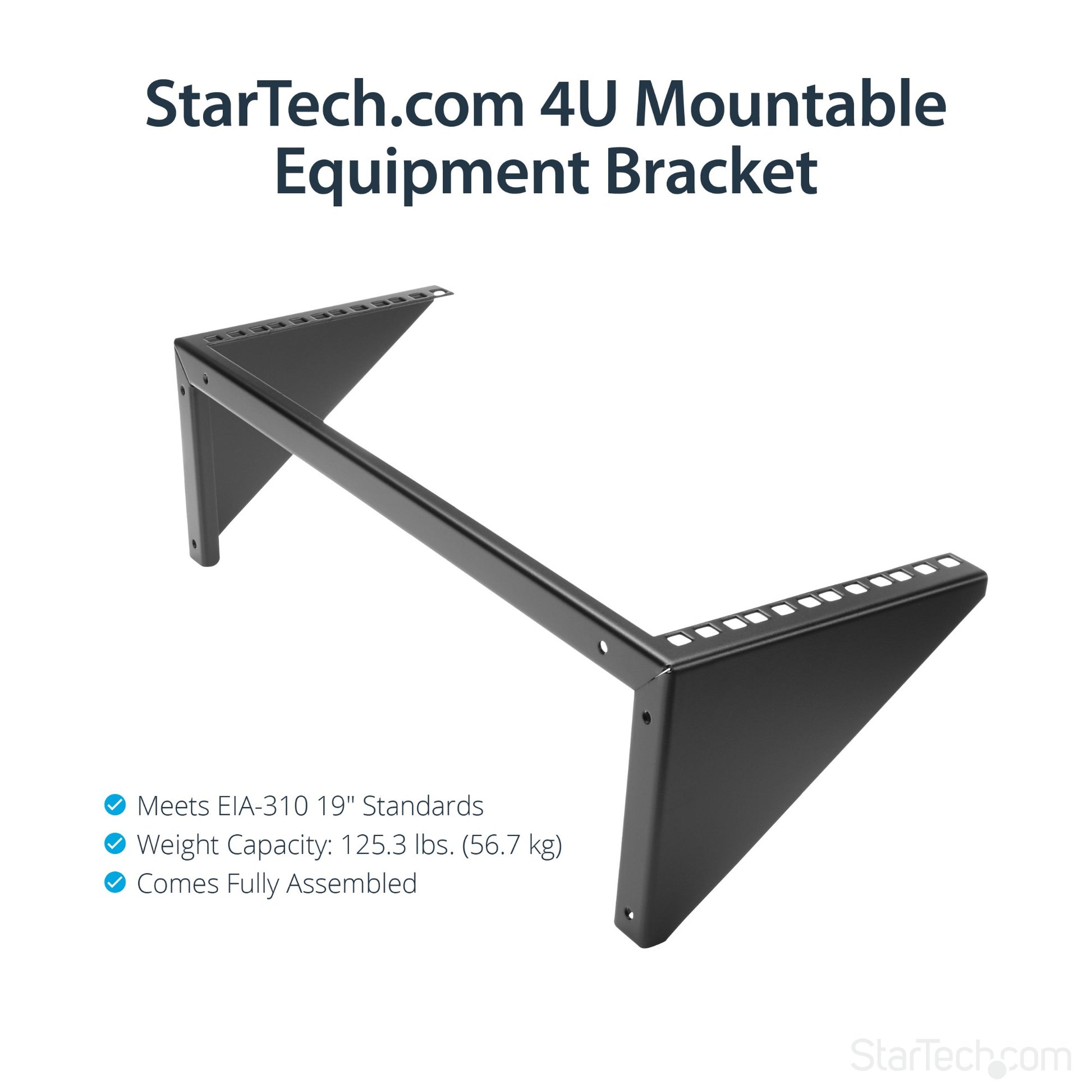

Mount server, network or telecommunications devices vertically with this 4U wall-mountable rack

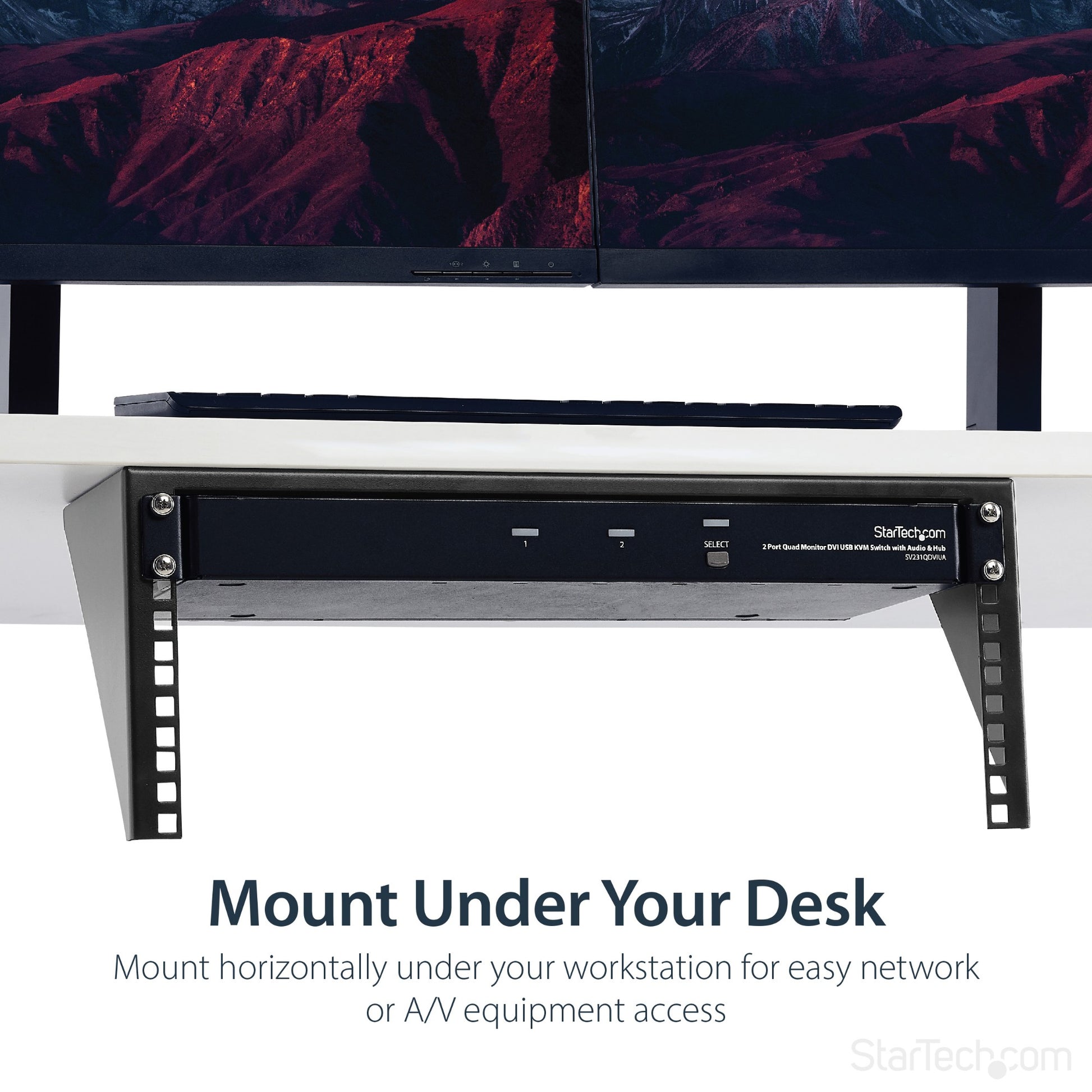

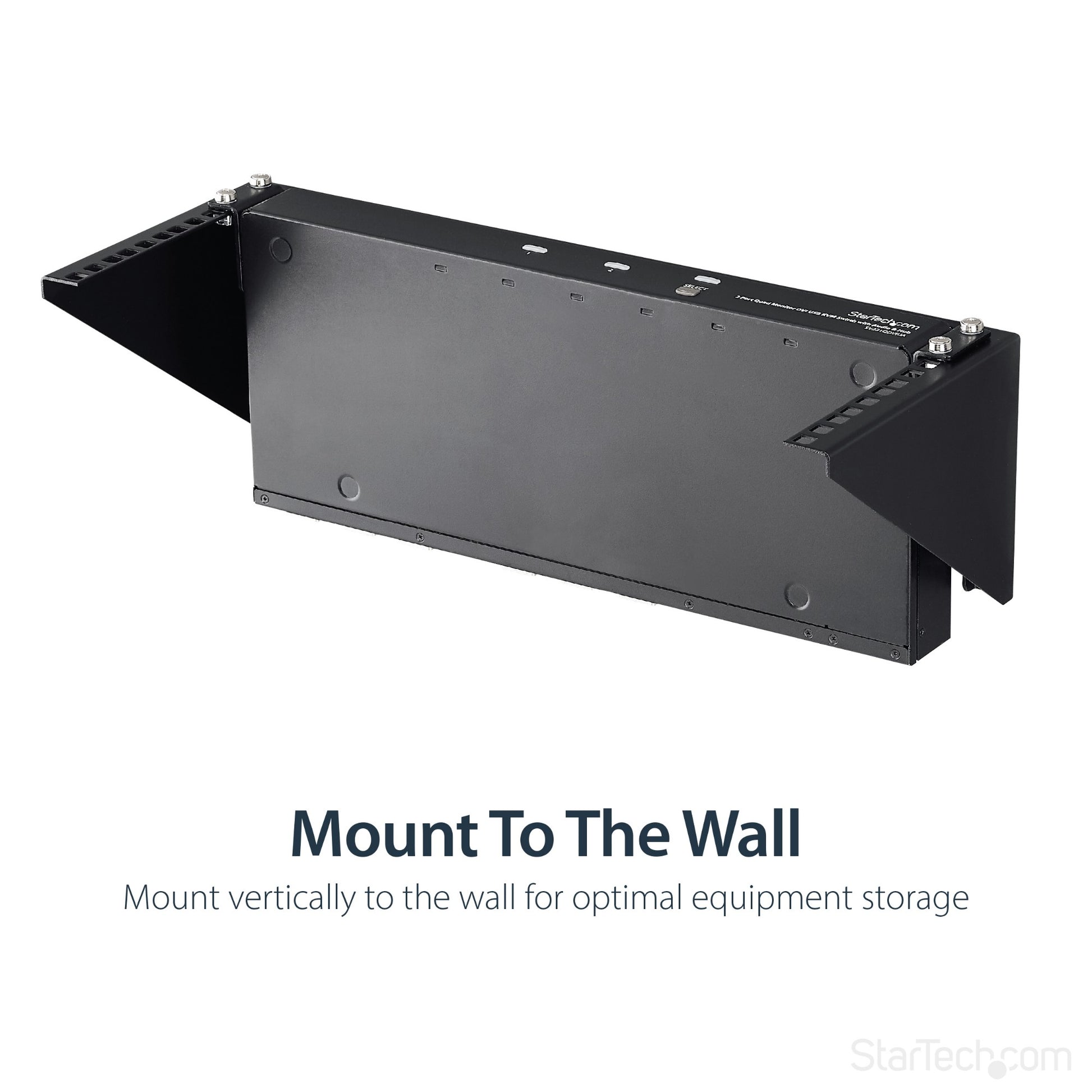

The RK419WALLV 4U Wallmount Rack Bracket offers a versatile storage solution, allowing equipment (Network devices, power strips, patch panels) to be mounted vertically (flush with the wall) to save space. Alternatively, the 4U bracket can be installed under a desk for horizontal installation, making it easy to access installed equipment directly from your workspace. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.

Perfect for SoHo (small office, home office) environments, the wallmount bracket offers space-saving installation for environments lacking the footprint space for a full size server equipment rack.

Suitable for mounting on virtually any wall/ceiling surface (e.g. drywall), the bracket mounting holes (used to mount to a wall or the desk underside) are positioned at exactly 16in apart, matching standard construction framework.

Constructed to EIA-310 19in rack standards, the wallmount bracket features a sturdy steel design and is backed by StarTech.com's Lifetime Warranty.

Need more storage space? StarTech.com also offers a 1U 19in Wallmount Bracket, a 2U 19in Wallmount Bracket and a 3U 19in Wallmount Bracket.

Specifications

Features
Size (imperial)	48.3 cm (19")
Number of fans	0 fan(s)
Frame type	Open
Product design	2-post
Rack capacity	4U
Castor wheels	No
Adjustable mounting rails	No
Cable management	No
Mounting hole shape	Square
Back door key lock	No
Front door key lock	No
Side panel key lock	No
Type	Wall mounted rack
Maximum weight capacity	56.7 kg
Material	Steel
Product colour	Black
Certification	TAA, CE, UL, REACH
Weight & dimensions
Package depth	219 mm
Package width	549 mm
Package height	179 mm
Package weight	1.69 kg

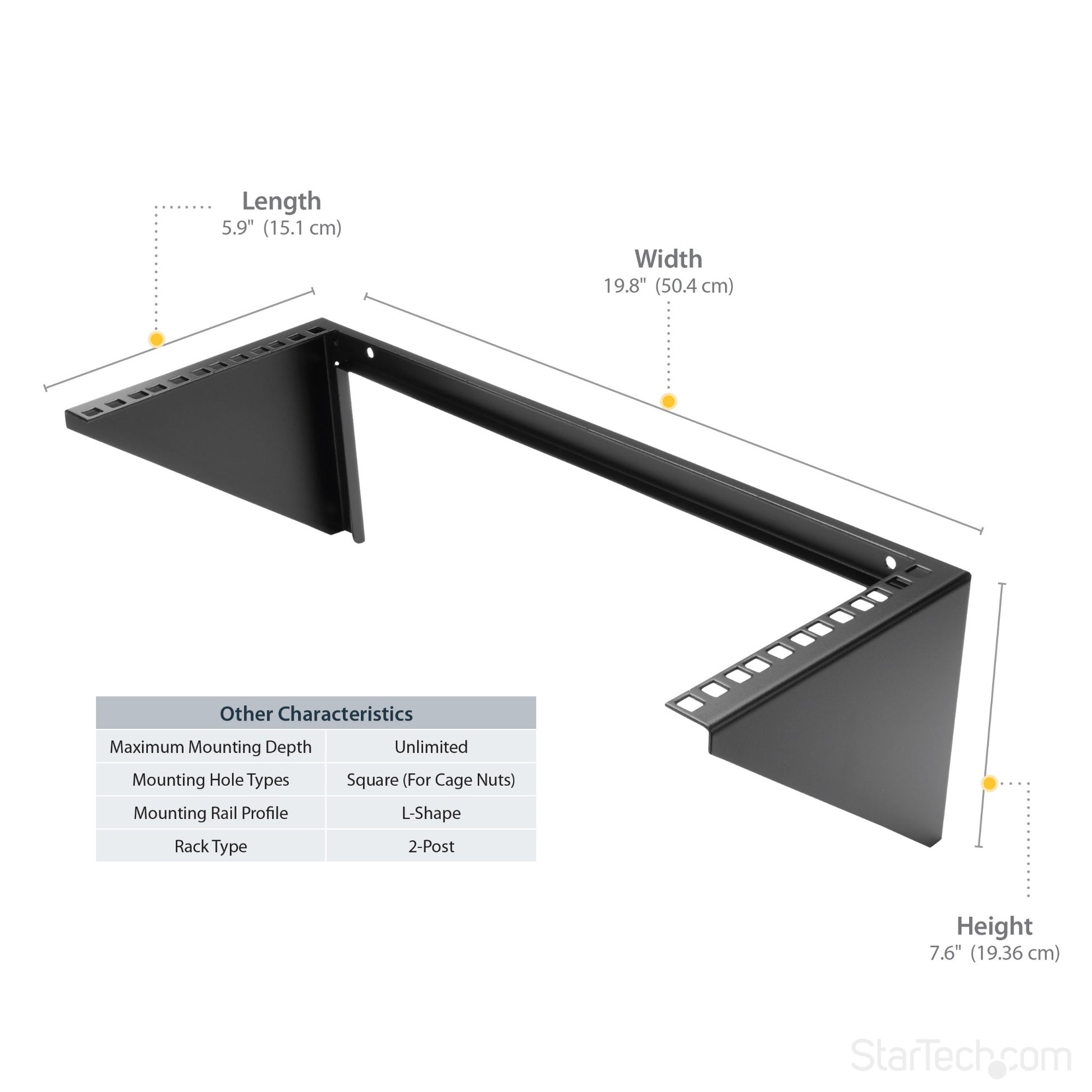

Inner width	45 cm
Width	504 mm
Depth	193 mm
Height	151 mm
Weight	1.1 kg

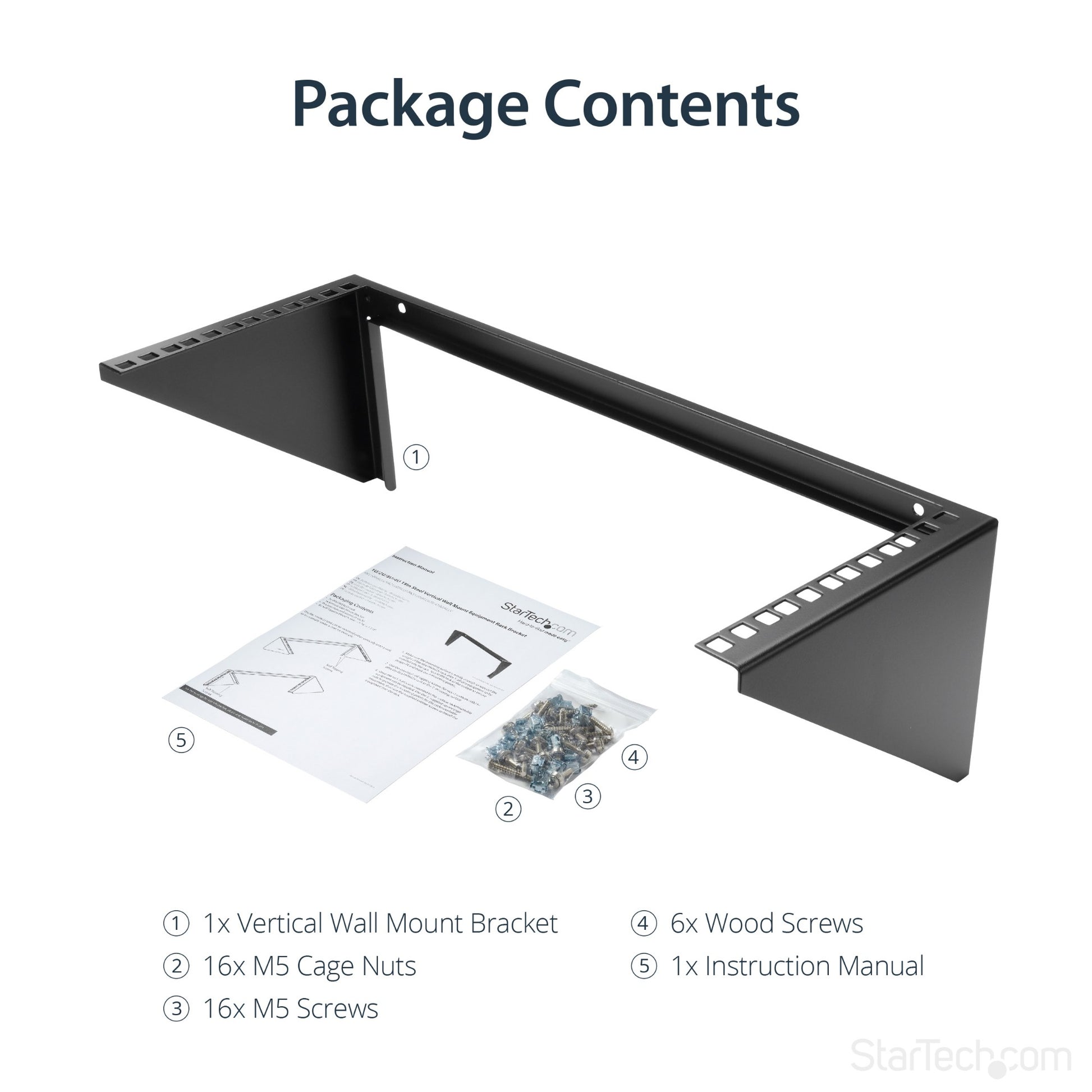

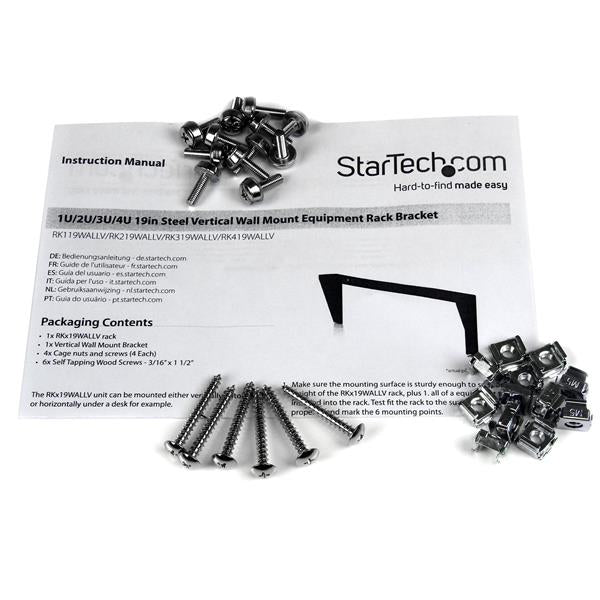

Packaging content
Wall mounting kit	Yes
Mounting kit	Yes
Nuts included	Yes
Number of nuts	16
Screws included	Yes
Number of screws	22
Technical details
Compliance industry standards	EIA/ECA-310-E
Harmonized System (HS) code	85381000
Compliance certificates	RoHS
Logistics data
Master (outer) case width	212 mm
Master (outer) case length	520 mm
Master (outer) case height	174 mm
Products per master (outer) case	1 pc(s)
