StarTech.com 4K HDMI KVM Extender over Fiber - HDMI Video & USB Remote KVM KVM Switch

Control multiple machines from one keyboard, monitor and mouse with the StarTech.com 4K HDMI.

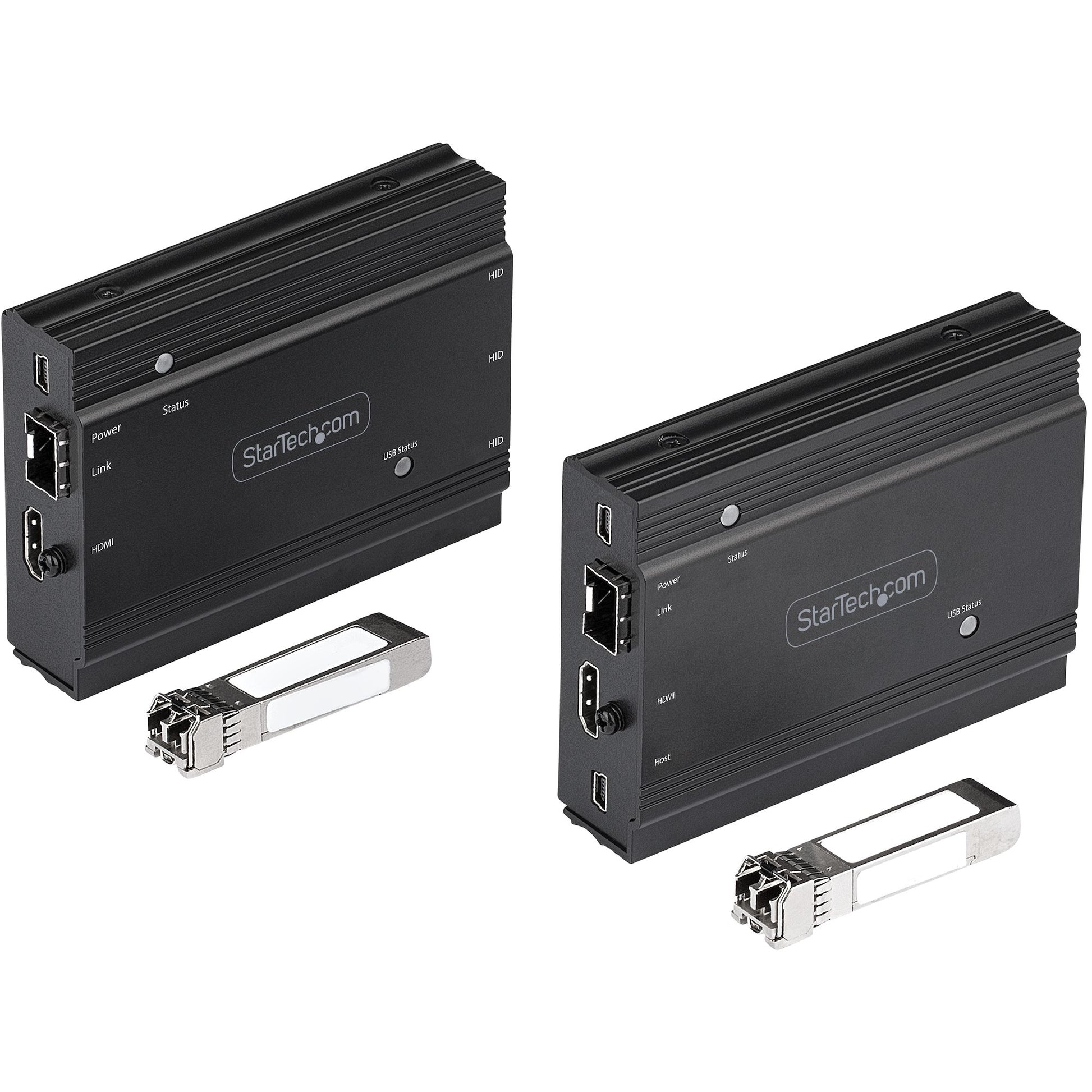

HDMI KVM Extender Kit | 4K 60Hz | 4:4:4 Chroma Sampling | 2x LC SFP+ (MM) Included

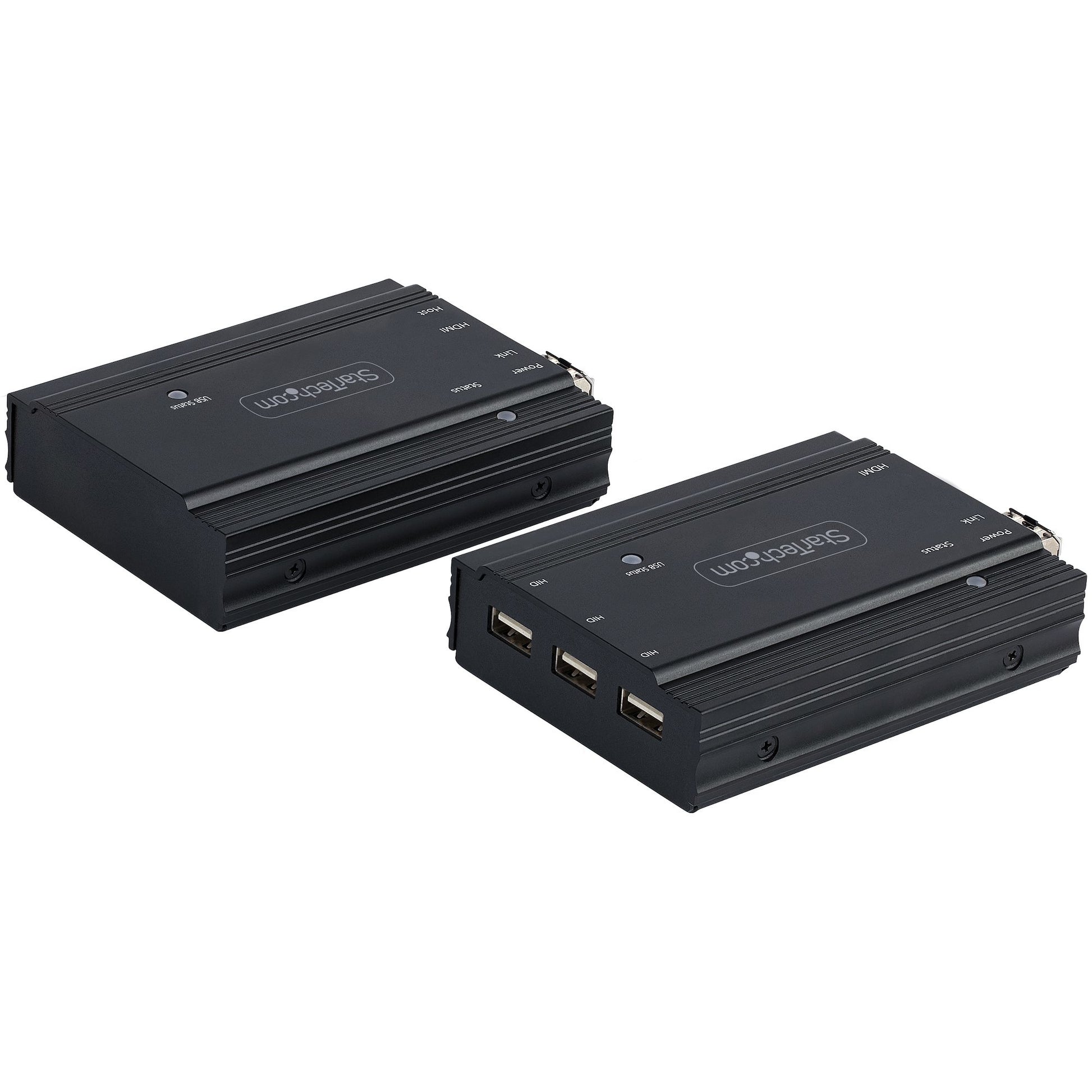

This HDMI KVM extender kit lets you use a keyboard, mouse and monitor to remotely control any computer over a point-to-point fiber connection. When combined with a KVM switch, the KVM console extender can be used with multiple computers. The extender features three USB HID ports that enable you to connect HID devices, like your keyboard and mouse.

Supports UHD 4K 60Hz

The HDMI KVM extender delivers up to 4K 60Hz UHD picture quality to your remote display with support for 4:4:4 chroma sampling.

Hassle-Free Installation

The extender supports EDID pass-through, ensuring your computer can automatically configure optimal settings for your display using 10G LC multi mode fiber cabling

SV565FXHD4KU is backed by a 2-year warranty and free lifetime technical support.

Specifications

Features
Type	Transmitter & receiver
Connectivity technology	Wired
Maximum transfer distance	500 m
Rack mounting	No
Maximum digital resolution	3840 x 2160 pixels
On Screen Display (OSD)	No
Product colour	Black
Material	Metal
LED indicators	Power, Status

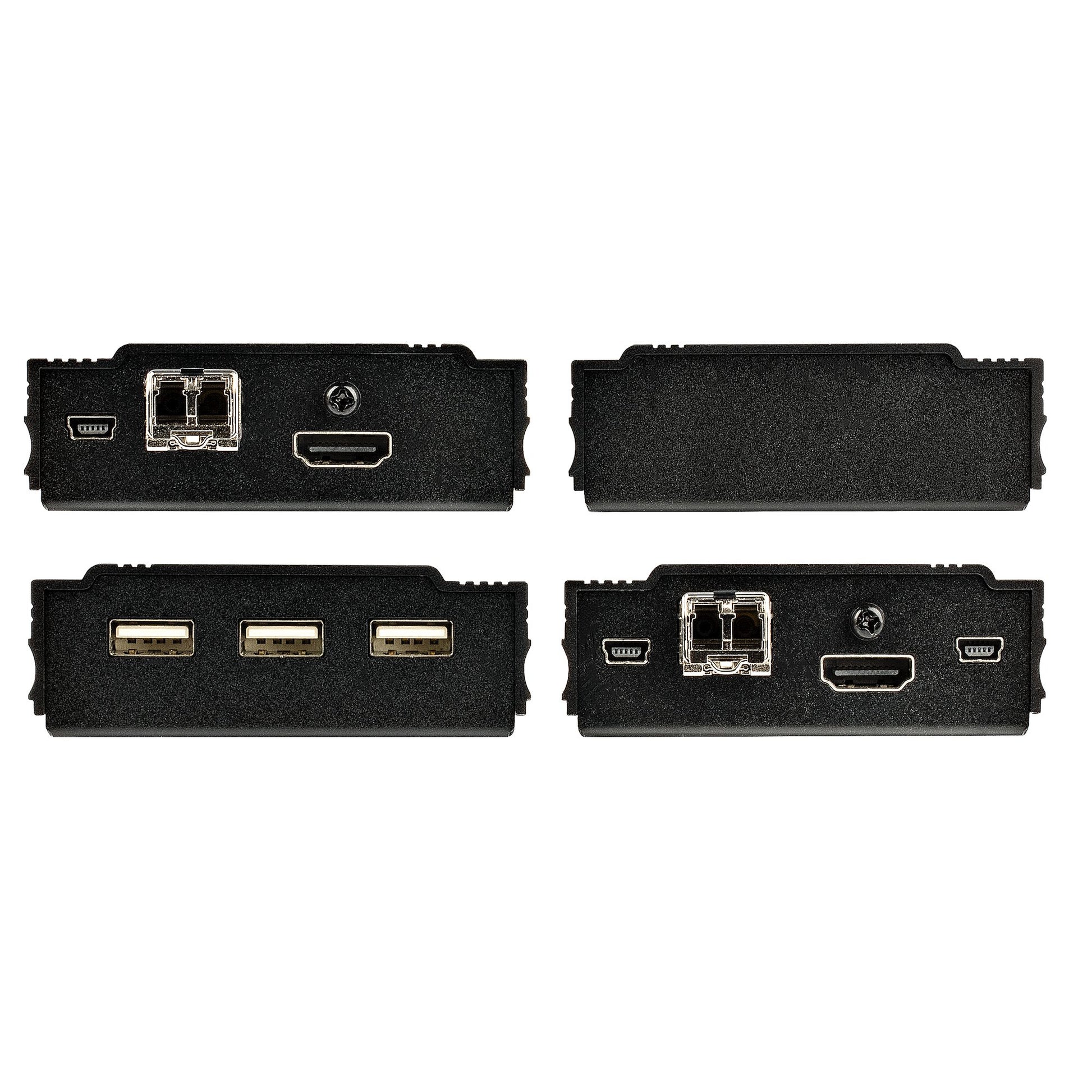

USB 1.1 ports quantity	3
Maximum refresh rate	60 Hz
Transmitter
Transmitter video port type	HDMI
Number of displays supported	1
Receiver
Receiver local video port type	HDMI
Power
AC input voltage	100 - 240 V
AC adapter output voltage	5 V
AC adapter output current	2 A
Power consumption (transmitter) (max)	10 W
Power consumption (receiver) (max)	10 W
Input current	0.3 A
Weight & dimensions
Transmitter width	7.5 cm
Transmitter depth	10 cm
Transmitter height	2.8 cm
Transmitter weight	450 g
Receiver width	7.5 cm
Receiver depth	10 cm
Receiver height	2.8 cm
Receiver weight	450 g
Package width	180 mm
Package depth	310 mm
Package height	74 mm
Package weight	140 g

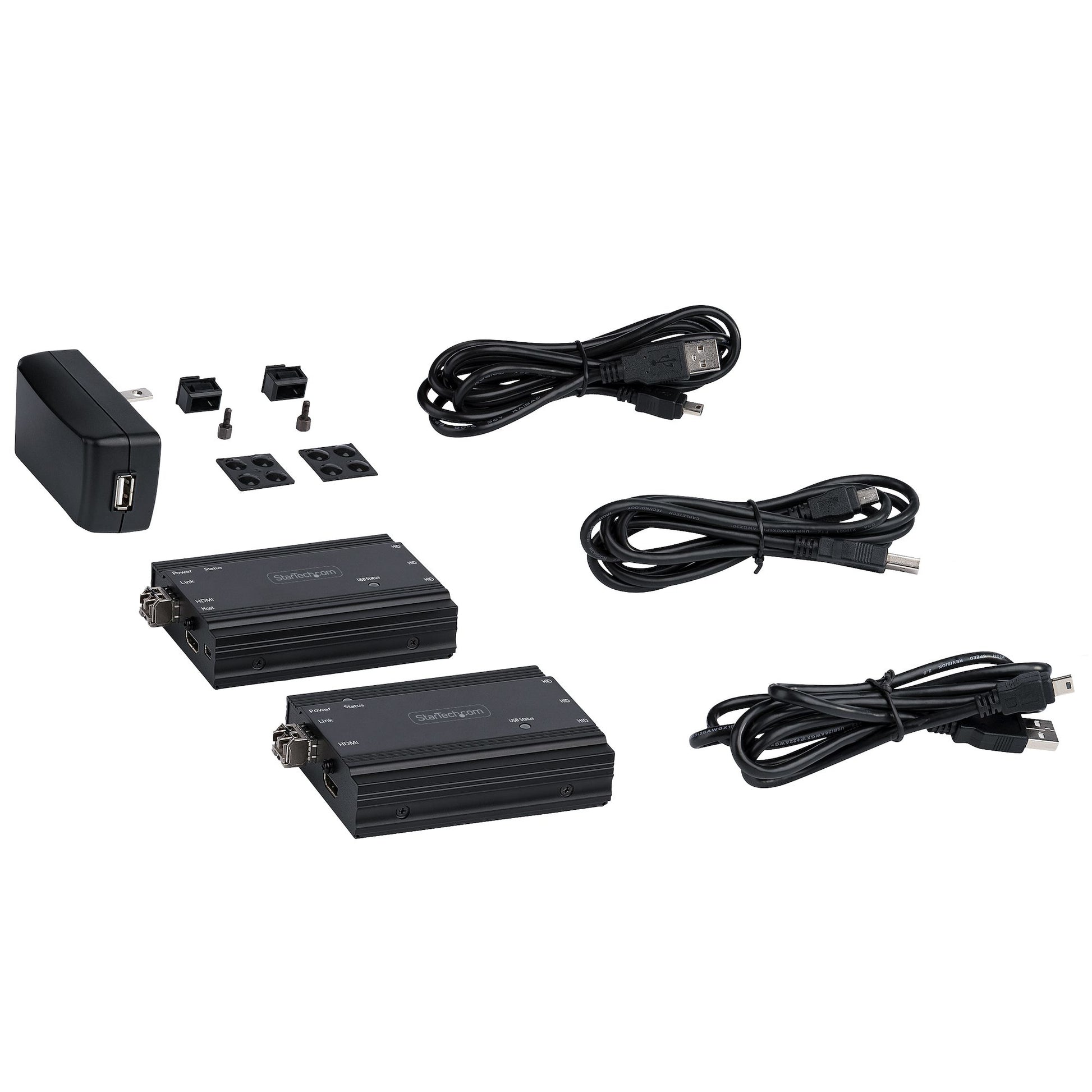

Packaging data
AC adapter included	Yes
Cables included	Mini-USB
Quick installation guide	Yes
Technical details
Harmonized System (HS) code	84733080
Compliance certificates	CE, RoHS
Weight	500 g
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Logistics data
Master (outer) case width	405 mm
Master (outer) case length	330 mm
Master (outer) case height	265 mm
Products per master (outer) case	6 pc(s)

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
