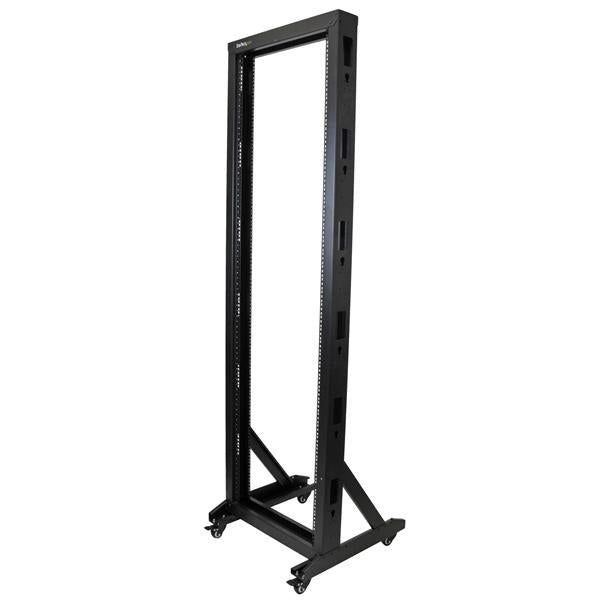

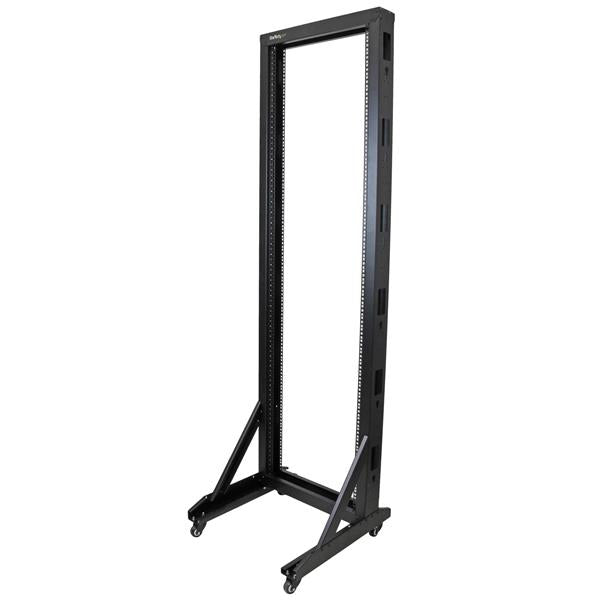

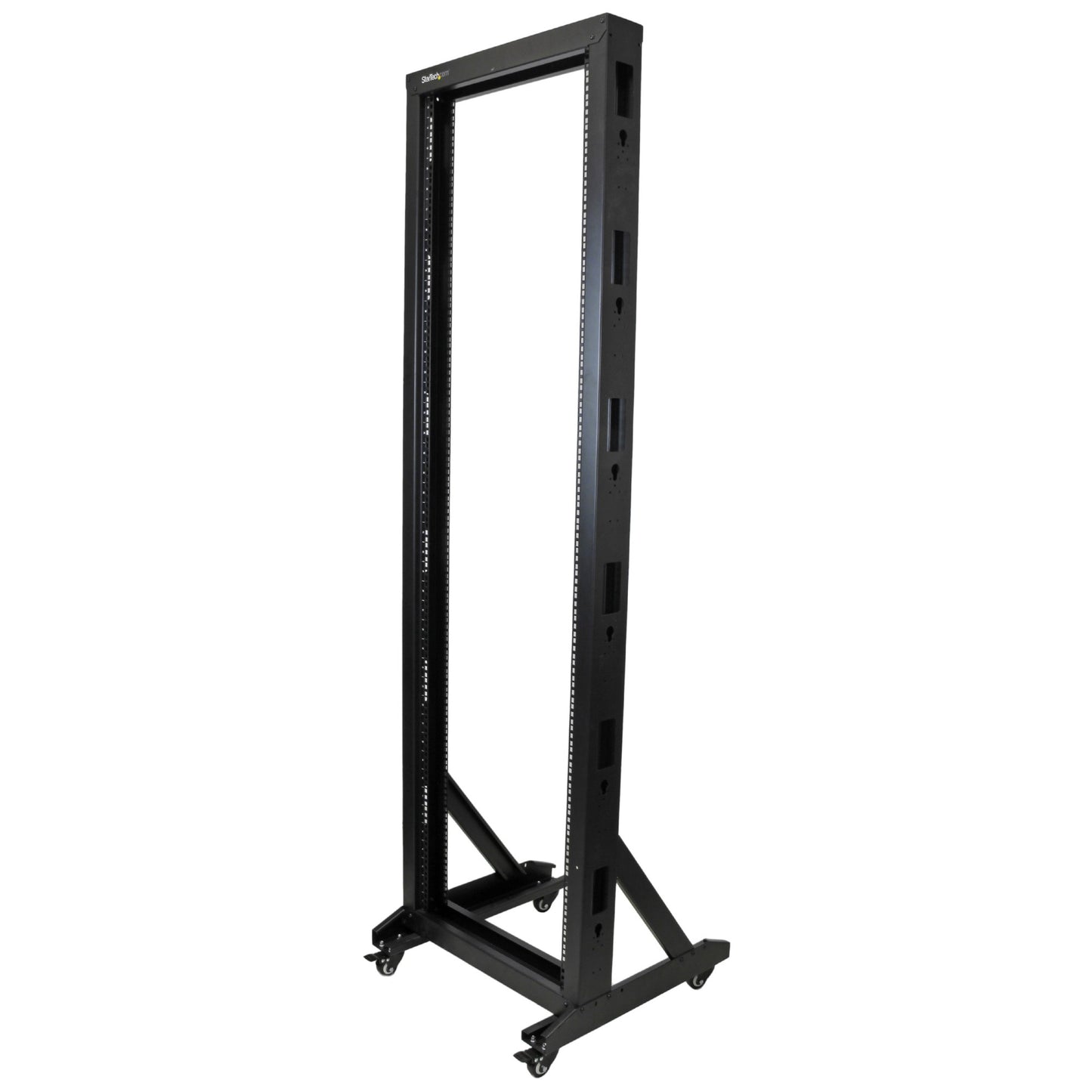

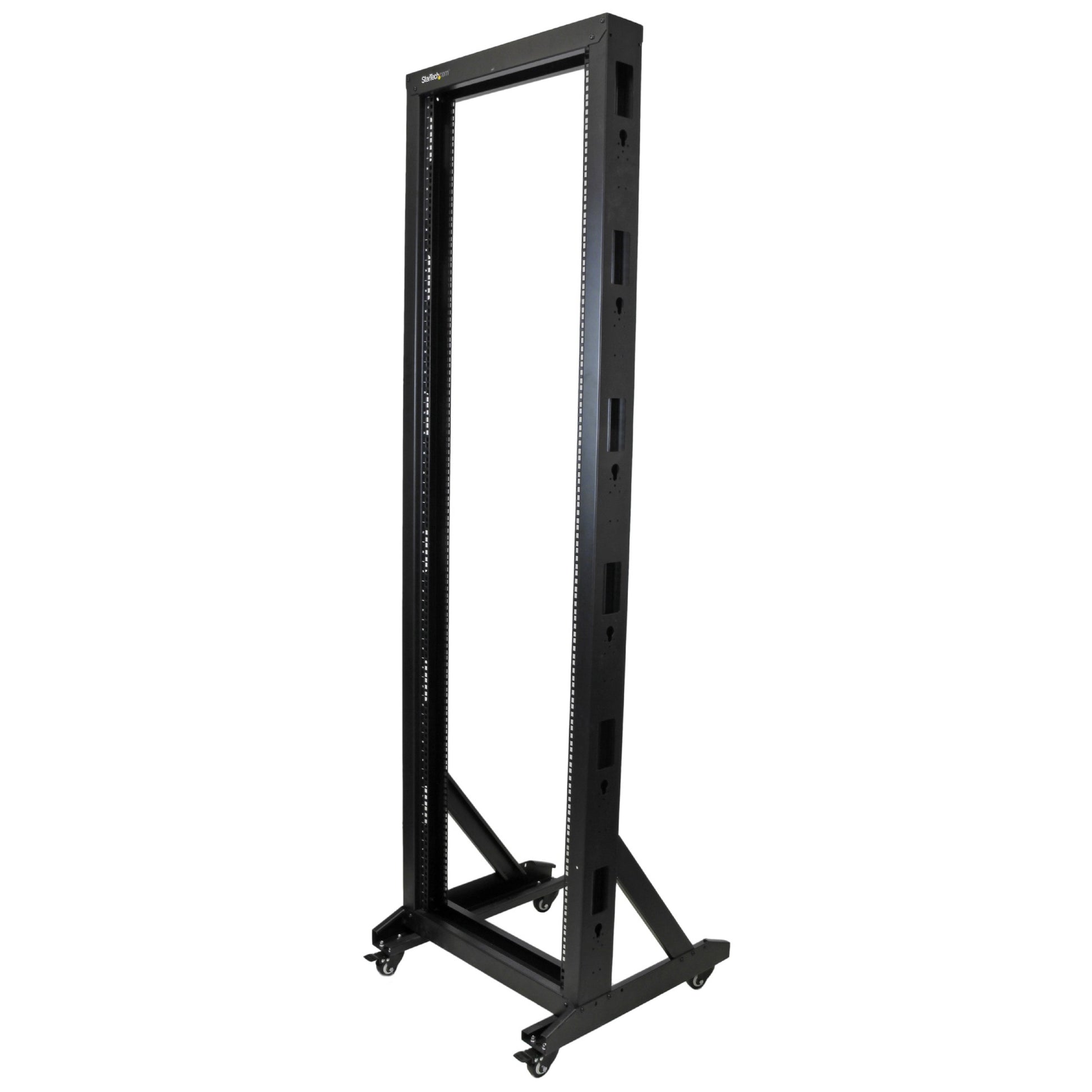

StarTech.com 42U 2-Post Open Frame Server Rack, 19in Rolling IT Rack with 661lb

Build a tidy install with the StarTech.com 42U 2-Post Open Frame — dimensions and mounting details are in the spec table.

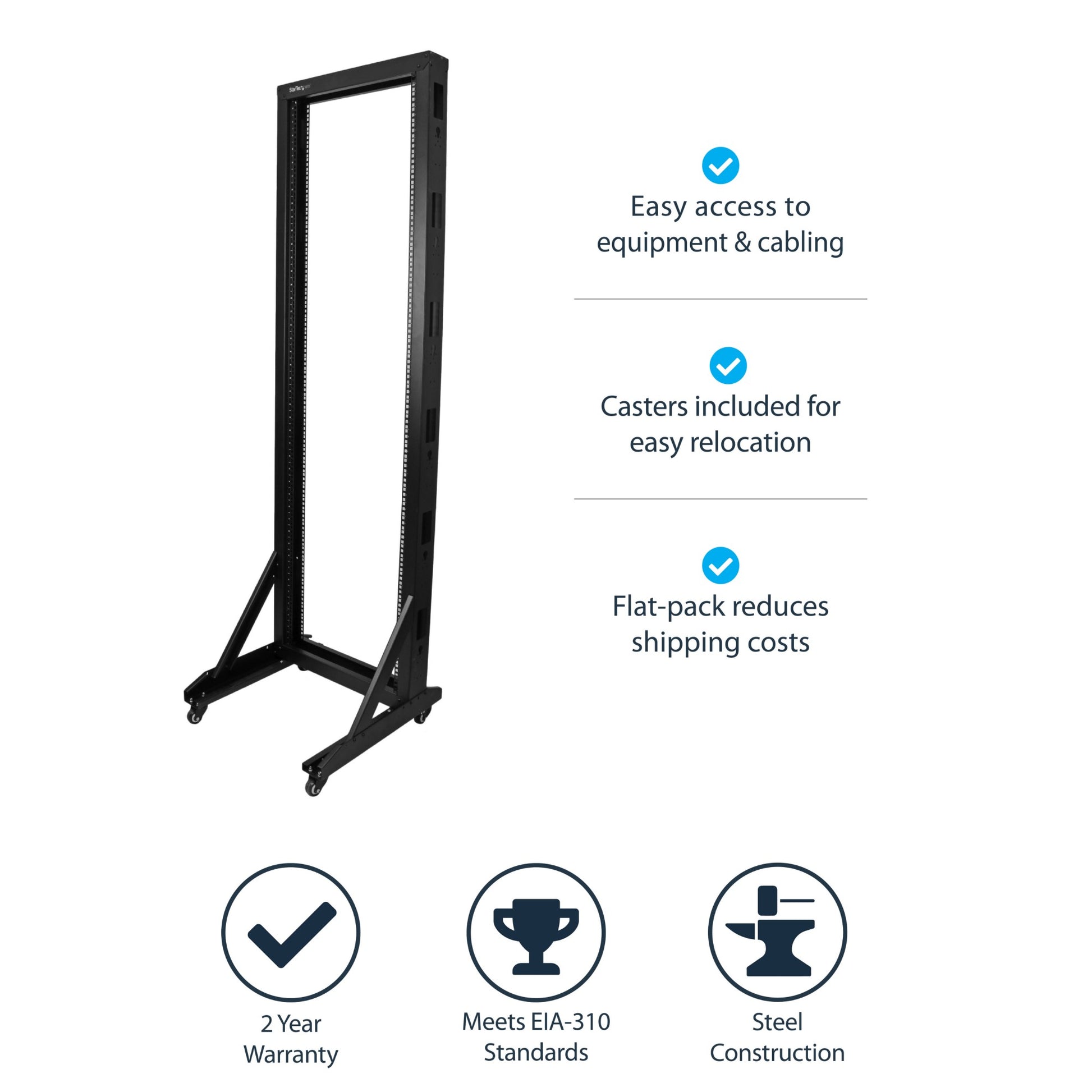

Store your equipment in this sturdy steel rack with casters for mobility

Store your server, network and telecommunications equipment in this sturdy 42U rack. With a 2-post design, the rack saves floor space and its dual-post, open-depth design makes it broadly compatible with longer equipment.

Maximum portability

The 2-post rack features four swiveling casters, so you can easily move it around in your server room, office or studio. It’s easy to reposition or relocate the rack in order to connect your rack-mounted equipment to other devices throughout your workspace.

High durability

The durable dual-post server rack is made of heavy-gauge steel, instead of aluminum, to ensure a stable installation platform. The rack supports a static loading capacity of up to 600 lb. (272 kg), and it’s compliant with several industry rack standards (EIA/ECA-310, IEC 60297, DIN 41494), to provide a stable platform that eliminates the need for concrete mounting kits.

Wide compatibility

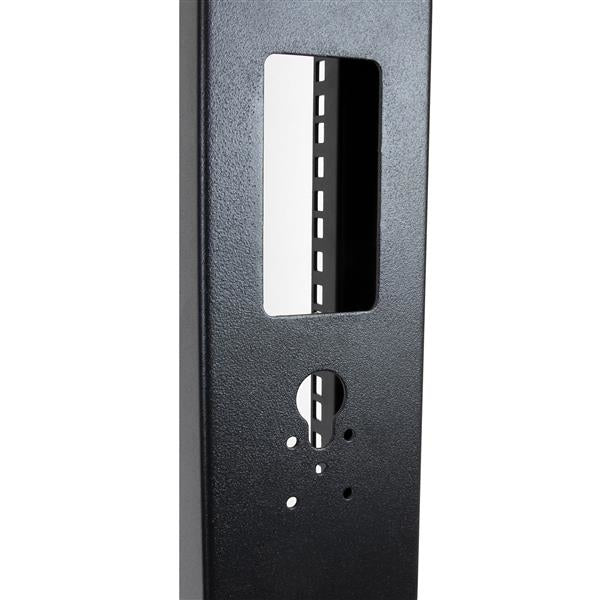

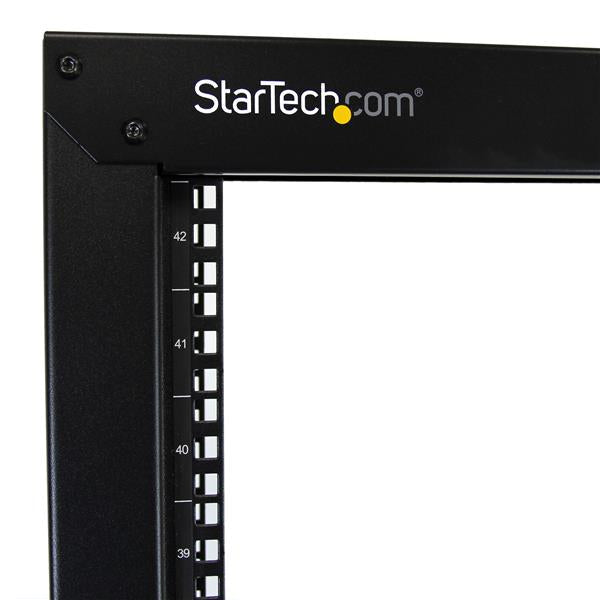

You can easily mount your ANSI/EIA RS-310-D compliant network equipment to the rack without using additional hardware. It features square mounting holes on the frame and a universal design that's compatible with most rack equipment.

The 2POSTRACK42 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Specifications

Weight & dimensions
Package depth	184 mm
Package width	2033 mm
Package height	219 mm
Package weight	29.9 kg

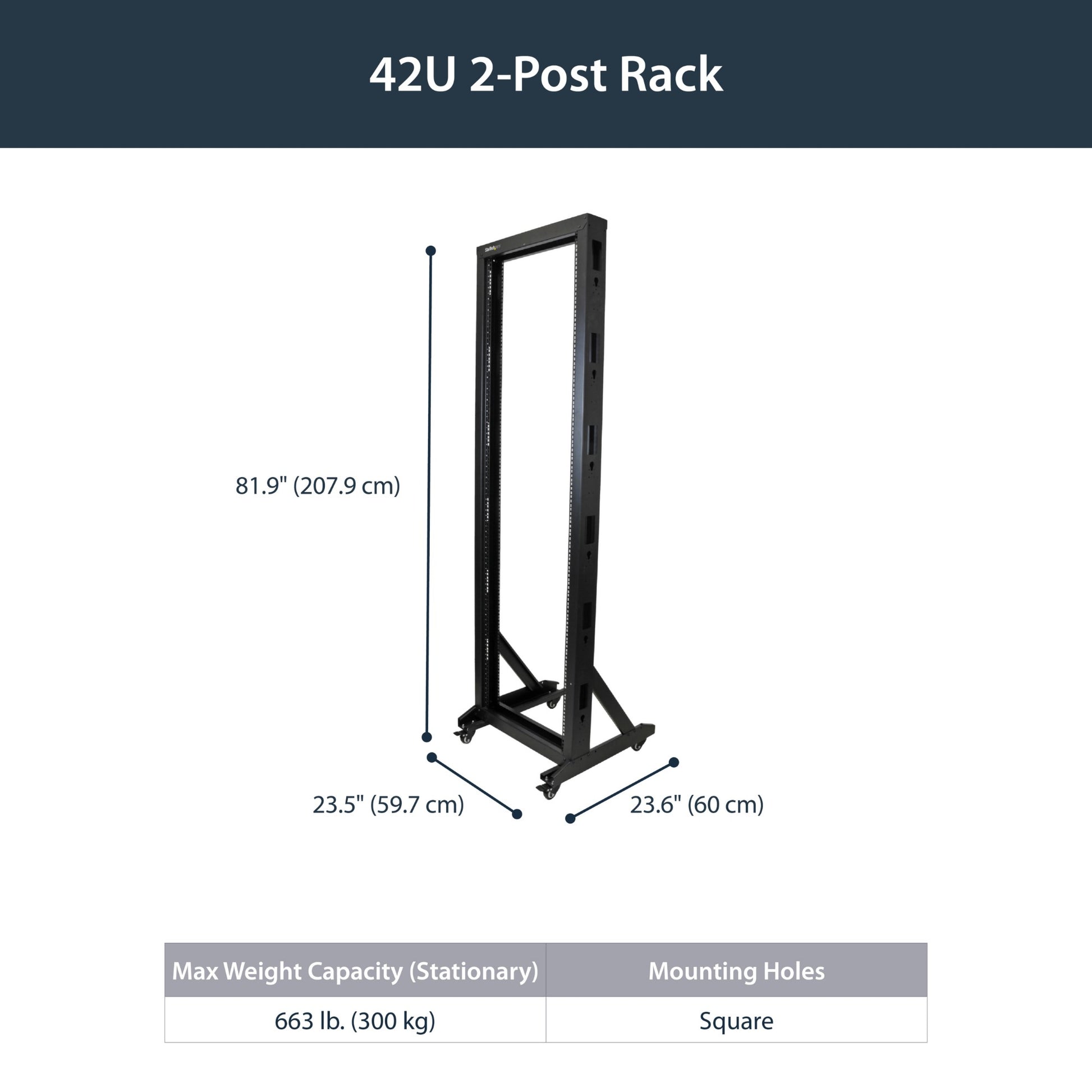

Width	597 mm
Depth	600 mm
Height	2008 mm
Weight	22.5 kg
Maximum weight capacity	300 kg

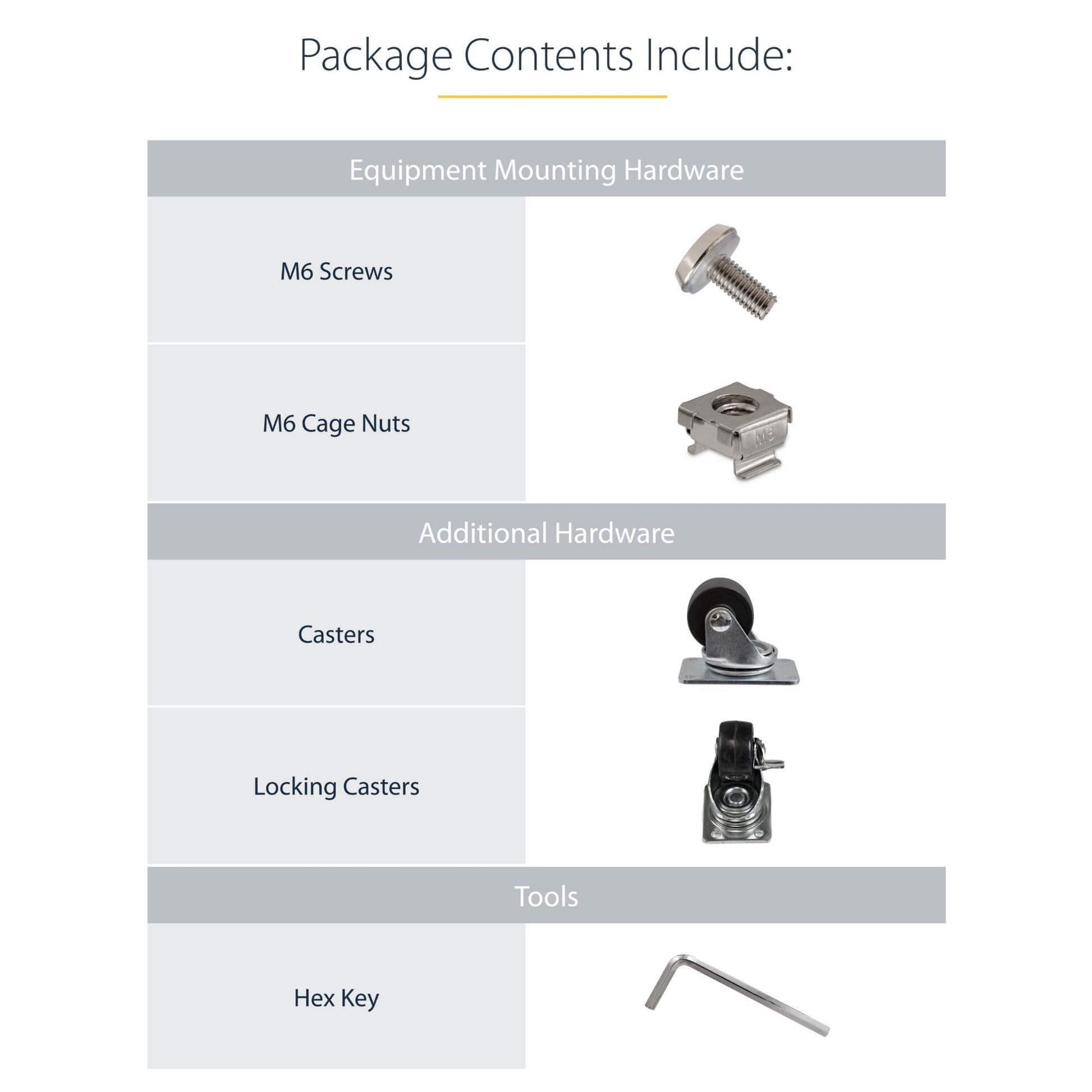

Packaging content
Quick installation guide	Yes
Mounting kit	Yes
Nuts included	Yes
Number of nuts	58
Screws included	Yes
Number of screws	46
Features
Number of fans	0 fan(s)
Frame type	Open
Product design	2-post
Rack capacity	42U
Castor wheels	Yes
Adjustable mounting rails	No
Removable front door	No
Cable management	No
Mounting hole shape	Square
Front door key lock	No
Side panel key lock	No
Type	Freestanding rack
Material	Steel
Product colour	Black
Certification	RoHS
Technical details
Compliance industry standards	DIN41491 Part I DIN41491 Part VII EIA RS310-D GB/T3047.2-92 IEC297-2
Harmonized System (HS) code	85381000
Logistics data
Master (outer) case width	607 mm
Master (outer) case length	2088 mm
Master (outer) case height	676 mm
Products per master (outer) case	9 pc(s)
