StarTech.com 4-Post 18U Wall Mount Network Cabinet with 1U Shelf, 19" Hinged Rack

Build a tidy install with the StarTech.com 4-Post 18U Wall Mount — dimensions and mounting details are in the spec table.

IT Cabinet | 16” Deep | EIA-310 | 4 Post | Weight Cap. 200 lbs. | Lockable | Assembled

This feature-rich 18U server room rack cabinet is ideal for optimizing equipment storage in network closets edge centers and technology shops with limited space, where there is a need for mountable equipment. It features adjustable mounting rails, mesh doors and panels as well as options for active cooling.

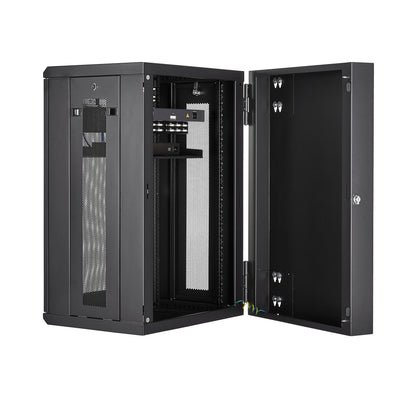

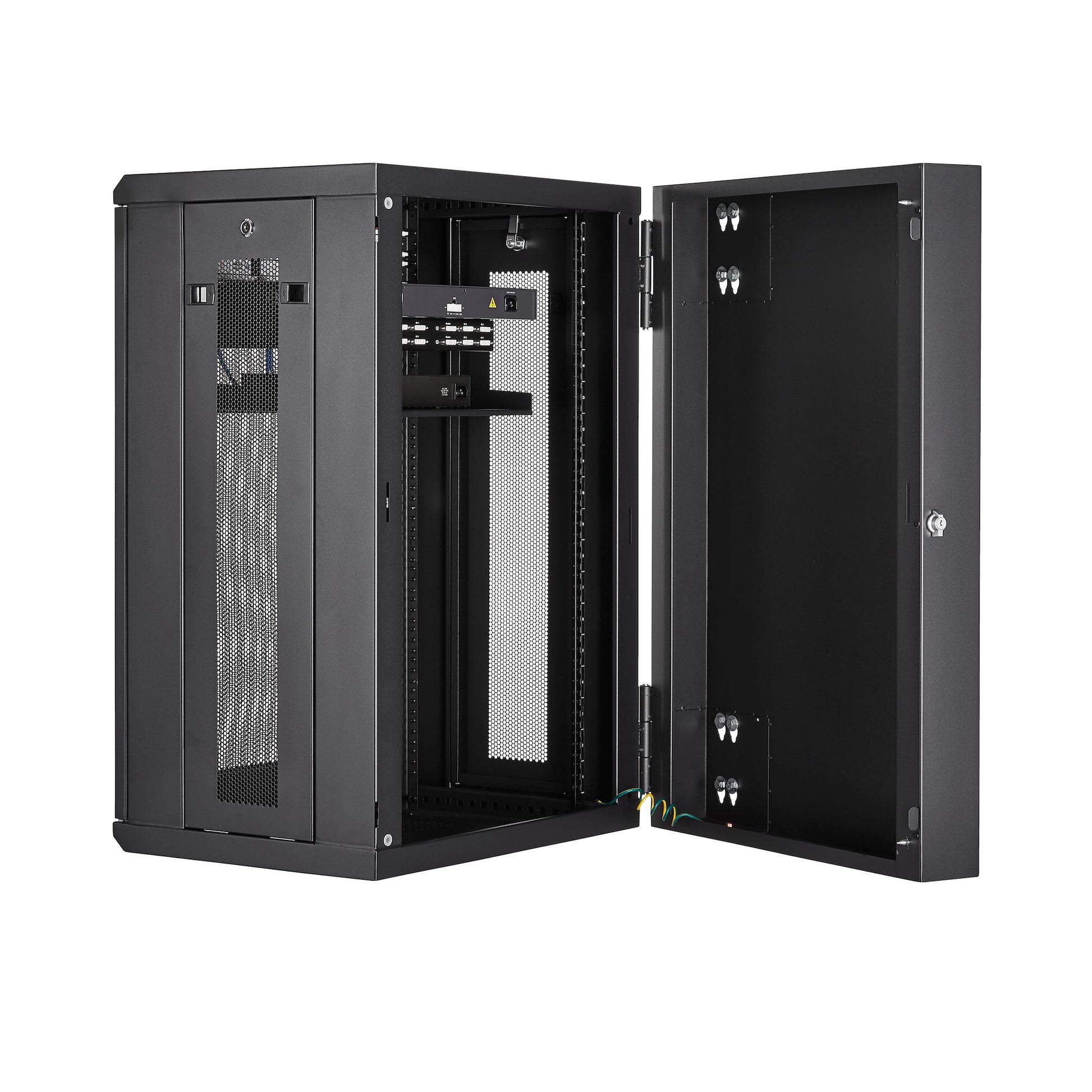

You can access your equipment and cabling from all four sides of this data center rack including the back with a rear hinge that swings the enclosure away from the wall.

Premium Equipment Protection

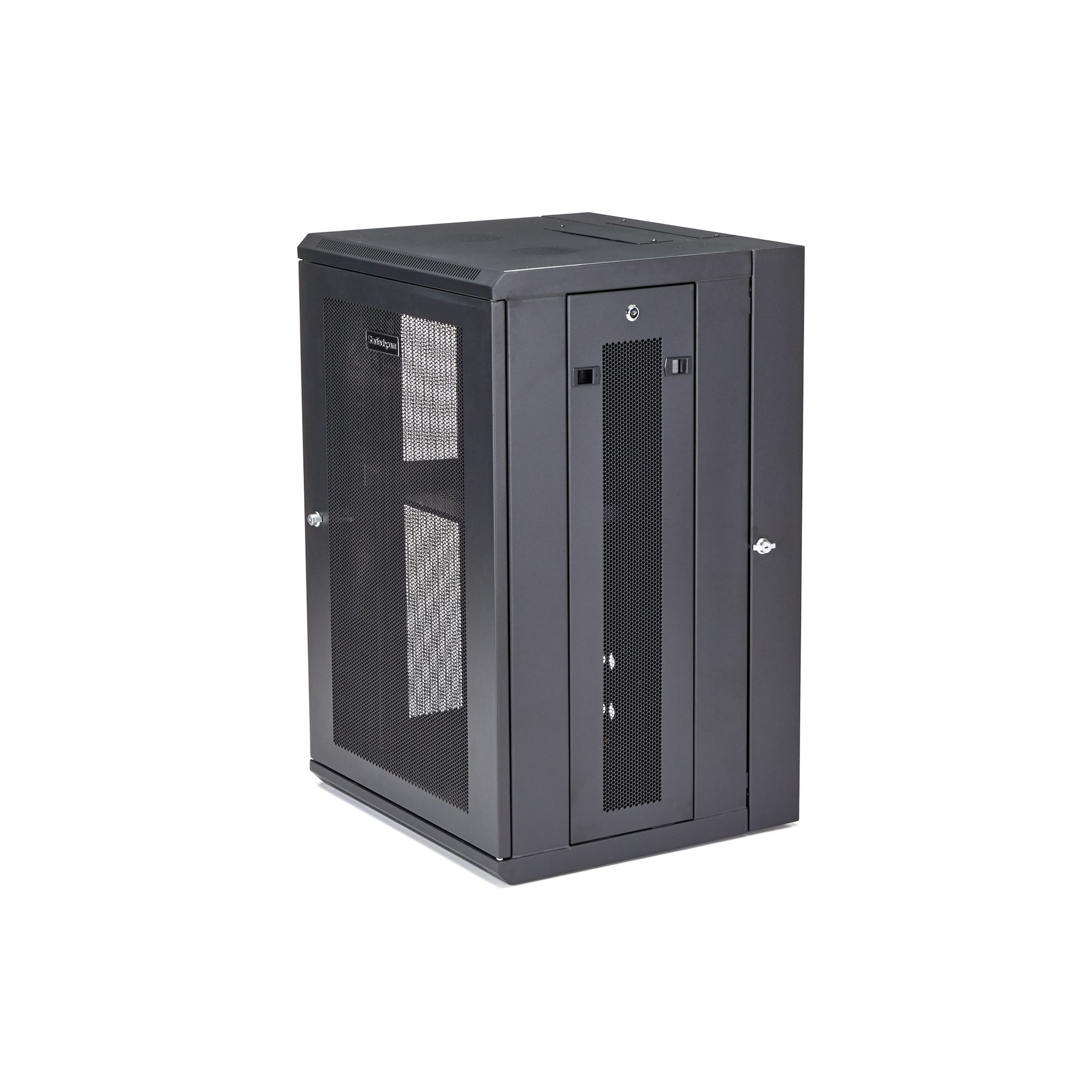

This wall mount equipment rack features premium-quality steel construction, with secure lockable front and back doors as well as lockable side panels. It features a grounding lug to prevent the build-up of static electricity which can result in electrostatic discharge (ESD), keeping your equipment protected from surges.

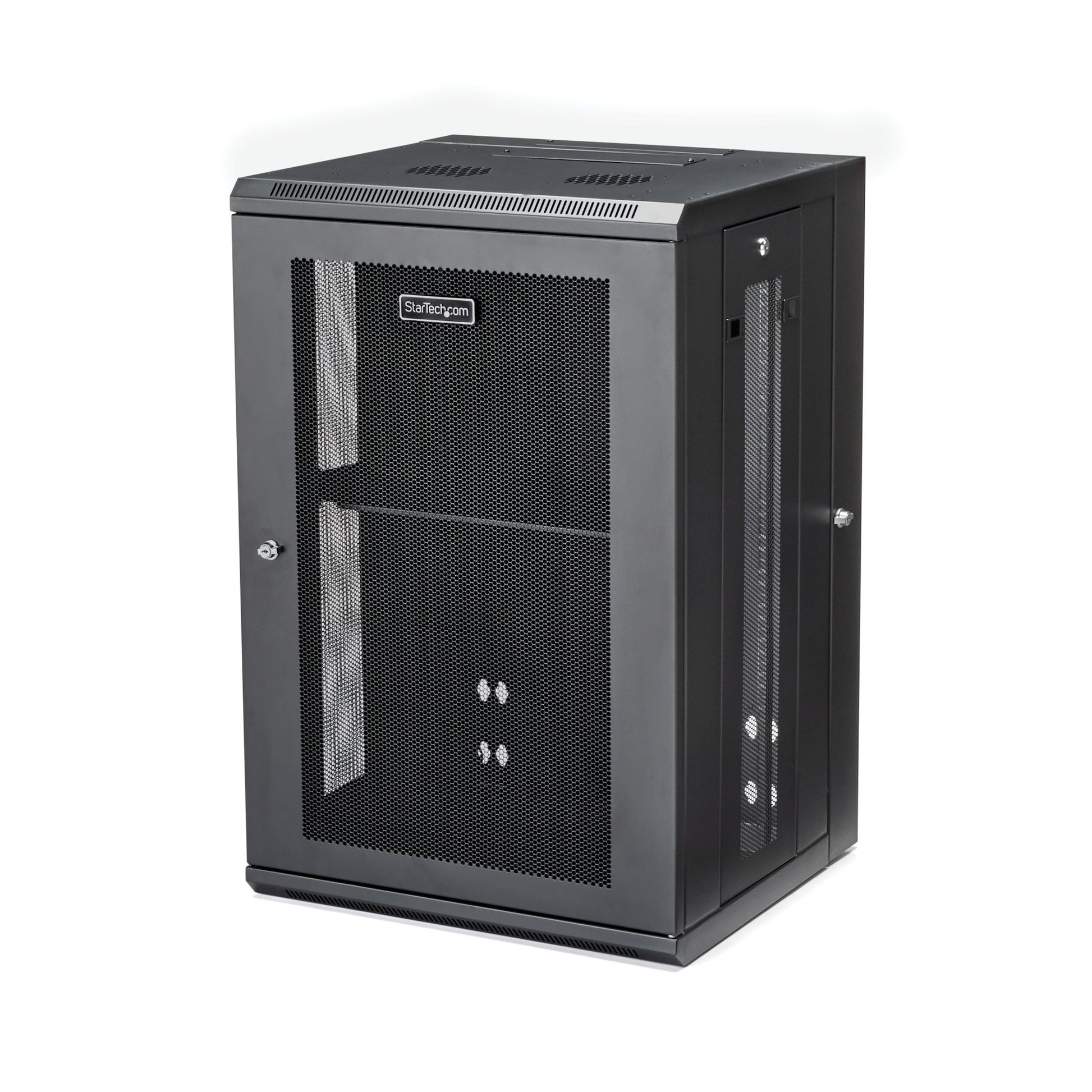

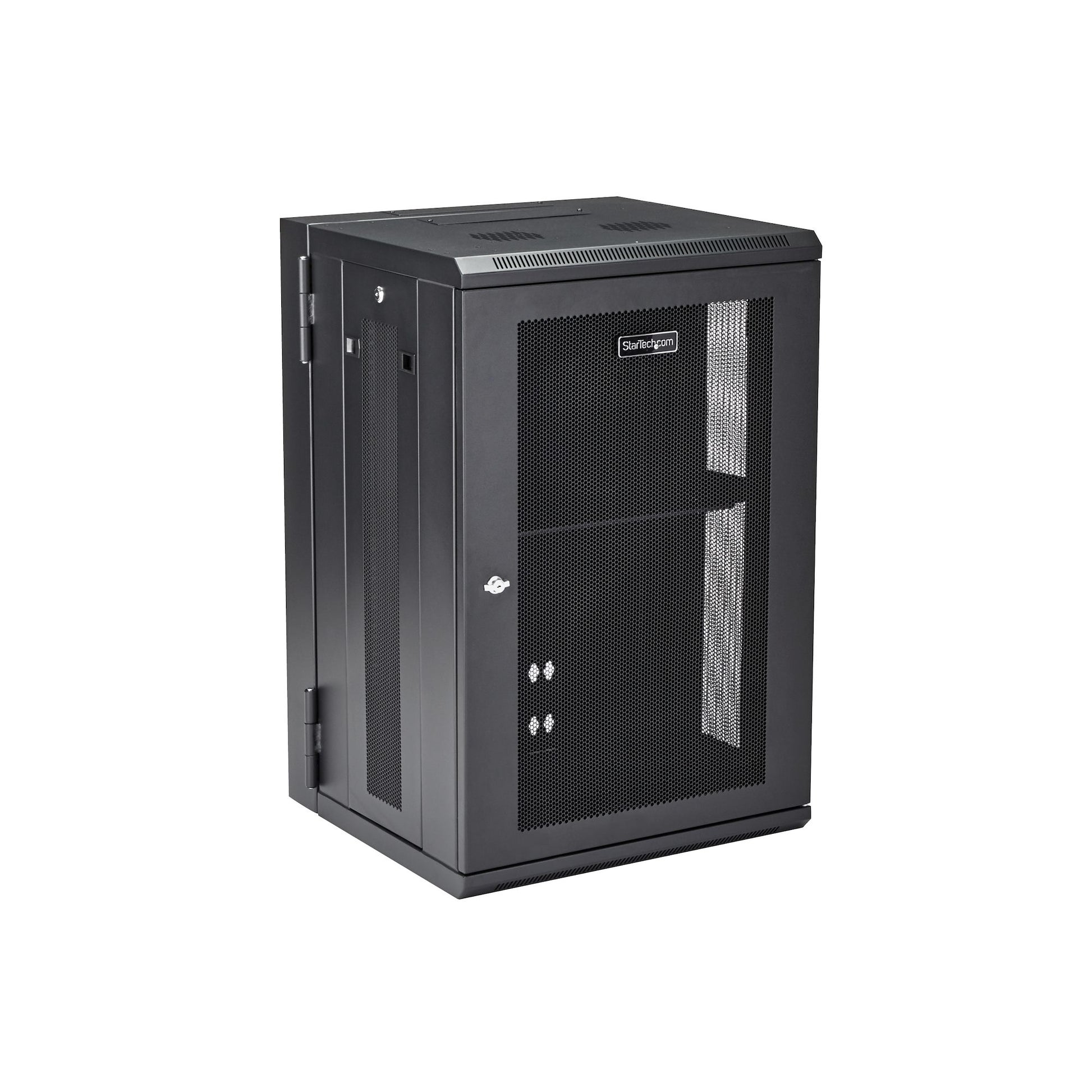

This rack also offers dependable protection through both passive and active cooling. The mesh front doors and side panels along with the vents in the top offer passive cooling while the top offers placement support for 120mm fan mounts for an additional active cooling option.

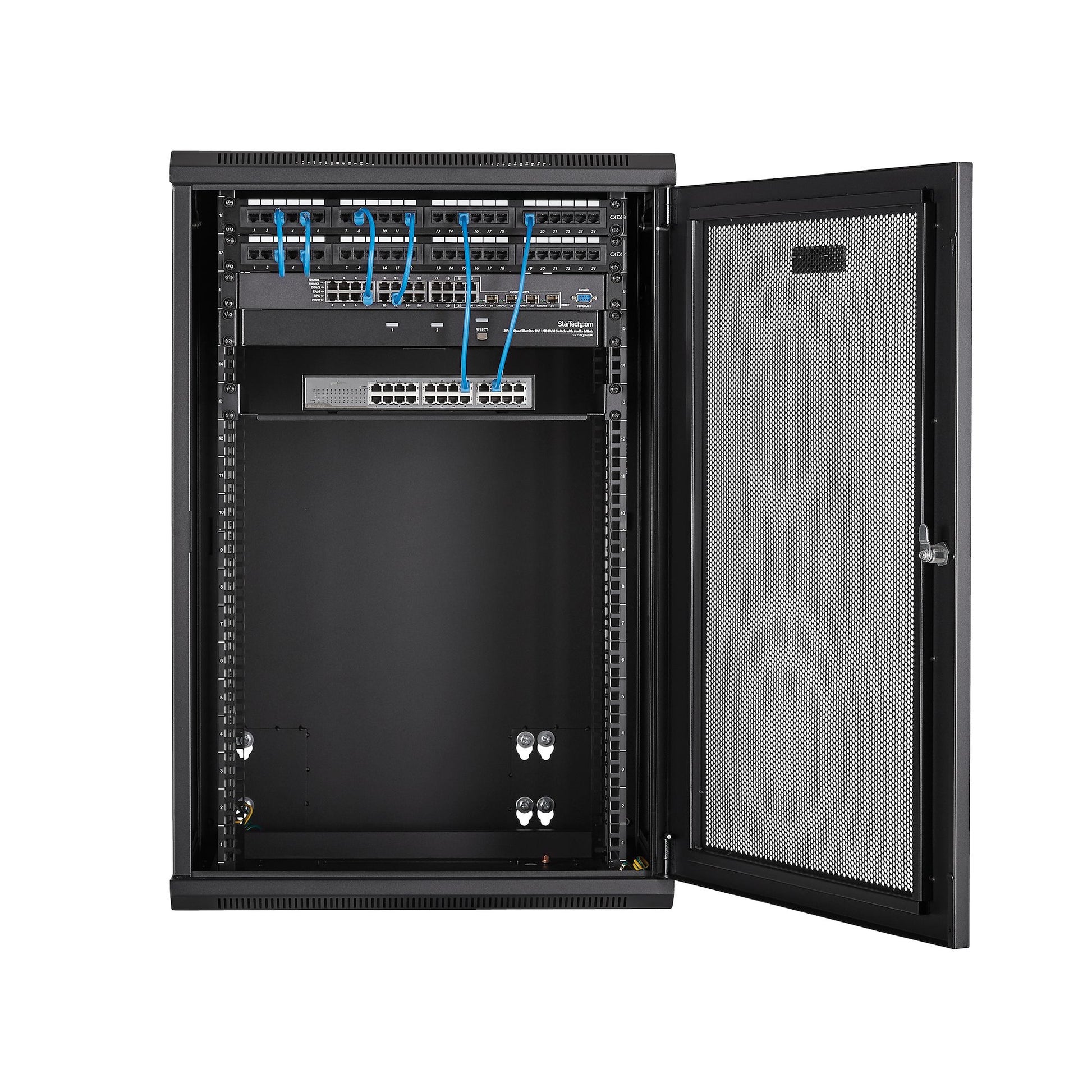

Mount All Types of Equipment

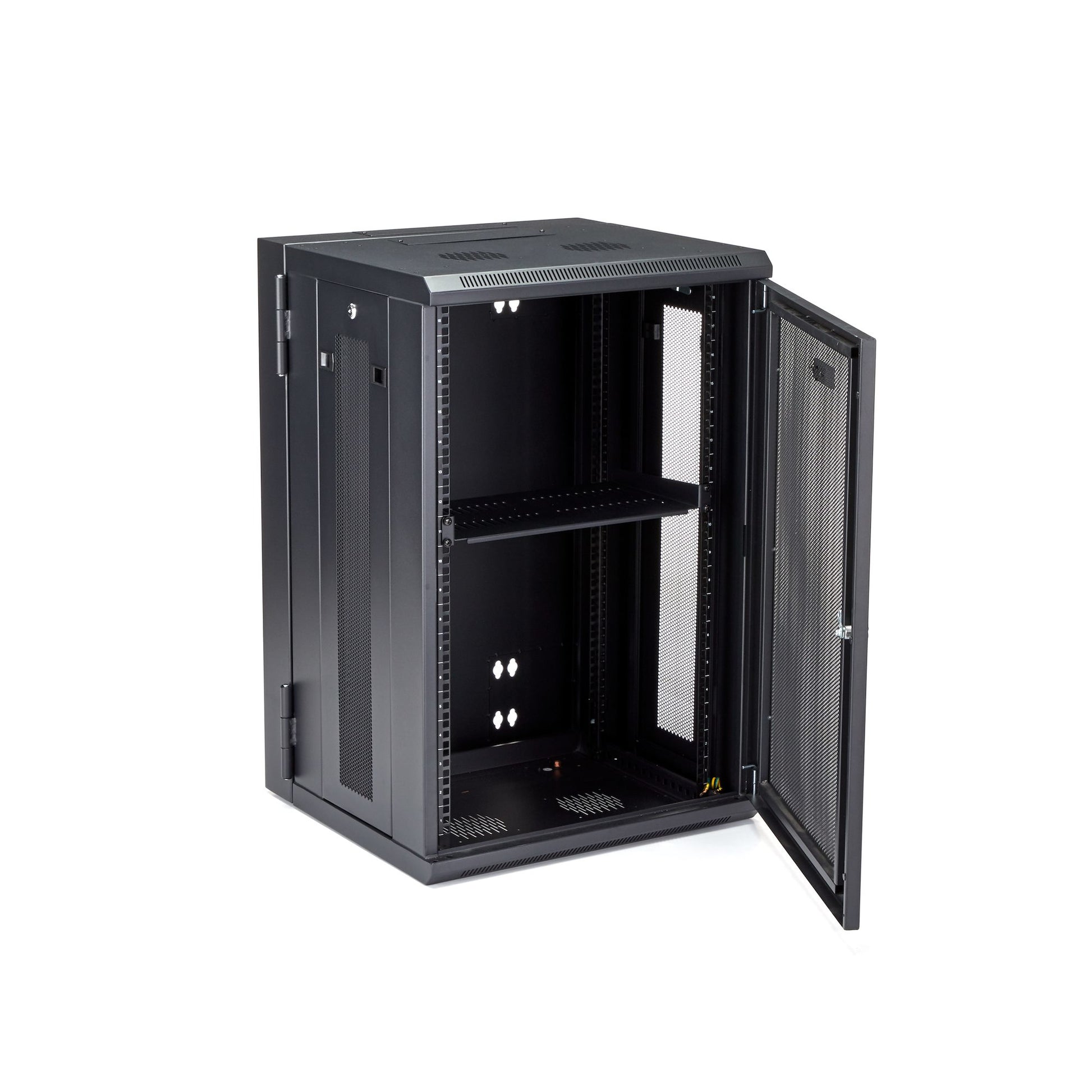

This 4-post server room cabinet has a weight capacity of up to 200 lbs. (90kg) and with a mounting depth from 2 to 16 inches, it can hold a variety of equipment. The mounting rails on the rack can be switched between both square cage nut hole or tapped 12-24 threaded hole styles. For non-mountable equipment, this rack also includes a 1U shelf.

For hassle-free cable management, the rack includes a 3-meter roll of hook-and-loop cable tie that makes it easy to keep your cables neat and tidy by binding them together or binding them to the rack. The self-gripping fabric can be cut to any size, enabling a wrap-around solution for the cables of any rack-mount equipment.

Comprehensive Product Testing & Expert Technical Support

StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to our customers. Our local StarTech.com Technical Advisors have broad product expertise and work directly with StarTech.com Engineers to provide support for our customers both pre and post-sales.

Specifications

Weight & dimensions
Package depth	642 mm
Package width	594 mm
Package height	1055 mm
Package weight	68.7 kg
Inner width	59.7 cm
Inner depth	55 cm
Mounting depth (max)	40.6 cm
Mounting depth (min)	6 cm
Width	610 mm
Depth	551 mm
Height	904 mm
Weight	67.7 kg
Maximum weight capacity	90 kg

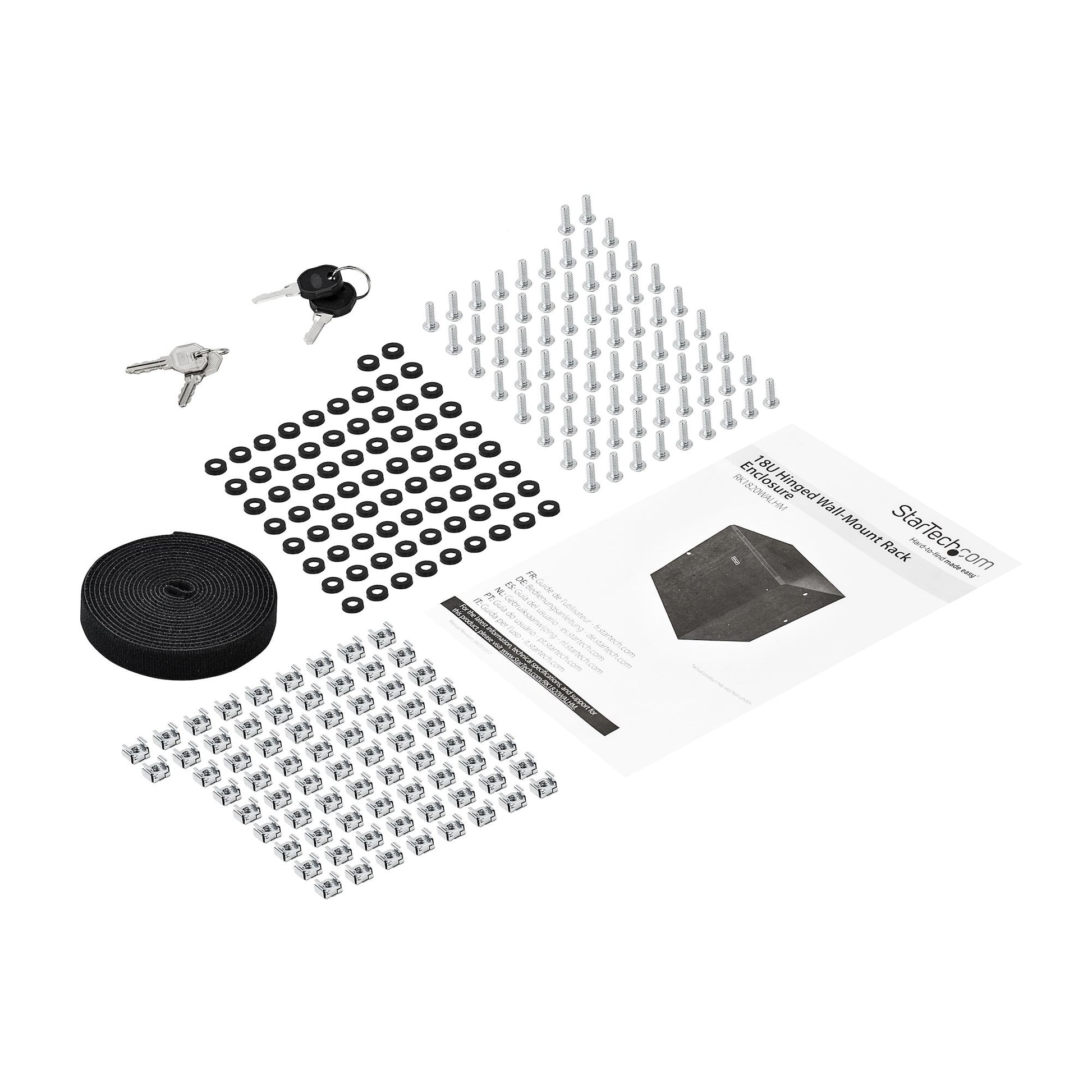

Packaging content
Manual	Yes
Nuts included	Yes
Number of nuts	75
Screws included	Yes
Number of screws	75
Features
Frame type	Closed
Product design	4-post
Rack capacity	18U
Adjustable mounting rails	Yes
Removable front door	Yes
Back door construction	Steel
Front door construction	Steel
Mounting hole shape	Square
Front door key lock	Yes
Type	Wall mounted rack
Material	Steel
Product colour	Black
Technical details
Compliance industry standards	EIA/ECA-310-E
Harmonized System (HS) code	85381000
Compliance certificates	CE, RoHS
Logistics data
Master (outer) case width	600 mm
Master (outer) case length	660 mm
Master (outer) case height	1060 mm
Products per master (outer) case	1 pc(s)

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
