StarTech.com 4-Port USB-C Hub, 4x USB-C Ports, USB 3.2 Gen 2 (10Gbps) - Portable USB

The StarTech.com 4-Port USB-C expands your ports in seconds — plug in and go.

USB 3.2 Gen 2 (10Gbps) | 4x USB-C | 100W Power Delivery Pass-Through | Built-in 12.6 in (32 cm) Wrap-Around Cable

This 4-Port USB-C Hub with optional USB Power Delivery (PD) pass-through, expands the connectivity of a USB-C laptop. This hub features four USB 3.2 Gen 2 (10Gbps) Type-C ports, that support high-bandwidth USB peripherals. Connect the attached USB-C cable to a USB Type-C or Thunderbolt™ 3/4 port, located on the host computer, to enable the quick connection of up to 4 peripherals. This lightweight USB-C Hub can operate with bus-power. Alternatively, connect a USB-C power adapter (not included) to the designated USB-C PD port for laptop charging.

Charge Laptop and Connected Peripherals

Support for USB PD enables charging of the host laptop and up to three USB peripherals by connecting a USB-C power source to the PD pass-through port. PD 3.0 features Fast Role Swap (FRS) to prevent USB data disruption when you switch power sources (USB-C power adapter to bus power). This allows you to charge the connected host device, as well as any devices connected to the three remaining USB-C ports.

With a USB-C power adapter connected, 15W will be reserved for the hub, with up to 85W available to power/charge the host computer and downstream devices (up to 7.5W per port).

Convenient Portability and Easy Setup

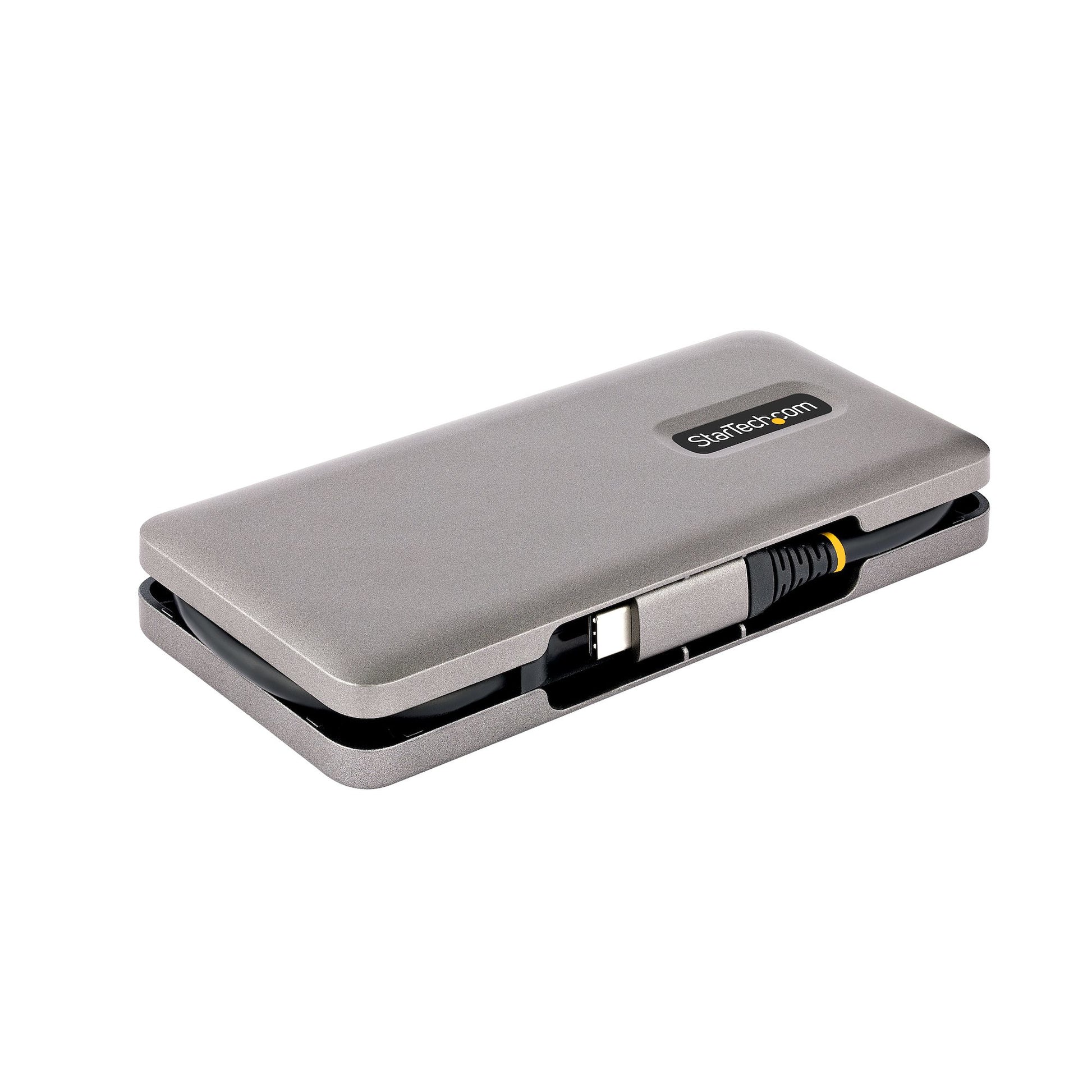

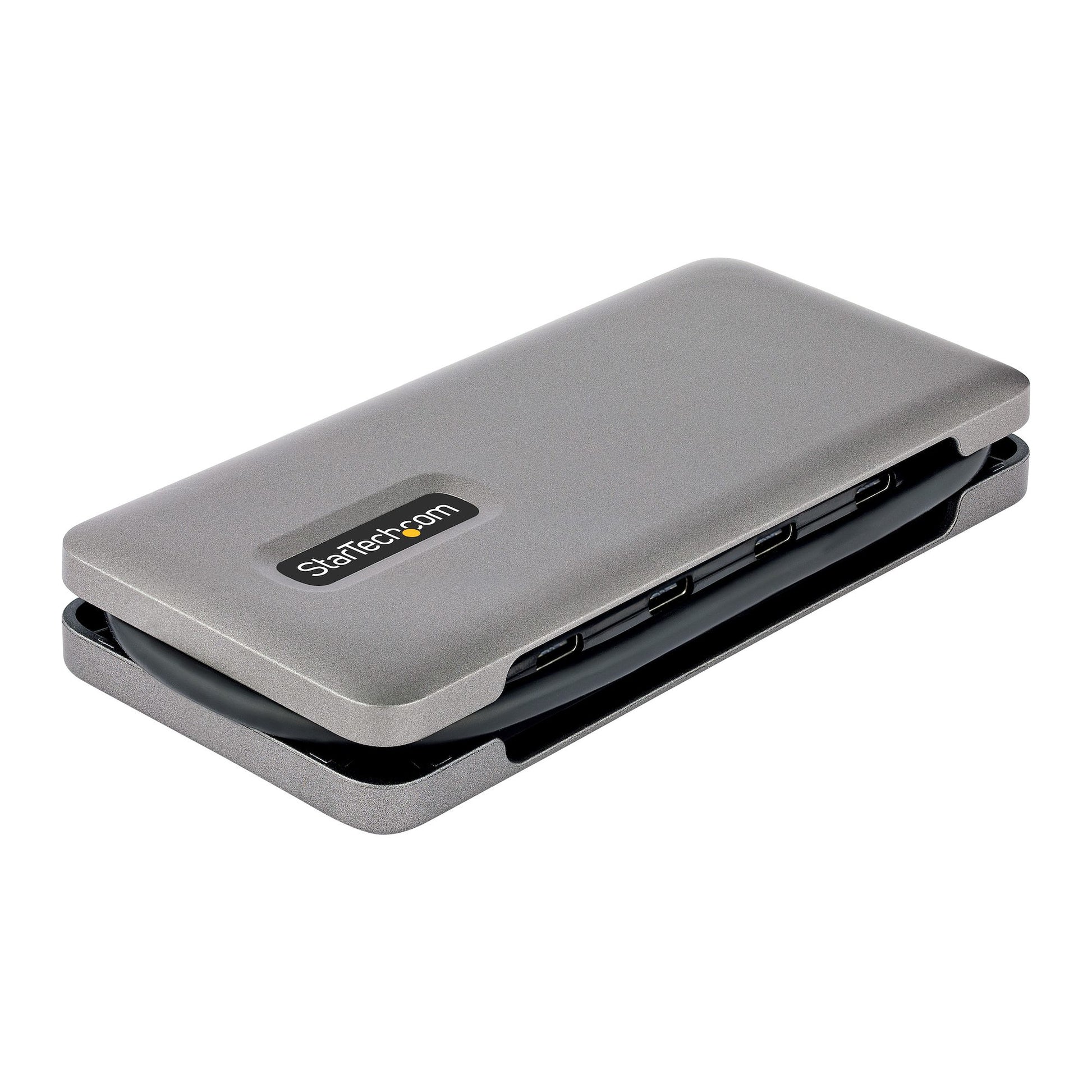

This USB-C hub is a compact and lightweight portable laptop accessory. The attached cable measures 12.6in (32cm) in length. This cable can be stored when the hub is being transported in a laptop bag, facilitating tangle-free stow-away portability.

USB-C Compatibility

With four USB 3.2 Gen 2 (10Gbps) Type-C ports, and backward compatibility with USB 3.2 Gen 1 (5Gbps) and USB 2.0 (480Mbps), this USB hub supports new and legacy USB devices. Connect flash drives, video capture devices and external hard drives, with data transfer speeds of up to 10Gbps. This USB Type-C hub enhances productivity, providing the connections needed for the efficient use of multiple peripherals.

Hassle-Free Plug-and-Play Installation

The 4-Port USB Hub is OS independent. It supports all operating systems including Windows, macOS, ChromeOS, iPadOS and Android. This adapter is plug-and-play, requiring no software or drivers.

This product is backed for 3-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.

Specifications

Ports & interfaces
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	4
HDMI ports quantity	0
USB 2.0 ports quantity	0
DC-in jack	No
Card reader integrated	No
Cable length	0.345 m
Features
Product colour	Grey
USB Power Delivery (USB PD)	Yes
USB Power Delivery revision	3.0
Housing material	Plastic
USB Power Delivery up to	100 W
Power
Power source type	USB
Power consumption (typical)	15 W
Technical details
Sustainability compliance	Yes
Compliance certificates	CE, RoHS
Performance
Harmonized System (HS) code	84733020
Weight & dimensions
Weight	160 g
Width	60 mm
Depth	135 mm
Height	20 mm
Package width	143 mm
Package depth	172 mm
Package height	32 mm
Package weight	175 g
Operational conditions
Operating temperature (T-T)	-20 - 60 °C
Storage temperature (T-T)	-20 - 80 °C
Operating relative humidity (H-H)	0 - 85%
Logistics data
Master (outer) case width	479 mm
Master (outer) case length	345 mm
Master (outer) case height	449 mm
Products per master (outer) case	70 pc(s)
Other features
Chipset	Realtek - RTS5423, VIA - VL160

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
