StarTech.com 4 Port USB C Hub 10Gbps - Metal Industrial USB-C Hub - 2x USB-C & 2x

The StarTech.com 4 Port expands your ports in seconds — plug in and go.

Industrial USB Hub | Metal Housing | Built-in Mounting Hardware | Screw Locking Ports

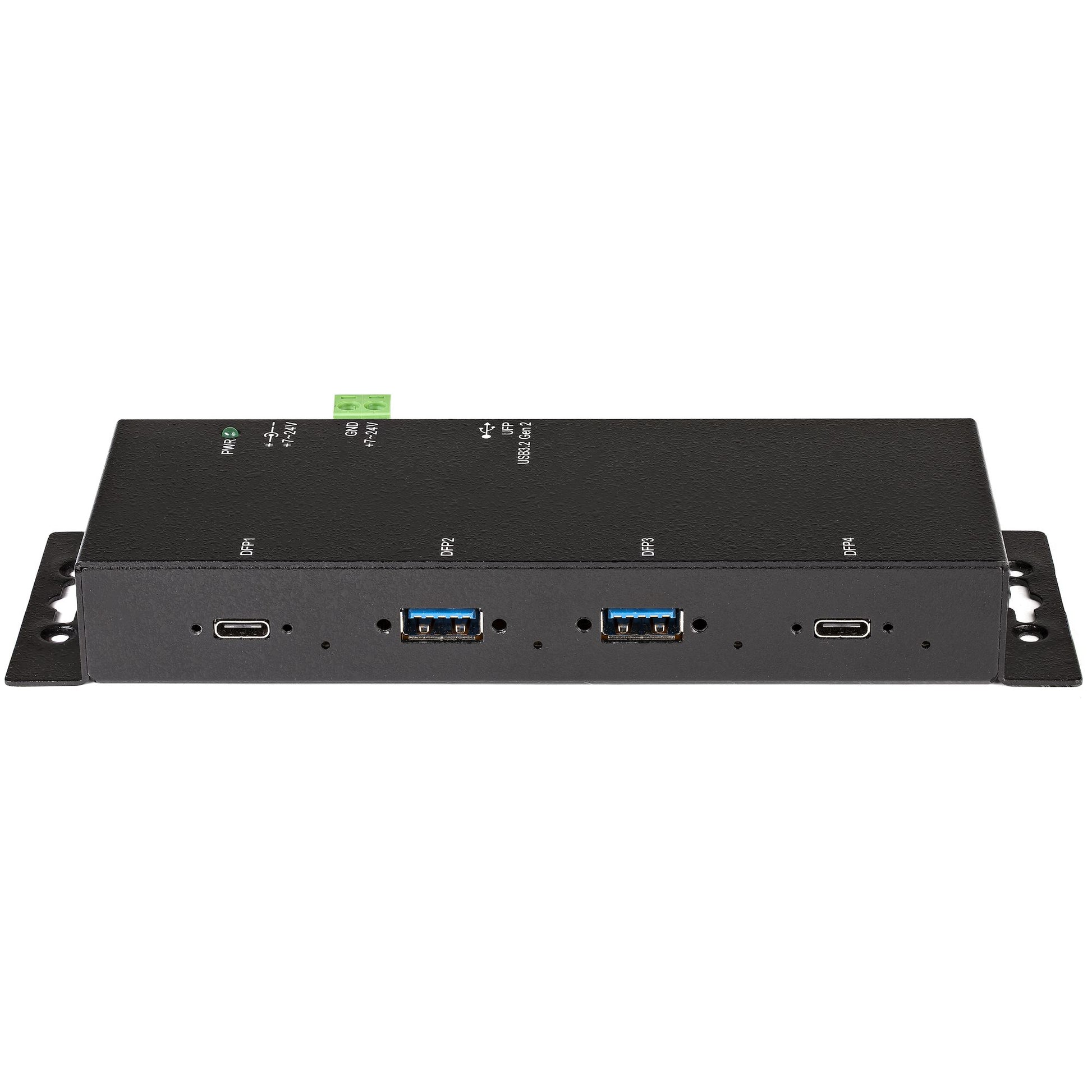

This 4-Port industrial USB hub enables you to connect four SuperSpeed USB 3.2 Gen 2 (10 Gbps) peripherals to your USB-A or USB-C computer. The hub features two USB-A and two USB-C peripheral ports, each with a screw-lock connector, and a metal industrial housing ideal for harsh, industrial environments.

Expands the Connectivity of Your Computer for Industrial Applications

With this USB-C hub you can connect two USB-A devices, and two USB-C devices, to a single USB-C or USB-A port on your host device. The hub supports USB 3.2 Gen 2 (10 Gbps), and is backward compatible with USB 3.2 Gen 1 (5 Gbps) and USB 2.0 (480 Mbps).

Note: USB 3.2 Gen 2 (10 Gbps) is also known as USB 3.1 Gen 2 (10 Gbps), USB 3.2 Gen 1 (5 Gbps) is also know as USB 3.1 Gen 1 (5 Gbps), and USB 3.0 (5 Gbps).

Powers and Charges Your Connected Devices

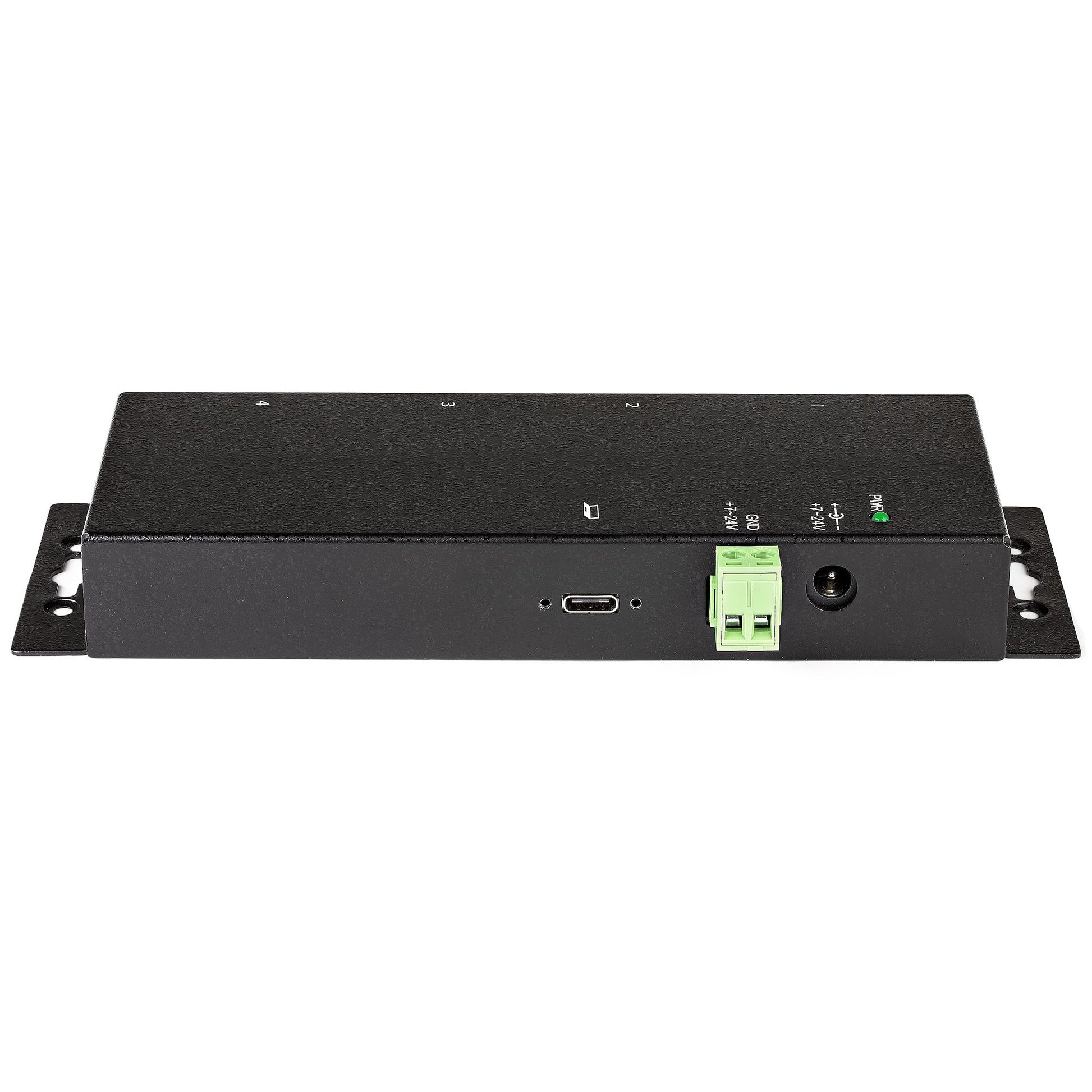

The USB hub is self powered using either the included 36W (12V/3A) AC to DC power adapter, or the built-in terminal block connector that supports a 7-24V DC input. The hub shares up to 30W of power between connected devices and each port supports BC 1.2 providing 12W (2.4A) of power on all ports up to a 30W draw.

Ideal for Use in Industrial Environments

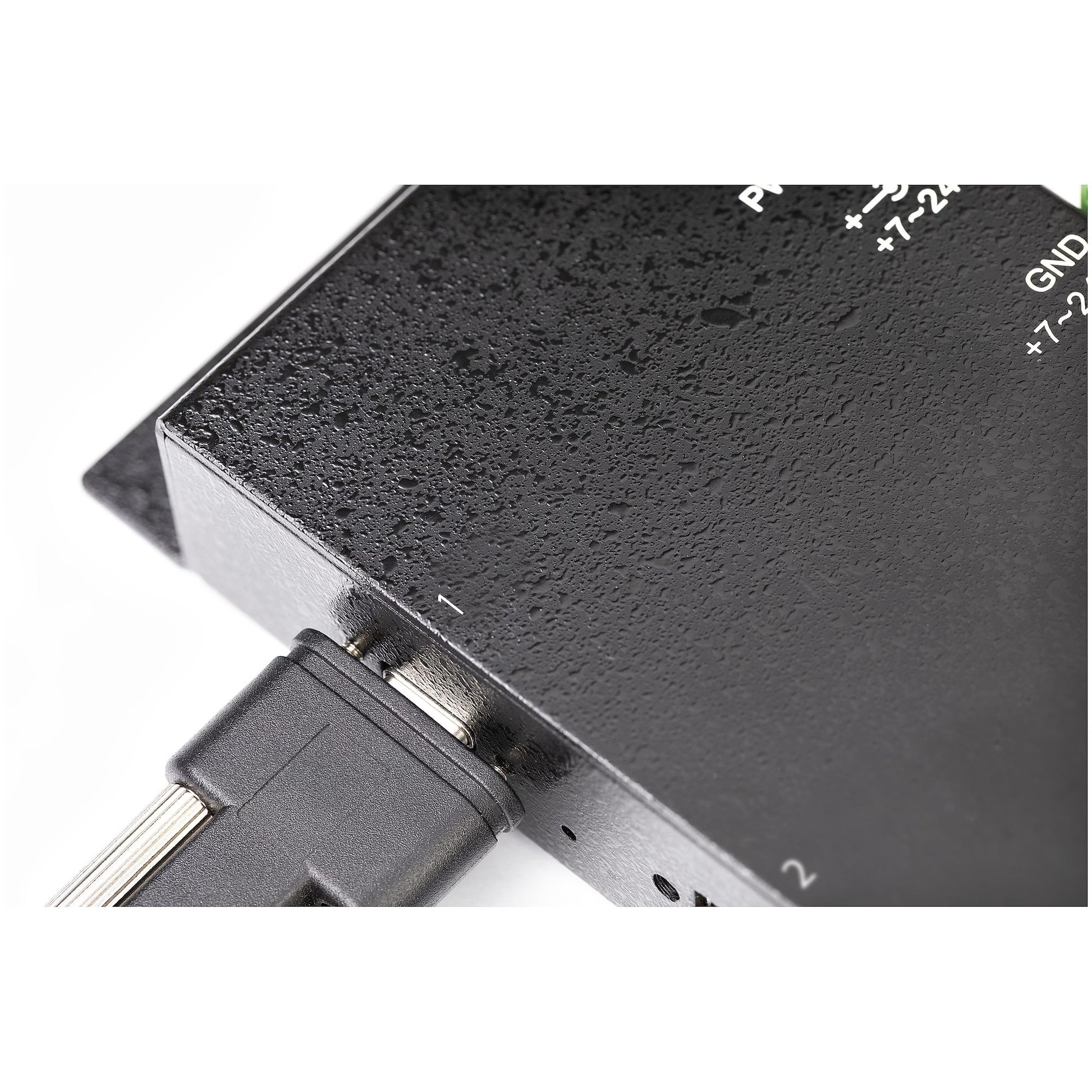

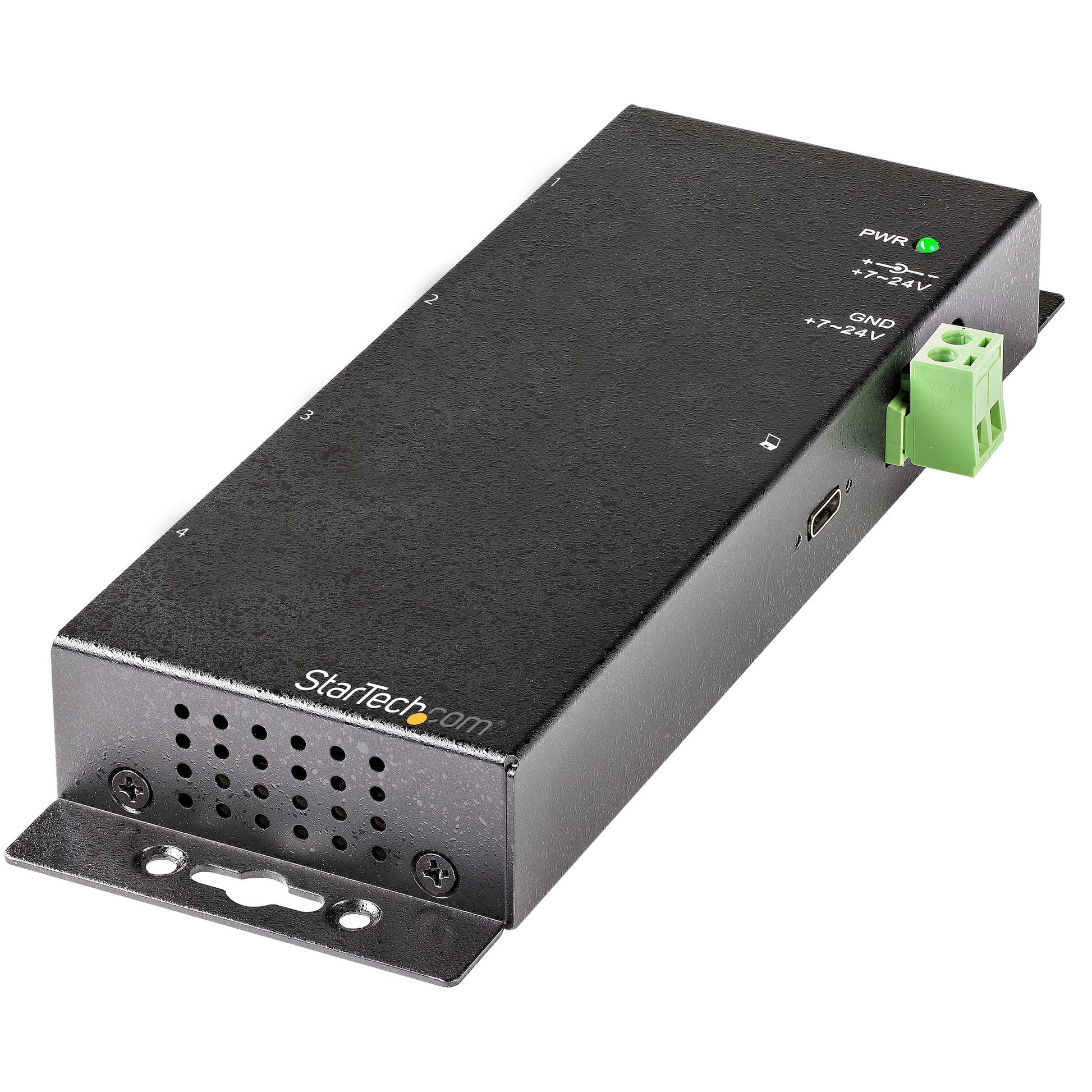

This USB hub has a rugged-metal enclosure with built-in mounting ears that enable you to mount it to any wall or surface. The hub features 15kV Air and 8kV Contact electrostatic discharge (ESD) protection. Each port on the Hub has a screw lock, avoiding the possibility of accidental cable disconnection, and a 3.3 ft. (1m) USB-C host cable, and a 3.3 ft. (1 m) USB-A host cable is included that features a locking screw.

Wide Device Compatibility

The USB hub is OS independent ensuring support on a wide range of platforms including Windows, macOS, Linux, iPadOS, Chrome OS and Android.

HB31C2A2CME is backed by a StarTech.com 2-year warranty and free lifetime 24/5 multi-lingual North American based technical support. StarTech.com has been the IT professionals' choice for over 30 years.

Specifications

Ports & interfaces
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Terminal block port	Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Hub interfaces	USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C
DC-in jack	Yes
Ports quantity	4
Features
LED indicators	Power, USB
Product colour	Black
Data transfer rate	10000 Mbit/s
Housing material	Metal
Network
UASP support	Yes
Power
Input current	1 A
Power plug type	Type M
Power consumption (typical)	36 W
Output voltage	12 V
Output current	3 A
Input voltage	100 - 240 V
Technical details
Compliance certificates	CE, RoHS
Weight & dimensions
Weight	280 g
Width	59.6 mm
Depth	152 mm
Height	23.5 mm
Package width	190 mm
Package depth	295 mm
Package height	70 mm
Package weight	1.3 kg
Performance
Harmonized System (HS) code	84719000

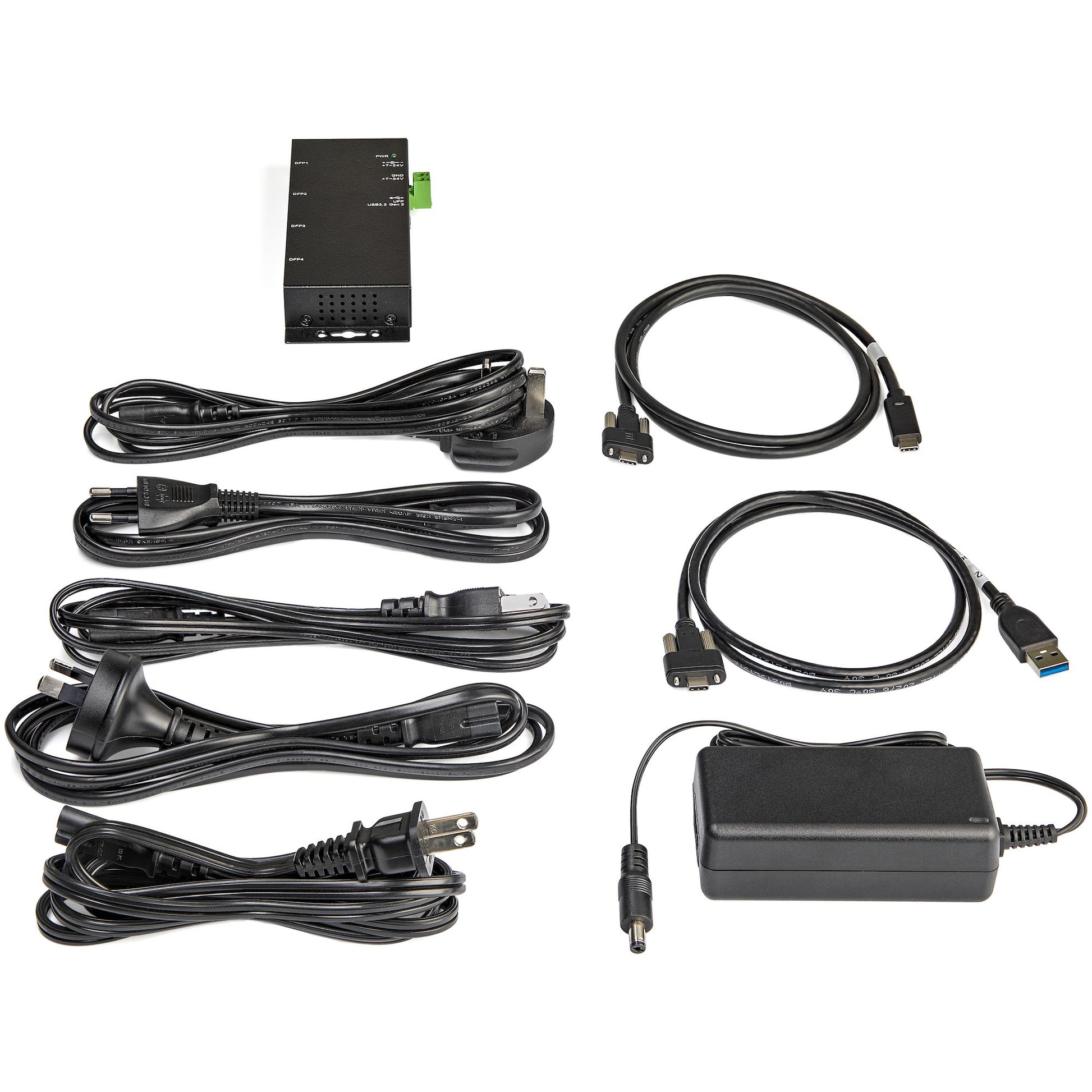

Packaging content
Manual	Yes
Terminal block included	Yes
Included power plug types	ANZ, EU, JP, NA, UK
Cables included	USB Type-A to USB Type-C
AC adapter included	Yes
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-20 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Logistics data
Master (outer) case width	518 mm
Master (outer) case length	409 mm
Master (outer) case height	331 mm
Products per master (outer) case	14 pc(s)
Other features
Chipset	VIA/VLI - VL822
