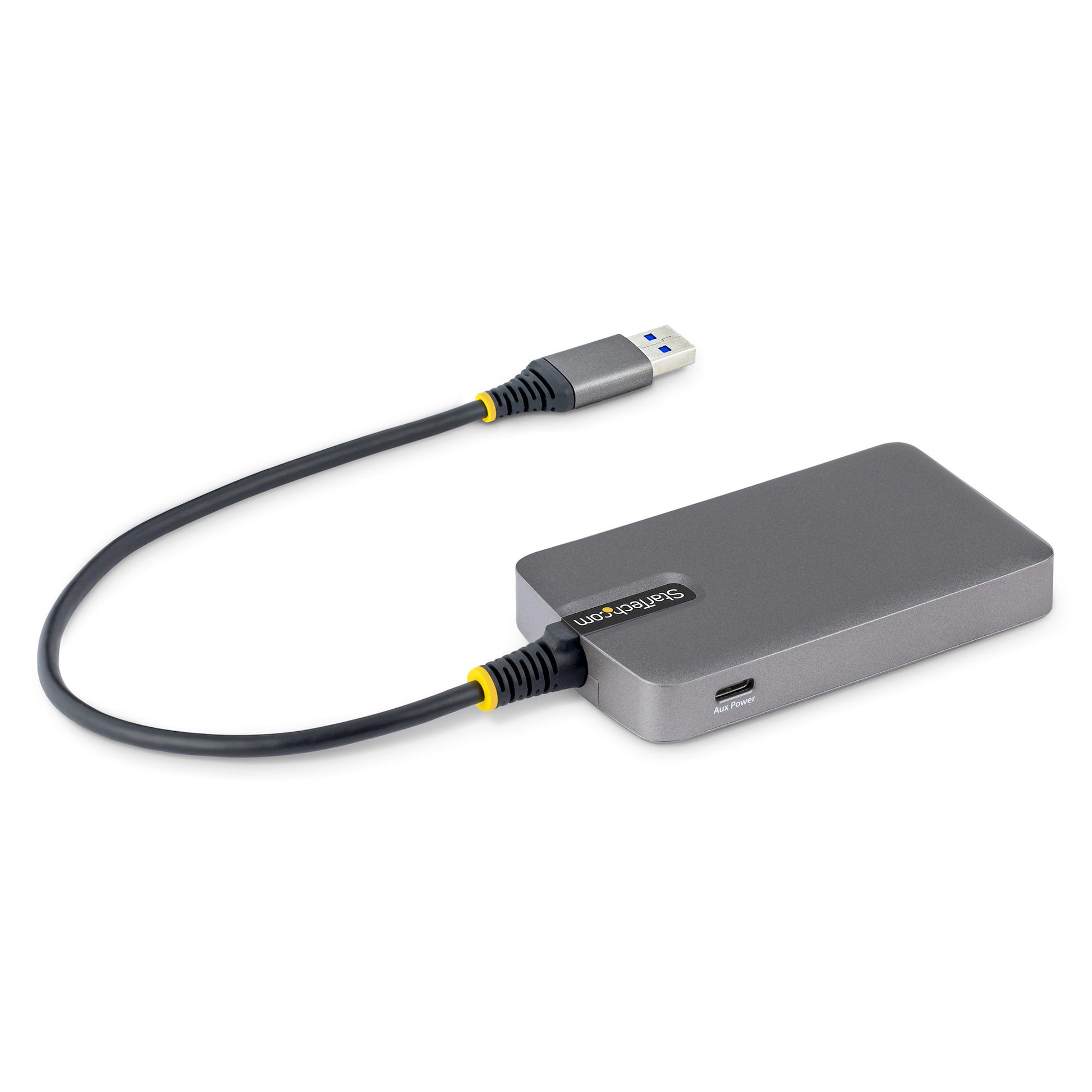

StarTech.com 4-Port USB-A Hub, 5Gbps, Bus Powered, USB-A to 4x USB-A Hub with USB-C

The StarTech.com 4-Port USB-A expands your ports in seconds — plug in and go.

Connect multiple 5Gbps USB-A peripherals that draw high power to your computer using a single USB-A port.

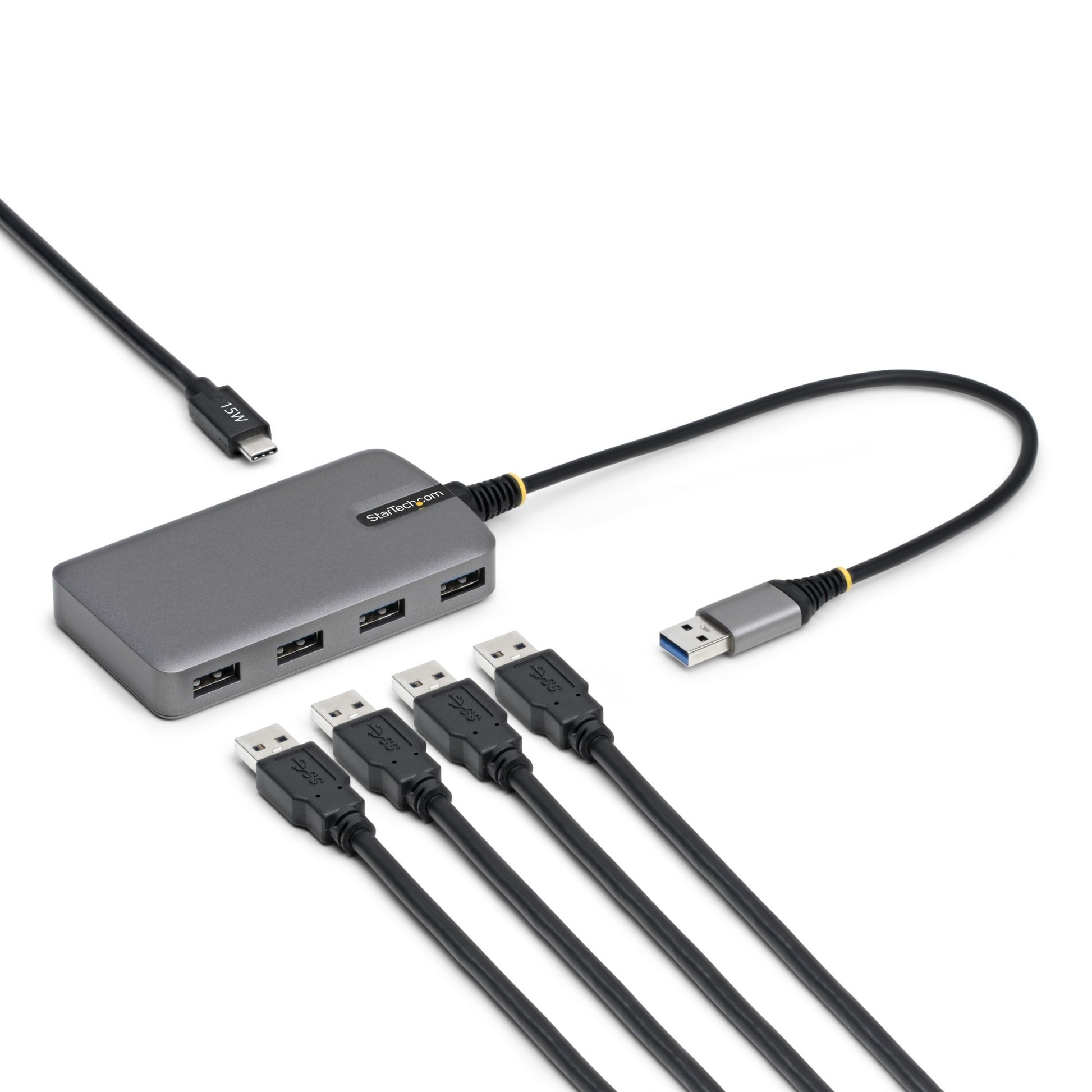

This USB Hub adds four USB-A 3.2 Gen 1 (5Gbps) ports to a USB-A enabled desktop or laptop computer. The USB Hub connects to a USB-A port on a computer, using the built-in 1ft. (30cm) host cable. The USB hub is backward compatible with USB 2.0 (480Mbps) devices, ensuring support for a wide range of modern and legacy USB peripherals (e.g., thumb drives, external HDDs/SSDs, HD cameras, mice, keyboards, webcams, and audio headsets). The USB hub is compact in size, facilitating portability when travelling.

Bus-Powered with Optional Auxiliary Power

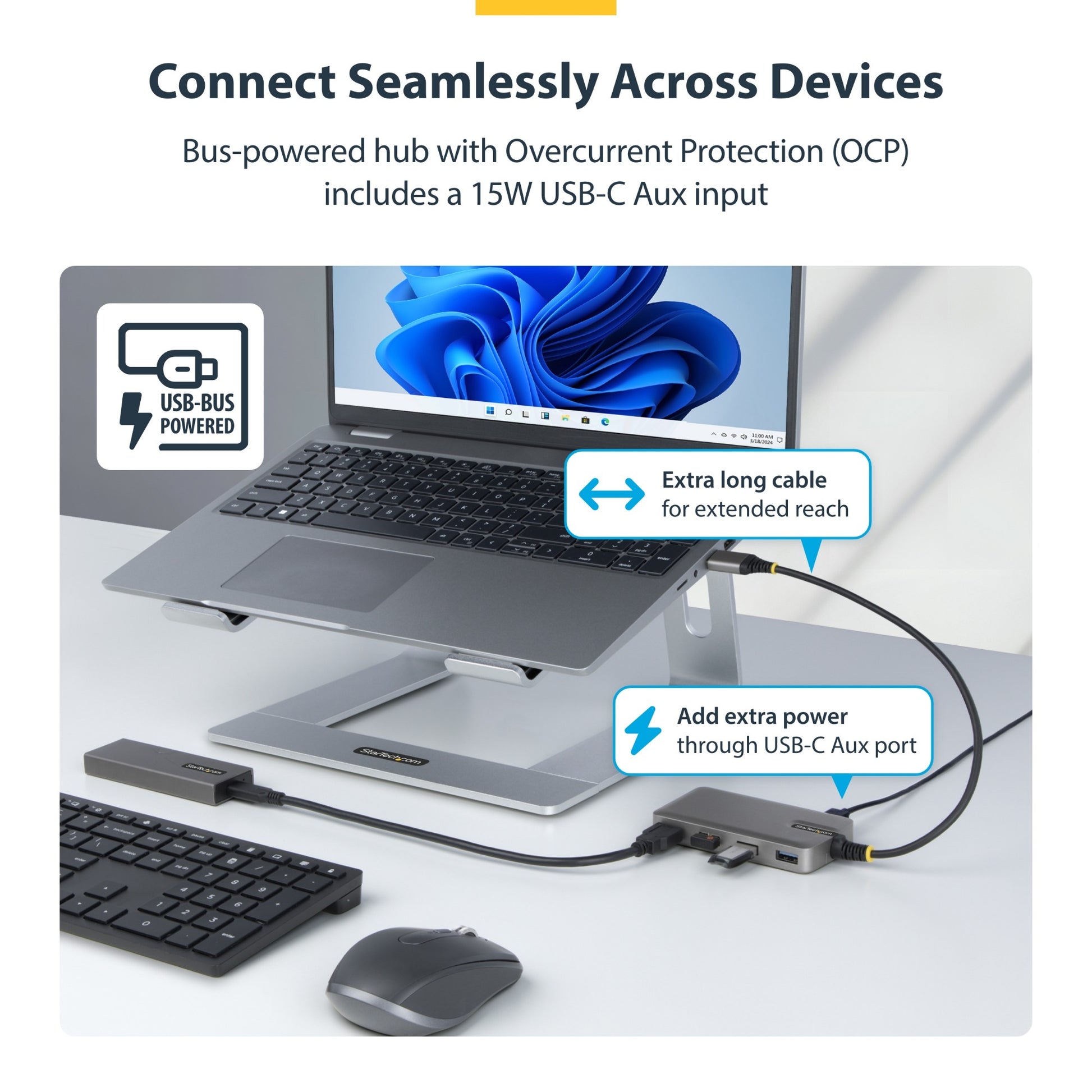

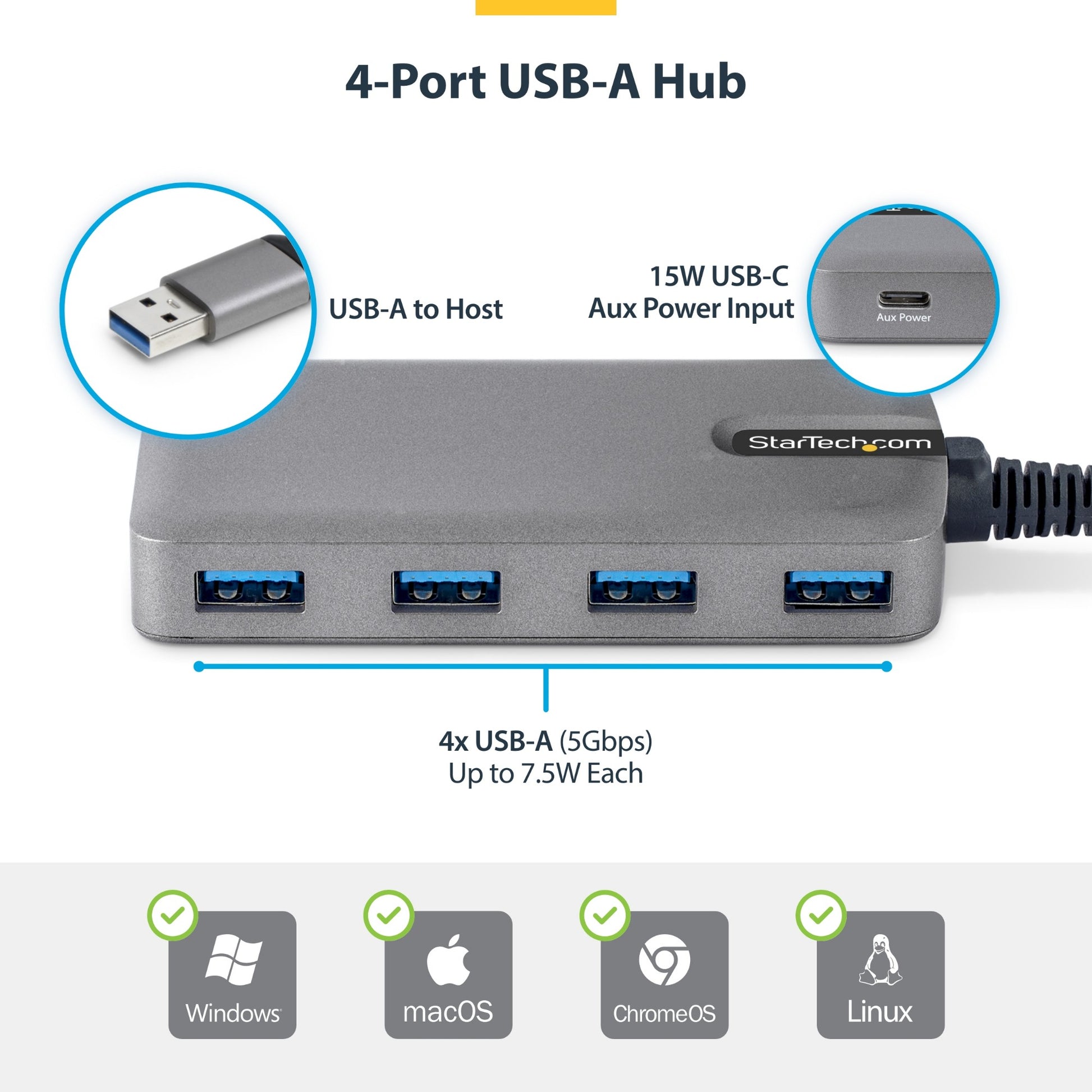

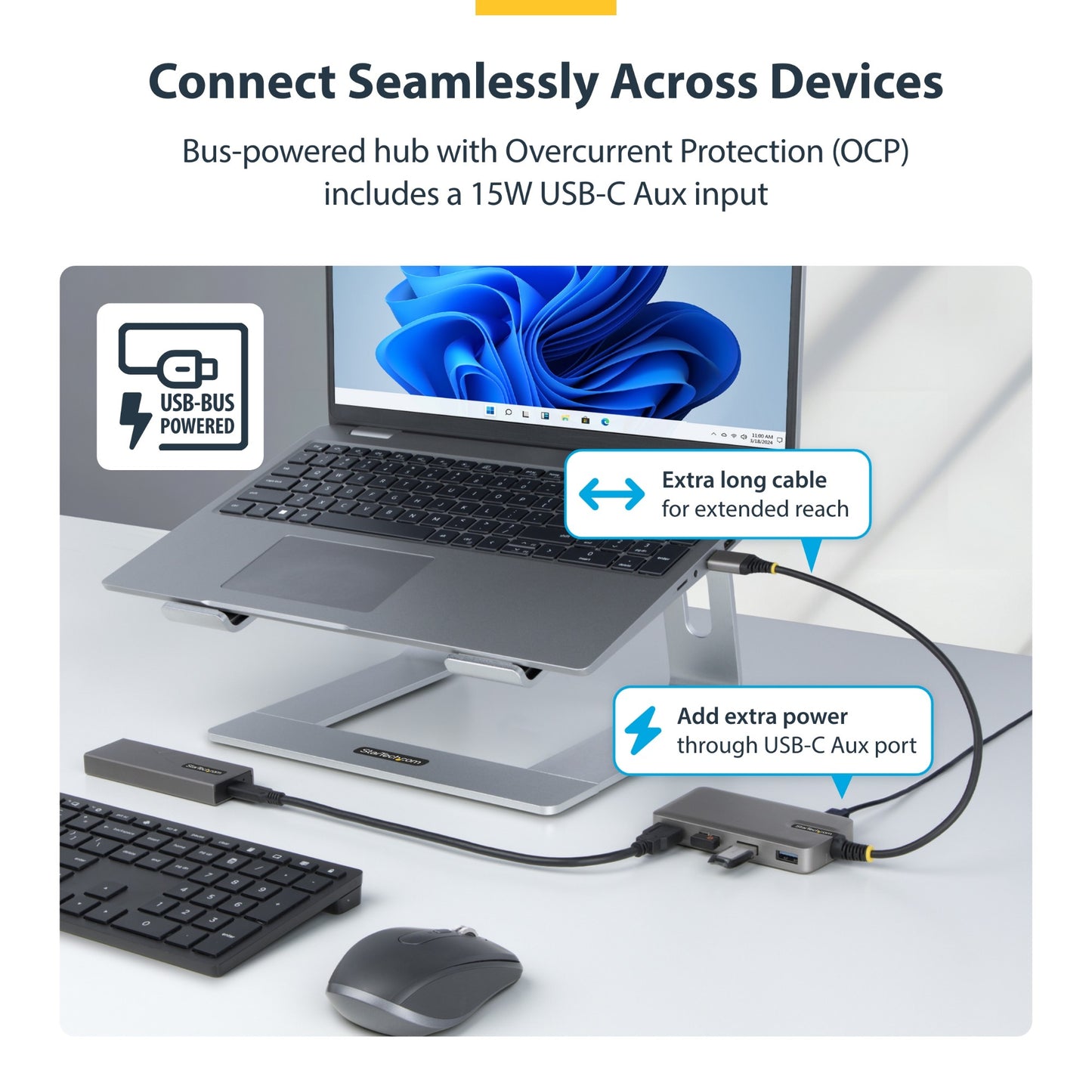

The USB hub can operate with bus power alone. It features a USB Type-C power input that can be connected to a USB-C power adapter (sold separately), providing up to 15W (5V/3A) of power in addition to the bus power from the host. This flexibility is ideal for applications requiring additional power, such as connecting a high-power USB device (e.g., external HDD/SSD), while using the other ports to connect lower powered devices. The downstream ports are each capable of providing up to 7.5W of power to the connected peripherals. For added protection to connected USB devices, the USB ports feature Overcurrent Protection (OCP). OCP prevents USB peripherals from drawing more power than is safely allocated for each port.

Plug and Play

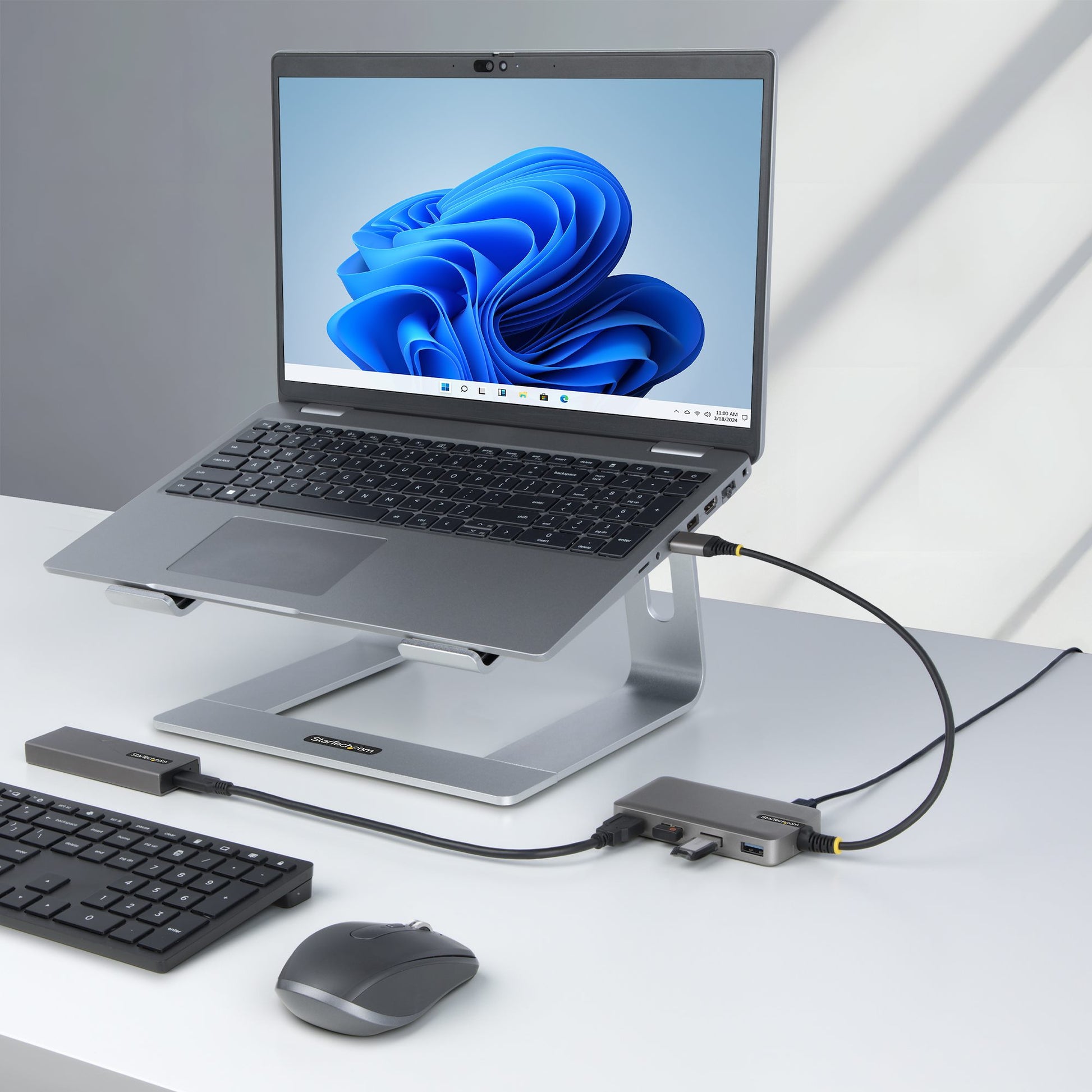

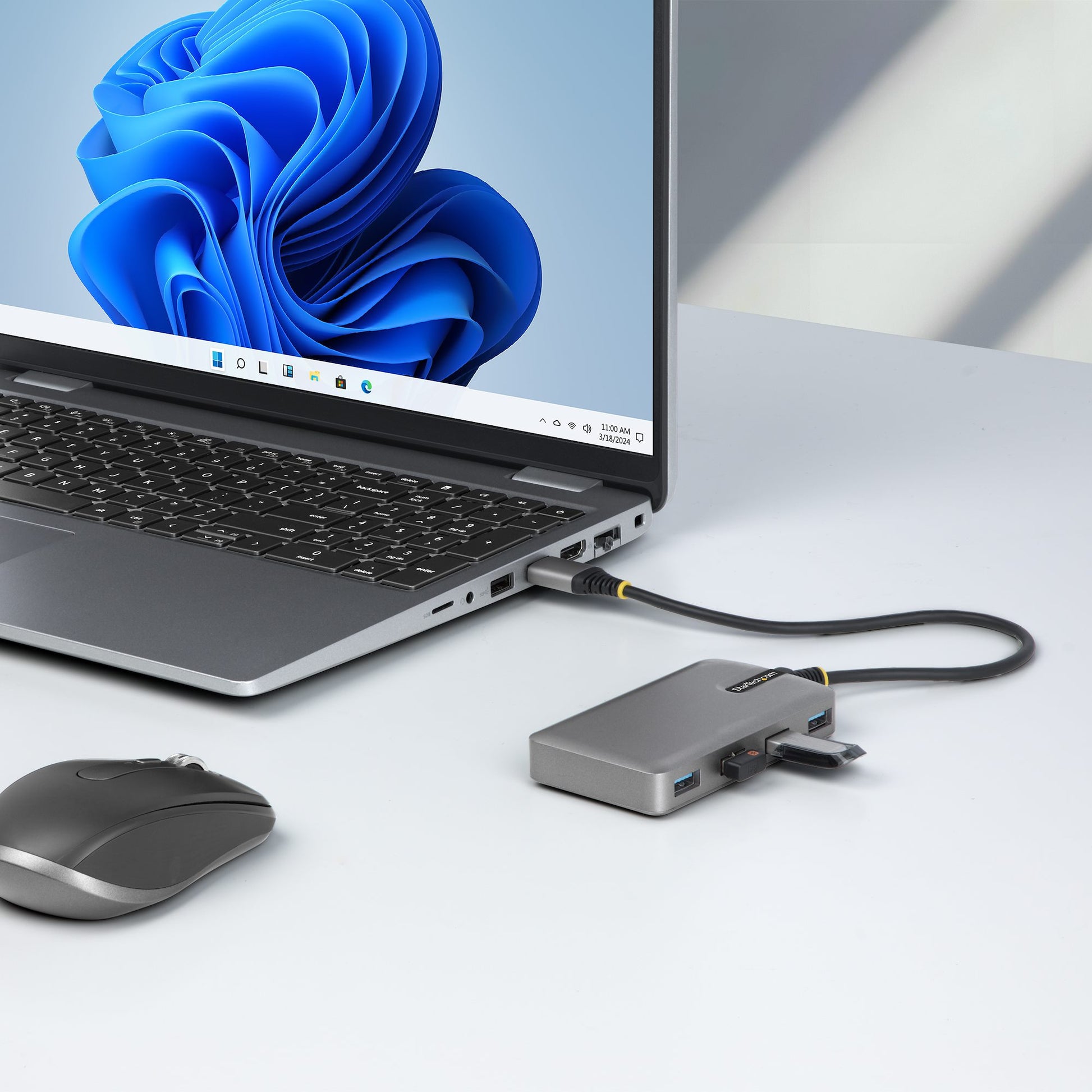

This device is OS independent, supporting all operating systems, including Windows, macOS, and ChromeOS. The Hub is automatically detected, configured, and installed upon connection to a host computer. The built-in extra-long 1 ft. (30 cm) USB-A host cable ensures easy setup and reduces connector strain on devices such as the Surface Pro, HP Elite X2, Lenovo X1 Carbon, Dell XPS, and laptops on riser stands.

Enterprise Management Tools

StarTech.com Connectivity Tools offer practical utilities to support device management and increase productivity in modern IT environments. The applicable software for this product is the USB Event Monitoring Utility which allows administrators to track and log connected USB devices.

Visit StarTech.com/Connectivity-Tools to download the Enterprise Management Tools.

Specifications

Ports & interfaces
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-A
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Hub interfaces	USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB Type-C
Ports quantity	5
USB 2.0 Type-C ports quantity	1
Cable length	0.3 m
Features
Plug and Play	Yes
Product colour	Grey
Data transfer rate	5000 Mbit/s
Overcurrent protection	Yes
Housing material	Plastic
Network
UASP support	Yes
Power
Power supply type	USB
Technical details
Compliance certificates	CE, RoHS
System requirements
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Other operating systems supported	ChromeOS

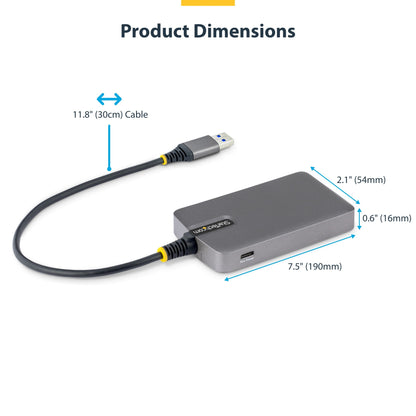

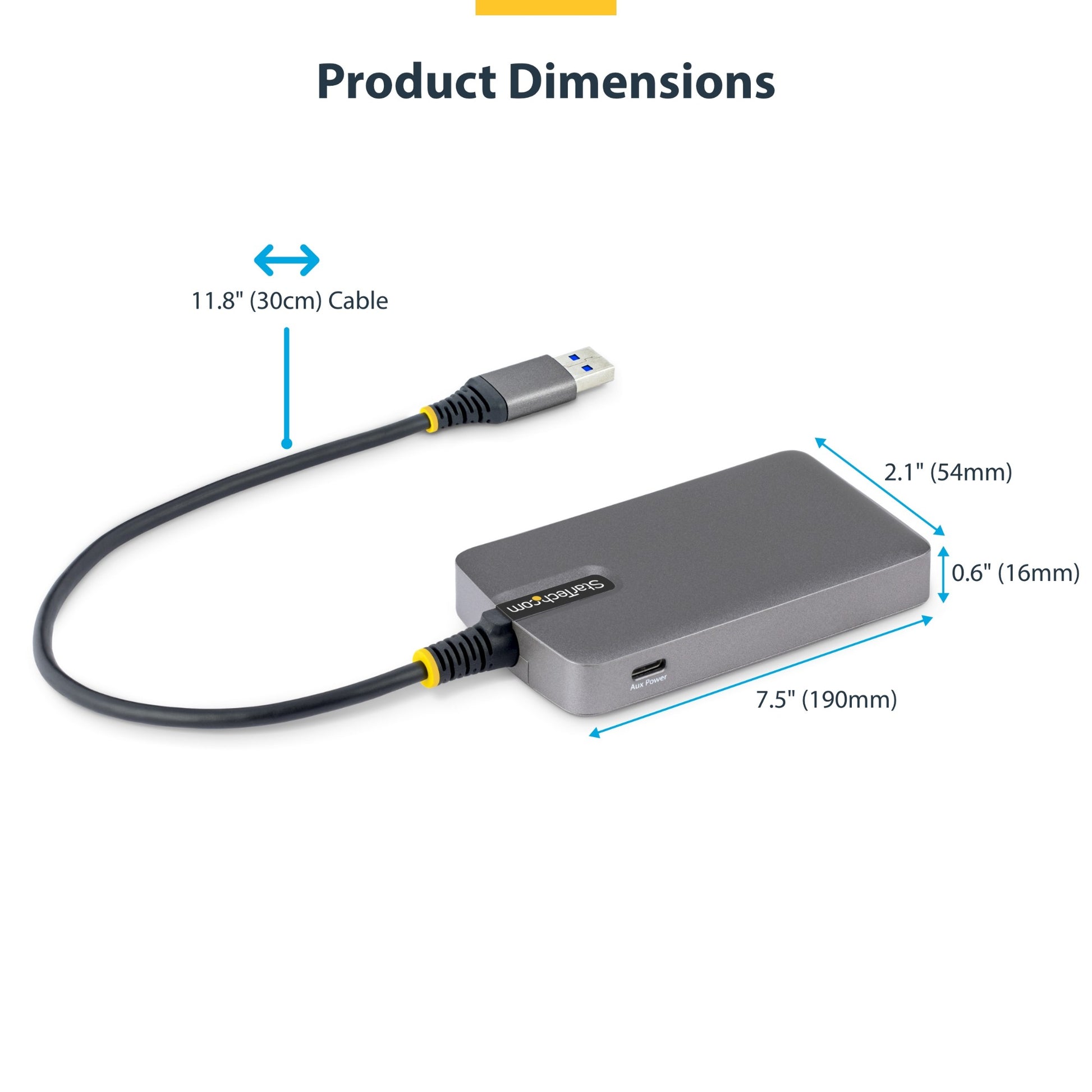

Weight & dimensions
Weight	82 g
Width	54 mm
Depth	420 mm
Height	16 mm
Package width	120 mm
Package depth	160 mm
Package height	30 mm
Package weight	145 g
Performance
Mean time between failures (MTBF)	302079 h
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 85%
Logistics data
Master (outer) case width	331 mm
Master (outer) case length	473 mm
Master (outer) case height	440 mm
Products per master (outer) case	80 pc(s)
Other features
Chipset	VIA - VL817

Downloads

• Datasheet (PDF)
