StarTech.com 4-Port USB 2.0 Hub - Metal Industrial USB-A Hub - Din Rail, Wall or

The StarTech.com 4-Port expands your ports in seconds — plug in and go.

Industrial-grade | 8kV Air | 4kV Contact | Metal | Mountable | DIN Rail | 480 Mbps

This TAA compliant 4-port industrial USB 2.0 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.

Perfect for Harsh Environments

This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.

Perfect for factory environments, the rugged hub also supports a wide operating temperature range (0°C to 55°C) and offers ESD protection to each USB port, which can help prevent damage to your connected devices.

Connect More USB Devices

Designed for a high volume of connections, this robust USB 2.0 hub offers four connection ports, for connecting more USB devices and peripherals.

Locate the Hub Where You Need It Most

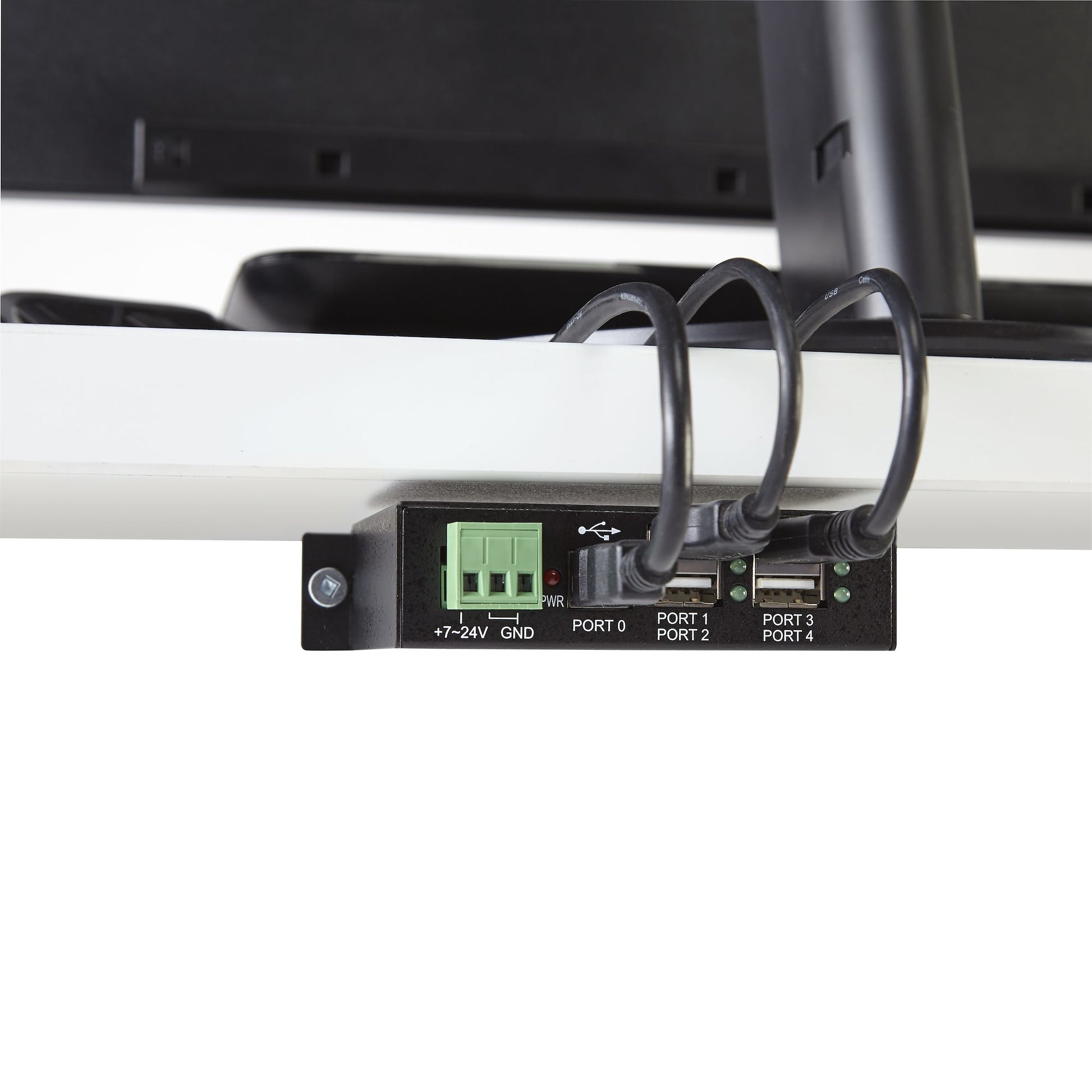

With versatile installation options, you can install the hub where it’s best suited for your environment. With built-in mounting brackets, included DIN mount rails, and an included 2-meter USB host cable, you can securely mount the USB 2.0 hub to most surfaces such as a wall, under a desk or rack.

StarTech.com offers an external power adapter, ITB20D3250, sold separately. The universal DC power adapter can be used as an alternative, back up or replacement power supply for StarTech.com’s line of industrial USB hubs.

Works with Older USB Devices

The rugged USB hub supports the full 480 Mbps bandwidth of USB 2.0 and is backward compatible with previous USB devices.

The ST4200USBM is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Specifications

Ports & interfaces
Host interface	USB 2.0 Type-B
Terminal block port	Yes
Hub interfaces	USB 2.0
USB 2.0 ports quantity	4
DC-in jack	No
Card reader integrated	No
Ports quantity	4
Features
Plug and Play	Yes
LED indicators	Power
Product colour	Black
Certification	CE, FCC, TAA, RoHS
Data transfer rate	480 Mbit/s
Housing material	Steel
Power
Input voltage	7 - 24 V
Performance
Mean time between failures (MTBF)	193317 h
Harmonized System (HS) code	84719000
Weight & dimensions
Weight	207 g
Width	57.3 mm
Depth	114 mm
Height	26 mm
Package width	145 mm
Package depth	205 mm
Package height	39 mm
Package weight	400 g

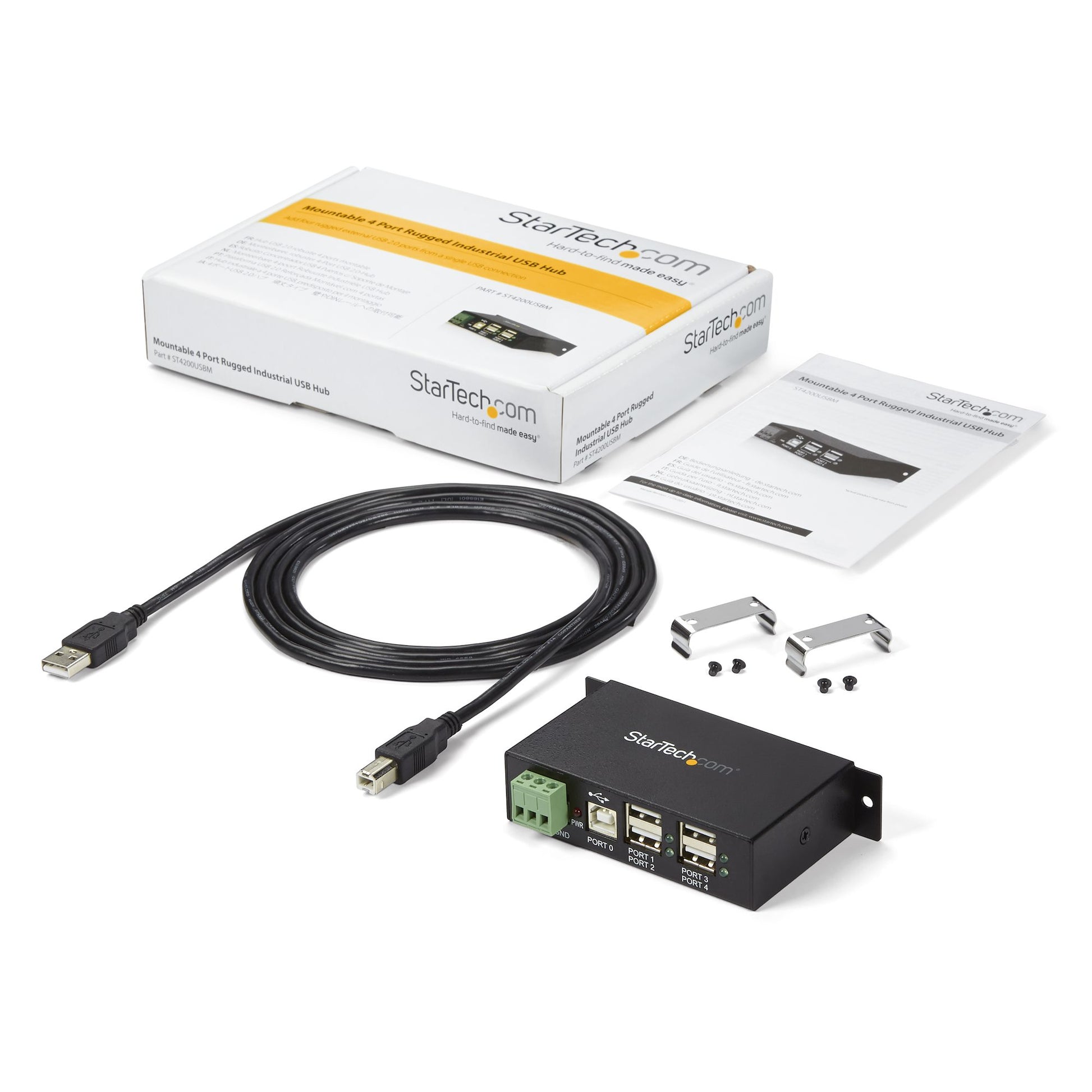

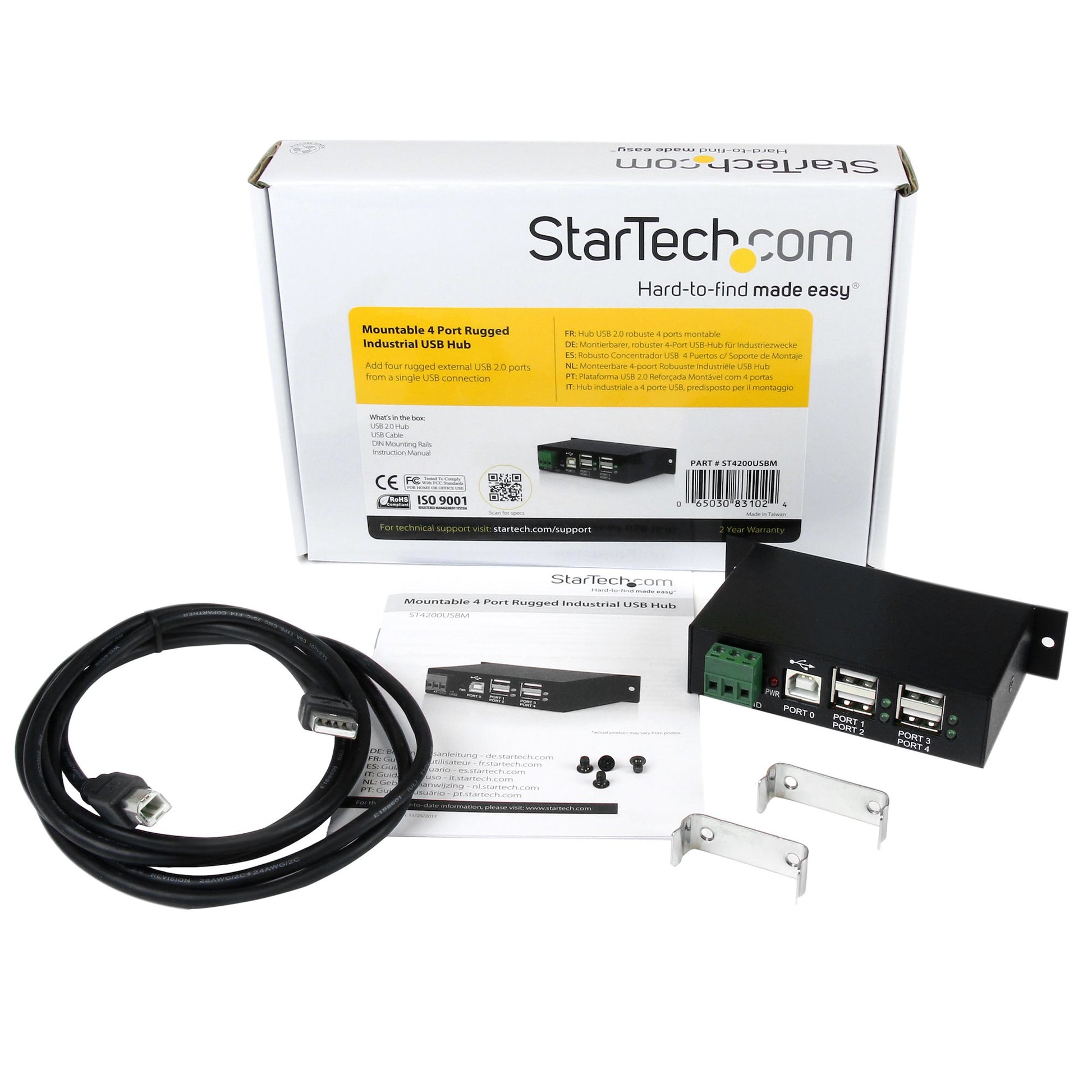

Packaging content
Manual	Yes
Cables included	USB
DIN rail kit included	Yes
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-20 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Logistics data
Master (outer) case width	445 mm
Master (outer) case length	520 mm
Master (outer) case height	335 mm
Products per master (outer) case	50 pc(s)
Other features
Chipset	Renesas/NEC - µPD720114

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
