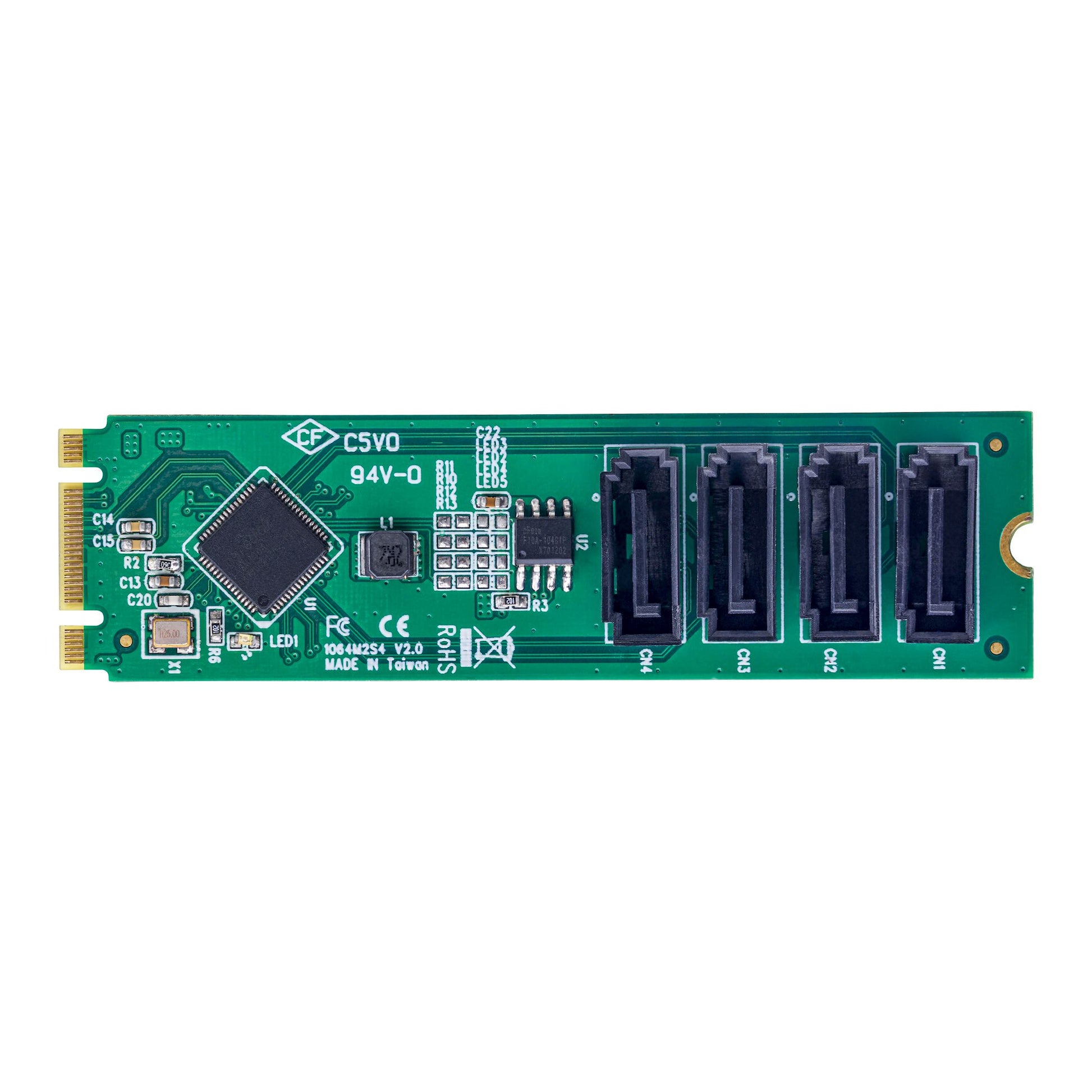

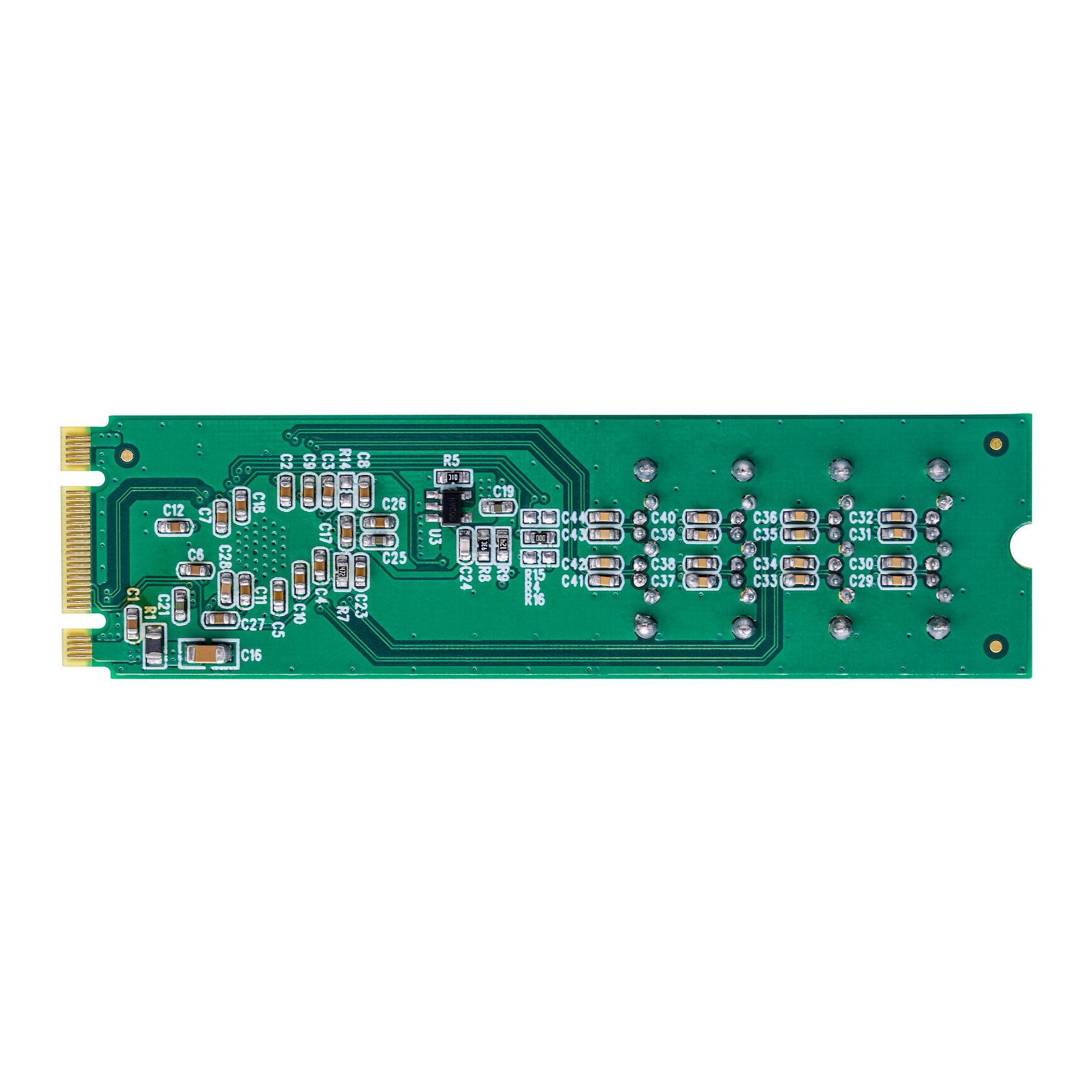

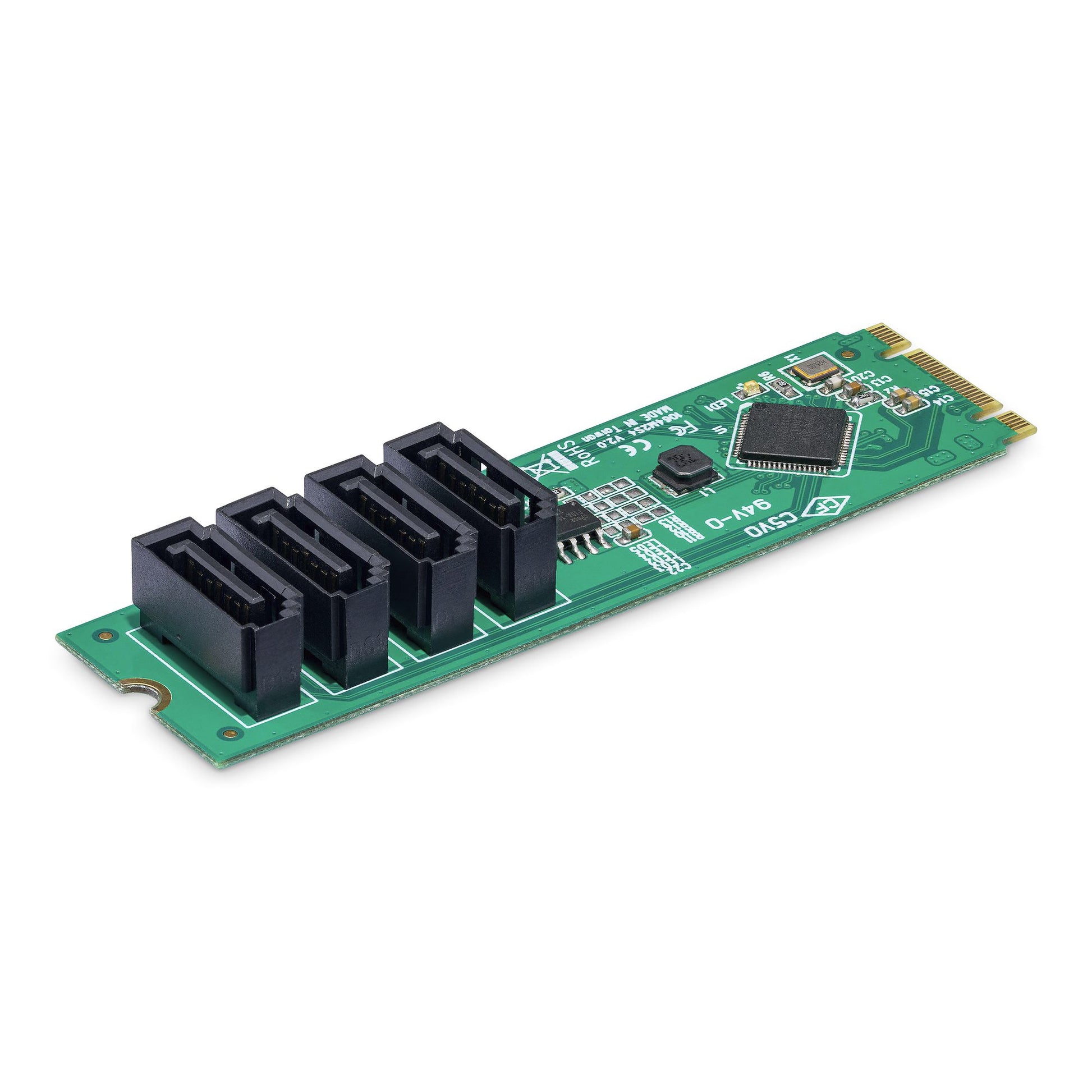

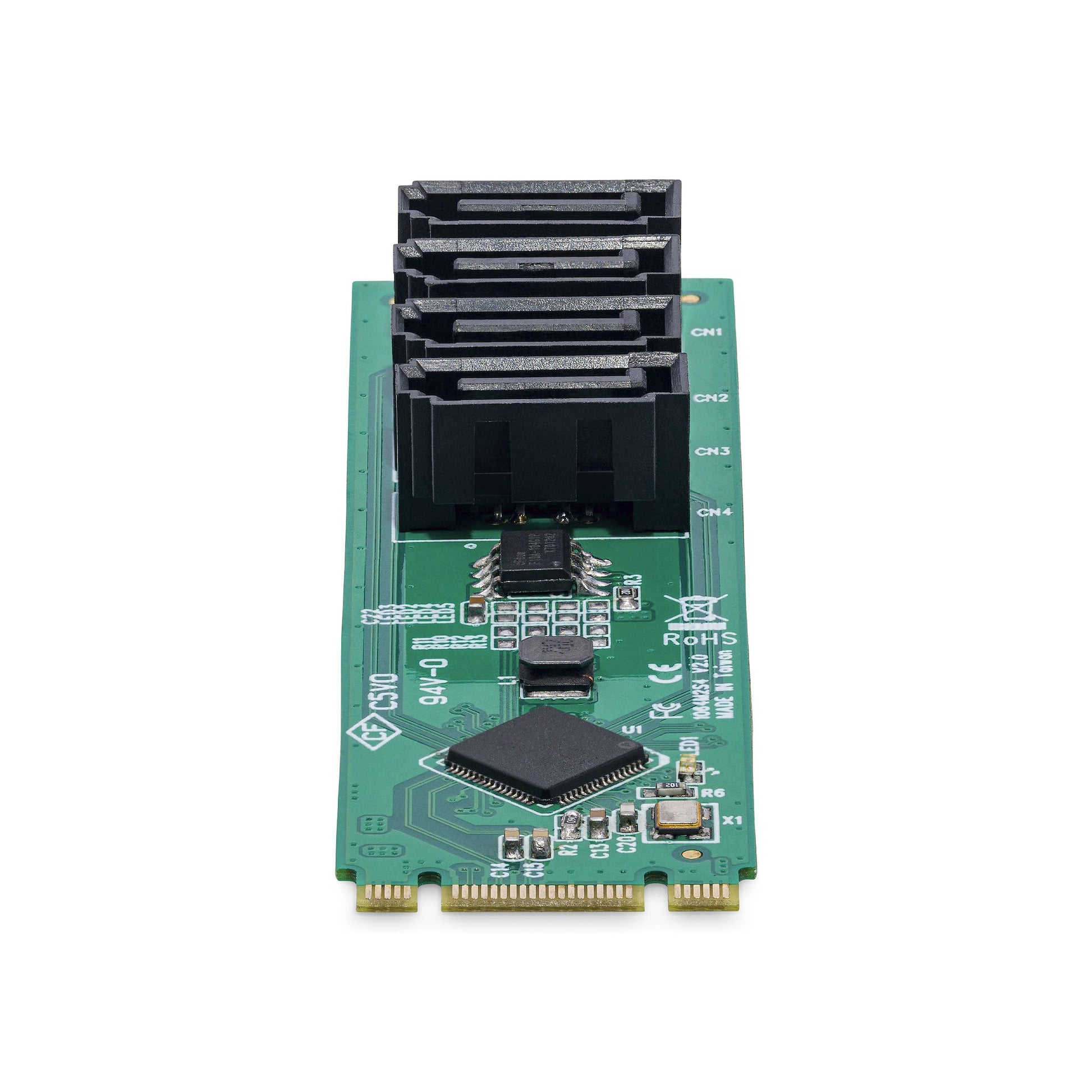

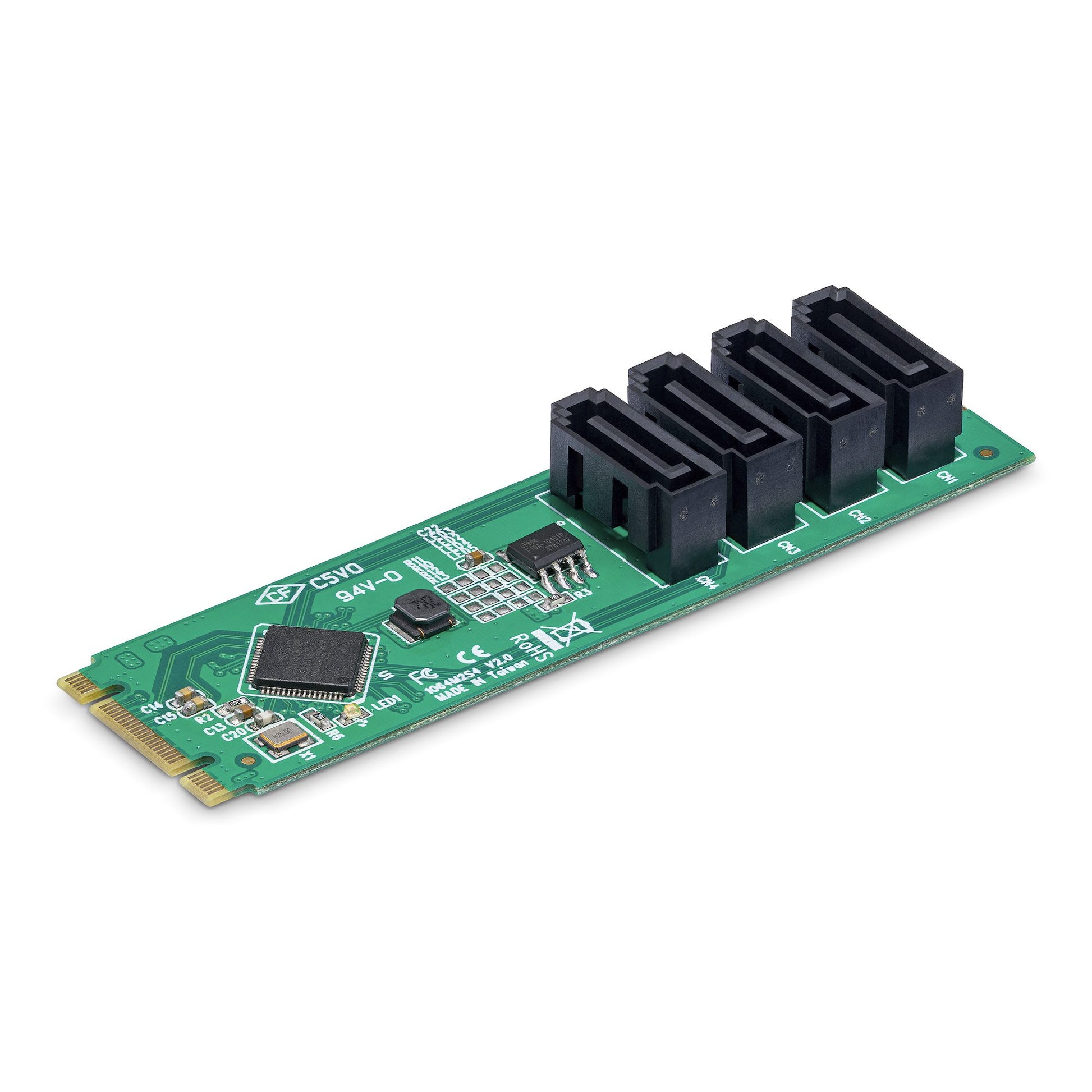

StarTech.com 4-Port M.2 to SATA Adapter Card, M.2 PCIe 3.0 to SATA HDD/SSD Expansion Hub

The StarTech.com 4-Port M.2 to SATA expands your ports in seconds — plug in and go.

Install four SATA drives via one M.2 slot for a high-density storage solution

Add up to four independent SATA drives to a desktop via a single 2280 M.2 drive slot, maintaining SATA 6Gbps read/write speeds per drive.

Cost-Effective Storage Expansion

This setup can be used with modern motherboards or external enclosures that feature a PCIe-based M.2 slot, allowing for a cost-effective expansion of storage capabilities. Four 19.6-inch (50cm) SATA cables are included to connect the HDDs or SSDs for quick installation.

Compatibility

The drivers auto-install in most major operating systems, including Windows 8 and later, macOS, and Linux. This adapter card is compatible with all hardware platforms, such as Intel and AMD, and supports software storage management, including Microsoft's Storage Spaces.

Applications

This storage expansion card is ideal for data storage, backups, NAS setups, photographers, videographers, and content creation, where large storage capacity and reliability is required.

ASMedia ASM1064 Chipset

The 4-Port M.2 NVMe to SATA Adapter supports TRIM, SMART data pass-through, SATA I/II/III, and PCI Express 3.0.

Note: Only compatible with PCIe-based B-key or M-key M.2 drive slots

Note: Not compatible with SATA-based M.2 drive slots

Specifications

Ports & interfaces
Internal	Yes
Port multiplier	Yes
Output interface	SATA
Internal SATA ports quantity	4
Host interface	M.2
Expansion card standard	PCI 3.0
Technical details
Chipset	ASMedia ASM1064
Compliance certificates	RoHS
Performance
Hot-swap	Yes
Product colour	Green
TRIM support	Yes
S.M.A.R.T. support	Yes
Design
Mean time between failures (MTBF)	68555579 h
LED indicators	Power
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-20 - 80 °C
Operating relative humidity (H-H)	20 - 80%
System requirements
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Mac operating systems supported	Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma
Linux operating systems supported	Yes
Weight & dimensions
Width	22 mm
Depth	80 mm
Height	11 mm
Weight	8 g
Package width	142 mm
Package depth	170 mm
Package height	30 mm
Package weight	142 g
Packaging data
Cables included	SATA
User guide	Yes
Logistics data
Products per master (outer) case	75 pc(s)
Master (outer) case width	685 mm
Master (outer) case length	345 mm
Master (outer) case height	306 mm
