StarTech.com 4-Port KM Switch with Mouse Switching, USB Switch for Keyboard/Mouse

Control multiple machines from one keyboard, monitor and mouse with the StarTech.com 4-Port KM.

Control up to four computers with a single keyboard and mouse

This Keyboard and Mouse (KM) Switch enables switching a single keyboard and mouse between multiple computers using mouse roaming, allowing users to seamlessly move the cursor across multiple screens (i.e., one monitor per computer).

Mouse Switching

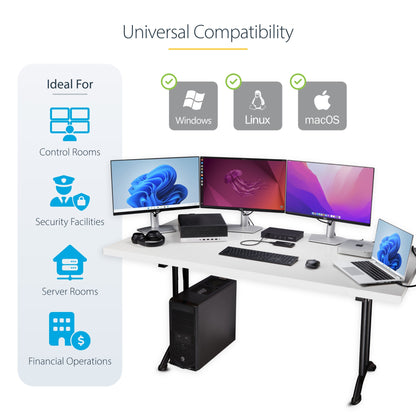

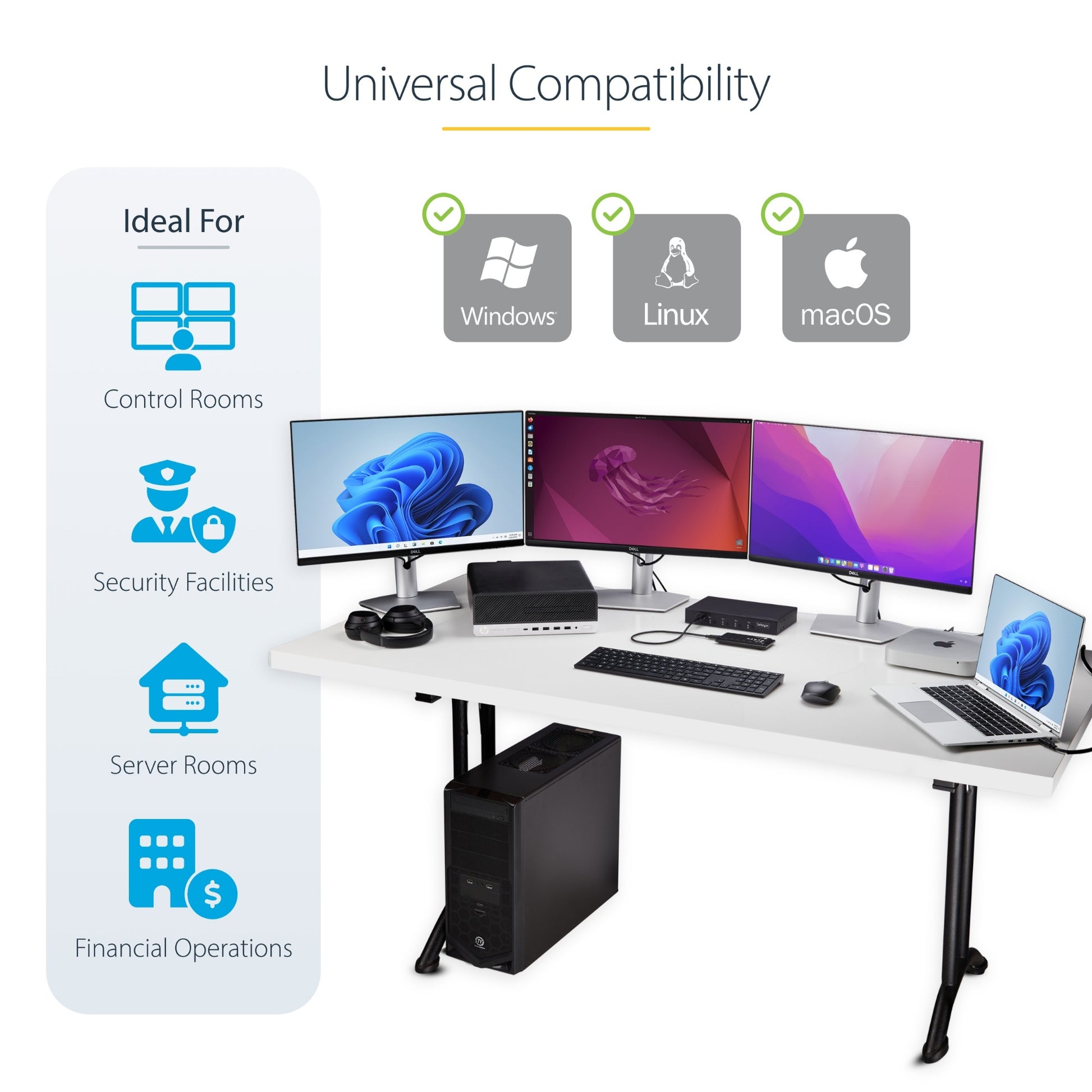

Switch between computers by moving the mouse between monitors, enabling uninterrupted workflow and increased efficiency. Hotkey and push-button switching are universally compatible. Mouse Switching is supported by most major desktop operating systems, including Windows, macOS, and Linux.

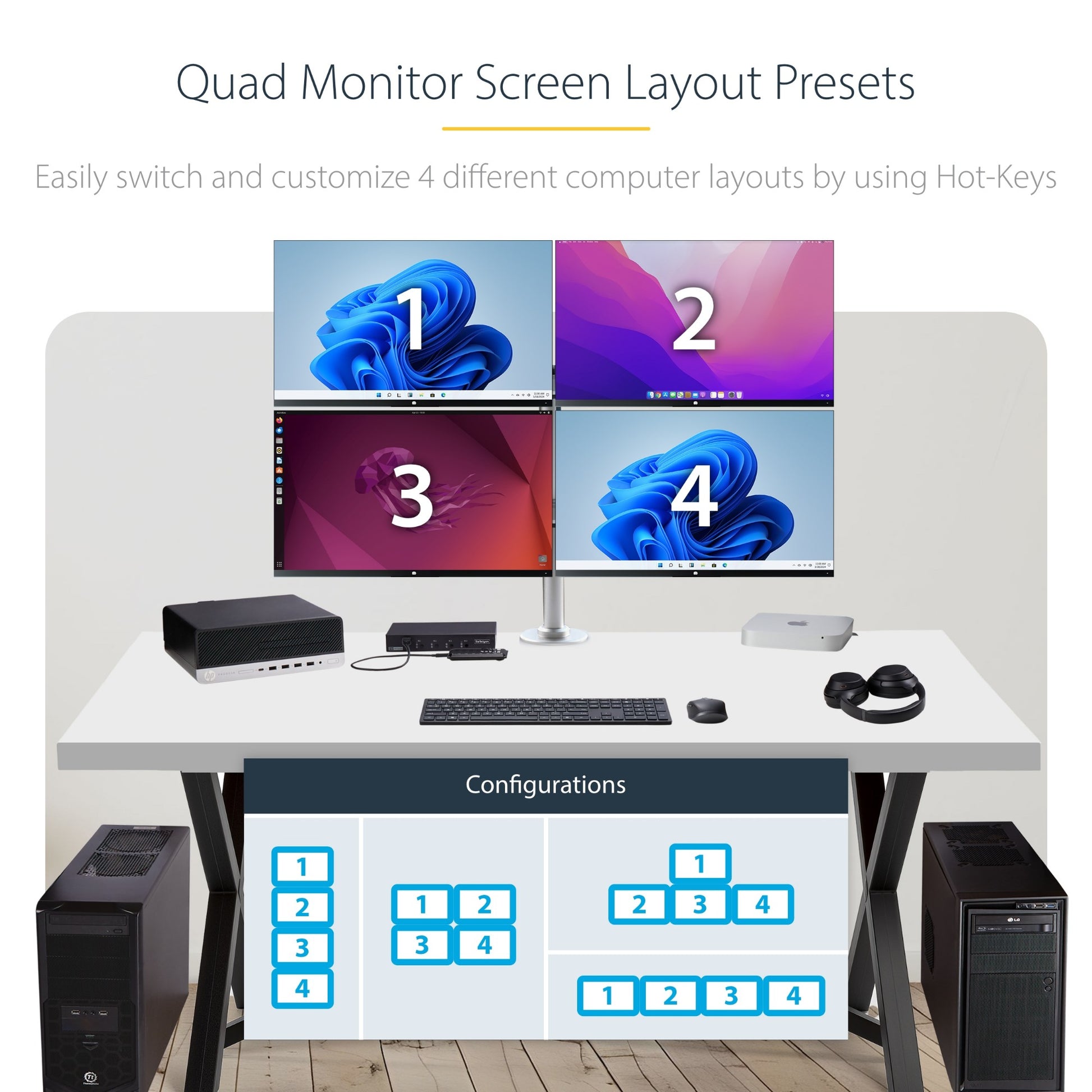

Preset Monitor Layouts

To accommodate various physical monitor setups, there are four preset display configurations available. This allows for smooth mouse movement across host monitors.

Thoughtful Design

Hotkeys enable listening to audio from one computer while controlling another. USB audio and 3.5mm pass-through are available, and LEDs provide visual port selection status, while an audible buzzer confirms hotkey selection.

Note: On computers with multiple monitors connected with Mouse Switching/Roaming enabled, mouse/keyboard operation is limited to the primary display

Specifications

Ports & interfaces

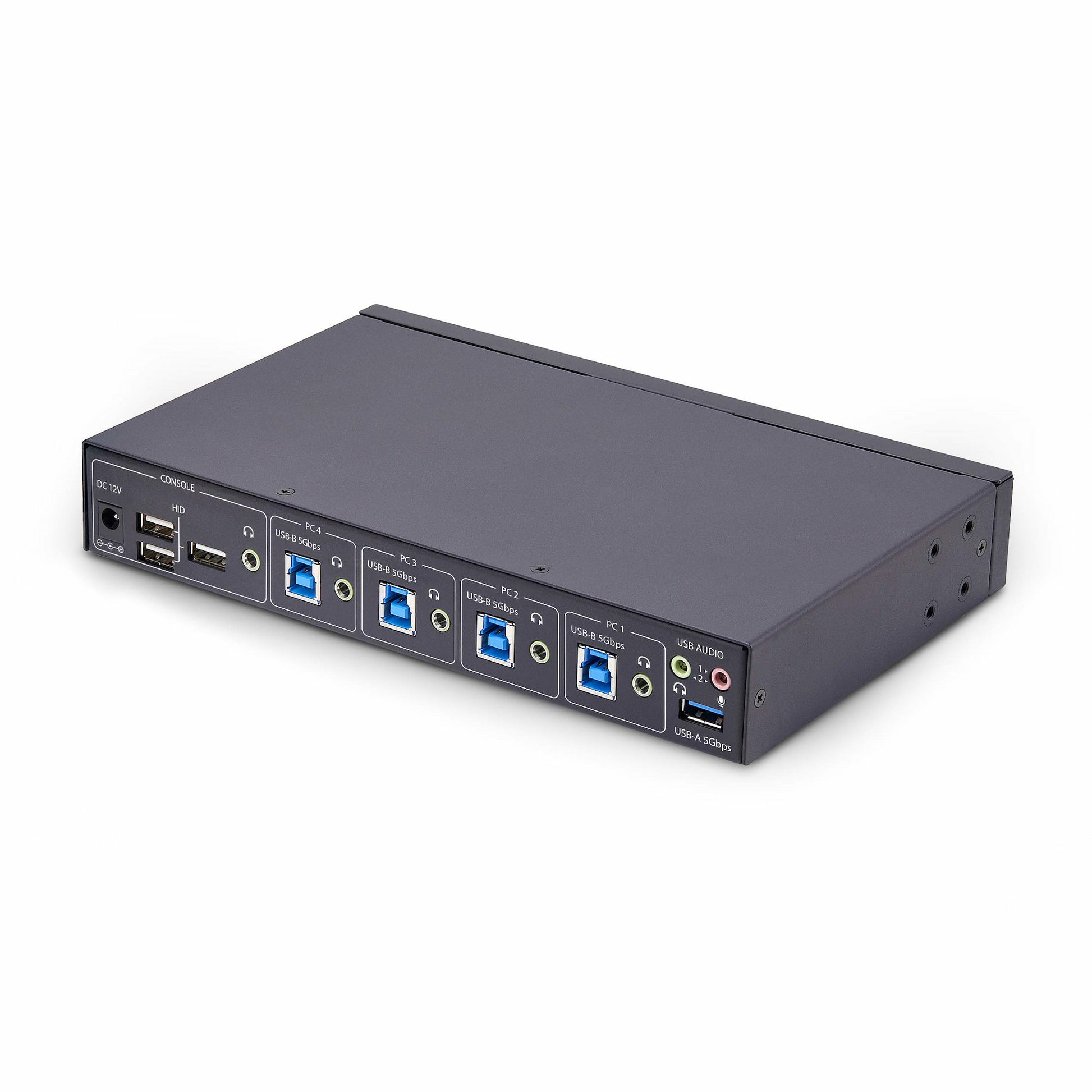

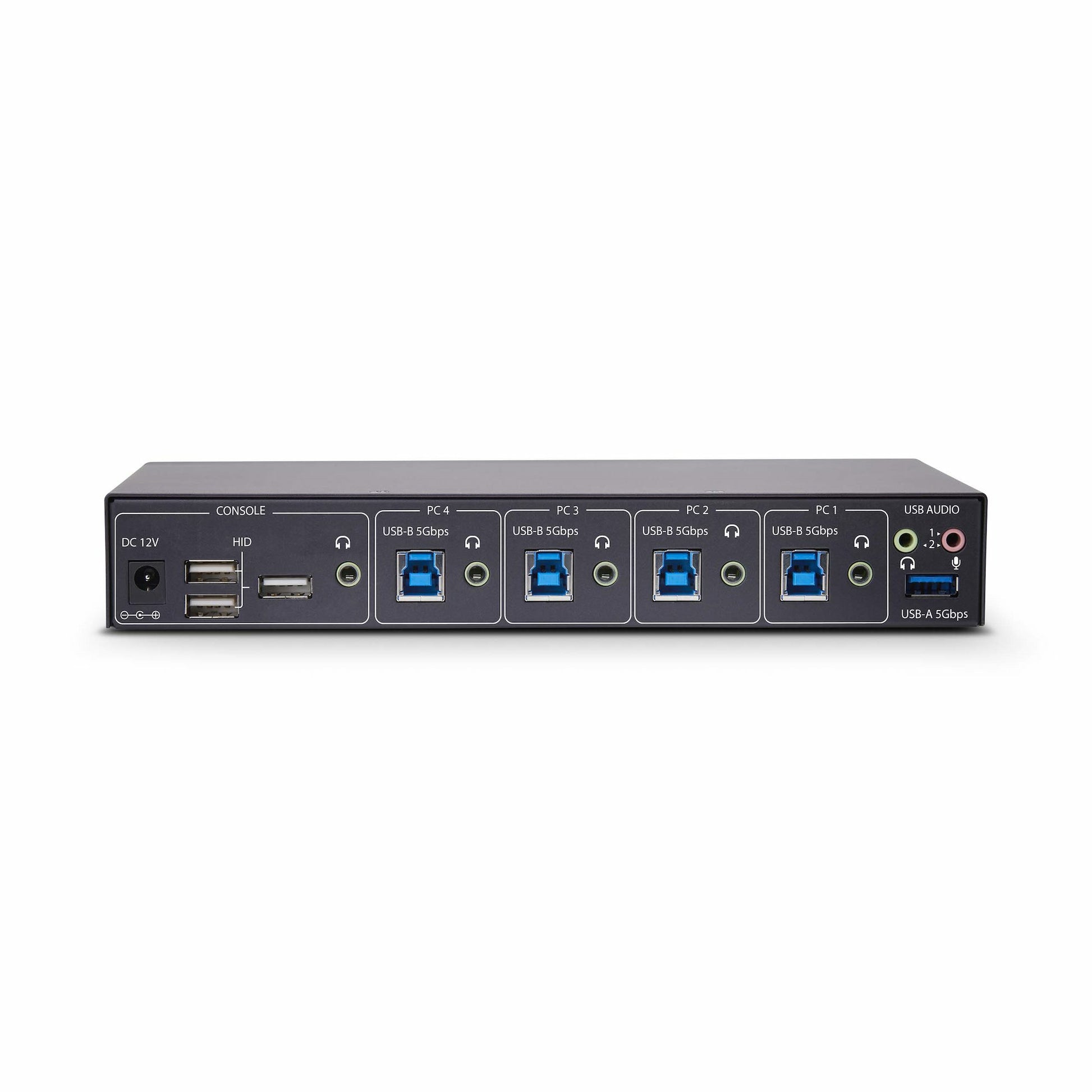

Console ports	3.5mm headphone, 3.5mm mic, USB A
Number of microphone inputs	1
Number of computers controlled	4
Keyboard port type	USB
Mouse port type	USB
Audio connections	Yes
Headphone outputs	6
DC-in jack	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity	4
USB 2.0 Type-A hub ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity	2
Performance
Chipset	GL3523
Data transfer rate (max)	5 Gbit/s
HD type	Not supported
Technical details
Product colour	Black

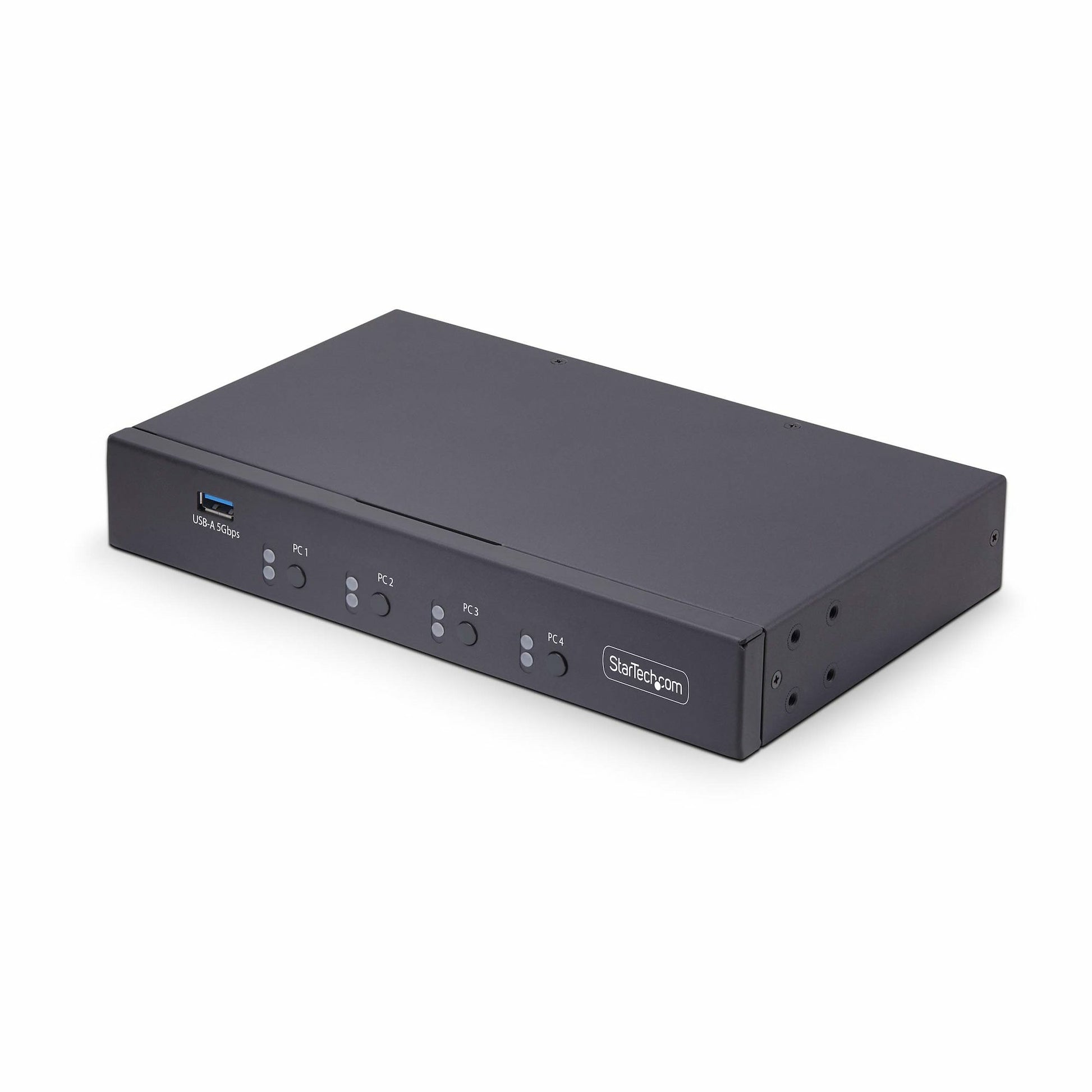

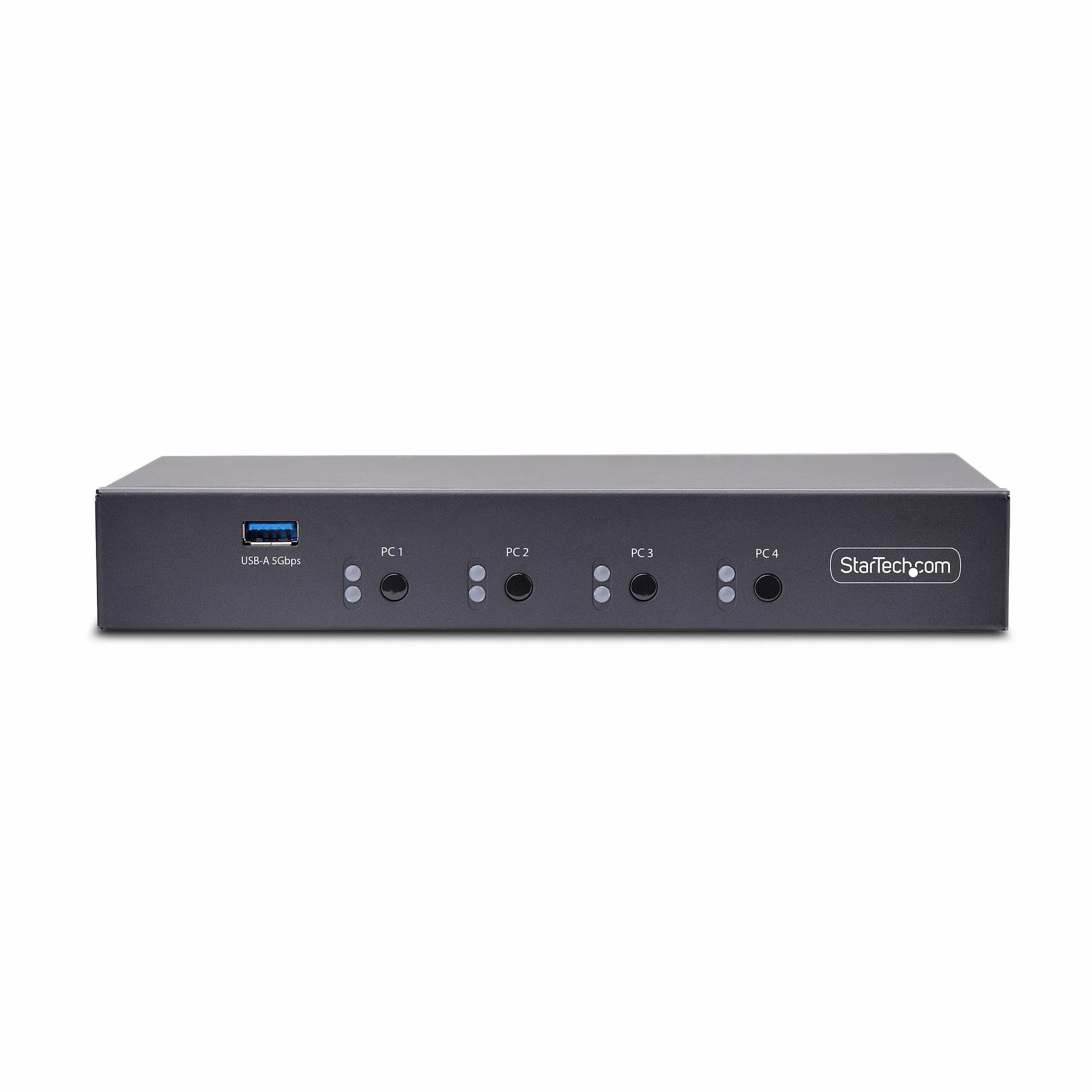

Push button	Yes
On Screen Display (OSD)	No
LED indicators	Yes
Hot keys	Yes
IP control	No
Sustainability compliance	Yes
Compliance certificates	RoHS, Trade Agreements Act (TAA)
Design
Mean time between failures (MTBF)	156000 h
Display
Built-in display	No
Power
Input current	0.6 A
Output current	5 A
Power plug type	Type M

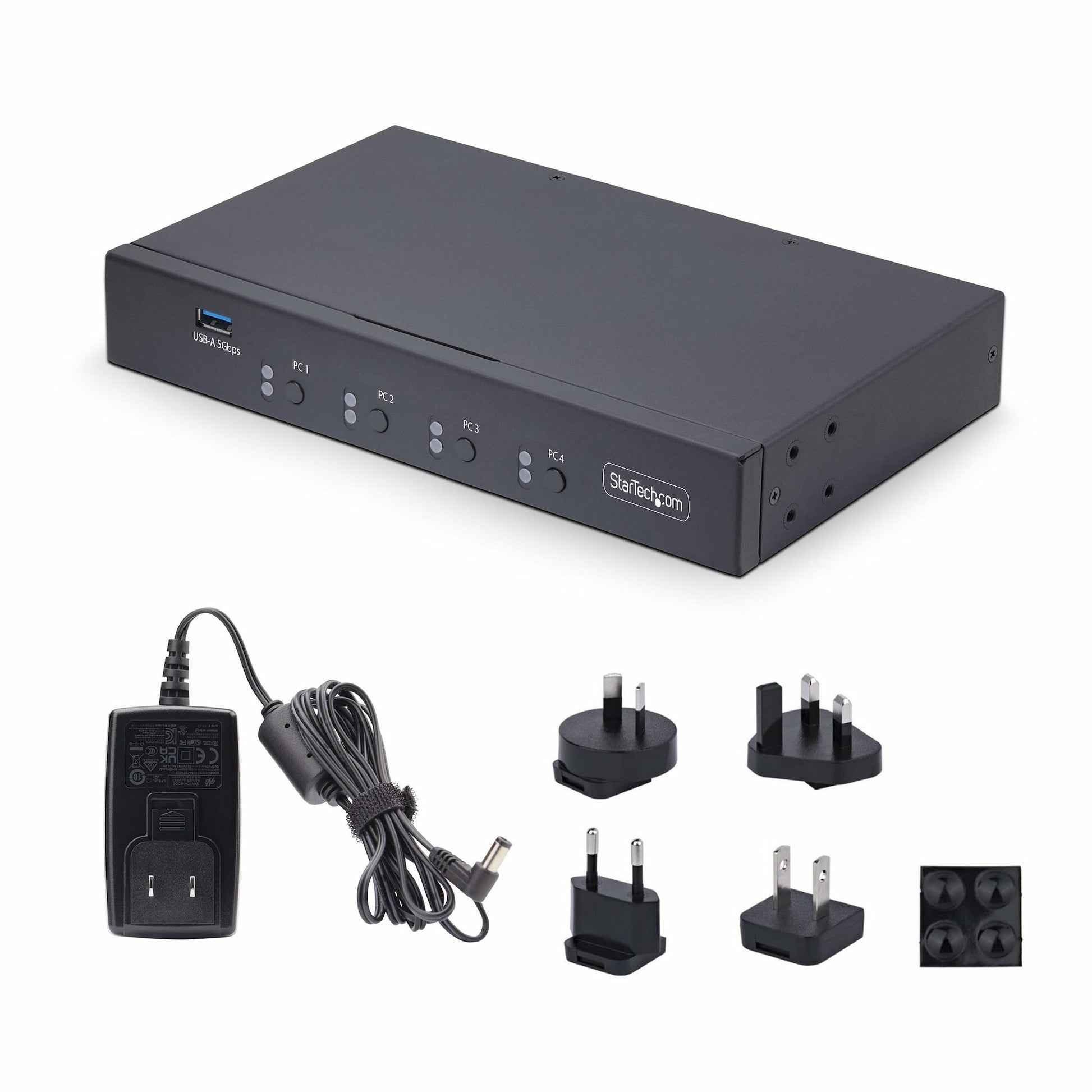

Compatible power plug types	AU, EU, UK, US
Output voltage	12 V
External power adapter	Yes
Input voltage	100 - 240 V
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions

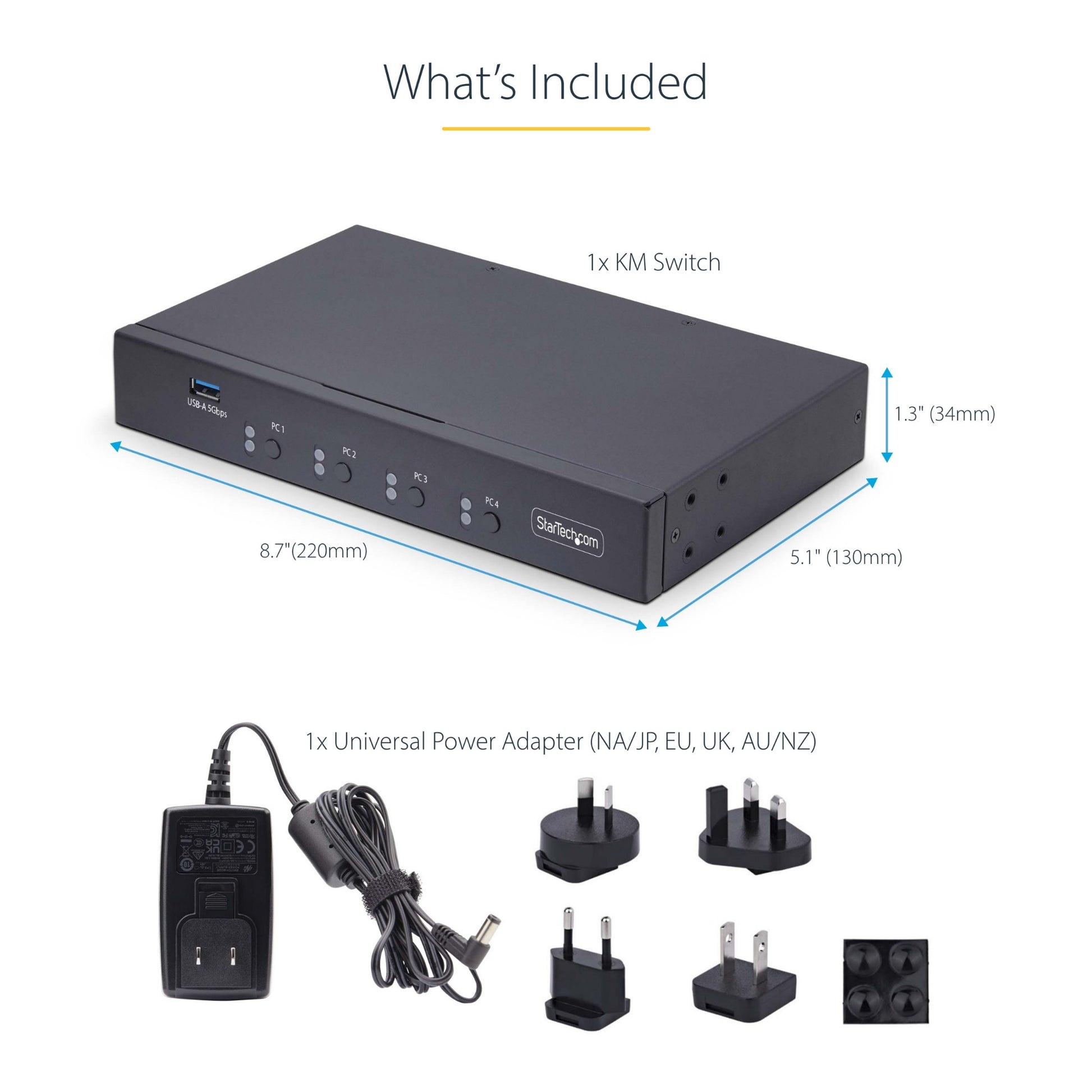

Width	130 mm
Depth	220 mm
Height	34 mm
Weight	800 g
Package width	295 mm
Package depth	245 mm
Package height	63 mm
Package weight	180 g
Packaging content
Quick installation guide	Yes
Logistics data
Master (outer) case width	320 mm
Master (outer) case length	505 mm
Master (outer) case height	290 mm
Products per master (outer) case	8 pc(s)
