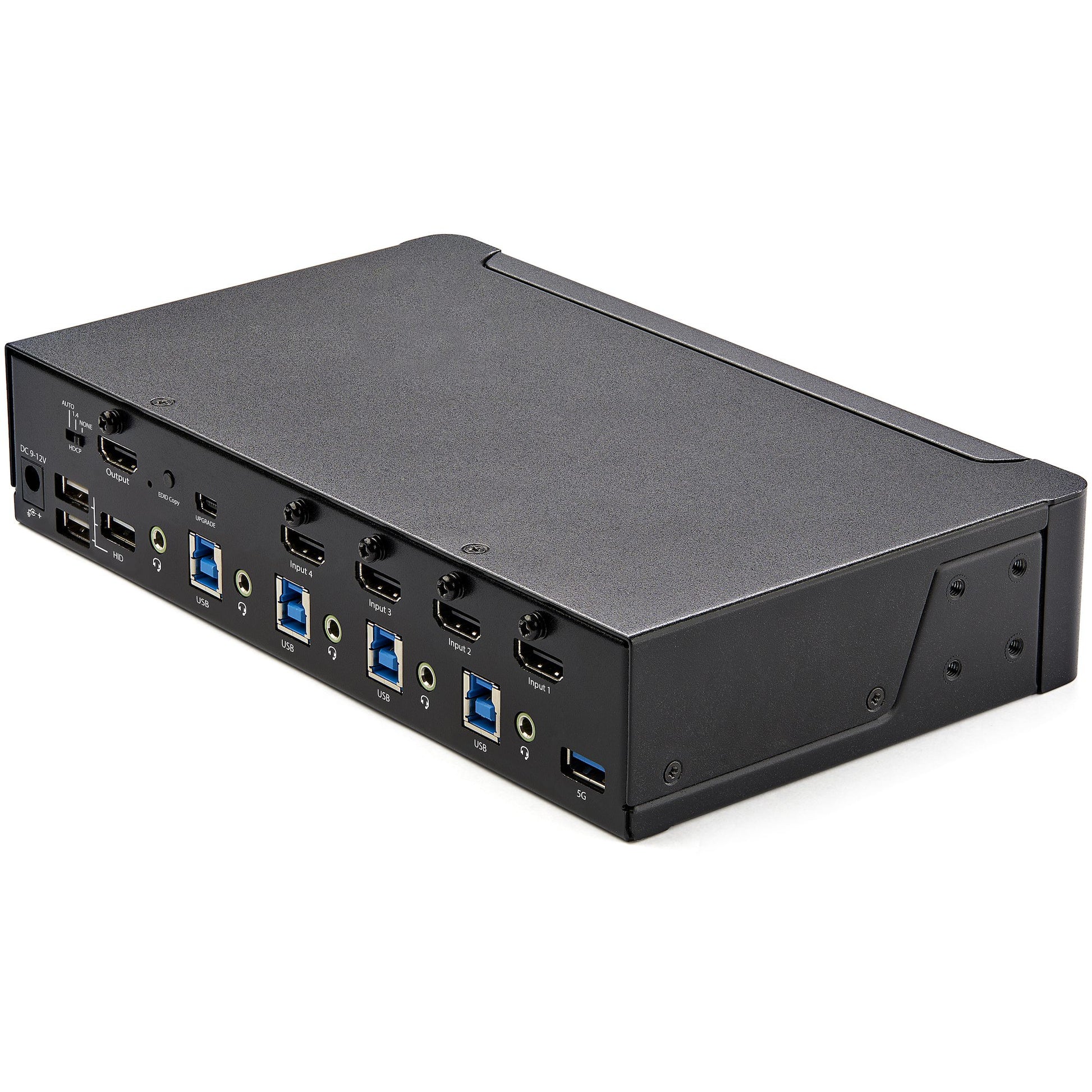

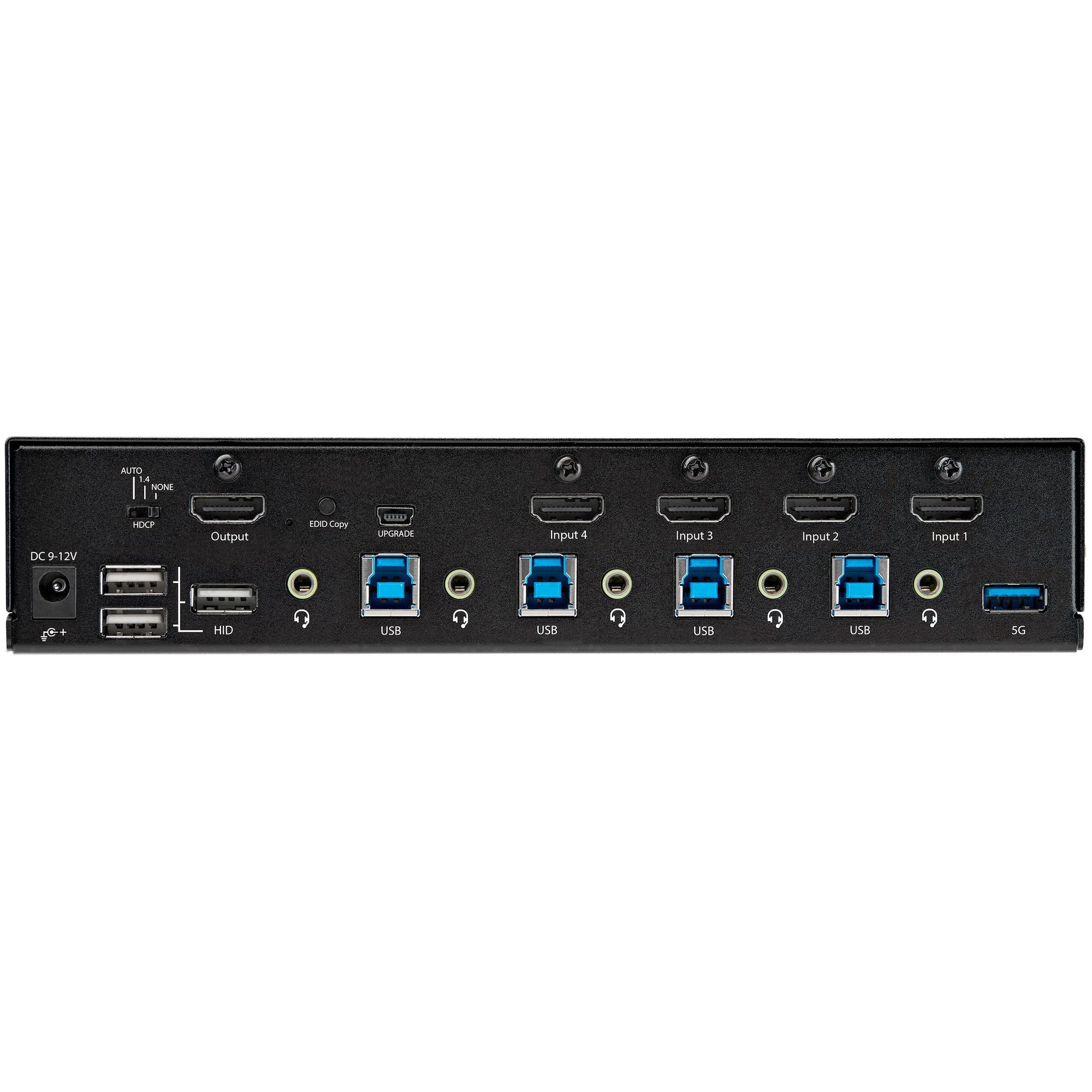

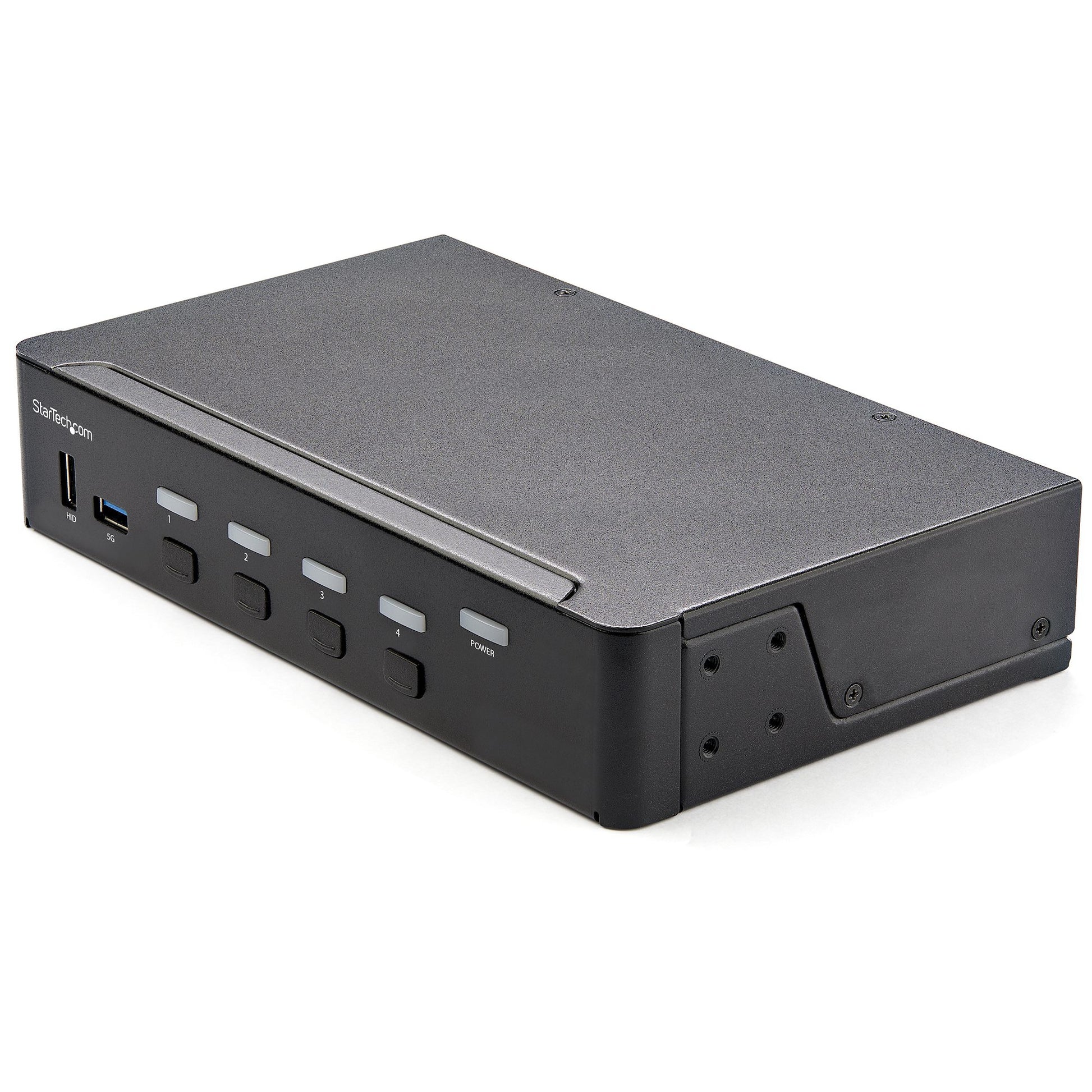

StarTech.com 4 Port HDMI KVM Switch - Single Monitor 4K 60Hz Ultra HD HDR - Desktop
StarTech.com 4 Port HDMI KVM Switch - Single Monitor 4K 60Hz Ultra HD HDR - Desktop
Regular price
£366.95 GBP
Regular price
Sale price
£366.95 GBP
Taxes included.
Quantity
Couldn't load pickup availability
Control multiple machines from one keyboard, monitor and mouse with the StarTech.com 4 Port HDMI.
KVM with USB | TAA Compliant | USB 3.0 Hub | HDMI 2.0 | Digital & Analog AudioThis 4 port KVM switch combines 4K (60Hz) digital display capabilities with control of our connected computers.
4K 60Hz Picture and Full Audio Support
The HDMI KVM switch supports resolutions up to 4K at 60Hz. It drives one large monitor at the full 4K resolution. Includes EDID and HDCP signal emulation so monitors always remain synced for faster switching times, and desktop settings are maintained to avoid disrupting your workflow.
With support for digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the HDMI 2.0 KVM switch delivers full audio compatibility.
Integrated USB Hub
The integrated USB 3.0 hub shares two peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected to your host computer, eliminating the cost of duplicate devices such as printers and scanners.
Windows, Mac & Linux Compatible
While supporting Windows, this HDMI KVM switch is also compatible with Mac and Linux operating systems.
Easy to Operate

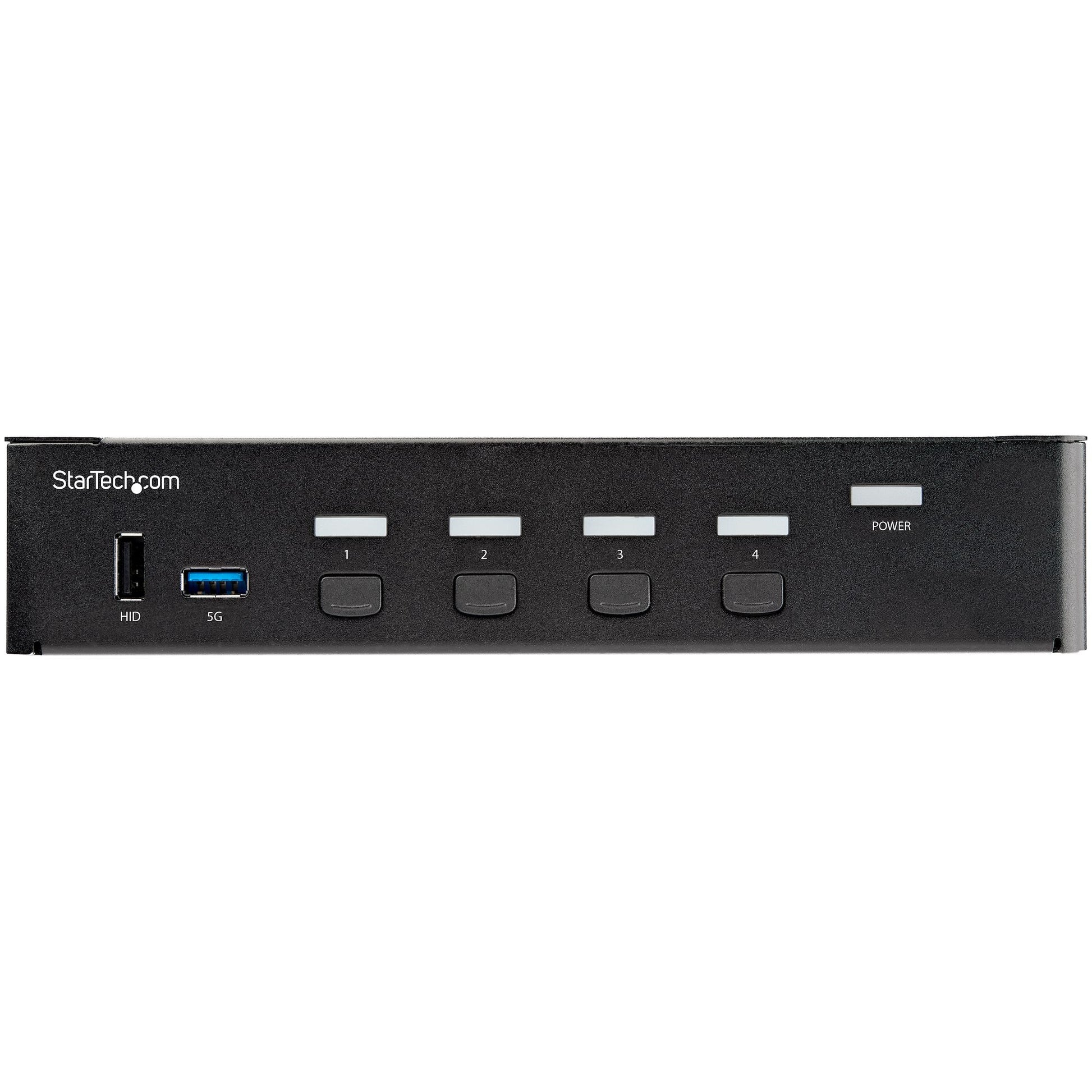

The front-panel pushbuttons make it easy to switch between systems and activate the auto-scan feature. The hotkey functionality makes accessing each system quickly, while a buzzer sound confirms the switch.
StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice, and monitors.
This 4 port HDMI KVM switch is backed by a 2-year warranty and free lifetime technical support.
Specifications
| Ports & interfaces | |
|---|---|
| Console USB ports quantity | 4 |
| Console ports | 3.5mm headphone, 3.5mm mic, HDMI, USB A |
| Number of microphone inputs | 5 |
| HDMI version | 2.0 |
| Number of computers controlled | 1 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| Audio connections | Yes |
| Headphone outputs | 5 |
| HDMI ports quantity | 5 |
| DC-in jack | Yes |
| USB hub | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| Performance | |
| Daisy chain | No |
| Chipset | Genesys Logic - GL3523 |
| Data transfer rate (max) | 5 Gbit/s |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Scan interval | 3,8,15,30 s |
| Audio channels | 7.1 |
| Technical details | |
| Product colour | Black |
| Push button | Yes |
| On Screen Display (OSD) | No |
| LED indicators | Yes |
| Hot keys | Yes |
| IP control | No |
| Design | |
| Mean time between failures (MTBF) | 143000 h |
| Certification | CE, FCC, RoHS |
| Housing material | Steel |
| Display | |
| Built-in display | No |
| Power | |
| Input current | 1 A |
| Output current | 3 A |
| Power plug type | Type M |
| Compatible power plug types | EU, UK, US |
| Output voltage | 12 V |
| Power consumption (typical) | 36 W |
| Input voltage | 100 - 240 V |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 130 mm |
| Depth | 220 mm |
| Height | 44 mm |
| Weight | 1.1 kg |
| Package width | 215 mm |
| Package depth | 411 mm |
| Package height | 89 mm |
| Package weight | 1.8 kg |
| Packaging content | |
| Rubber feet | Yes |
| Manual | Yes |
| Logistics data | |
| Master (outer) case width | 553 mm |
| Master (outer) case length | 438 mm |
| Master (outer) case height | 255 mm |
| Products per master (outer) case | 6 pc(s) |
| Harmonized System (HS) code | 85176200 |
