StarTech.com 4 Port HDMI KVM Switch - 4K 30Hz - Dual Display - TAA

Control multiple machines from one keyboard, monitor and mouse with the StarTech.com 4 Port HDMI.

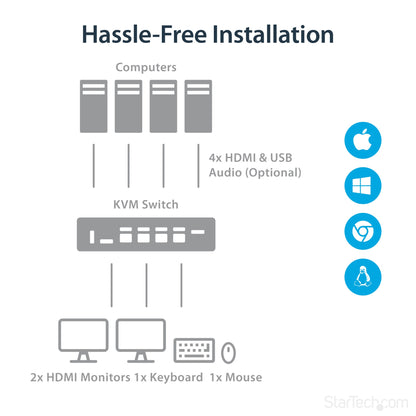

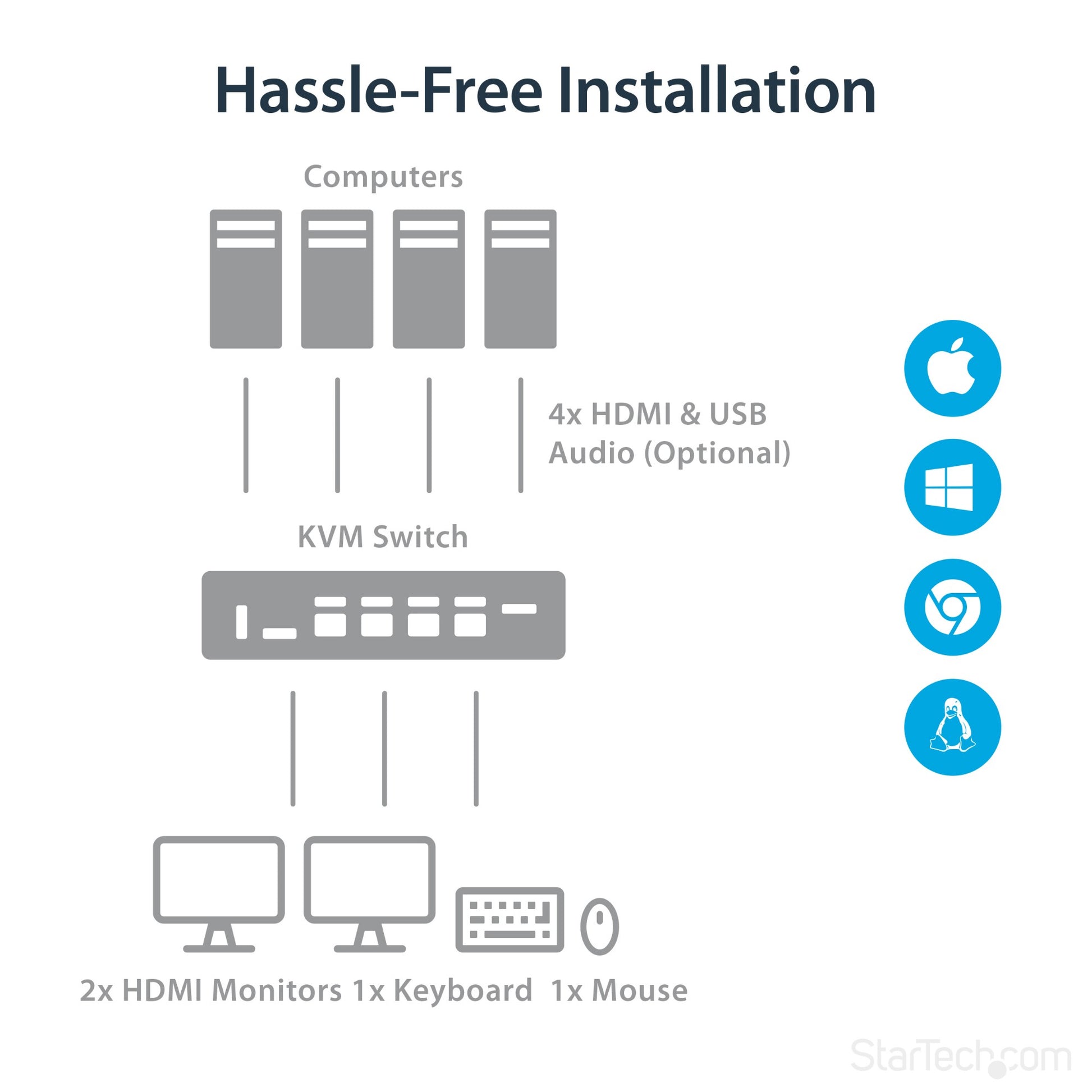

This 4K HDMI KVM with dual monitor support lets you control four HDMI computers with a single mouse, keyboard and dual monitors up to 4K at 30Hz

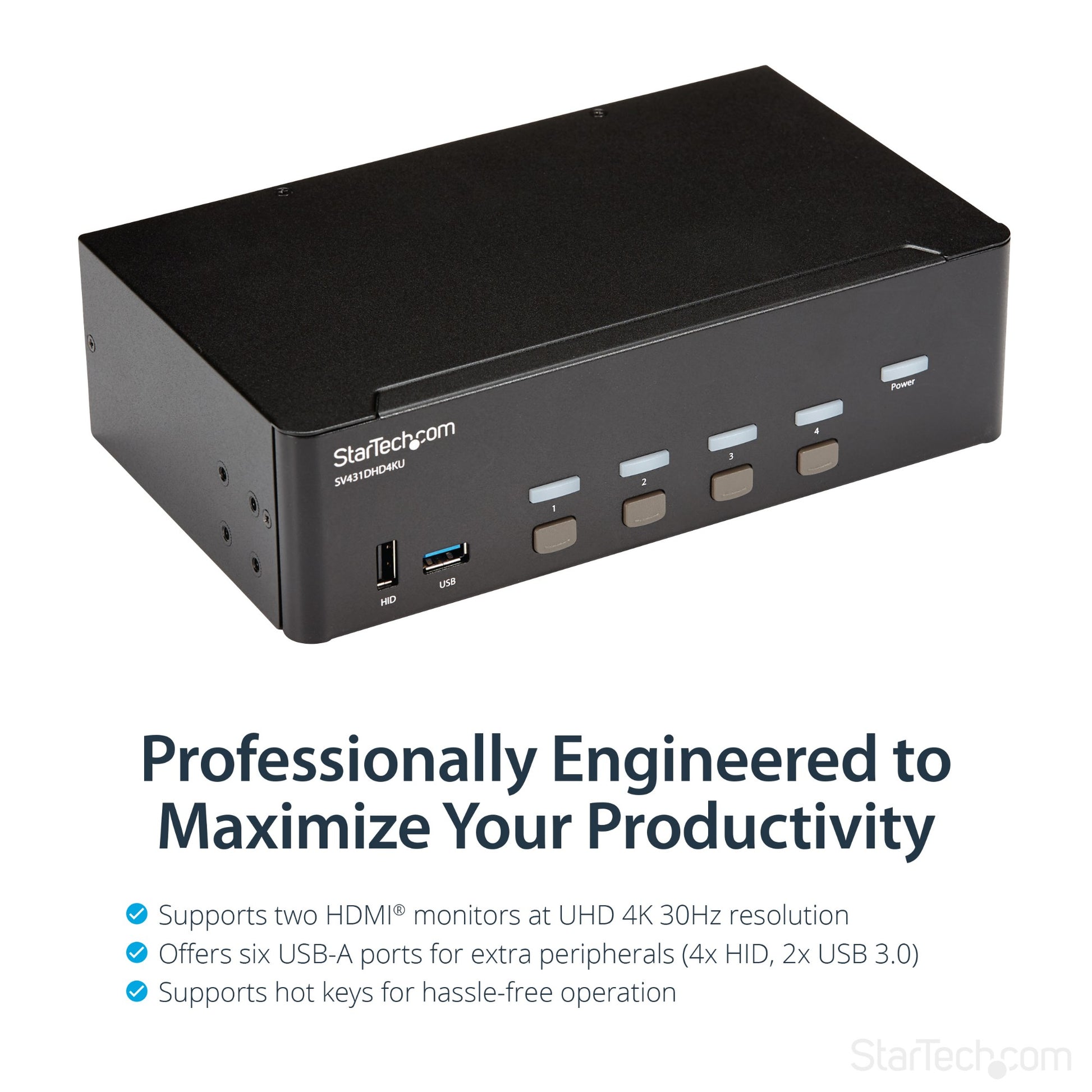

This 4-port HDMI KVM switch lets you control four HDMI computers with a single mouse, keyboard and monitor up to 4K 30Hz. The KVM also features 3.5 mm audio and a built-in 2-port USB 3.0 hub.

4K at 30Hz UHD dual display

With support for ultra-high-definition 4K 30Hz resolutions, this 4-port KVM switch can drive dual HDMI displays with crystal clarity, making it ideal for graphical applications that require UHD capability.

Convenient and cost-effective USB 3.0 peripheral sharing

This 4-port KVM switch offers two USB 3.0 ports, as well as four HID keyboard and mouse ports, so you can share peripheral devices between each computer and avoid the cost of separate equipment. The USB 3.0 hub automatically switches your connected devices to the selected computer, saving you the hassle of disconnecting and reconnecting peripherals.

Complete multimedia capability

Along with dual UHD video capability, this KVM switch features auxiliary 3.5 mm dual-channel bi-directional audio ports. This independent analog audio lets you share your analog audio devices such as speakers or a microphone between each of your connected computers, giving you complete multimedia control of your systems.

The SV431DHD4KU is TAA compliant and backed by a StarTech.com 2-year warranty with free lifetime technical support.

Specifications

Ports & interfaces
Console USB ports quantity	6
Console ports	3.5mm headphone, HDMI, USB A
USB connector type	USB Type-A
Number of computers controlled	4
Keyboard port type	USB
Mouse port type	USB
Video port type	HDMI
Headphone outputs	4
HDMI ports quantity	10
Performance
Data transfer rate (max)	5 Gbit/s
HD type	4K Ultra HD
Maximum resolution	3840 x 2160 pixels
Scan interval	3,8,15,30 s
Technical details
Product colour	Black
Rack mounting	Yes
LED indicators	Power, Status
Hot keys	Yes
IP control	No
Compliance certificates	RoHS
Design
Mean time between failures (MTBF)	168000 h
Certification	CE, FCC, TAA, REACH
Housing material	Steel
Display
Built-in display	No
Power
Input current	0.6 A
Output current	1.5 A
Compatible power plug types	AU, EU, JP, UK, US
Output voltage	12 V
Power source	AC
Power consumption (typical)	18 W
External power adapter	Yes
Input voltage	100 - 240 V
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	130 mm
Depth	220 mm
Height	63 mm
Weight	1.2 kg
Package width	296 mm
Package depth	252 mm
Package height	88 mm
Package weight	1.8 kg
Packaging content
Rubber feet	Yes
Quick installation guide	Yes
Logistics data
Master (outer) case width	509 mm
Master (outer) case length	320 mm
Master (outer) case height	298 mm
Products per master (outer) case	6 pc(s)
Harmonized System (HS) code	85176200
