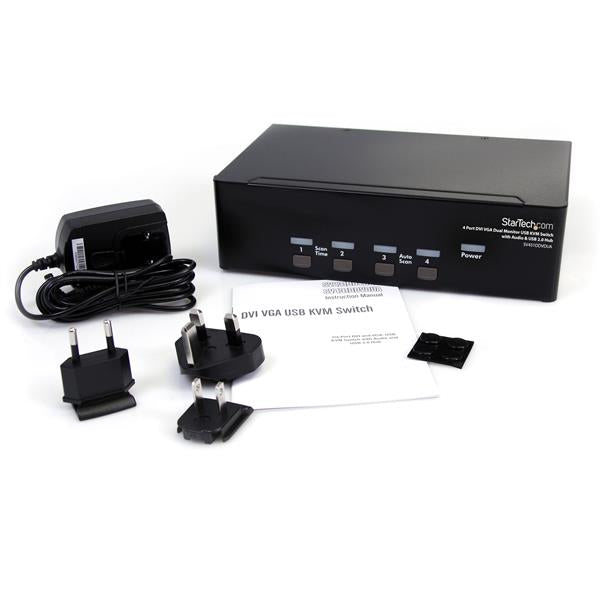

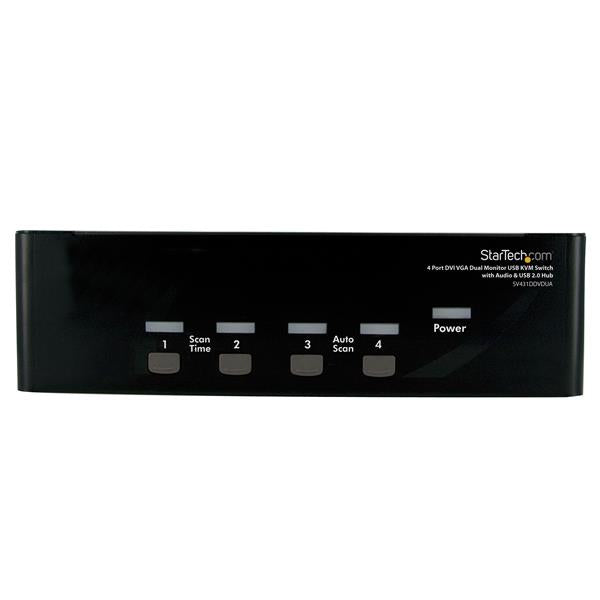

StarTech.com 4 Port DVI VGA Dual Monitor KVM Switch USB with Audio & USB 2.0 Hub

Control multiple machines from one keyboard, monitor and mouse with the StarTech.com 4 Port DVI VGA.

Share a keyboard and mouse as well as 1 VGA and 1 DVI displays/monitors between 4 multimedia computers

The SV431DDVDUA 4-port DVI VGA dual monitor KVM switch lets you control 4 Dual Display computers using a single USB mouse and keyboard peripheral set.

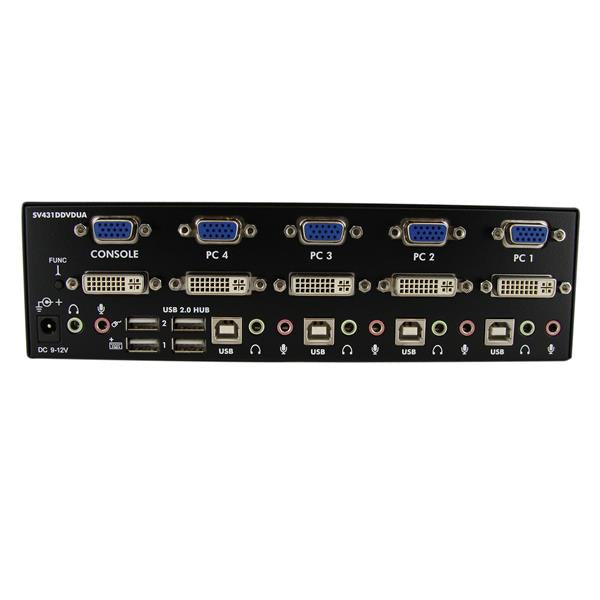

This dual view KVM switch provides 1 VGA and 1 DVI-I port per computer connection for high-resolution video, as well as audio switching capability between connected computers.

The DVI/VGA KVM switch features an integrated 2-port USB hub that allows USB 2.0 peripherals to be shared between connected computers, and offers a compact design with a rugged metal chassis for durable performance.

NOTE: While both DVI-I (analog) and DVI-D (digital) are supported by the KVM, source PCs must output the same signal for proper switching. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to Console connections. If necessary, please contact technical support for assistance identifying your source.

Rackmount your KVM switch

If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.

Specifications

Ports & interfaces
Console USB ports quantity	4
Console ports	3.5mm headphone, 3.5mm mic, DVI-I, USB A, VGA (D-Sub)
USB connector type	USB Type-A
Number of microphone inputs	1
Number of computers controlled	4
Keyboard port type	USB
Mouse port type	USB
Video port type	VGA/DVI-I
Audio connections	Yes
VGA (D-Sub) ports quantity	5
Headphone outputs	1
DVI-I ports quantity	5
DC-in jack	Yes
Performance
Daisy chain	No
Maximum resolution	1920 x 1200 pixels
Number of users	1 user(s)
Technical details
Product colour	Black
On Screen Display (OSD)	No
LED indicators	Yes
Hot keys	Yes
IP control	No
Compliance certificates	RoHS
Design
Mean time between failures (MTBF)	140000 h
Certification	CE, FCC, UL, REACH
Housing material	Steel
Display
Built-in display	No
Power
Input current	0.8 A
Output current	1.5 A
Power plug type	Type M
Compatible power plug types	AU, EU, UK, US
Output voltage	12 V
Power consumption (typical)	18 W
External power adapter	Yes
Input voltage	100 - 240 V
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	220 mm
Depth	163 mm
Height	60 mm
Weight	1.3 kg
Package width	255 mm
Package depth	300 mm
Package height	87 mm
Package weight	1.8 kg
Packaging content
Rubber feet	Yes
Manual	Yes
AC adapter included	Yes
Logistics data
Master (outer) case width	318 mm
Master (outer) case length	506 mm
Master (outer) case height	284 mm
Products per master (outer) case	6 pc(s)
Harmonized System (HS) code	85176200

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
