StarTech.com 4-Port Dual-Monitor DisplayPort KVM Switch, 4K 60Hz, 2x USB 5Gbps Hub

Control multiple machines from one keyboard, monitor and mouse with the StarTech.com 4-Port Dual-Monitor DisplayPort.

Share a mouse, keyboard, USB 5Gbps hub, and dual 4K 60Hz DisplayPort displays between four DisplayPort-enabled computers

This Dual-Monitor KVM Switch enables users to switch between four desktops that are USB-A and DisplayPort enabled. It allows for sharing of dual-4K 60Hz DisplayPort monitors, a keyboard and mouse, and two USB 5Gbps devices.

Fast Switching with USB Emulation

USB Emulation technology enables faster switching of a keyboard, video, and mouse compared to traditional KVMs. USB Emulation also ensures compatibility with combination keyboards/mice as well as keyboards featuring additional function keys.

Dual-4K 60Hz Displays & USB 5Gbps Hub Ports

This TAA-Compliant KVM Switch supports dual-4K 60Hz DisplayPort monitors, making it ideal for working with high-resolution graphics or video. Additionally, it offers two USB 3.2 Gen 1 (5Gbps) Hub Ports for fast data transfer, and two USB 2.0 HID Ports for the keyboard and mouse. 8kV air and 6kV contact Electrostatic Discharge (ESD) protection.

Customizable Switching

This Universal KVM Switch provides various switching options, including hotkey or push-button switching. Hotkeys allow for independent switching of USB/Video and Audio, enabling audio playback from one computer while controlling another. An audible buzzer confirms hotkey input, and LEDs provide a visual status of the selected host.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

• Advanced Windows Layout Utility: Setup and save custom windows layouts.
• MAC Address Pass-Through Utility: Improve network security.
• USB Event Monitoring Utility: Track and log connected USB devices.
• Wi-Fi Auto Switch Utility: Enable users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-tools

Specifications

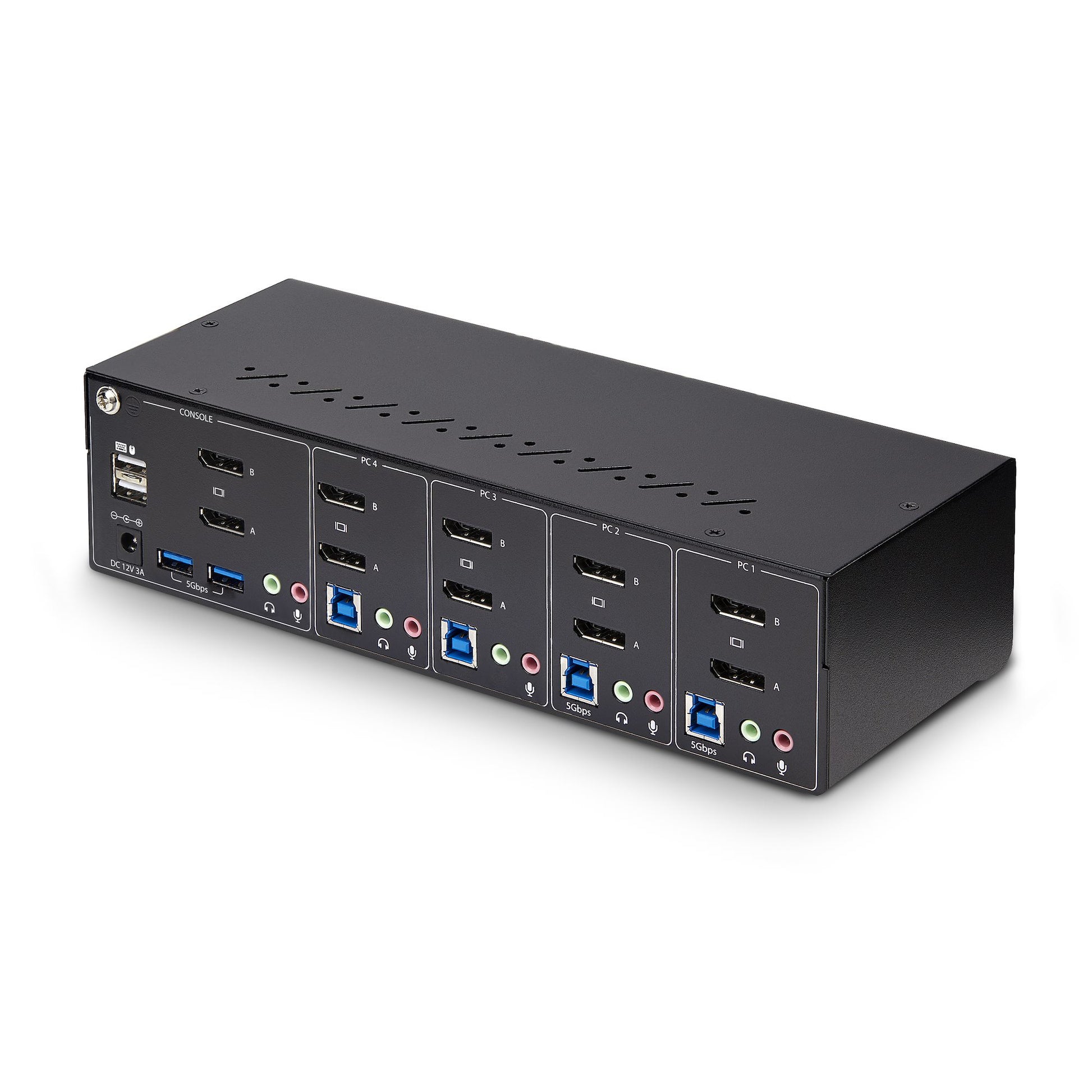

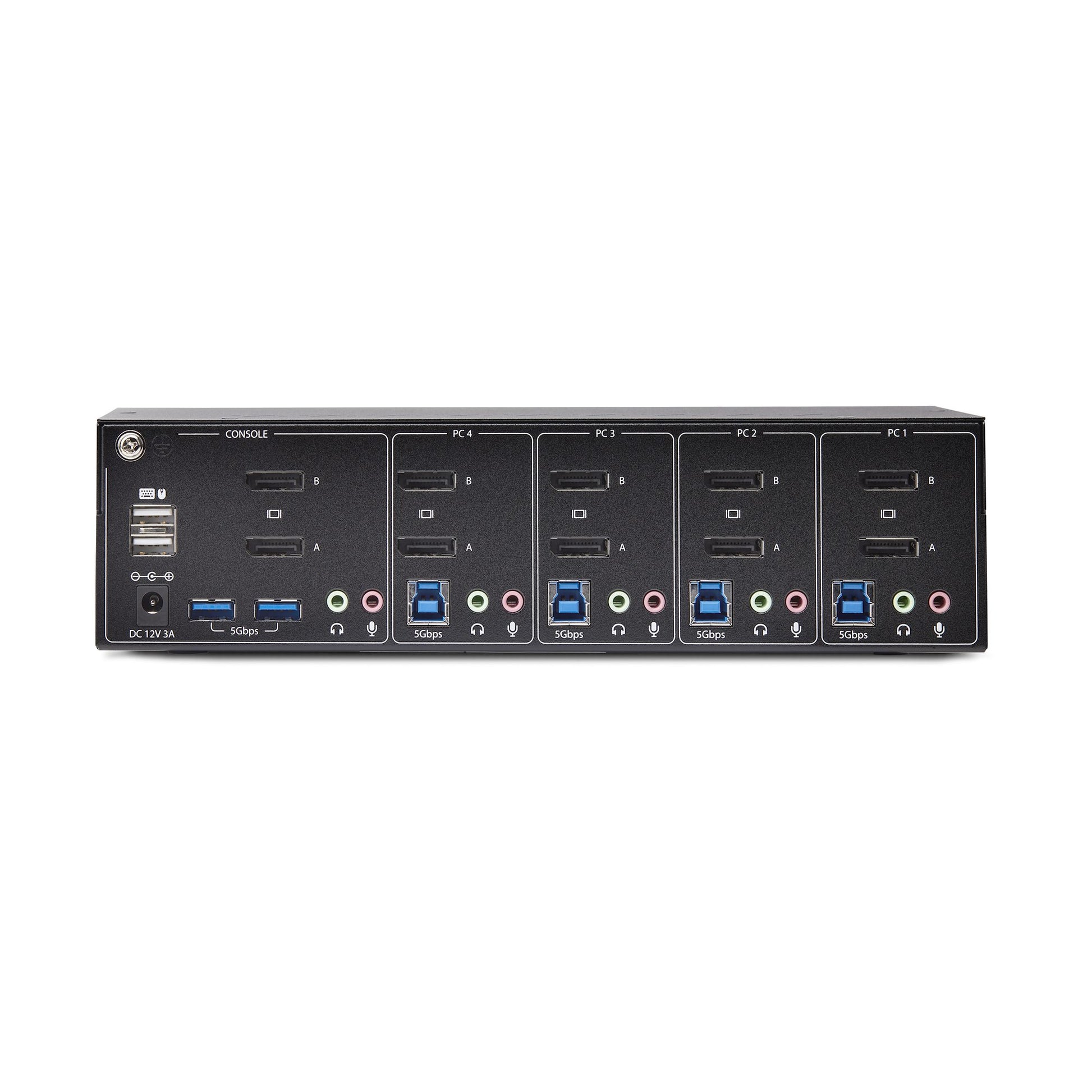

Ports & interfaces
Console ports	3.5mm headphone, 3.5mm mic, DisplayPort
Number of microphone inputs	5
DisplayPorts quantity	8
DisplayPort version	1.2
Number of computers controlled	4
Keyboard port type	USB
Mouse port type	USB
Video port type	DisplayPort
Audio connections	Yes
Headphone outputs	5
DC-in jack	Yes
USB hub	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity	2
Console DisplayPorts ports quantity	2
HDCP	Yes
Performance
Daisy chain	No
Data transfer rate (max)	5 Gbit/s
HD type	4K Ultra HD
Video bandwidth	60 Hz
Plug and Play	Yes
Maximum resolution	3840 x 2160 pixels
Scan interval	10,20,30,40,50,60 s
Technical details
Product colour	Black
Rack mounting	No
Push button	Yes
On Screen Display (OSD)	Yes
LED indicators	Yes
Hot keys	Yes
IP control	No
Sustainability compliance	Yes
Compliance certificates	RoHS, Trade Agreements Act (TAA)
Design
Mean time between failures (MTBF)	103062 h
Display
Built-in display	No
Power
Input current	1 A
Output current	3 A
Compatible power plug types	EU, JP, UK, US
Output voltage	12 V
Power source	DC
External power adapter	Yes
Input voltage	100 - 240 V
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 90%
Weight & dimensions
Width	100 mm
Depth	253 mm
Height	66 mm
Weight	1.2 kg
Package width	162 mm
Package depth	332 mm
Package height	129 mm
Package weight	1.4 kg
Packaging content
Quick installation guide	Yes

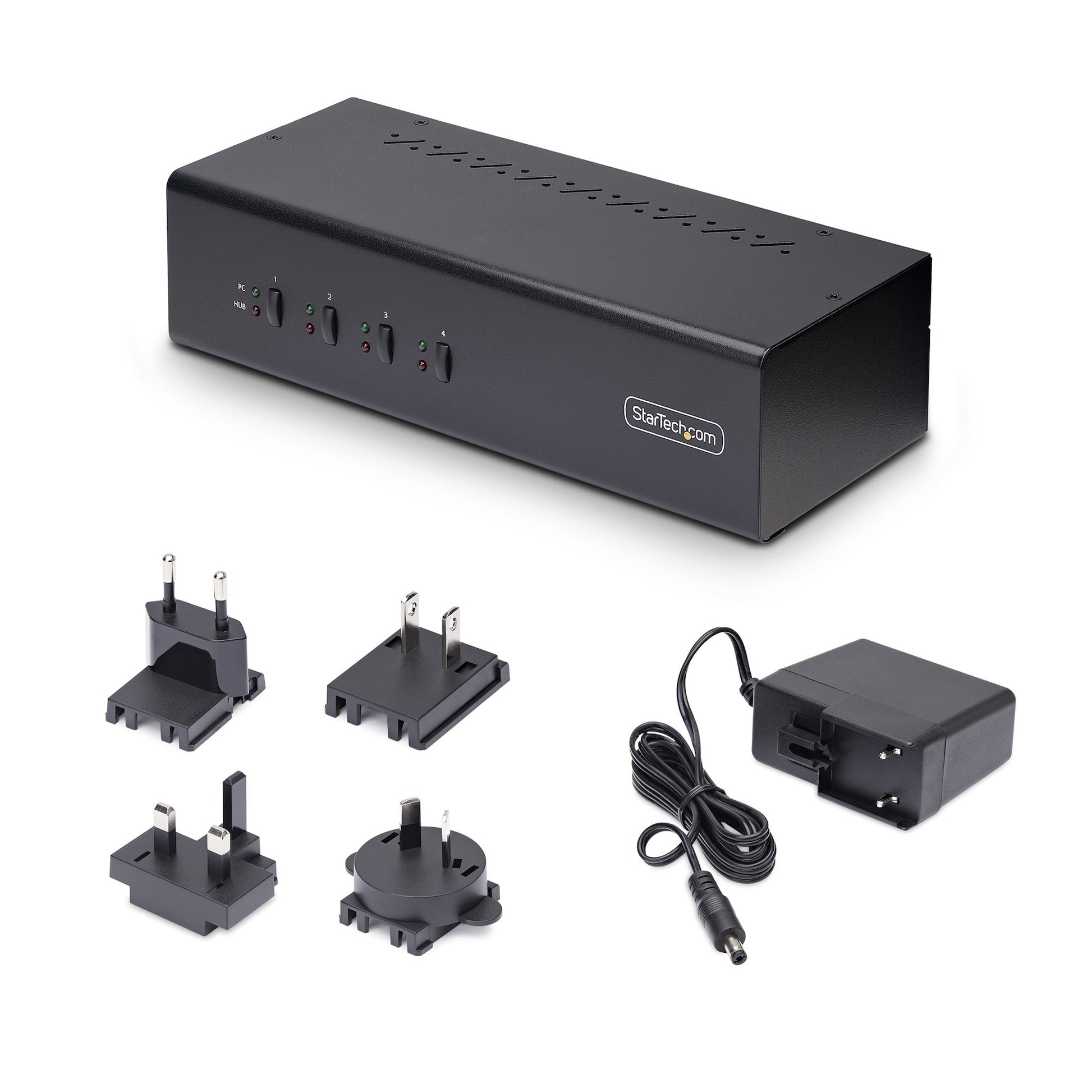

AC adapter included	Yes
Logistics data
Master (outer) case width	352 mm
Master (outer) case length	513 mm
Master (outer) case height	301 mm
Products per master (outer) case	6 pc(s)
