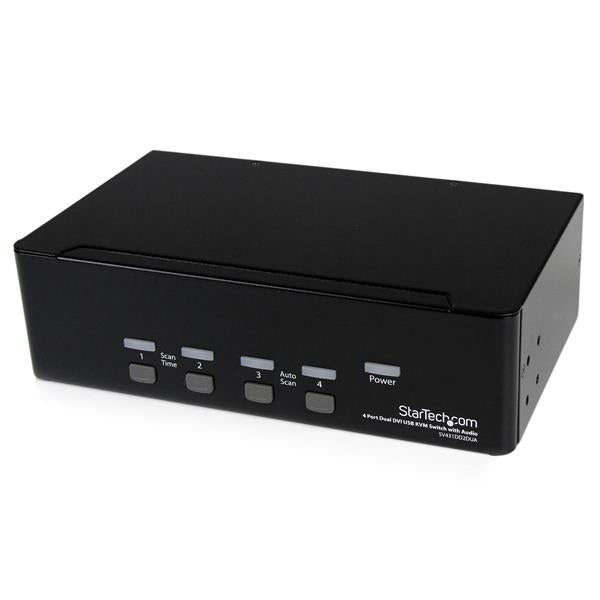

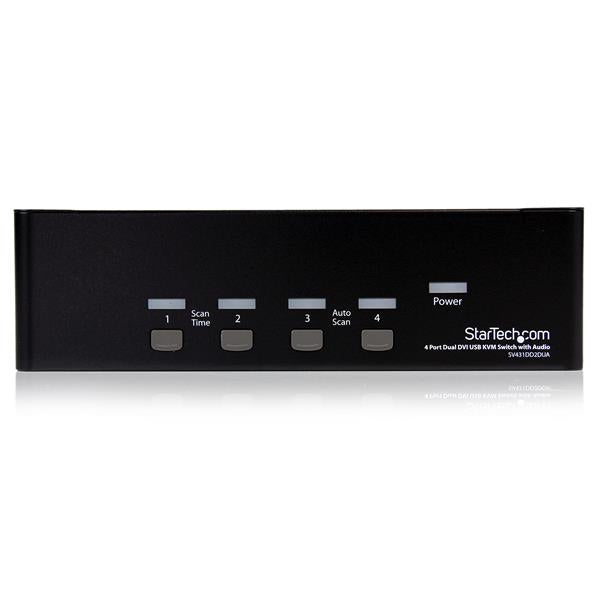

StarTech.com 4 Port Dual DVI USB KVM Switch with Audio & USB 2.0 Hub - TAA

Control multiple machines from one keyboard, monitor and mouse with the StarTech.com 4 Port Dual DVI.

Share a keyboard, mouse and dual DVI displays/monitors between 4 multimedia computers

The SV431DD2DUA 4-port Dual DVI USB KVM Switch allows up to four PCs, each with dual DVI video outputs, to share two monitors, one microphone and set of speakers, one keyboard and one mouse as well as two other USB peripherals.

An ideal solution for graphic designers, CAD/CAM designers or educational and financial institutions, the dual view KVM Switch allows you to instantly switch back and forth between dual DVI display PCs at the touch of a button, while maintaining professional level video quality on both monitors. The dual DVI switch also features an integrated USB hub port that allows USB 2.0 peripherals such as thumb drives, external hard drives or web cams to be shared between attached systems - eliminating duplicate peripheral costs.

Please Note: While both DVI-I (analog mode) and DVI-D (digital only) are supported by the KVM, both source PCs should output the same signal type for proper switching. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to Console connections. Please contact technical support if you require assistance identifying your source.

Rackmount your KVM switch

If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.

Specifications

Ports & interfaces

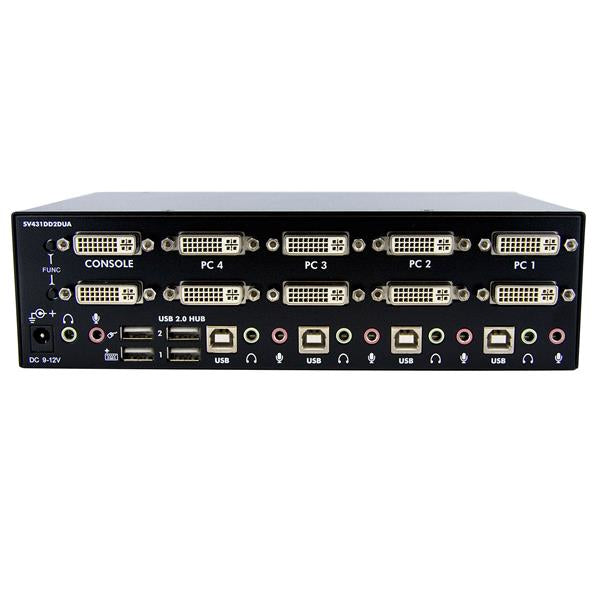

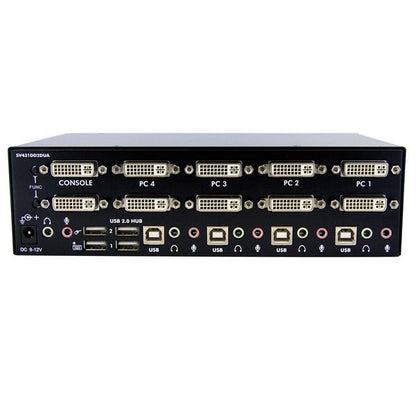

Console ports	3.5mm headphone, 3.5mm mic, DVI-I, USB A
USB connector type	USB Type-A
Number of microphone inputs	1
Number of computers controlled	4
Keyboard port type	USB
Mouse port type	USB
Video port type	DVI-I
Audio connections	Yes
USB 2.0 ports quantity	4
DC-in jack	Yes
Network
Ethernet LAN	No
Performance
Daisy chain	No
Maximum resolution	2048 x 1536 pixels
Number of users	1 user(s)
Maximum digital resolution	1920 x 1200 pixels
Maximum analog resolution	2048 x 1536 pixels
Technical details
Product colour	Black
LED indicators	Power
IP control	No
Compliance certificates	RoHS
Design
Certification	CE, FCC, UL
Housing material	Steel
Power
Input current	0.8 A
Output current	1.5 A
Compatible power plug types	AU, EU, UK, US
Output voltage	12 V
Input voltage	100-240 V
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 90%
Weight & dimensions
Width	220 mm
Depth	130 mm
Height	60 mm
Weight	1.25 kg
Package width	247 mm
Package depth	295 mm
Package height	86 mm
Package weight	1.88 kg

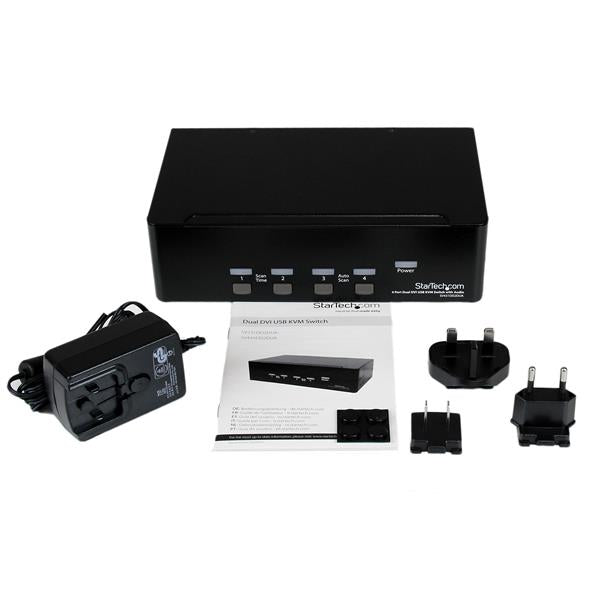

Packaging content
Rubber feet	Yes
Manual	Yes
AC adapter included	Yes
Logistics data
Master (outer) case width	318 mm
Master (outer) case length	510 mm
Master (outer) case height	298 mm
Products per master (outer) case	6 pc(s)
Harmonized System (HS) code	85176200

Downloads

• Datasheet (PDF)
