StarTech.com 4-Port DisplayPort KVM Switch, Single 4K 60Hz Monitor, 6x USB Ports
StarTech.com 4-Port DisplayPort KVM Switch, Single 4K 60Hz Monitor, 6x USB Ports
Regular price
£412.99 GBP
Regular price
Sale price
£412.99 GBP
Taxes included.
Quantity
Couldn't load pickup availability
Control multiple machines from one keyboard, monitor and mouse with the StarTech.com 4-Port DisplayPort.
Share a mouse, keyboard, USB 5Gbps hub, audio output device, and 4K 60Hz DisplayPort display between four DisplayPort-enabled computersThis DisplayPort KVM Switch enables users to switch between four desktops equipped with USB-A and DisplayPort. It facilitates sharing a 4K 60Hz DisplayPort monitor, a keyboard, mouse, two USB 5Gbps devices, a stereo audio output device, and four USB 2.0 devices.
High-Resolution 4K 60Hz Video
This KVM supports resolutions up to 4K 60Hz, making it ideal for applications such as CAD/CAM, video editing, and content creation. In addition, its support for High Dynamic Range (HDR) enhances contrast, brightness, color, and overall vibrancy.
Customizable Switching

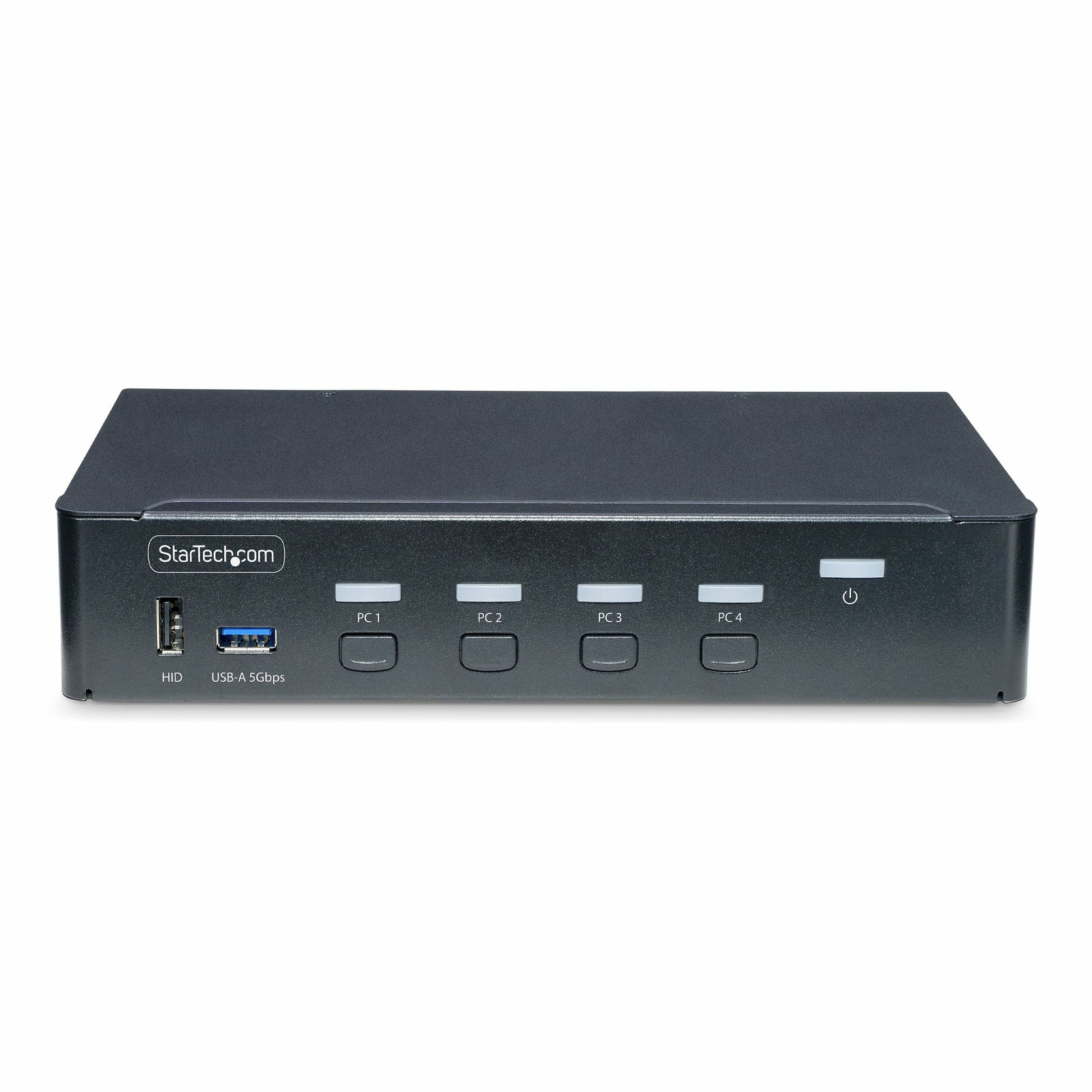

This universal KVM switch offers hotkey and push-button switching. Hotkeys allow independent switching of audio and video, enabling audio playback from one computer while controlling another. An audible buzzer confirms hotkey inputs, and LEDs provide visual status feedback for the selected host.
Universal Compatibility
The TAA-compliant KVM Switch offers universal compatibility and works with all operating systems, including Windows, macOS, ChromeOS, and Linux. The KVM provides BIOS/UEFI control and is compatible with all hardware platforms, including Intel, AMD, and Apple Silicon (M1/M2/M3).
Reliable Performance
The rugged metal case helps prevent electromagnetic interference (EMI). 8kV Air/6kV Contact ESD protection enhances the reliability and longevity of the KVM. The included set of rubber feet protect the work surface from scratches and keep KVM in place during operation.
Rackmount your KVM switch
If you'd like to mount this KVM switch to your server rack, we offer a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.
Specifications
| Ports & interfaces | |
|---|---|
| Console USB ports quantity | 4 |
| Console ports | 3.5mm headphone, DisplayPort, USB A |
| DisplayPorts quantity | 4 |
| DisplayPort version | 1.2 |
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| Audio connections | Yes |
| Headphone outputs | 4 |
| DC-in jack | Yes |
| USB hub | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| Console DisplayPorts ports quantity | 1 |
| HDCP | Yes |
| Performance | |
| Chipset | GL3523 |
| Data transfer rate (max) | 5 Gbit/s |
| HD type | 4K Ultra HD |
| Plug and Play | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| Scan interval | 3,8,15,30 s |
| Audio channels | 2.0 |
| HDCP version | 1.4 |
| Technical details | |
| Product colour | Black |
| Rack mounting | Yes |
| Push button | Yes |
| On Screen Display (OSD) | No |
| LED indicators | Yes |
| Hot keys | Yes |
| IP control | No |
| Sustainability compliance | Yes |
| Compliance certificates | RoHS, Trade Agreements Act (TAA) |
| Design | |
| Mean time between failures (MTBF) | 130000 h |
| Housing material | Metal |
| Display | |
| Built-in display | No |
| Power | |
| Input current | 1 A |
| Output current | 3 A |
| Power plug type | Type M |
| Compatible power plug types | AU, EU, UK, US |
| Power source | DC |
| Power consumption (typical) | 36 W |
| Input voltage | 100 - 240, 12 V |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 130 mm |
| Depth | 220 mm |
| Height | 44 mm |
| Weight | 1 kg |
| Package width | 297 mm |
| Package depth | 246 mm |
| Package height | 88 mm |
| Package weight | 1.2 kg |
| Packaging content | |
| Rubber feet | Yes |
| Quick installation guide | Yes |
| Other features | |
| Colour depth | 10 bit |
| Display resolution at frequency | 3840x2160 @ 60hz 3840x2160 @ 30hz 2560x1600 @ 60hz 2560x1600 @ 30hz 2560x1440 @ 60hz 2048x1536 @ 60hz 2048x1536 @ 30hz 1920x1440 @ 60hz 1920x1200 @ 60hz 1920x1080 @ 60hz 1680x1050 @ 60hz 1600x1200 @ 60hz 1600x1024 @ 60hz 1600x900 @ 60hz 1440x1080 @ 60hz 1366x768 @ 60hz 1360x768 @ 60hz 1280x1024 @ 60hz 1280x960 @ 60hz 1280x800 @ 60hz 1280x768 @ 60hz 1280x720 @ 60hz 1176x664 @ 60hz 1152x864 @ 60hz 1024x768 @ 60hz 800x600 @ 60hz |
| Logistics data | |
| Master (outer) case width | 516 mm |
| Master (outer) case length | 322 mm |
| Master (outer) case height | 300 mm |
| Products per master (outer) case | 6 pc(s) |
