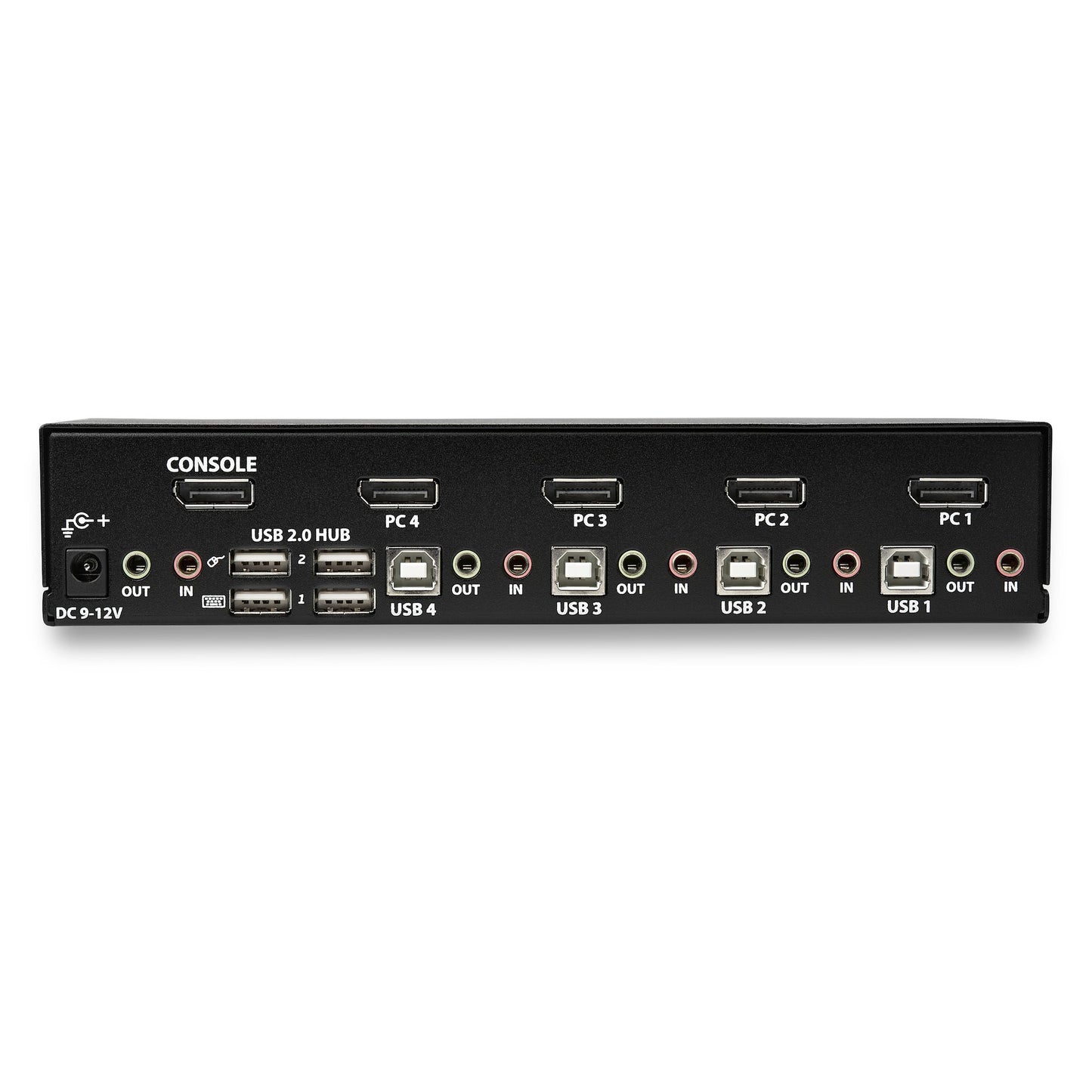

StarTech.com 4 Port DisplayPort KVM Switch - 4K 60Hz - Single Display - Dual Port
StarTech.com 4 Port DisplayPort KVM Switch - 4K 60Hz - Single Display - Dual Port
Regular price
£385.26 GBP
Regular price
Sale price
£385.26 GBP
Taxes included.
Quantity
Couldn't load pickup availability

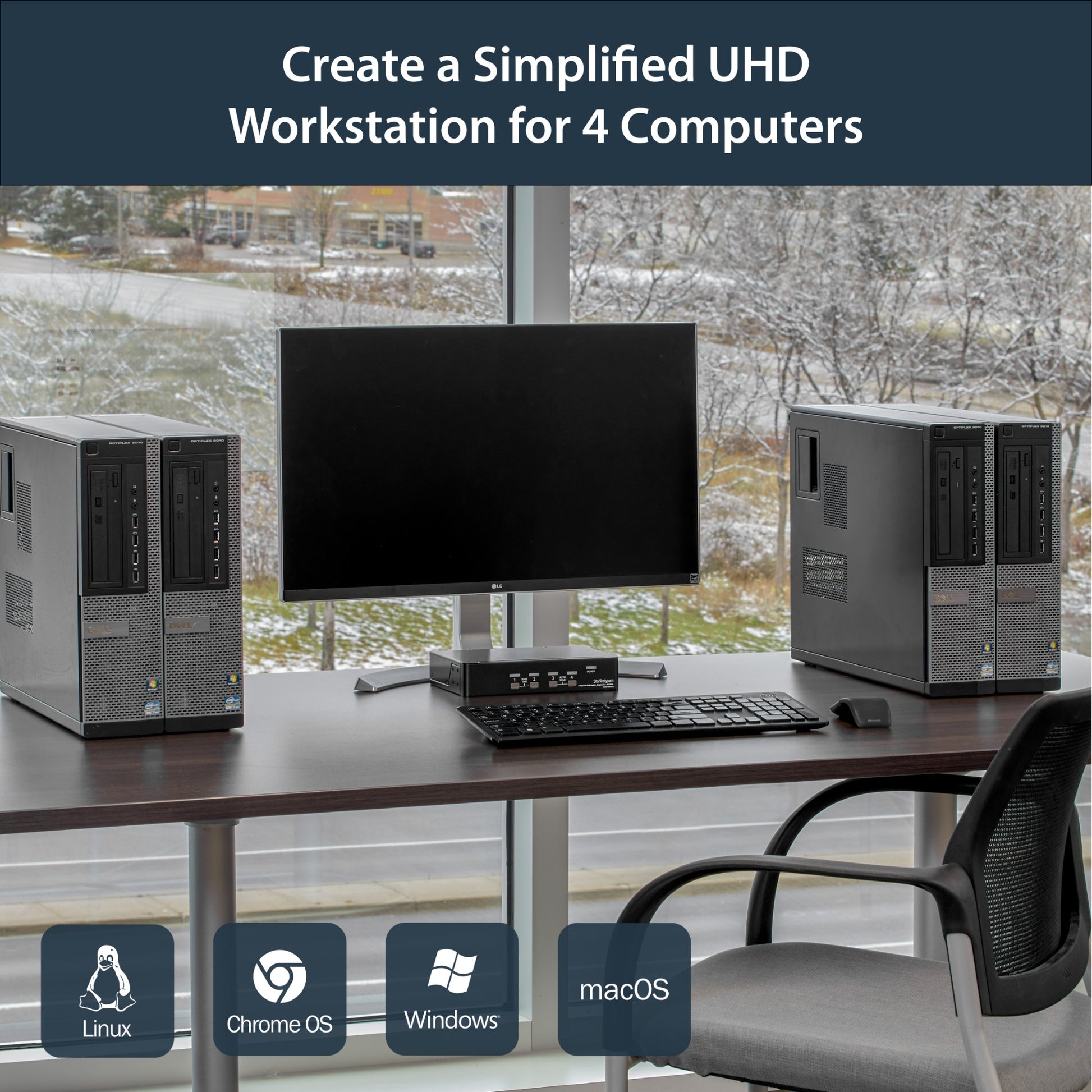

Control multiple machines from one keyboard, monitor and mouse with the StarTech.com 4 Port DisplayPort.
DisplayPort 1.2 KVM | TAA Compliant | USB 2.0 Hub | 7.1 HD Digital AudioThis 4-port KVM switch combines 4K (60Hz) digital display capabilities with control of up to four connected computers.
4K60 Picture and Full Audio Support
The DisplayPort KVM switch supports resolutions up to 4K at 60Hz and can drive one large DP display with ease, maximizing viewing space. With support for 7.1 HD digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the DisplayPort 1.2 KVM switch delivers full audio compatibility.
Integrated USB Hub
The integrated USB 2.0 hub shares two additional peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected, eliminating the cost of duplicate devices such as printers and scanners.
PC and Mac Compatible
While supporting PCs, this DP KVM switch is also compatible with Mac computers using a Mini DisplayPort adapter, including laptops, notebooks, and tablets.

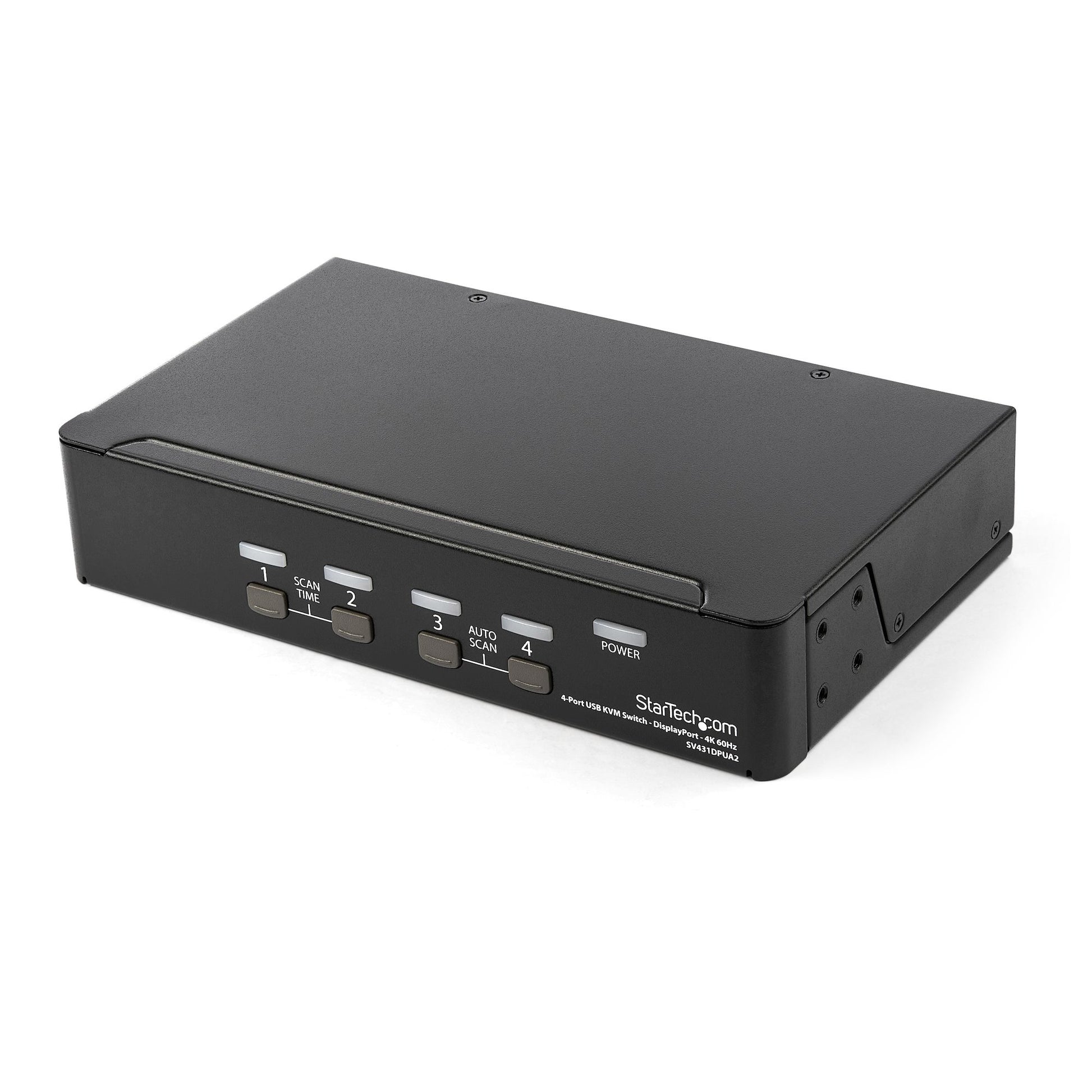

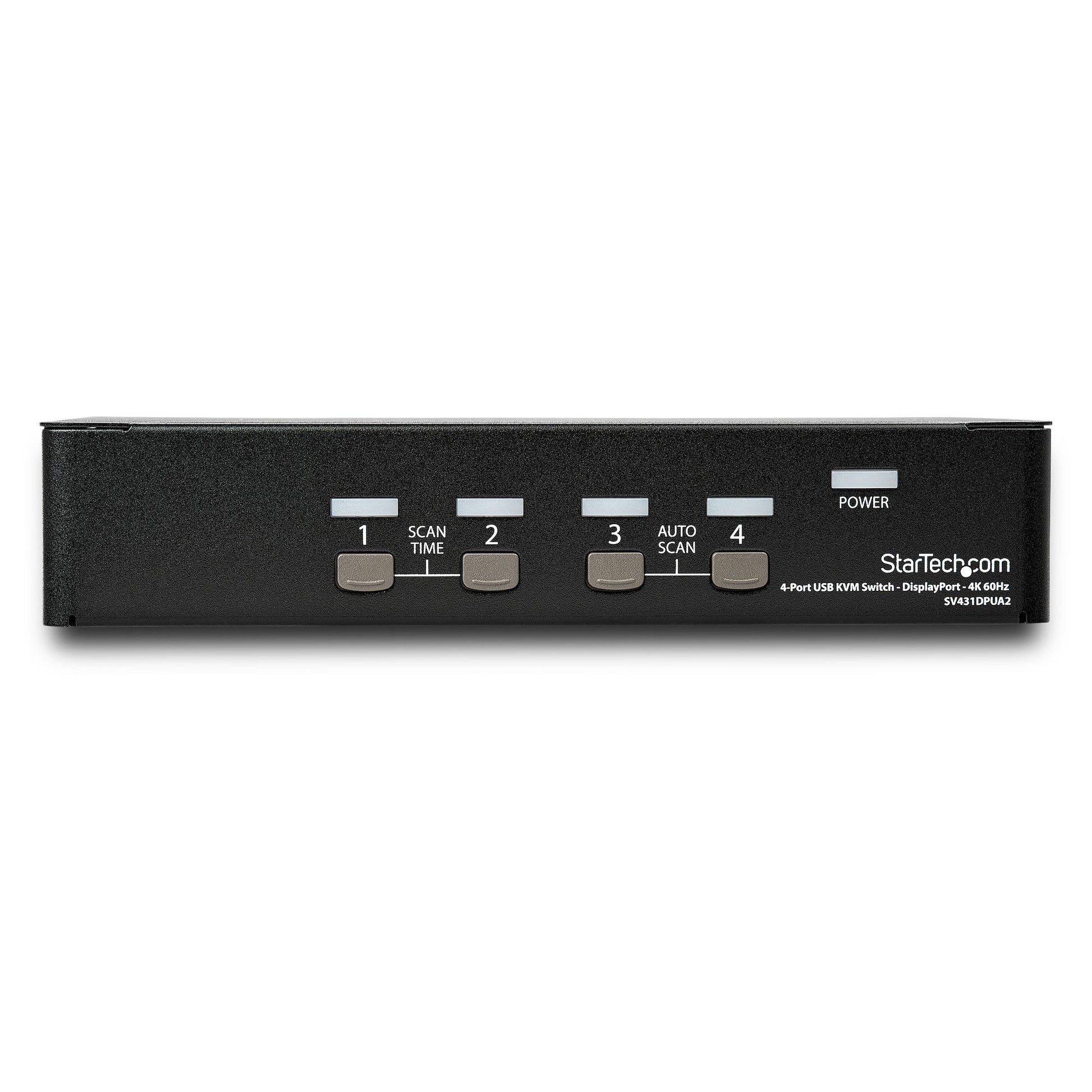

Simple to Operate
The front-panel pushbuttons make it easy to switch between systems and activate the auto scan. The hotkey functionality makes accessing each system quick while a buzzer sound confirms the switch.
StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice and monitors. This USB KVM switch is backed by a 3-year warranty and free lifetime technical support.
Specifications
| Ports & interfaces | |
|---|---|
| Console USB ports quantity | 4 |
| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort, USB A |
| Number of microphone inputs | 5 |
| DisplayPorts quantity | 5 |
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| Audio connections | Yes |
| Headphone outputs | 5 |
| DC-in jack | Yes |
| USB 2.0 Type-B ports quantity | 4 |
| Network | |
| Ethernet LAN | No |
| Performance | |
| Daisy chain | No |
| Data transfer rate (max) | 0.48 Gbit/s |
| HD type | 4K Ultra HD |
| Plug and Play | Yes |
| Maximum resolution | 3840 x 2160 pixels |
| Scan interval | 3,8,15,30 s |
| Number of users | 1 user(s) |
| Technical details | |
| Product colour | Black |
| Rack mounting | Yes |
| On Screen Display (OSD) | Yes |
| LED indicators | Yes |
| Hot keys | Yes |
| IP control | No |
| Audio support | Yes |
| Compliance certificates | RoHS |
| Design | |
| Mean time between failures (MTBF) | 138327 h |
| Certification | CE, FCC, TAA, REACH |
| Rack capacity | 1U |
| Housing material | Steel |
| Power | |
| Input current | 0.6 A |
| Output current | 1.5 A |
| Power plug type | Type M |
| Compatible power plug types | AU, EU, JP, UK, US |
| Output voltage | 12 V |
| Power consumption (typical) | 18 W |
| External power adapter | Yes |
| Input voltage | 100 - 240 V |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 40% |

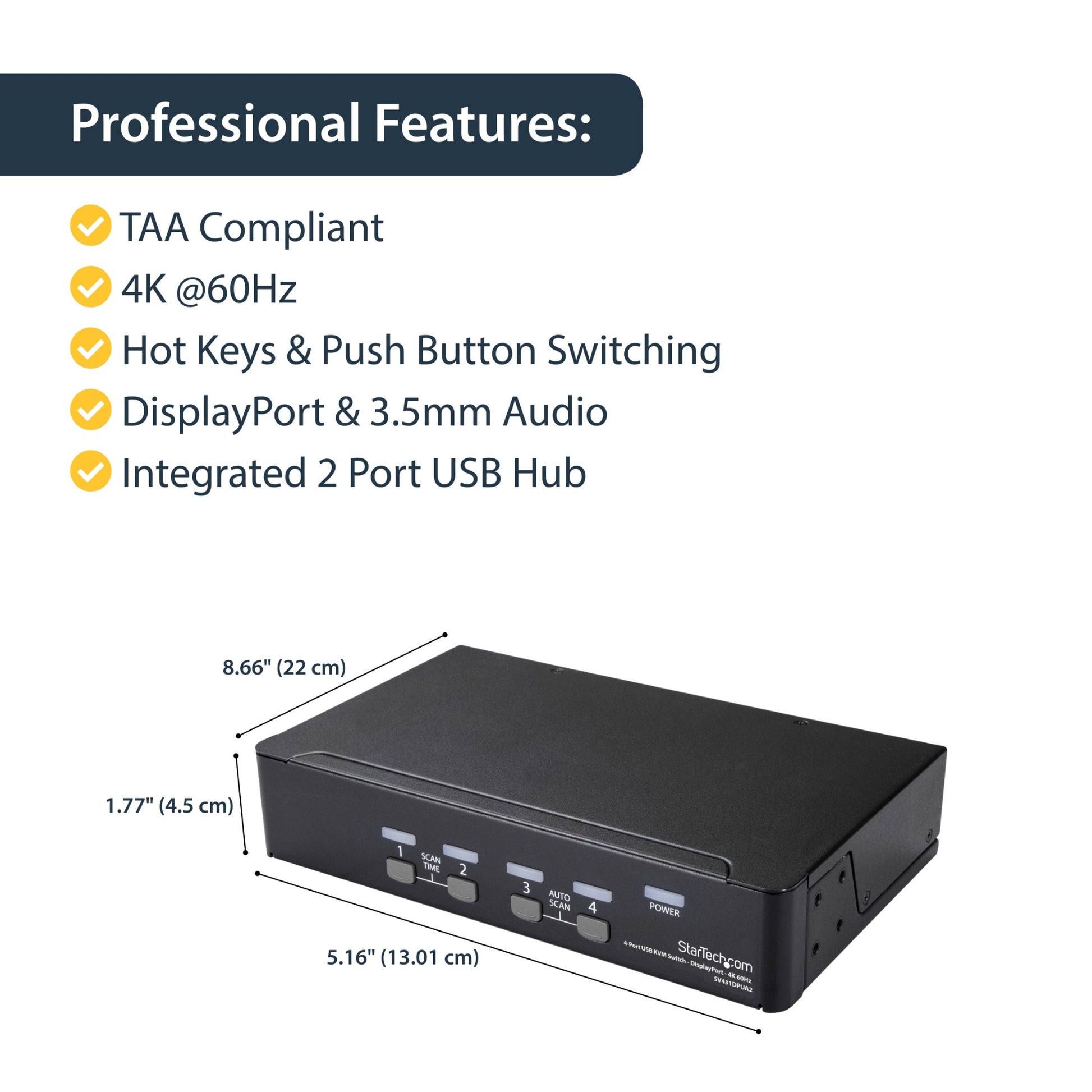

| Weight & dimensions | |
| Width | 131 mm |
| Depth | 220 mm |
| Height | 45 mm |
| Weight | 1 kg |
| Package width | 412 mm |
| Package depth | 216 mm |
| Package height | 89 mm |
| Package weight | 1.6 kg |

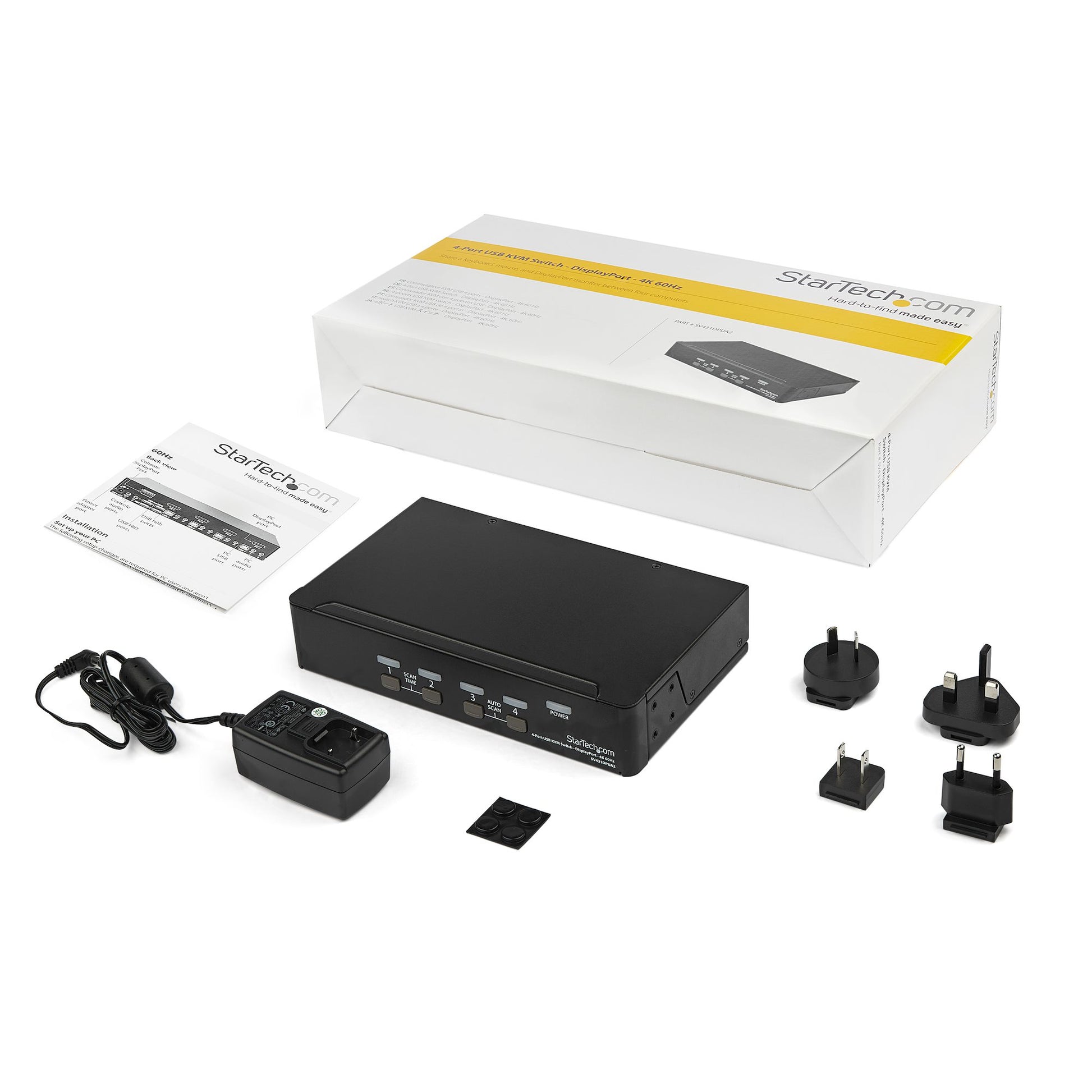

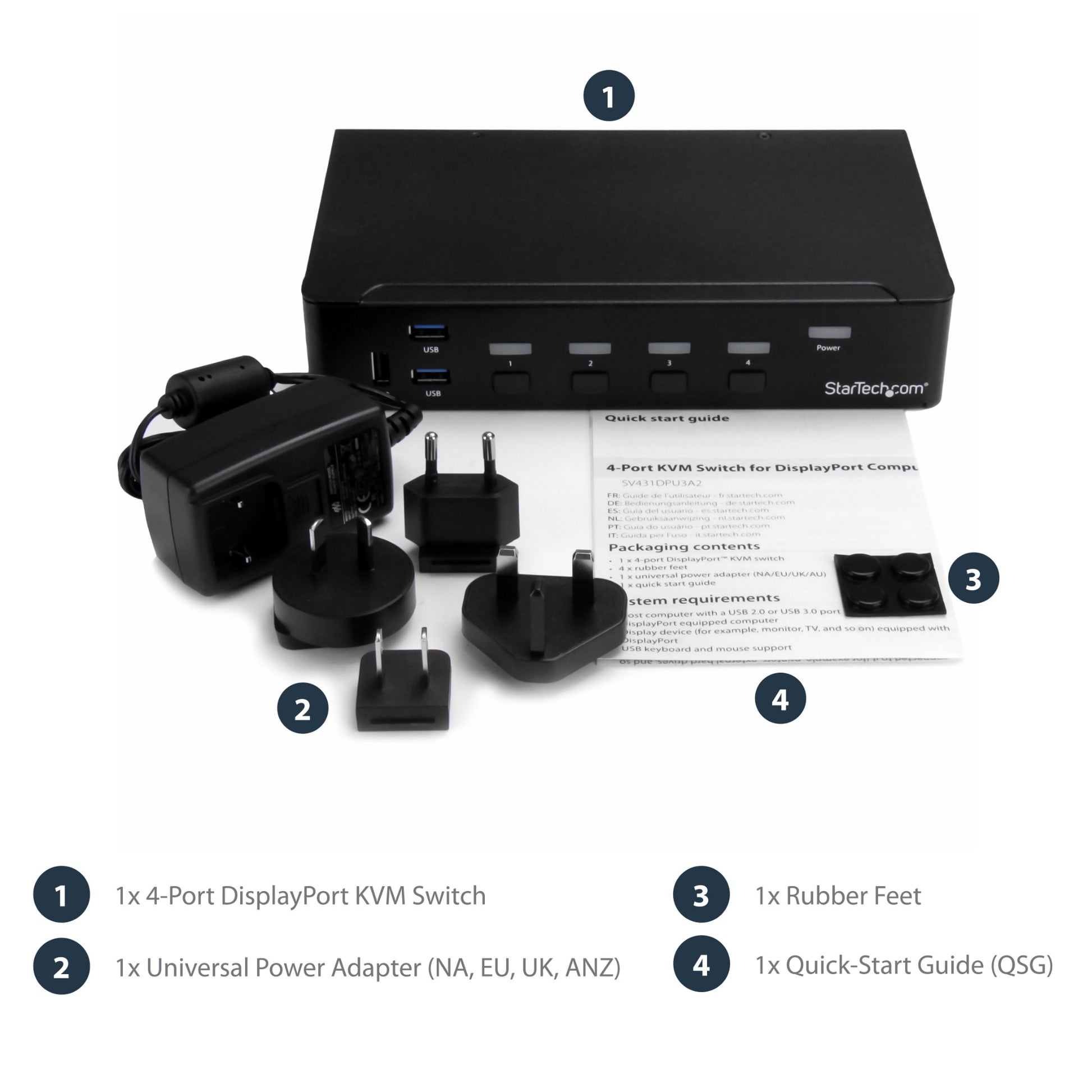

| Packaging content | |
| Rubber feet | Yes |
| Quick installation guide | Yes |
| AC adapter included | Yes |
| Logistics data | |
| Master (outer) case width | 551 mm |
| Master (outer) case length | 436 mm |
| Master (outer) case height | 257 mm |
| Products per master (outer) case | 6 pc(s) |
| Harmonized System (HS) code | 85176200 |
