StarTech.com 3U Universal Server Rack Rails - Fixed Mounting Rails - 19" Adjustable

Build a tidy install with the StarTech.com 3U Universal Server Rack — dimensions and mounting details are in the spec table.

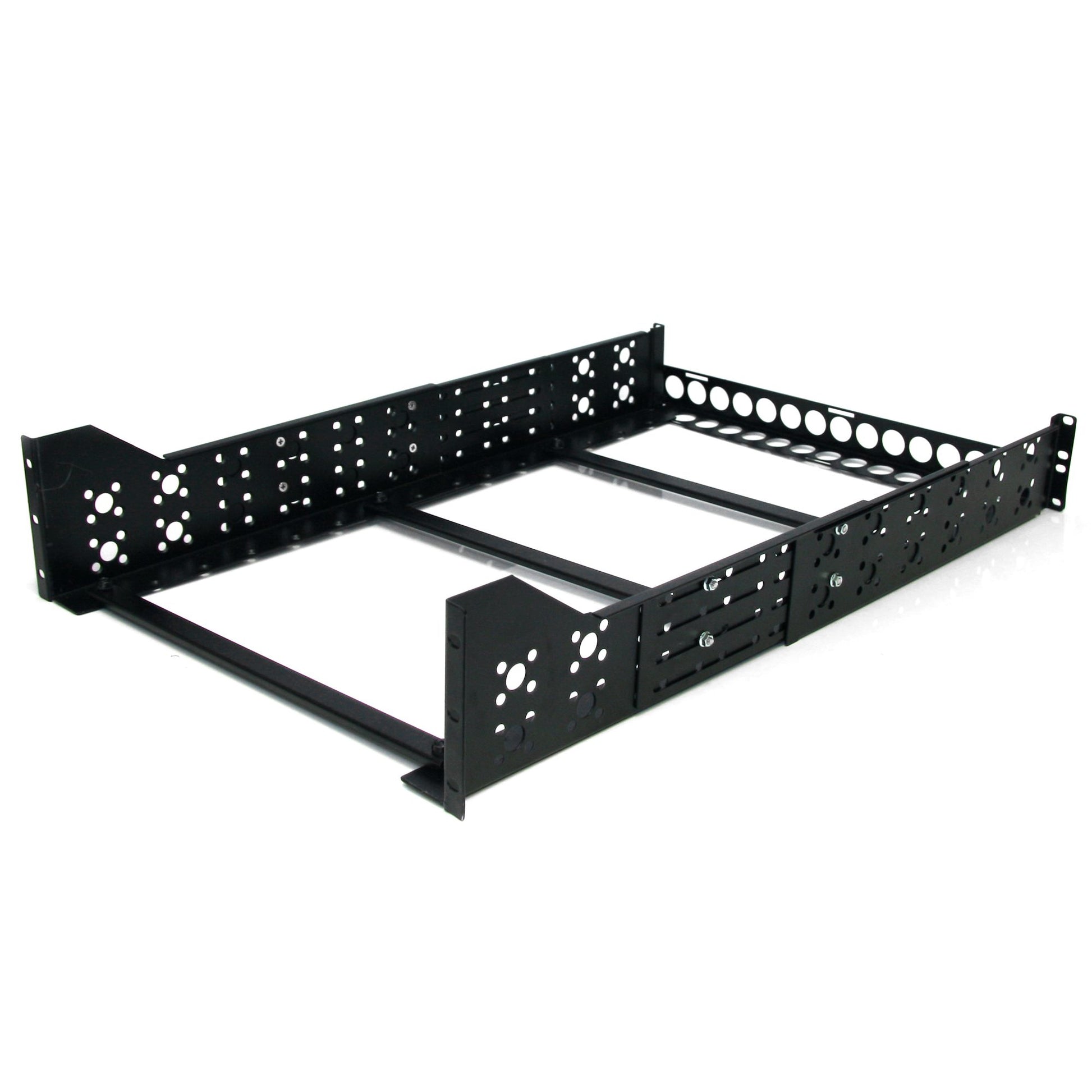

Mount 19" servers or networking hardware in any standard rack with these universal, adjustable depth 3U rack rails

These 3U server-rack rails let you mount non-rackmount equipment such as desktop servers, networking equipment or KVM switches, into your 19" server rack without sacrificing an additional 1U of rack space, like you would with a traditional shelf. The rack rails are also a great solution for mounting equipment with damaged rails or discontinued OEM equipment such as Dell™; IBM®; HP® or Apple servers that no longer have rack rails available.

Turn non-rackmount equipment into 3U rackmount hardware

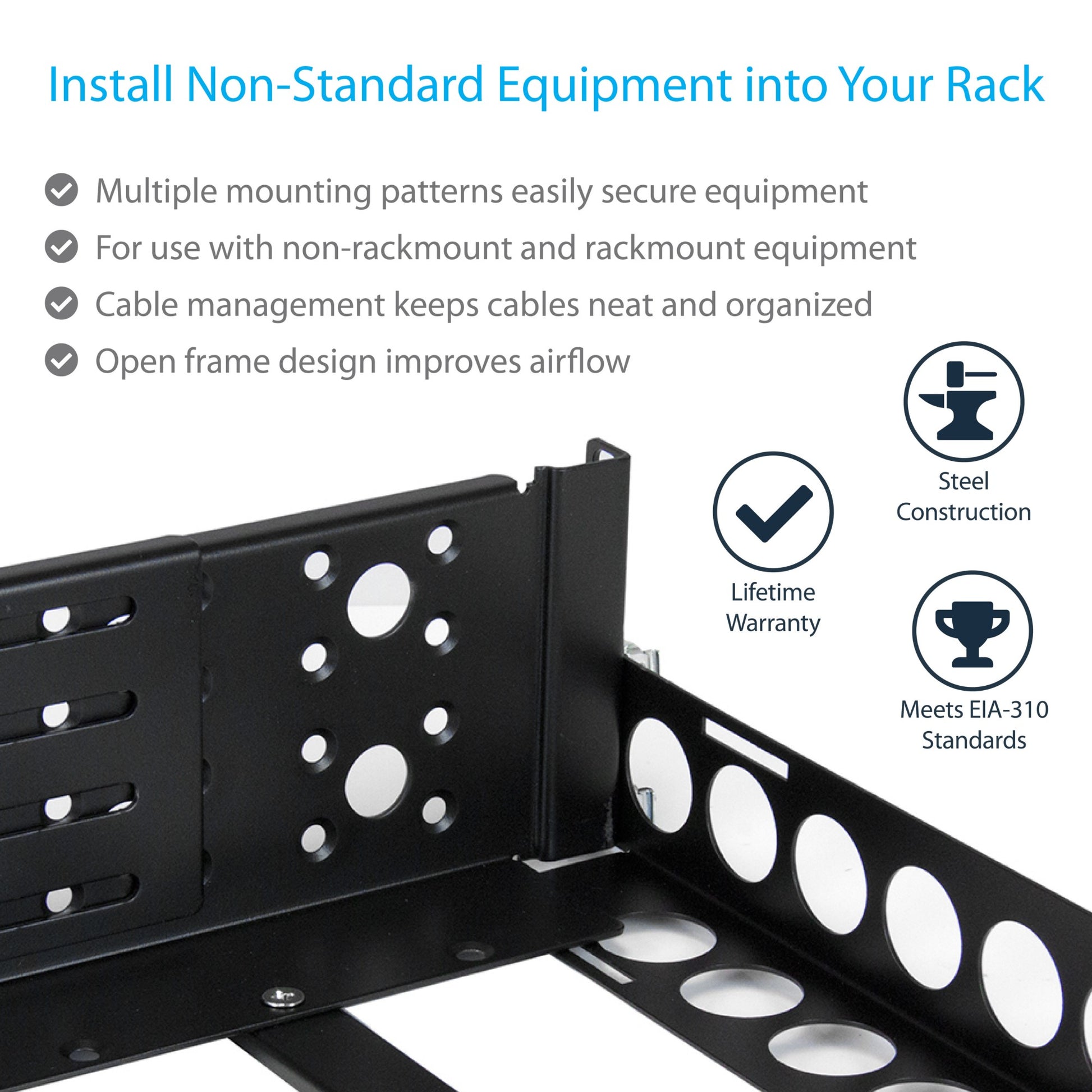

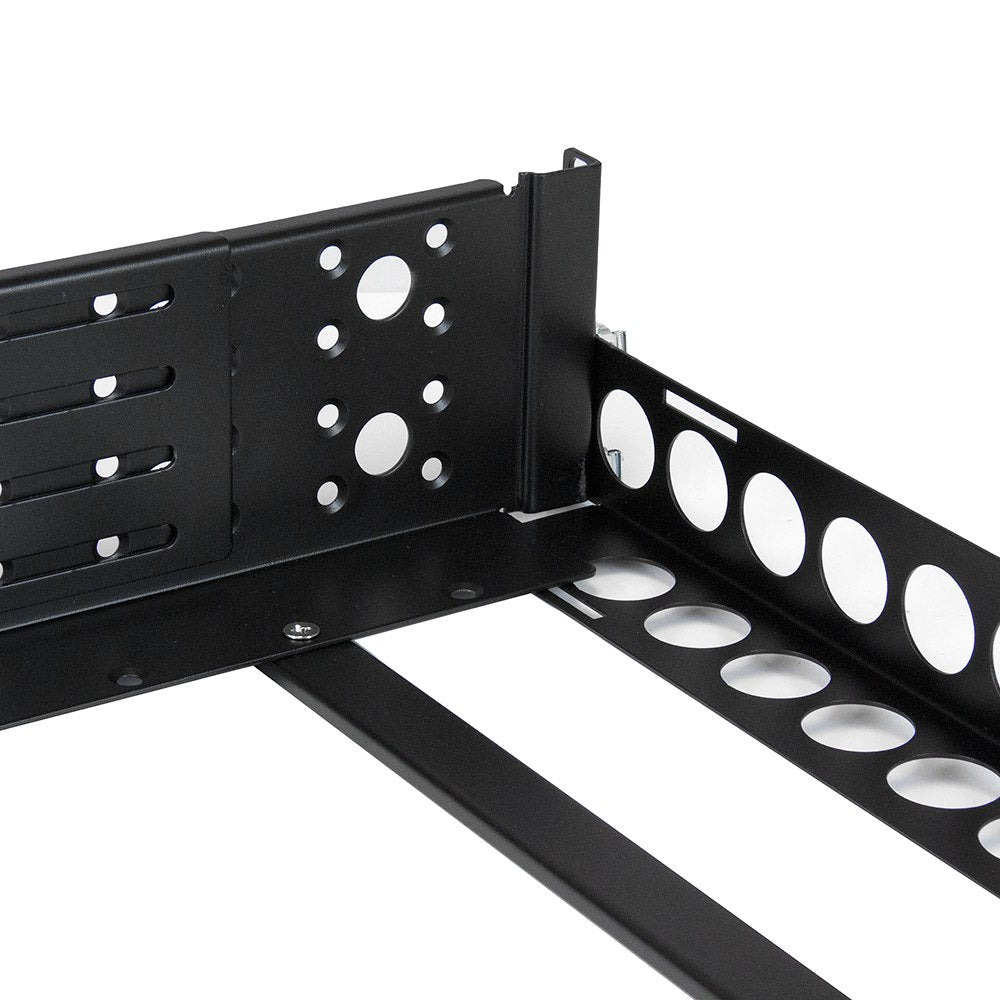

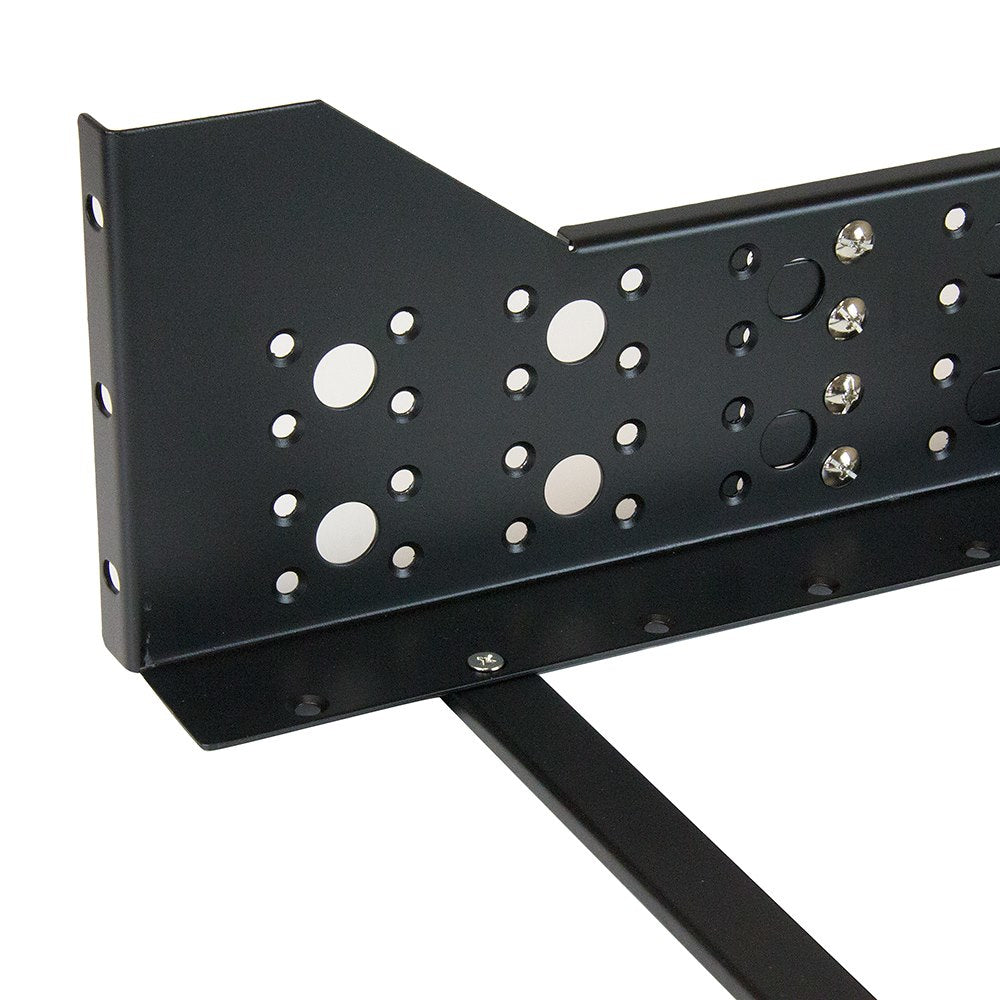

These rack rails add rackmount functionality to your non-rackmount gear, by cradling your equipment in an open frame supported by three sturdy crossbars. You can mount your non-rackmount equipment by mounting the rails to your server rack and placing your equipment on the undercarriage. For equipment that already features mounting holes, the rails also feature multiple mounting patterns to secure your equipment, for an added level of security.

Universal design mounts to almost any 19" server rack

Adhering to the EIA-310 standard for 19" rackmount equipment, these mounting rails are universally compatible with 19" server racks. The depth is adjustable for a variety of rack sizes and configurations. Plus, there is a rear cable management panel that's removable for additional customization.

Maximum durability

To ensure your equipment is secure, these mounting rails feature cold-rolled steel construction. The durable design can support a weight load of up to 215 lb (97 kg).

The UNIRAILS3U is backed by a lifetime StarTech.com warranty with free technical support.

Specifications

Features
Certification	CE, UL
Type	Rack rail
Size (imperial)	48.3 cm (19")
Rack capacity	3U
Maximum weight capacity	97.3 kg
Product colour	Black
Harmonized System (HS) code	85389099
Housing material	Steel

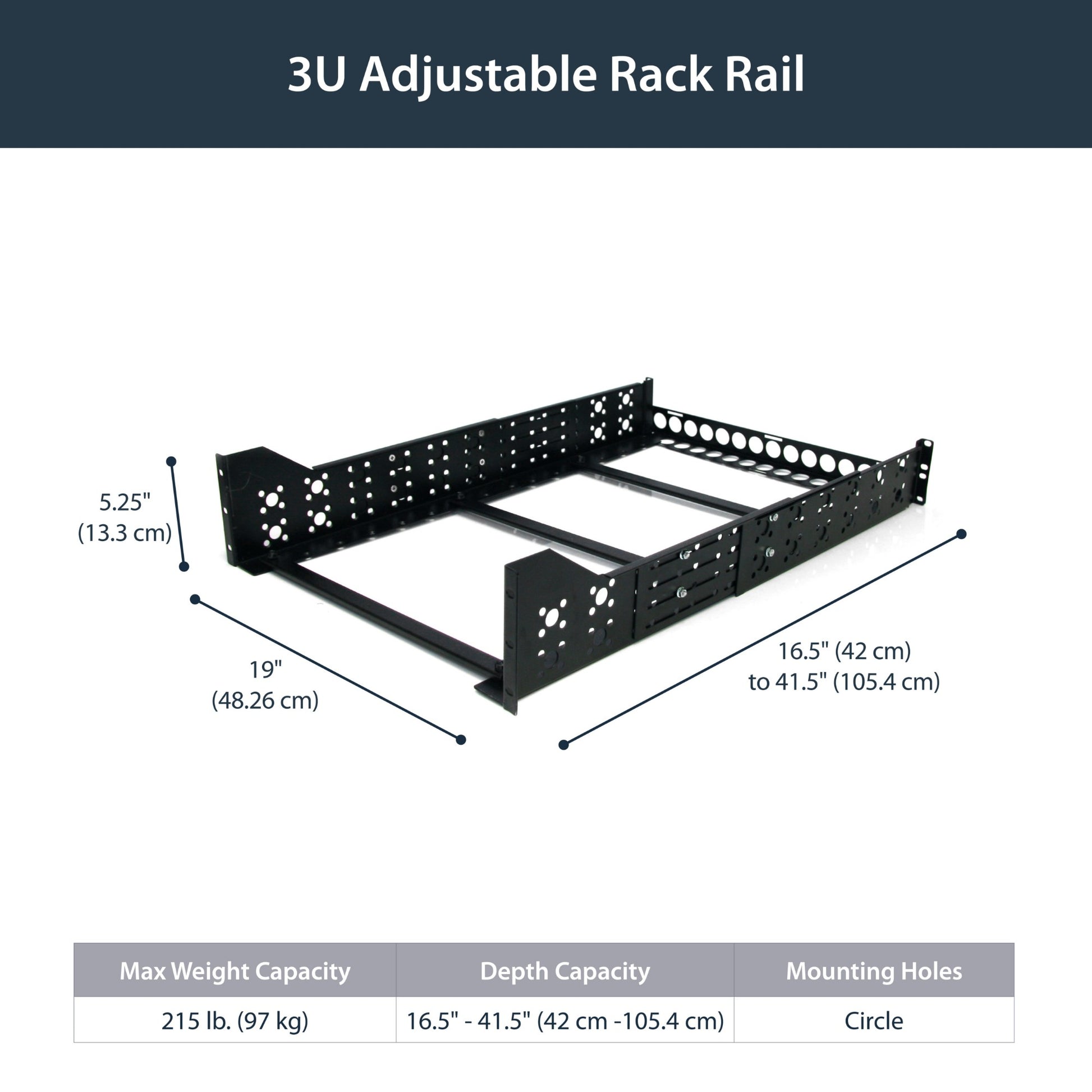

Weight & dimensions
Package width	115 mm
Package height	157 mm
Package depth	502 mm
Package weight	4.12 kg
Mounting depth (min)	42 cm
Mounting depth (max)	105.4 cm
Width	465 mm
Weight	3.9 kg
Height	130 mm
Depth	481 mm

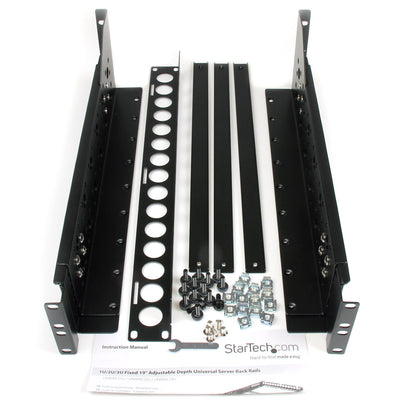

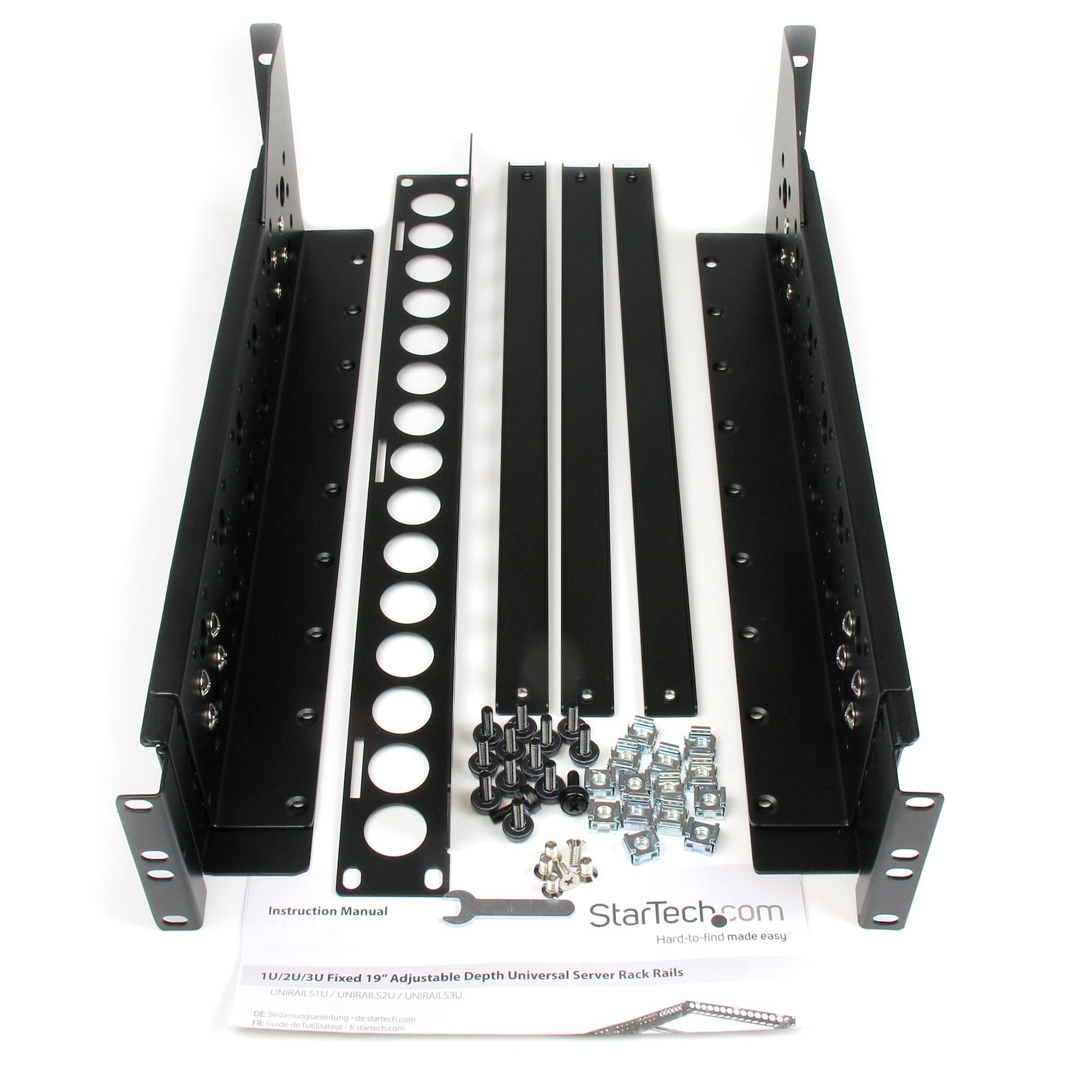

Packaging content
Screws included	Yes
Mounting kit	Yes
Technical details
Form factor	3U
Compliance certificates	RoHS
Logistics data
Master (outer) case width	460 mm
Master (outer) case length	590 mm
Master (outer) case height	420 mm
Products per master (outer) case	6 pc(s)
