StarTech.com 3U 19” Wall Mount Vertical Rack Bracket, Wall Mount Patch Panel Bracket
StarTech.com 3U 19” Wall Mount Vertical Rack Bracket, Wall Mount Patch Panel Bracket
Regular price
£49.59 GBP
Regular price
Sale price
£49.59 GBP
Taxes included.
Quantity
Couldn't load pickup availability
Build a tidy install with the StarTech.com 3U 19” Wall Mount — dimensions and mounting details are in the spec table.

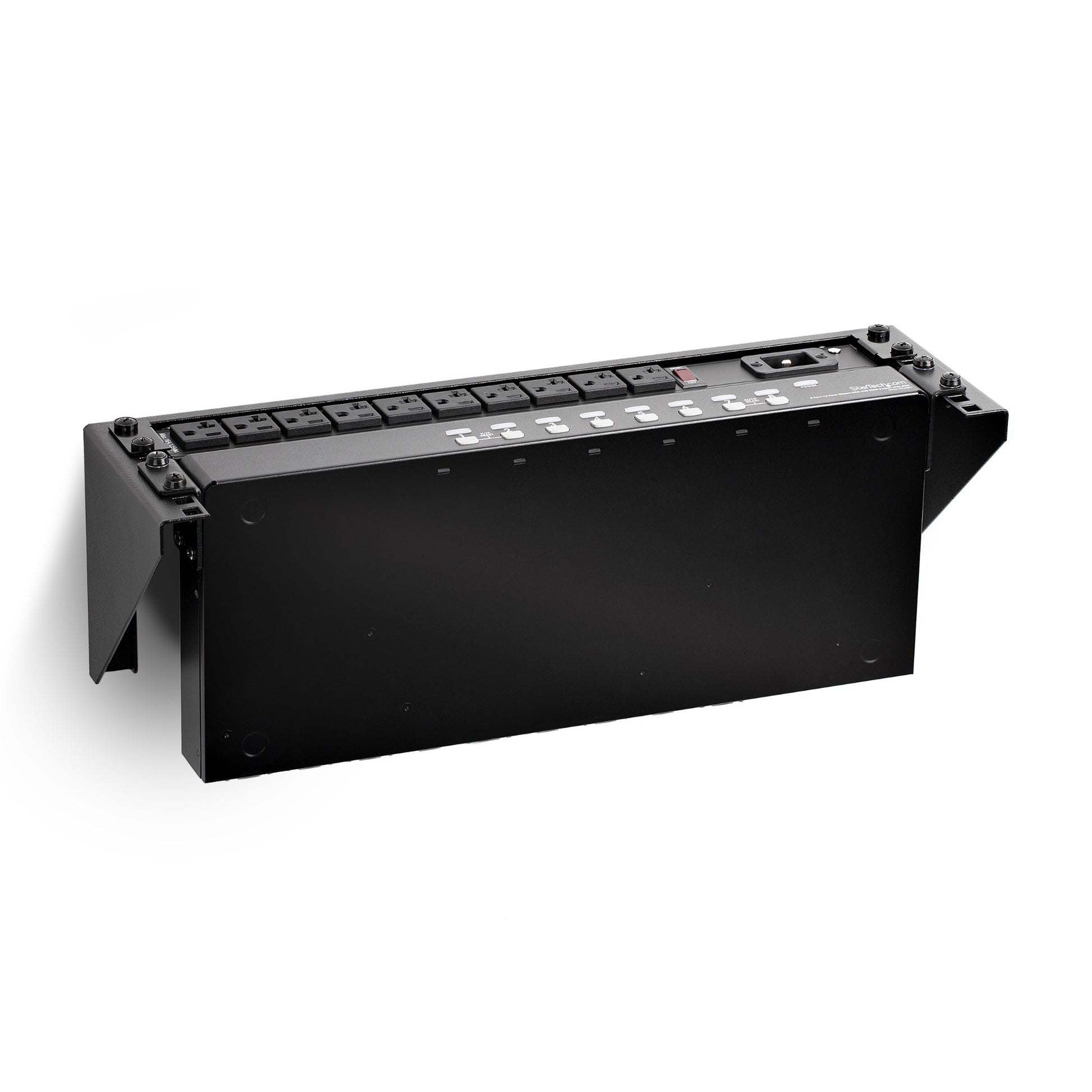

Hardware Included | TAA Compliant | Lifetime WarrantyThis 3U 19 in server room rack enables vertical mounting of rack-mounted equipment of any depth. Mount the bracket to a wood stud wall and position equipment vertically, maximizing space utilization and optimizing layout design. The open-frame design allows for unrestricted airflow to the mounted equipment, improving cooling.
Versatile Design

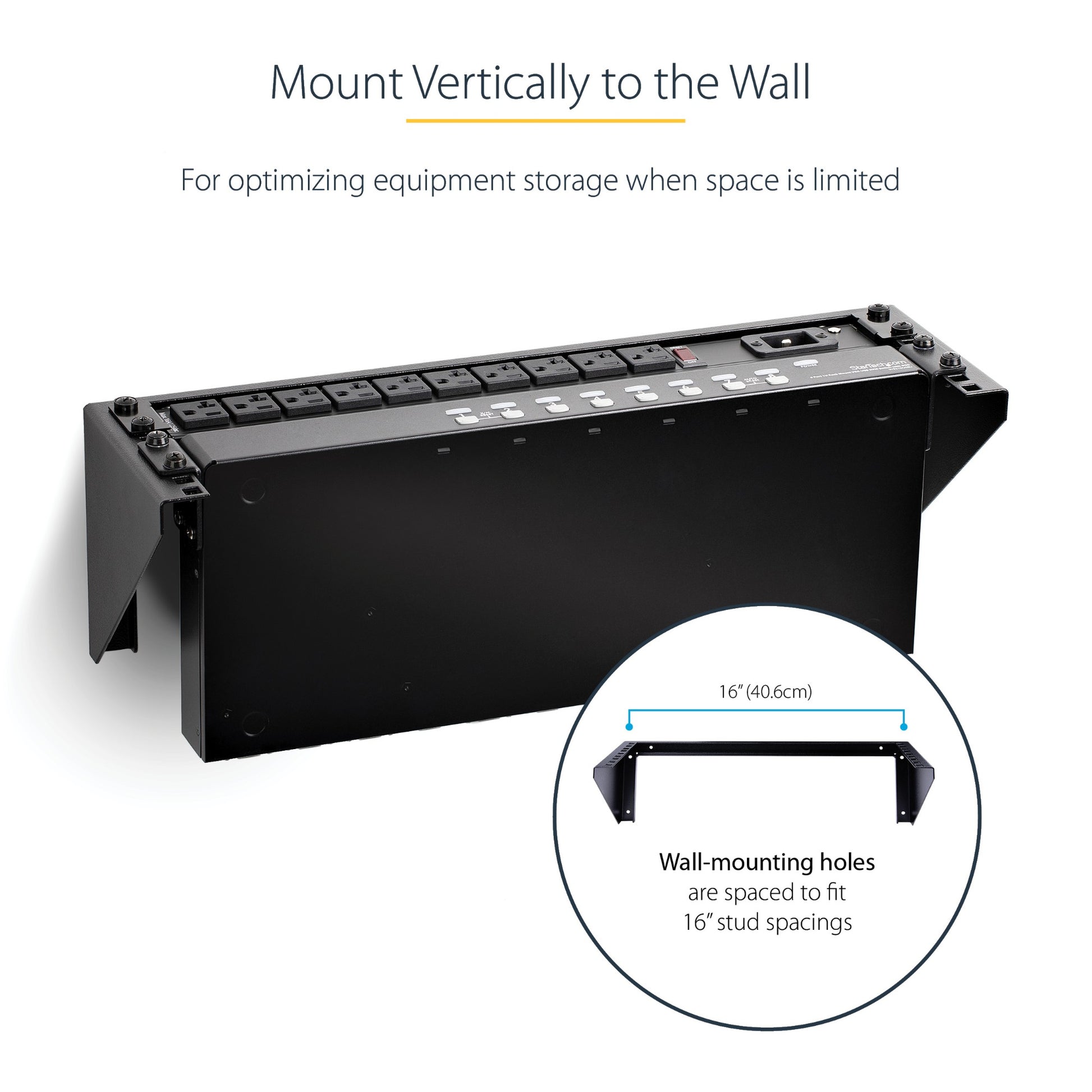

Mount the bracket into a wall featuring wood stud construction, where studs are spaced 16in (40.6cm) apart. The patch panel wall mount rack is perfect for SoHo (small office, home office) and other small footprint applications allowing you to vertically mount up to 150lb (68kg) of standard rack equipment into this 14-gauge steel bracket. The mounting holes are positioned 16in (40.6cm) apart, matching the standard for construction framework.
Included Hardware

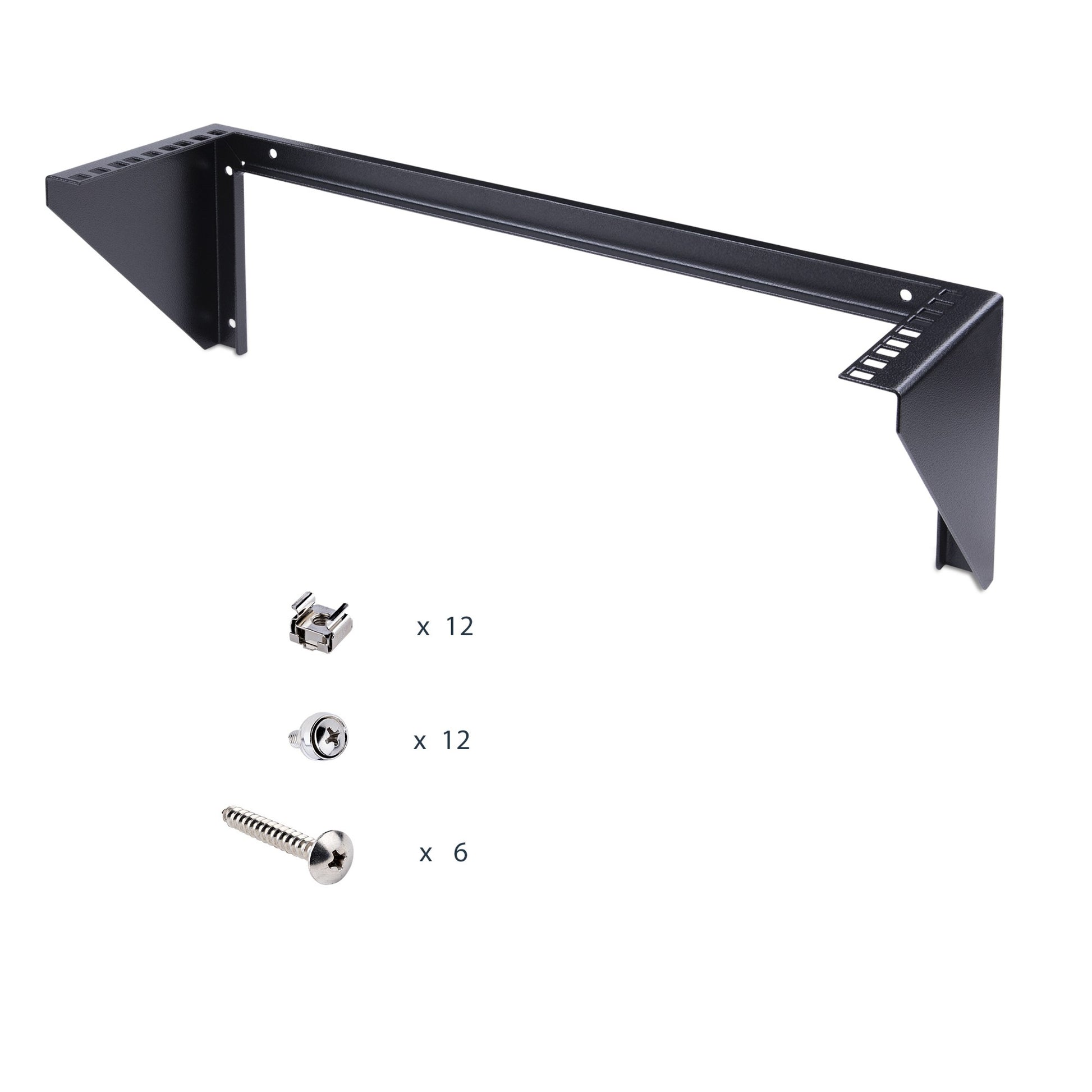

The vertical wall mount network rack conveniently includes 6x wood screws, 12x M5 square cage nuts, and 12x M5 screws to attach the rack to a wall and mount your equipment.
The wall mount vertical rack is backed for life, including free lifetime 24/5 multi-lingual technical assistance.

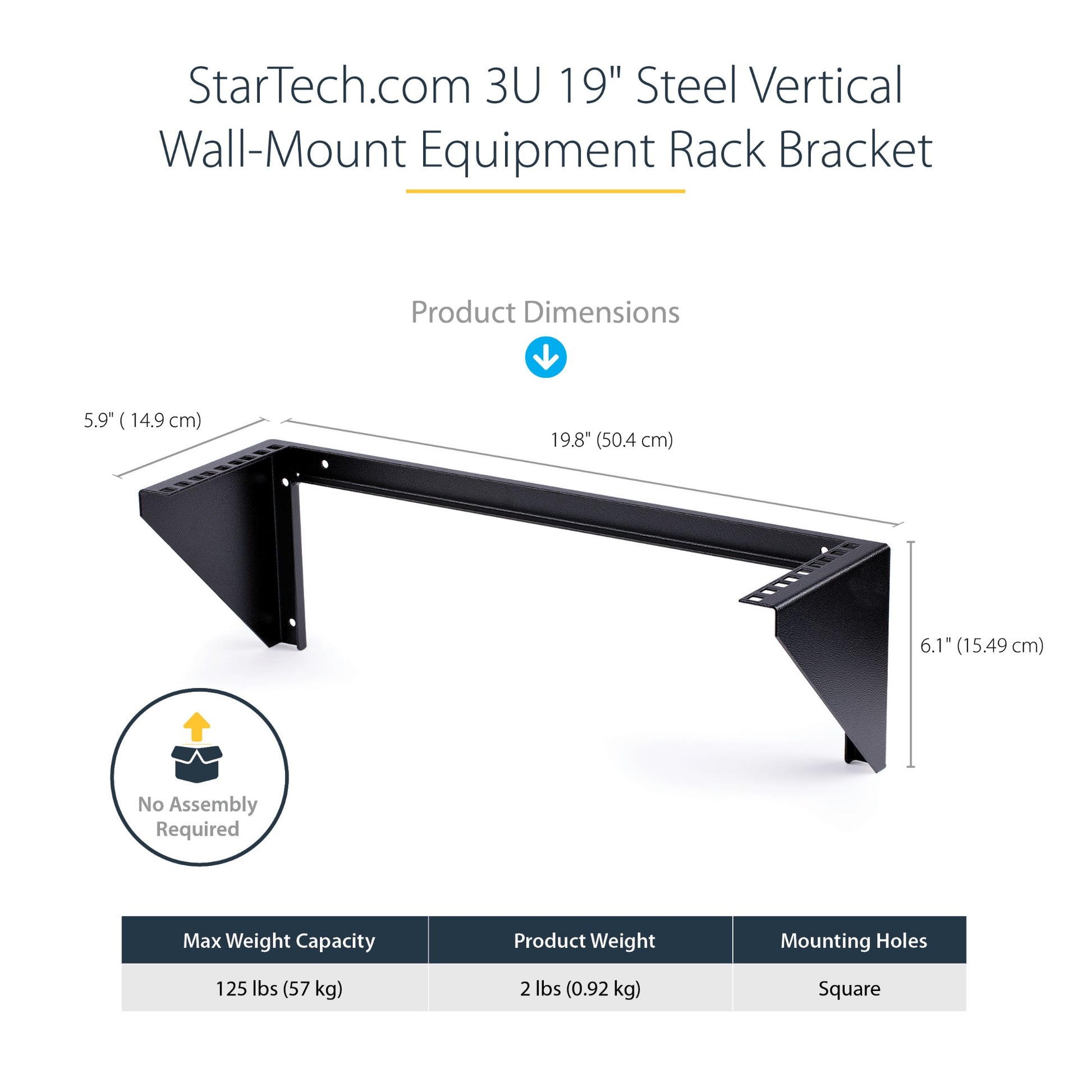

Specifications
| Weight & dimensions | |
|---|---|
| Package depth | 176 mm |
| Package width | 545 mm |
| Package height | 171 mm |
| Package weight | 1.4 kg |
| Inner width | 46.5 cm |
| Width | 503 mm |
| Depth | 151 mm |
| Height | 149 mm |
| Weight | 921 g |
| Maximum weight capacity | 56.7 kg |
| Packaging content | |
| Wall mounting kit | Yes |
| Manual | Yes |
| Mounting kit | Yes |
| Nuts included | Yes |
| Number of nuts | 12 |
| Screws included | Yes |
| Number of screws | 18 |
| Features | |
| Number of fans | 0 fan(s) |
| Frame type | Open |
| Product design | 2-post |
| Rack capacity | 3U |
| Mounting hole shape | Square |
| Type | Wall mounted rack |
| Material | Steel |
| Product colour | Black |
| Certification | REACH, CE, UL, TAA |
| Technical details | |
| Compliance industry standards | EIA/ECA-310-E |
| Harmonized System (HS) code | 85381000 |
| Compliance certificates | RoHS |
| Logistics data | |
| Master (outer) case width | 164 mm |
| Master (outer) case length | 518 mm |
| Master (outer) case height | 174 mm |
| Products per master (outer) case | 1 pc(s) |
