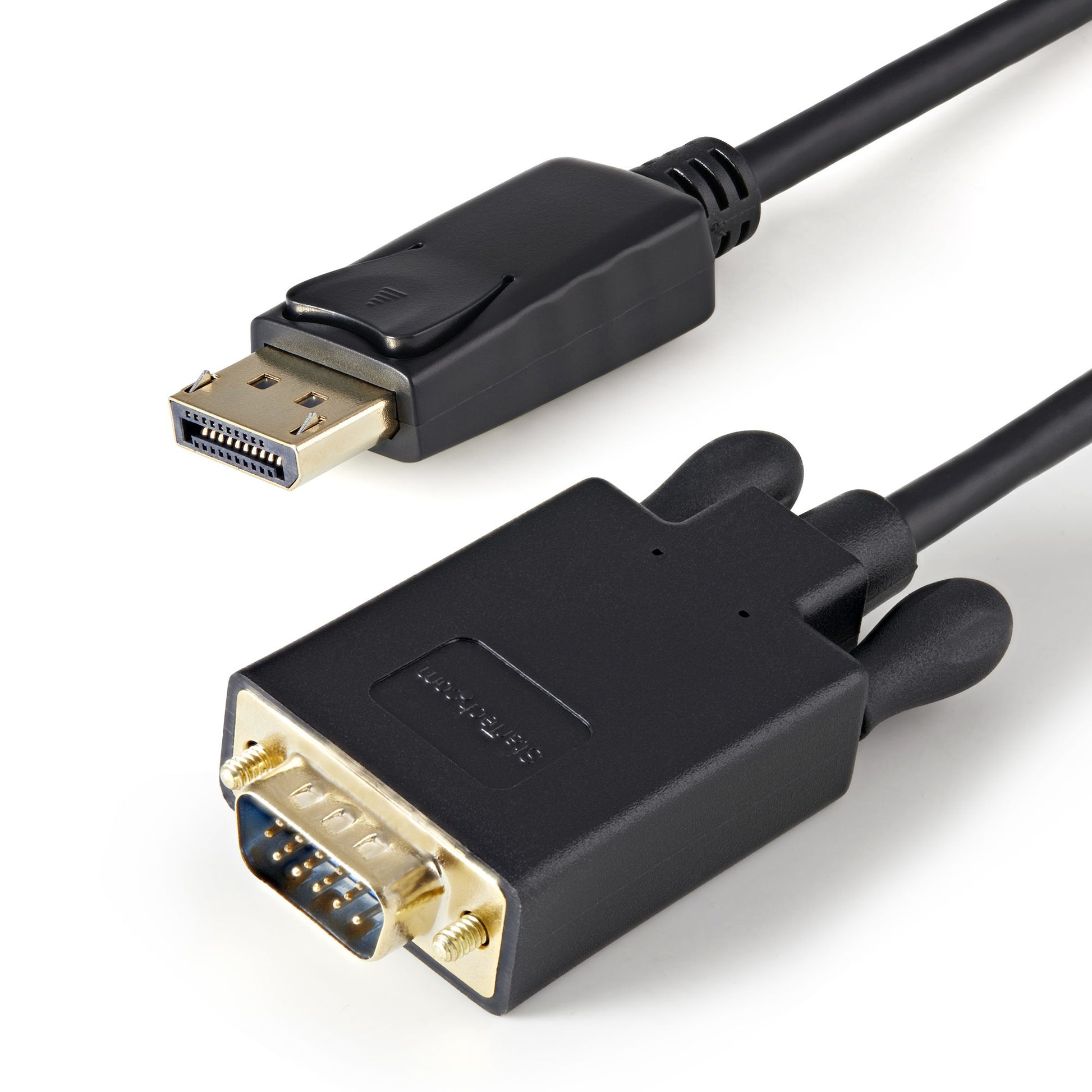

StarTech.com 3ft (91cm) DisplayPort to VGA Cable - Active DisplayPort to VGA Adapter

Make the connection with the StarTech.com 3ft (91cm) DisplayPort to — length and connector details are in the spec table.

Connect a DisplayPort-equipped PC to a nearby VGA monitor/Projector, with a short 3 foot cable

The DP2VGAMM3B active DisplayPort to VGA converter cable lets you connect your DisplayPort-equipped desktop or laptop directly to a nearby VGA monitor or projector, saving the expense of additional adapters while eliminating the clutter of excess cable.

Plus, because the converter cable supports video resolutions up to 1920x1200 you can convert a DisplayPort video source to VGA without sacrificing video quality.

The DP2VGAMM3B is backed by a 3-year StarTech.com warranty and free lifetime technical support.

Specifications

Features
Converter type	Active video converter
Chipset	Analogix - 9832
DisplayPort version	1.2
Product colour	Black
Cable length	0.91 m
Connector 1	DisplayPort
Connector 2	VGA (D-Sub)
Connector 1 gender	Male
Connector 2 gender	Male
Maximum resolution	2048 x 1280 pixels
Supported graphics resolutions	1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2048 x 1280
Plug and Play	Yes
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Maximum refresh rate	60 Hz
HBR2 support	Yes
Operational conditions
Operating temperature (T-T)	0 - 60 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	40 - 85%
Certificates
Compliance certificates	CE, RoHS
Other features
Width	40 mm
Height	15 mm
Depth	915 mm
Weight & dimensions
Weight	79 g
Package width	200 mm
Package depth	220 mm
Package height	15 mm
Package weight	90 g
Packaging data
Quantity per pack	1 pc(s)
Technical details
Harmonized System (HS) code	84733080
Logistics data
Master (outer) case width	420 mm
Master (outer) case length	440 mm
Master (outer) case height	420 mm
Products per master (outer) case	200 pc(s)

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
